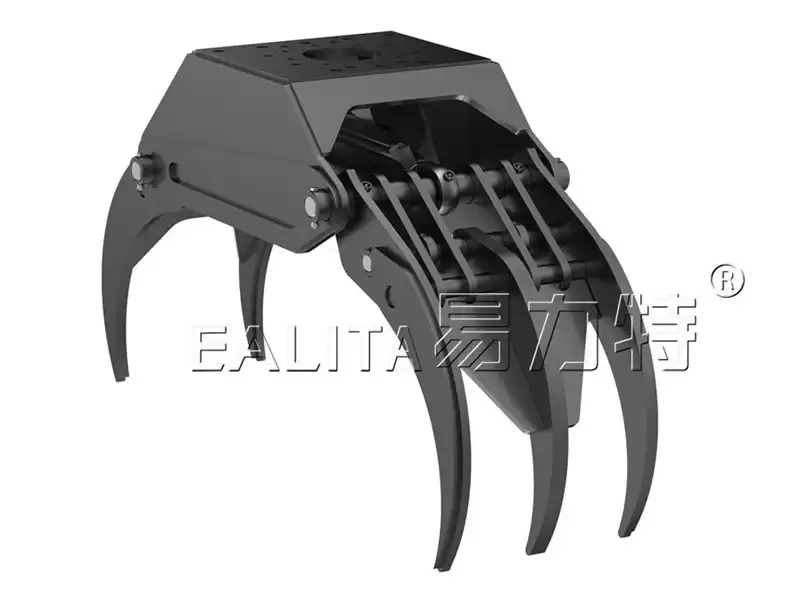

If you work in an ever changing variety of materials, then the five finger grapple series may be the best choice for you.
Five finger grapples allow wide opening widths to pick up large amounts of material and give great capacity but still allowing very tight closing to handle a variety of sizes.
Specification
|
Type
|
Max Opening
|
Capacity
|
Grip Area
|
Weight
|
|
E-DG12
|
810mm
|
800kg
|
0.12cu.m
|
72kg
|
E-DG16
|
950mm
|
1000kg
|
0.16cu.m
|
99kg
|
E-DG22
|
1225mm
|
3000kg
|
0.20cu.m
|
180kg
|
E-DG25
|
1500mm
|
3000kg
|
0.25cu.m
|
252kg
|
E-DG35
|
1890mm
|
7000kg
|
0.38cu.m
|
410kg
|
E-DG42
|
1895mm
|
8000kg
|
0.50cu.m
|
530kg
|
