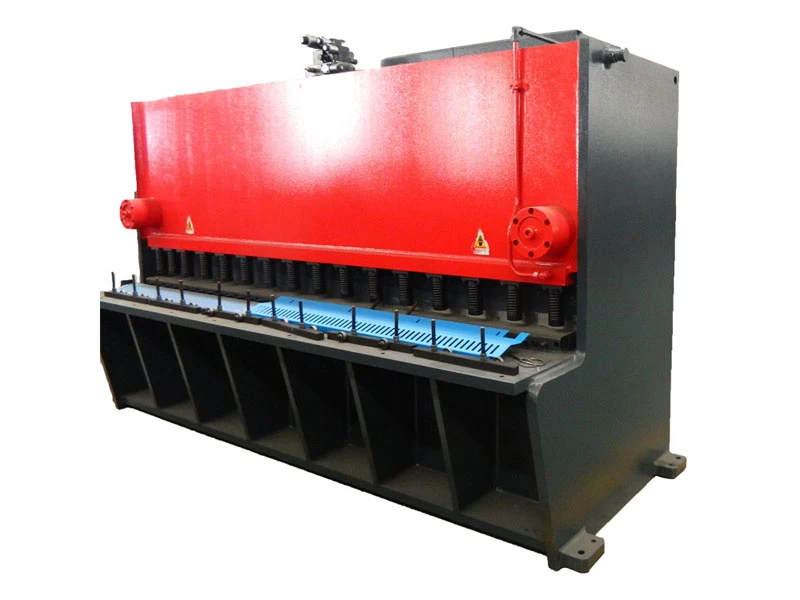

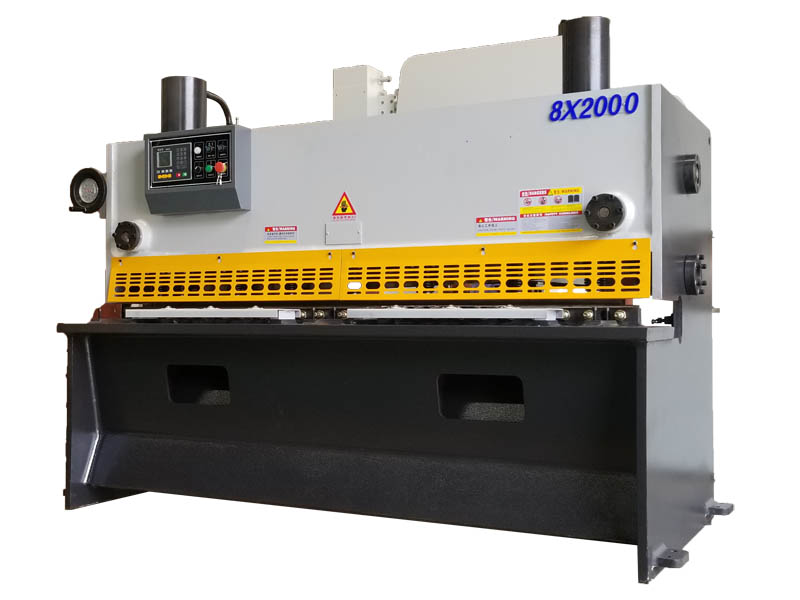

Hydraulic Guillotine Shearing Machine

Hydraulic Guillotine Shearing Machine uses blades to cut a variety of metal sheets, including carbon steel, stainless steel, galvanized sheet, cold-rolled sheets, hot-rolled plates, aluminum sheets and more.

Using Estun E21S P40 HT072 Delem DAC360 Controller



Product Item:Hydraulic Guillotine Shearing Machine


Guillotine Cutting Machine Main Features:

1.Streamlined design originated from EU, main structure consists of rack, cutter holder, oil cylinder, hydraulic controller, backgauge and others. Finite-element analysis of main parts, Welding parts uses tempering, vibration and other processing methods to eliminate stress ensuring the structural strength and rigidity of each component;

2.Cutter holder use three-point support rolling guide rail, reducing the friction to the greatest extent, and realizing seamless rolling during cutter holder moving.

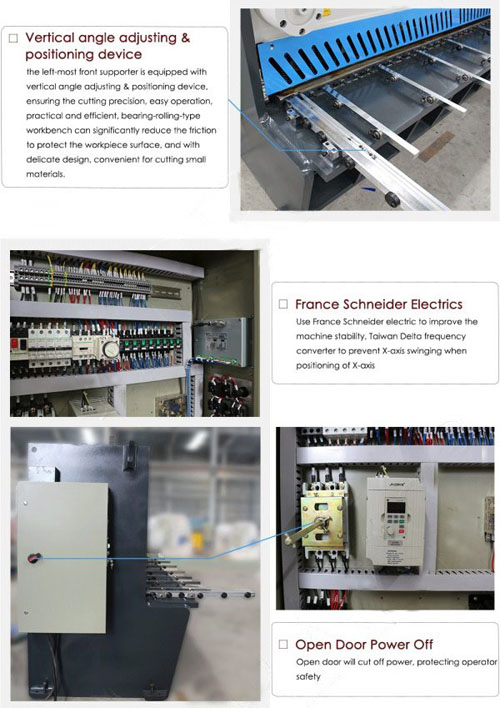

3.Left-most front holder configured with verticality regulator and front positioning device, easy operation and high efficiency;

4.Simple and effective blade adjusting mechanism rearranges blade clearance by CNC system, improving the cutting quality.

5.Fine ball screw and polished rod structure, using good-performance frequency converter positions X axis to ensure accuracy, unique designed timing transmission mechanism, stable and reliable.

6.Light and shadow line is conductive to manual scribing for cutting; stable and reliable hydraulic transmission; integrated hydraulic system is able to significantly alleviate problems causing by hydraulic fluid leakage.

7.Made by high-quality alloy tool steel capable enough to against impact load and high wear resistance when cutting;

8.With reference to ergonomic design, easy operation with CNC system surface, improving the operation precision and comfortability; rolling ball workbench to reduce friction and prevent work piece surface from scratching; unique and practical safety guard, line with

safety specifications, protect the personal safety; exquisite design, petty work piece can be done easily by hand.


Standard Configuration:

●Estun E21S NC controller

●Electrically controls backgauge X-axis

●DELTA frequency converter and controller

●HIWIN ball screw and polished rod with accuracy of 0.05mm.

●Controller cantilever and front supporter

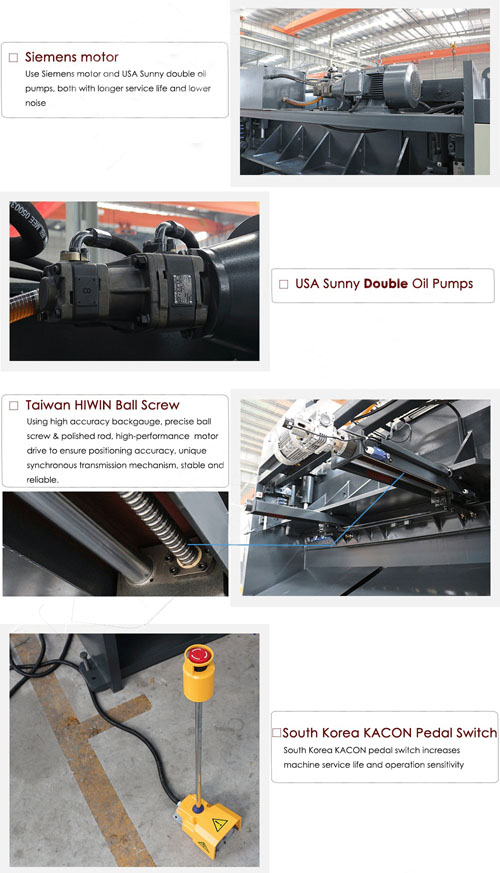

●Germany Bosch Rexroth integrated hydraulic valve

●Germany EMB oil tube connector and high-pressure hose

●Germany Siemens main motor

●Germany Schneider electrics

●Hydraulic and electrical overload protection

●Light aligning

●Blade materials ( Cr12MoV )

●South Korea KACON pedal switch

●Cutting angle adjustment

●Electrically adjusts the blade clearance

Safety Standard:

●Safety standards(2006/42/EC)

●Open electric cabinet and front safeguard door to cut off power

●South Korea KACON pedal switch (safety grade 4)

●Rear metal safeguard rail, CE standard

●Safety relay monitors pedal switch, safety protection

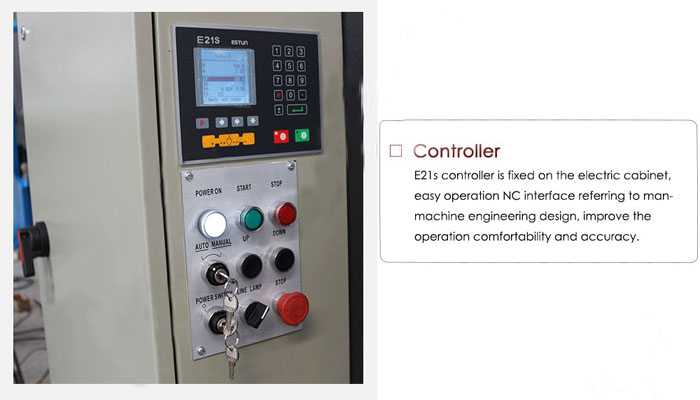

Estun E21S NC Controller:


●High-definition LCD display in Chinese or English, multi-step programming, 40 programs, 25 working steps for each program

●Backgauge: intelligent positioning or manually adjusts when need, removing mechanical hand positioning device.

●Cutting stroke: built-in time relay, easy operation and low cost

●Cutting angle: built-in adjusting device for regulating cutting angle, removing angle indicator and button

●Blade clearance: encoder feedback, timely display the clearance between blades

●One-key restores and backup parameters

●Control the cutting angle and blade clearance

●mm /inch

Specification Parameters:

Model Shear plate thickness Shearableplate width Number of trips Back gauge range Shear angle Main motor power
mm mm Times/min mm ° kw
6×2500 6 2500 20-25 600 0.5-1.5 7.5
6×3200 6 3200 16-25 600 0.5-1.5 7.5
6×4000 6 4000 14-25 600 0.5-1.5 7.5
6×5000 6 5000 10-15 800 0.5-1.5 7.5
6×6000 6 6000 10-15 800 0.5-1.5 11
8×2500 8 2500 18-25 600 0.5-1.5 11
8×3200 8 3200 16-25 600 0.5-1.5 11
8×4000 8 4000 12-25 600 0.5-1.5 11
12×2500 12 2500 12-20 600 0.5-2 15
12×3200 12 3200 12-20 600 0.5-2 15
12×4000 12 4000 12-20 600 0.5-2 15
16×2500 16 2500 10-15 800 0.5-2.5 18.5
16×3200 16 3200 10-15 800 0.5-2.5 18.5
16×4000 16 4000 8-15 800 0.5-2.5 18.5
20×2500 20 2500 8-12 800 0.5-2.5 30
20×4000 20 4000 8-12 800 0.5-2.5 30
25×2500 25 2500 6-10 800 0.5-3.5 37
25×3200 25 3200 6-10 800 0.5-3.5 37
25×4000 25 4000 6-10 1000 0.5-3.5 37
32×2500 32 2500 6-8 1000 0.5-3.5 45
32×3200 32 3200 6-8 1000 0.5-3.5 45
40×2500 40 2500 4-8 1000 0.5-3.5 75

Please contact us for other parameters.

Standard/Optional Configuration List:

No Accessory Model / Manufacturer Other Configuration
1 CNC System
E21s NC System  ESTUN
Standard
2 Electrics
Schneider Electric ‐ France
Travel switch & Limit switch
3 Main Motor
Siemens Motor ‐ Germany
4 Backgauge, Timing Belt, Timing Pulley
Taiwan

Positioning control

Guaranteed Precision

5 Frequency Converter
DELTA‐Taiwan
6 Foot Switch
KACON ‐ South Korea
7 Hydraulic System
Bosch Rexroth ‐ Germany
8 Cutting Angle Adjustment Method
Motor-driven
9 Sealing Ring
PARKER – America / NOK‐Japan
10 Oil Tube Connector
EMB ‐ Germany
11 Front Safety Guard
DURMACNC
12 Back Safety Guard
DURMACNC
13 Back Blanking Plate
DURMACNC
14 Backgauge
HIWIN Ball Screw and polished rod ‐Taiwan
15 Pneumatic Back Supporter
DURMACNC
Optional
16 Blade Clearance Adjustment Method
Motor-driven
17 Before-cutting Feeder
DURMACNC
18 Front Photoelectric Protection
LNTECH ‐ Shandong
19 Back Photoelectric Protection
LNTECH ‐ Shandong
20 Pneumatic Supporter
DURMACNC
21 Safety Standards
CE   □CSA   NR‐12   □OSHA
