Hydraulic piston PTFE SPGO seal

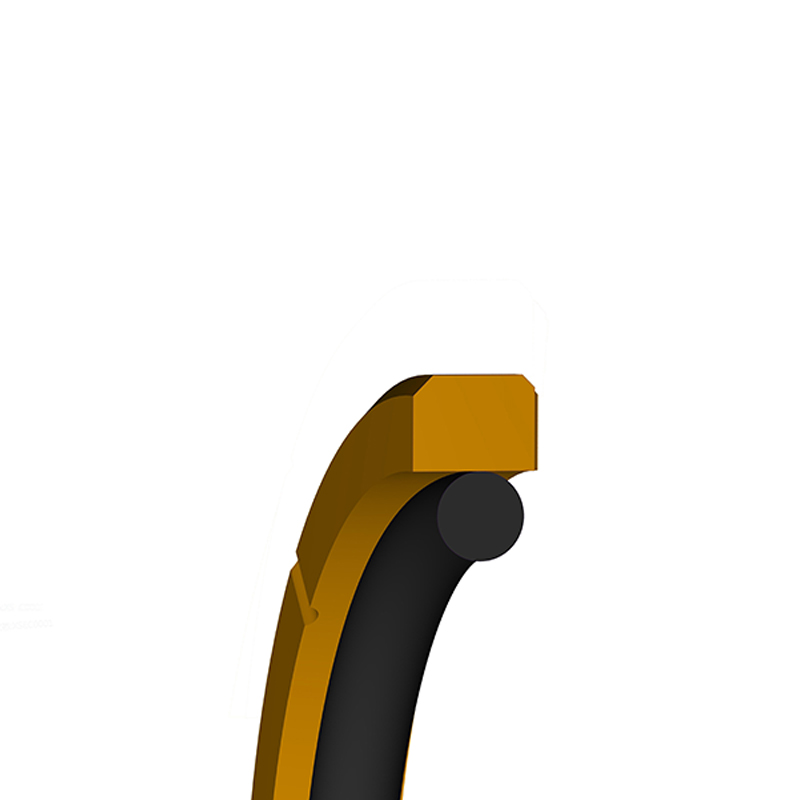

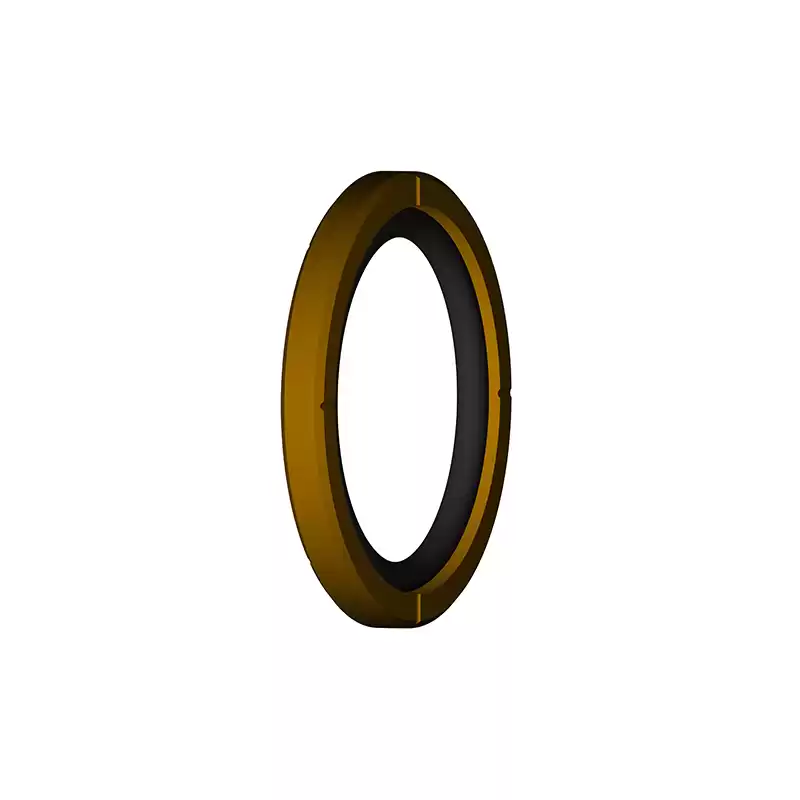

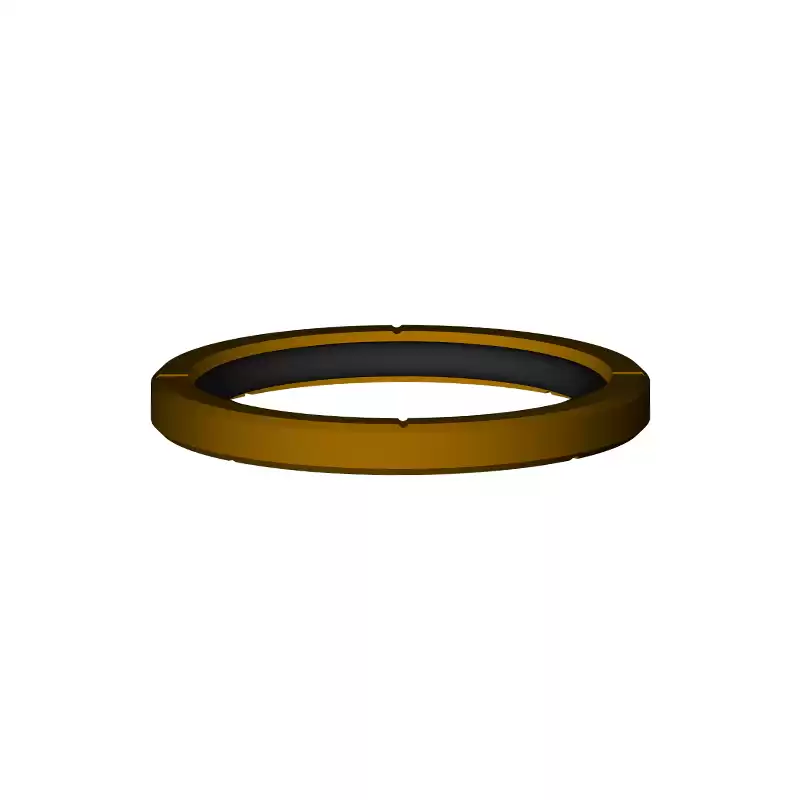

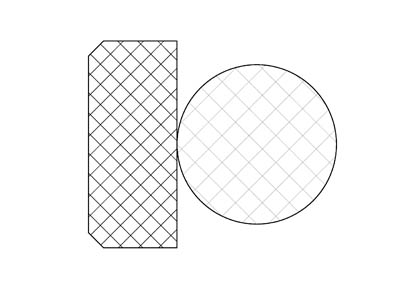

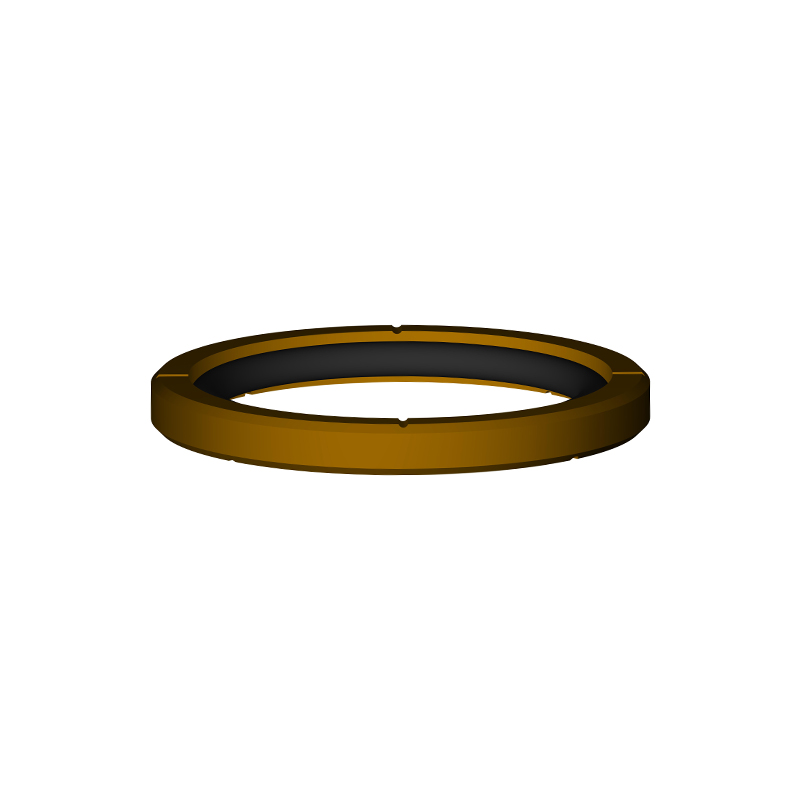

Hydraulic Piston SPGO Seals is a low friction piston seal consisting of PTFE+Bronze seal ring and rubber o-ring used for two-way piston seal of Hydraulic cylinder, to seal in fluid, thus preventing the flow of fluid across the piston, allowing pressure to build up on one side of the piston.
|
Advantages:
1. Good sealing effect in Dynamic and static sealing
2. Minimal start-up and movement friction, no creeping
3. High pressure resistance, High temperature resistance
4. Simple groove structure and easy installation
|
Working Conditions
|
Working Pressure
|
Working Temperature
|
Working Speed
|
Working Medium
|
Material
|
≤40Mpa
|
-30℃ to +110℃
-25℃ to +220℃
Depending on material selected.
|
≤4m/s
|
Hydraulic oil; Gas; Water; etc
|
PTFE Band: Bronze filled PTFE
O Ring:
NBR, A70±5
FKM, A75±5
|
Application Suggestion:
SPGO Piston Seal is used in piston of cylinder,such as pressure equipment,engineering hydraulic machinery,metallurgical machinery,machine tool,Servo hydraulic system and control oil cylinder.
Size:
Diameter: φ8-φ500mm
|
|
PN.
|
Size
|
Material
|
|
GTP(SPGO)
|
70X54.5X6.3
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
75X59.5X6.3
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
80X64.5X6.3
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
80X59X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
85X69.5X6.3
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
85X64X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
90X74.5X6.3
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
90X69X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
95X79.5X6.3
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
95X74X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
100X84.5X6.3
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
100X79X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
105X89.5X6.3
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
105X84X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
110X94.5X6.3
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
110X89X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
115X99.5X6.3
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
115X94X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
120X104.5X6.3
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
120X99X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
125X109.5X6.3
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
125X104X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
130X109X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
135X114X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
140X119X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
145X124X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
150X129X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
160X139X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
165X144X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
170X149X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
180X159X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
185X164X8.1
|
PTFE+Bronze, NBR
|
|
GTP(SPGO)
|
190X169X8.1
|
PTFE+Bronze, NBR
|
