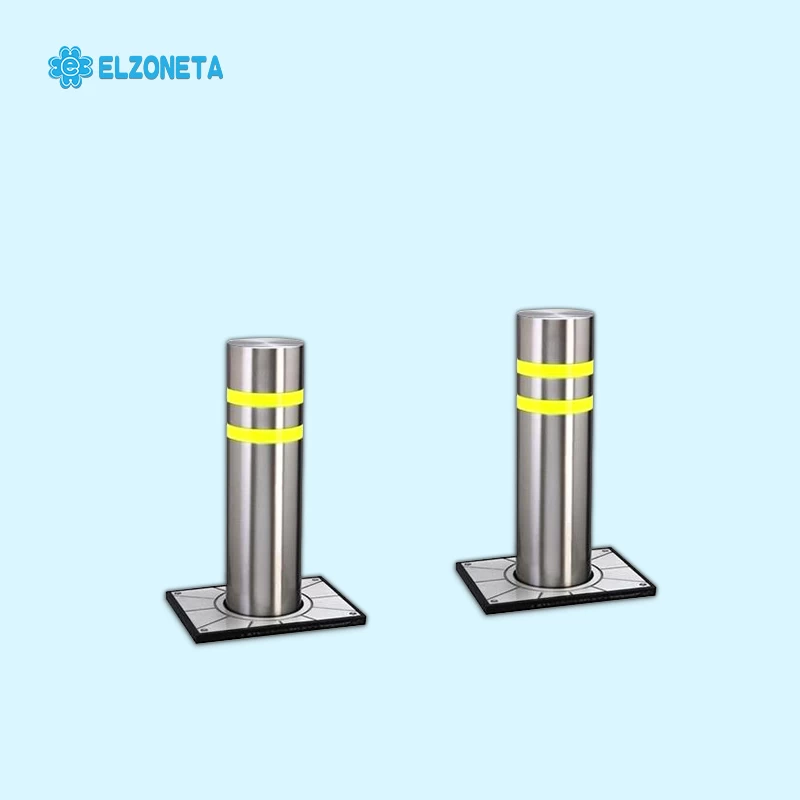

EC-ACS-LB01 Automatic Retractable Lifting Bollards

Specification

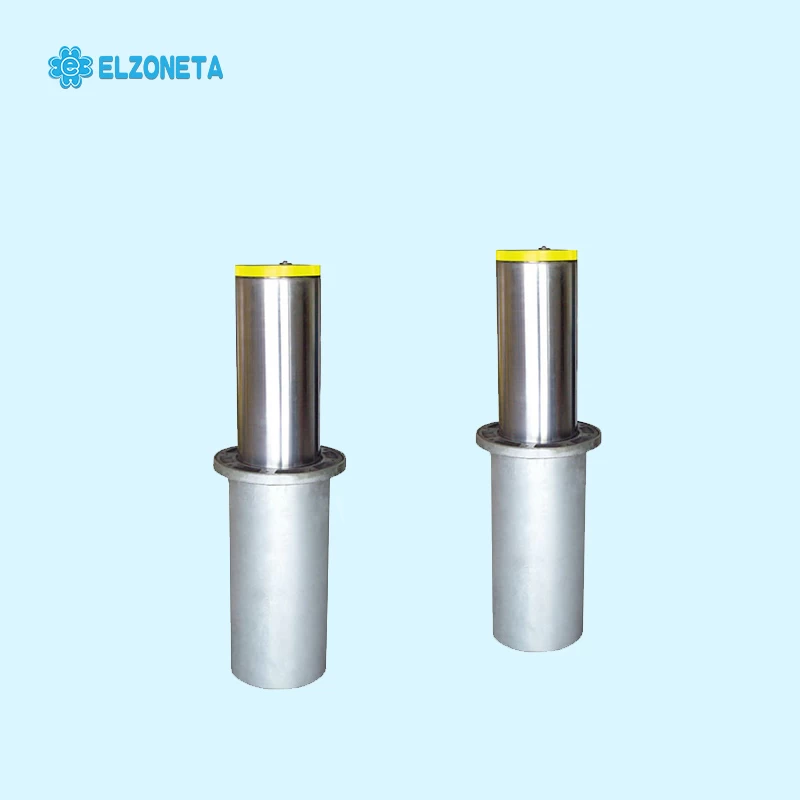

Parts of bollard :

1.bollards body;

2.automatic control board;

3.hydraulic pressure integration

Power (v) : 220±10％ 50Hz

Power consumption (W): 330

Size (mm): ∮400*∮325*1100(±10mm）

Diameter of bollards : 219mm / 273mm (±2mm）

Thickness size (mm) : 6mm optional

Raising height (mm):600 (±2mm)

Up and down time : 5 seconds up, 3 seconds down

Material : Stainless steel

Protect grade : IP68

Anti-damage grade : M30~M50

Operating temperature : -30~+70℃

Weight (kg): 130~160
