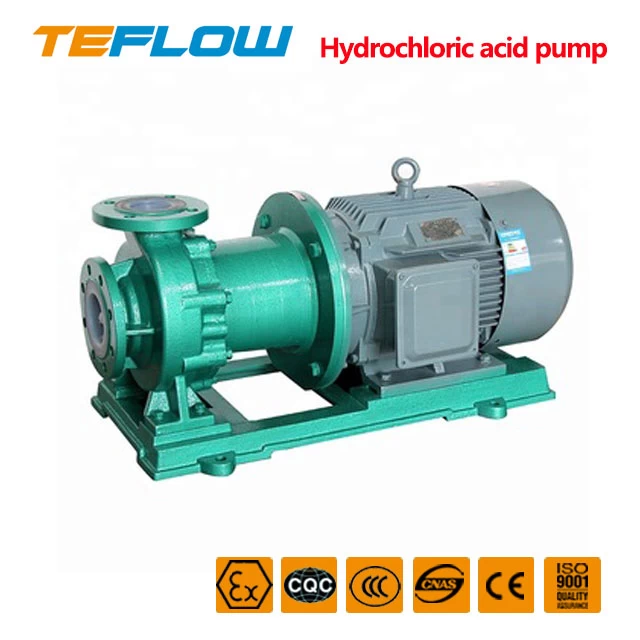

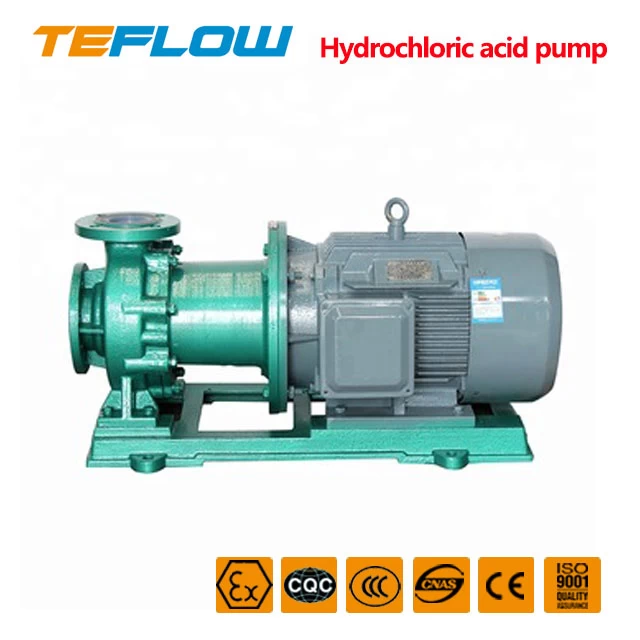

Hydrochloric acid magnetic pump for chemical industry（Better than IWAKI）
The magnetic drive pump is made of polypropylene or ETFE (Teflon) structure, up to 1060 GPM. TEFLOW pumps are ideal for treating a variety of chemicals, including acids and bases, as well as high-purity chemicals and ultra-pure water.
Produced by TEFLOW acid-resistant magnetic pump, specially designed for transfer of industrial corrosive liquid pumps, made of lining plastic material (PTFE,FEP,PVDF,PFA,TEFLON), capable of withstanding any corrosive liquid between 0 ℃ and 150 ℃, including sulfuric acid, nitric acid, hydrochloric acid, acetic acid, Caustic soda, sodium chloride, Reliable quality, no leakage, factory direct sales, export quality.
Through flange connection pipe, can be made into Chinese standard, ANSI standard, Japanese JIS standard, welcome to customize.TMF fluorine plastic magnetic pump, made of HT200 steel lining corrosion-resistant plastic, specializing in the transportation and transportation of all kinds of acid. It is ideal for a variety of acidic liquid projects.The products are made according to CE,ISO9001 standard and can be customized to ANSI flange standard.
Anhui Tenglong pump and valve magnetic pump main parameters:
-
Flow: 1.6m³/ h-200m³/ h（1600L/h-200000L /h）.
-
Head: 5 m-80 m (0.5bar-8bar).
-
Power: 1.5kW-55kW (2HP-75HP).
-
Suitable medium: any concentration of hydrochloric acid, alkali, salt, organic solvent, etc.
-
Operating temperature: 0 ℃ to 150 ℃ /medium density: 1.8 or lower.
Our company can according to the actual working conditions, choose different configurations, to provide accurate solutions. For technical advice, please call the Service Hotline: + 86 (0086) 1813 0250095 E-mail:tlpumps@tlpumps.com
Click here,The professional engineer will help you solve the problem.
-
1. High temperature type-G, high temperature 180 degrees Celsius.
-
2. Alkali type-J, transportation of alkaline liquid.
-
3. Granular-K, transport 10% granular material.
-
4. Through flange connection pipe, can be made into Chinese standard, ANSI standard, Japanese JIS standard, welcome to customize.
Click here to get quotations and technical information immediately.
