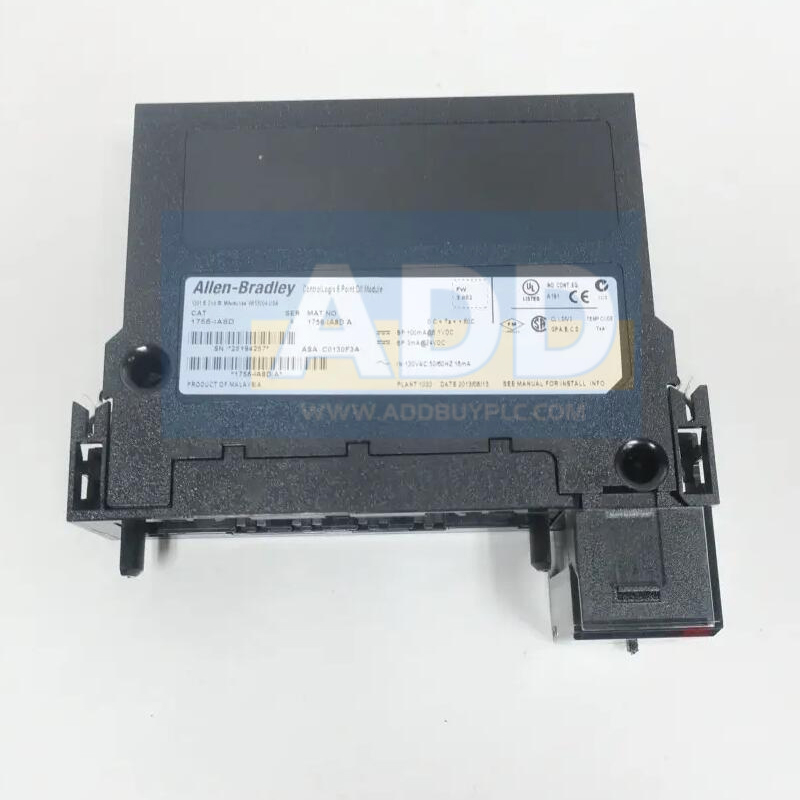

Allen-Bradley 1756-IA8D

Allen-Bradley 1756-IA8D 10-30 VDC Individually Isolated Input 16 Pts (36 Pin) Open wire:Off-state leakage current 1.5 mA min Loss of power:Transition range 46…85V AC Time stamp of diagnostics:±1 ms

Allen-Bradley 1756-IA16 79-132 VAC Input 16 Pts (20 Pin) Current draw @ 5.1V:100 mA Current draw @ 24V:2 mA Total backplane power: 0.58 W Power dissipation, max:5.8 W @ 60 °C (140 °F) Thermal dissipation:18.41 BTU/hr

Allen-Bradley 1756-IA16I

Allen-Bradley 1756-IA16I 79-132 VAC Isolated Input 16 Pts (36 Pin) Inputs:16 individually isolated Voltage category:120V AC 50/60 Hz Operating voltage range(1):79…132V AC,47…63 Hz Input voltage, nom:120V AC 50/60 Hz

Allen-Bradley 1756-IM16I

Allen-Bradley 1756-IM16I 159-265 VAC Isolated Input 16 Pts (36 Pin) Inputs:16 individually isolated Voltage category:240V AC 50/60 Hz Operating voltage range:159…265V AC,47…63 Hz Input voltage, nom:240V AC 50/60 Hz

Allen-Bradley 1756-IN16

Allen-Bradley 1756-IN16 10-30 VAC Input 16 Pts (20 Pin) Inputs:16 (8 points/group) Voltage category:24V AC 50/60 Hz Operating voltage range:10…30V AC,47…63 Hz Input voltage, nom:24V AC 50/60 Hz Voltage and current ratings:Backplane: 5.1V DC, 135 mA 24V DC, 2 mA Inputs: 10...30V AC, 50/60Hz 25 mA max

Allen-Bradley 1756-IA32

Allen-Bradley 1756-IA32 74-132 VAC Input 32 Pts (36P) Inputs:32 (16 points/group) Voltage category:120V AC 50/60 Hz Operating voltage range:74…132V AC,47…63 Hz Input voltage, nom:120V AC 50/60 Hz

Allen-Bradley 1756-IB16

Allen-Bradley 1756-IB16 10-31 VDC Input 16 Pts (20 Pin) Inputs:16 (8 points/group) Voltage category:12/24V DC sink Operating voltage range:10…31.2V DC Input voltage, nom:24V DC

Allen-Bradley 1756-IB16D

Allen-Bradley 1756-IB16D 10-30 VDC Diagnostic Input 16 Pts (36 Pin) Open wire:Off-state leakage current 1.2 mA min Time stamp of diagnostics:±1 ms

Allen-Bradley 1756-IB16I

Allen-Bradley 1756-IB16I 10-30 VDC Isolated Input 16 Pts (36 Pin) Inputs:16 individually isolated Voltage category:12/24V DC sink/source Operating voltage range:10…30V DC Input voltage, nom:24V DC

Allen-Bradley 1756-IB16IF

Allen-Bradley 1756-IB16IF 10-30 VDC Fast Isolated Peer to Peer Input 16 Pts (36 Pin) Inputs:16 individually isolated Voltage category:12/24V DC sink/source Operating voltage range:10…30V DC Input voltage, nom:24V DC

Allen-Bradley 1756-IB16ISOE

Allen-Bradley 1756-IB16ISOE 10-30 VDC Individually Isolated Input 16 Pts (36 Pin) Inputs:16 individually isolated, sequence of events Voltage category:24/48V DC sink/source Operating voltage range:10…55V DC Input voltage, nom:24V DC

Allen-Bradley 1756-IB16S

Allen-Bradley 1756-IB16S 10-30 VDC Safety Input 16 Pts (36 Pin) On-state voltage range:10...32V DC On-state current, @ on-state min voltage:2.4 mA @ 10V On-state current, @ on-state nom voltage:2.5 mA @ 24V On-state current, @ on-state max voltage:2.8 mA @ 32V Off-state voltage, max:5V DC

Allen-Bradley 1756-IC16

Allen-Bradley 1756-IC16 30-60 VDC Input 16 Pts (20 Pin) Inputs:16 (8 points/group) Voltage category:48V DC sink Operating voltage range:30…55V DC @ 60 °C (140 °F),30…60V DC @ 55 °C (131 °F) Input voltage, nom:48V DC

Allen-Bradley 1756-IG16

Allen-Bradley 1756-IG16 0-5 VDC TTL Input (Low True) 16 Pts (20 Pin) Inputs:16 (8 points/group) Voltage category:5V DC TTL source (Low=True)(1) Operating voltage range:4.5…5.5V DC 50 mV P-P ripple max

Allen-Bradley 1756-IH16I

Allen-Bradley 1756-IH16I 90-146 VDC Isolated Input 16 Pts (36 Pin) Inputs:16 individually isolated Voltage category:125V DC sink/source Operating voltage range:90…146V DC(1) Input voltage, nom:125V DC

Allen-Bradley 1756-IV16

Allen-Bradley 1756-IV16 10-30 VDC Individually Isolated Input 16 Pts (36 Pin) Inputs:16 (8 points/group) Voltage category:12/24V DC source Operating voltage range:10…30V DC Input voltage, nom:24V DC

Allen-Bradley 1756-IV32

Allen-Bradley 1756-IV32 10-30 VDC Individually Isolated Input 16 Pts (36 Pin) Inputs:32 (16 points/group) Voltage category:12/24V DC source Operating voltage range:10…30V DC Input voltage, nom:24V DC

Allen-Bradley 1756-IB32

Allen-Bradley 1756-IB32 10-30 VDC Individually Isolated Input 16 Pts (36 Pin) Inputs:32 (16 points/group) Voltage category:12/24V DC sink Operating voltage range:10…31.2V DC Input voltage, nom:24V DC

Allen-Bradley 1756-OA8

Allen-Bradley 1756-OA8 10-30 VDC Individually Isolated Input 16 Pts (36 Pin) Outputs:8 (4 points/group) Pilot duty: 2 A Voltage category:120/240V AC 50/60 Hz Operating voltage range(1):74…265V AC,47…63 Hz

Allen-Bradley 1756-OA8D

Allen-Bradley 1756-OA8D 10-30 VDC Individually Isolated Input 16 Pts (36 Pin) Short trip, min:12 A for 500 µs No load:Off-state detection only Output verification:On-state detection only Pulse test:Configurable maximum width and max time delay from zero cross Field power loss (zero cross):Detects at 25V peak min (firmware phase locked loop) Time stamp of diagnostics:±1 ms

Allen-Bradley 1756-OA8E

Allen-Bradley 1756-OA8E 10-30 VDC Individually Isolated Input 16 Pts (36 Pin) Short trip, min:>20 A for 100 ms Field power loss (zero cross):Detects at 25V peak min (firmware phase locked loop) Time stamp of diagnostics:±1 ms Outputs:Eight electronic fusings (four points/group)

Allen-Bradley 1756-ON8

Allen-Bradley 1756-ON8 10-30 VDC Individually Isolated Input 16 Pts (36 Pin) Outputs:8 (4 points/group) Voltage category: 24V AC 50/60 Hz Operating voltage range(1):10…30V AC, current >50 mA, 47…63Hz 16…30V AC, current <50 mA, 47…63Hz

Allen-Bradley 1756-OA16

Allen-Bradley 1756-OA16 10-30 VDC Individually Isolated Input 16 Pts (36 Pin) Outputs:16 mechanically fused/group (8 points/group) Pilot duty:0.5 A Voltage category:120/240V AC 50/60 Hz Operating voltage range(1)L:74…265V AC,47…63 Hz

Allen-Bradley 1756-OA16I

Allen-Bradley 1756-OA16I 10-30 VDC Individually Isolated Input 16 Pts (36 Pin) Outputs:16 individually isolated Pilot duty:Yes Voltage category:120/240V AC 50/60 Hz Operating voltage range(1):74…265V AC 47…63 Hz

Allen-Bradley 1756-OB8

Allen-Bradley 1756-OB8 10-30 VDC Individually Isolated Input 16 Pts (36 Pin) Outputs:8 (4 points/common) Pilot duty:Yes Voltage category:12/24V DC source Operating voltage range:10…30V DC

Allen-Bradley 1756-OB8EI

Allen-Bradley 1756-OB8EI 10-30 VDC Individually Isolated Input 16 Pts (36 Pin) Short trip:> 4.5 A for 500 µs max (output on, then short) > 4.5 A for 1.5 ms max (output on into short) Time stamp of diagnostics:±1 ms

Allen-Bradley 1756-OB8I

Allen-Bradley 1756-OB8I 10-30 VDC Individually Isolated Input 16 Pts (36 Pin) Outputs:8 (4 points/common) Pilot duty:Yes Voltage category:12/24V DC source Operating voltage range:10…30V DC

Allen-Bradley 1756-OBV8S

Allen-Bradley 1756-OBV8S 10-30 VDC Individually Isolated Input 16 Pts (36 Pin) On-state voltage, min(1):17.5V DC On-state voltage, nom(1):24V DC On-state voltage, max(1):32V DC On-state voltage drop, max(1):0.5V DC

Allen-Bradley 1756-OB16D

Allen-Bradley 1756-OB16D 10-30 VDC Individually Isolated Input 16 Pts (36 Pin) Short trip:8 A for 180 ms, min 10 A for 120 ms, min No load:Off-state detection only Output verification:On-state detection only Pulse test:Configurable maximum pulse width Time stamp of diagnostics:±1 ms
