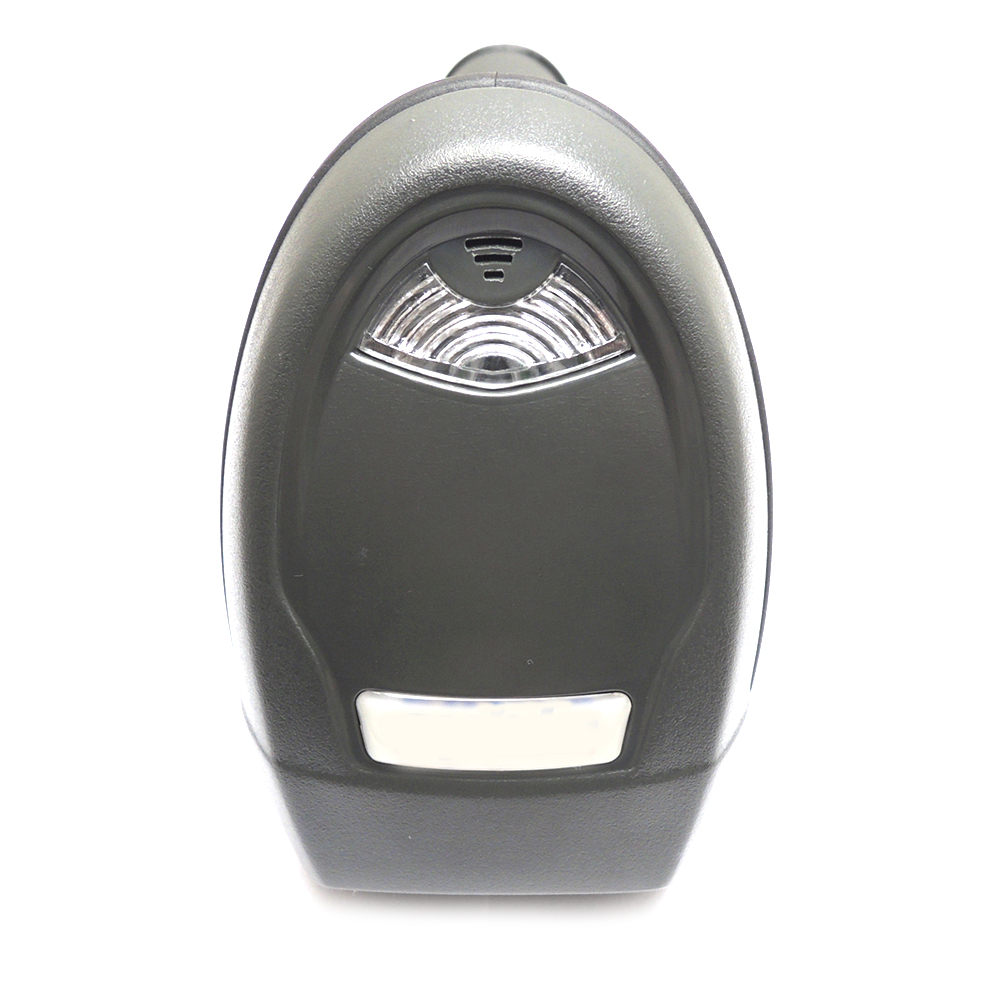

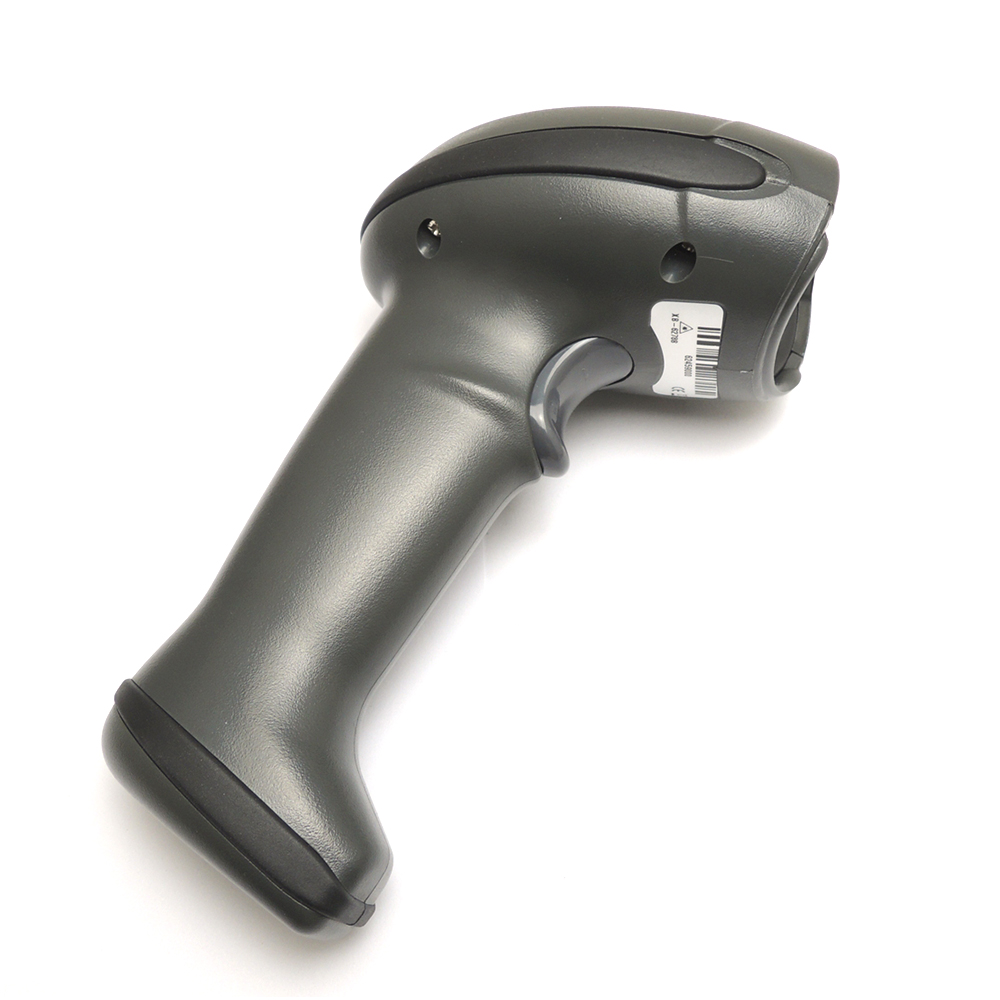

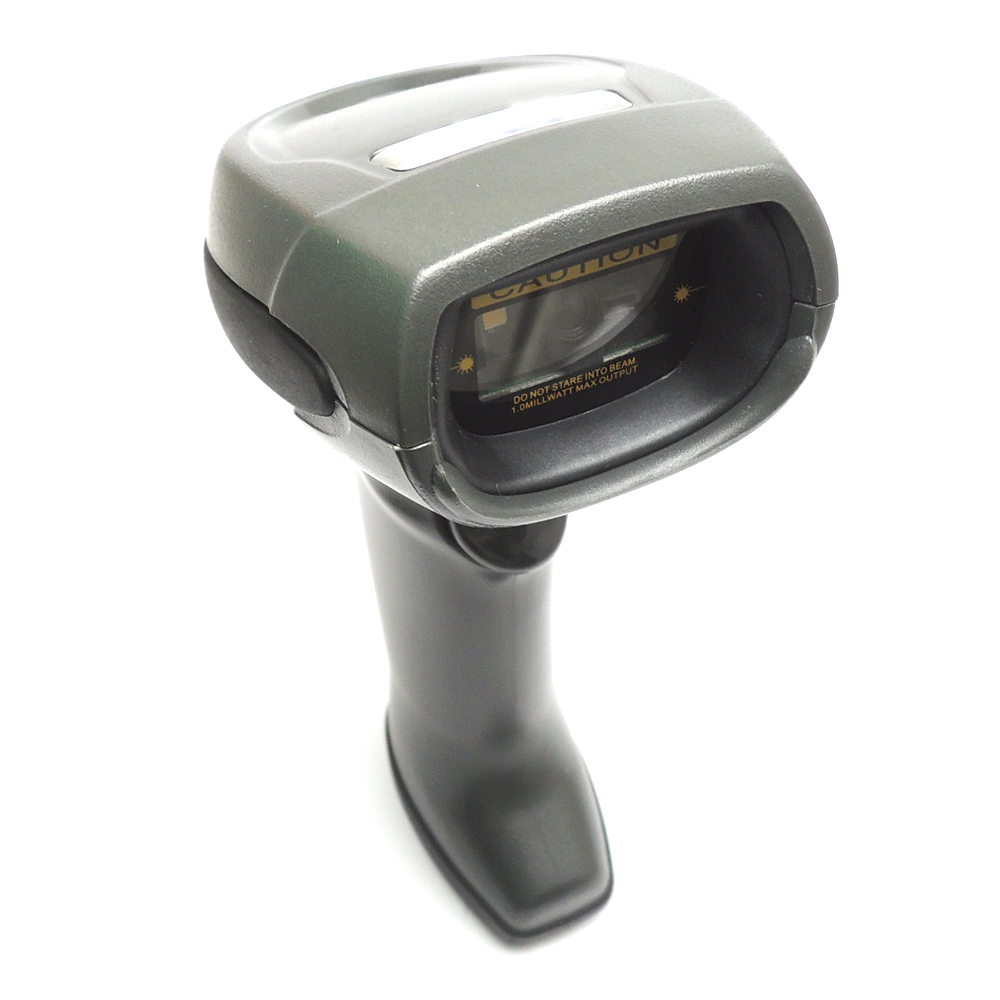

I2DBC012 Specification of Industrial 2D/QR Barcode Scanner


Facebook Twitter Pinterest LinkedIn 分享
Performance Parameter
Light Source Aimer:617nm LED White 6500K Illumination:625nm LEDs
Decode Capability
1D

UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN,

UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 FullASCII, Trioptic Code 39, Code 32,

Code 93, Code11,

 Matrix 2 of 5, Interleaved 2 of 5, Discrete 2of 5,

 Codabar, MSI, Chinese 2 of 5,

GS1 DataBar variants, Korean 3 of 5, ISBT Concat

2D PDF417,MicroPDF417,CompositeCodes,TLC-39,Data Matrix, Maxicode, QR code ,Micro QR,Aztec
Scanning Type Image CMOS
Scan Rate Above 25inch/63.5cm per second
Light Source Aimer:617nm LED White 6500K <p >Illumination:625nm LEDs
Trigger Mode  Manual /continuous scan
Roll/Pitch/Yaw Angle 30° /65°/55°
Resolution SR:Code 39 4.8mil;UPC 60% 5mil,PDF417 5mil,Datamatrix 7.5mil
Depth of scanning field 5mm-390mm
Print Contrast ≥25%,minimum reflective
Indicator  LED,buzzer
Interface Support USB-HID,USB-COM,RS232
Work Frequency  Bluetooth 2.1
Transmission Range  100M
Memory Capability 512000 characters

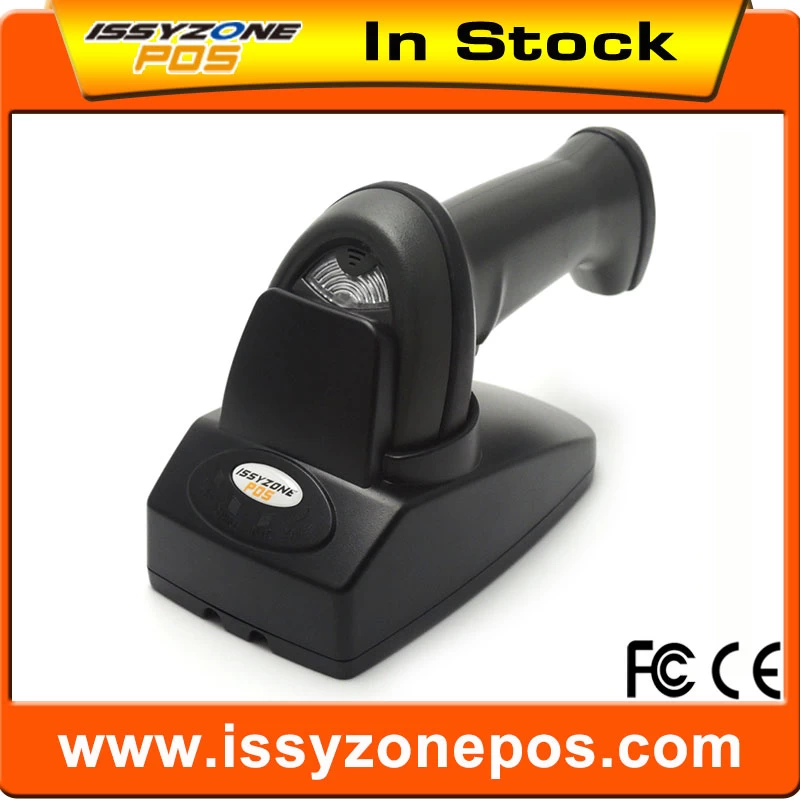

Receiving End

Dedicated bluetooth receiver,general bluetooth adapter,

 android mobile devices, IOS mobile devices

Physical Parameter
Dimension  L175mm*W71mm*H101mm
Housing Materials ABS+PC
Weight  450g (including receiver cradle )
Cable Parameter  MicroUSB 1M
Electrical Parameter
Voltage DC 5V
Current 350mA (Peak value)
Battery Capacity 2200mA
Power Supply DC 5V±@1A
Charge Mode Cable connecting to charge
Charge Indicator  Orange LED
Environmental Parameter
Operating Temperature -20℃~50℃
Storage Temperature -40℃~70℃
Humility  5%-95%(no condensing )
IP Level IP54
LUX 3000-8000Lux
Impact Resistance  withstands multiple 2m drops to concrete
