Performance Parameter

Light Source

Aimer: 617nm LED White 6500K <p >Illumination:625nm LEDs

Decode Capability

1D

UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 FullASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat

2D

PDF417, MicroPDF417, CompositeCodes, TLC-39,Data Matrix, Maxicode, QR code, Micro QR, Aztec

Scanning Type

Image CMOS

Scan Rate

Above 25inch/63.5cm per second

Trigger Mode

Manual /continuous scan

Roll/Pitch/Yaw Angle

30° /65°/55°

Resolution

SR:Code 39 4.8mil; UPC 60% 5mil, PDF417 5mil, Datamatrix 7.5mil

Depth of scanning field

5mm-390mm

Print Contrast

≥25%, minimum reflective

Indicator

LED, buzzer

Interface Support

USB-HID, USB-COM, RS232

Work Frequency

Bluetooth 2.1

Transmission Range

100M

Memory Capability

512000 characters

Receiving End

Dedicated bluetooth receiver, general bluetooth adapter, android mobile devices, IOS mobile devices

Physical Parameter

Dimension

L175mm*W71mm*H101mm

Housing Materials

ABS+PC

Weight

290g (including receiver)

Cable Parameter

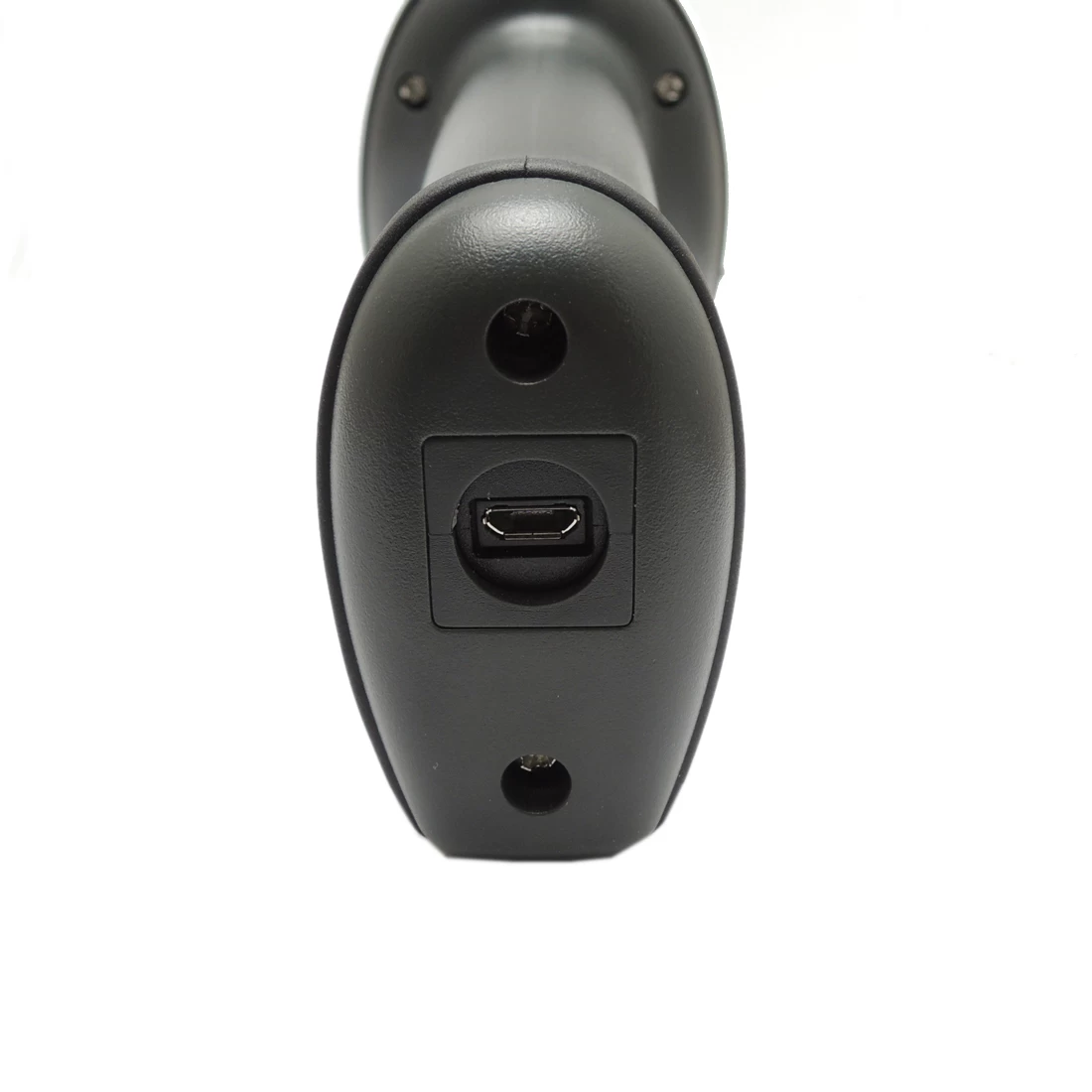

Micro USB 1M

Electrical Parameter

Voltage

DC 5V

Current

350mA (Peak value)

Battery Capacity

2200mA

Power Supply

DC 5V±@1A

Charge Mode

Cable connecting to charge

Charge Indicator

Orange LED

Environmental Parameter

Operating Temperature

-20℃~50℃

Storage Temperature

-40℃~70℃

Humility

5%-95%(no condensing )

IP Level

IP54

LUX

3000-8000Lux

Impact Resistance

withstands multiple 3m drops to concrete
