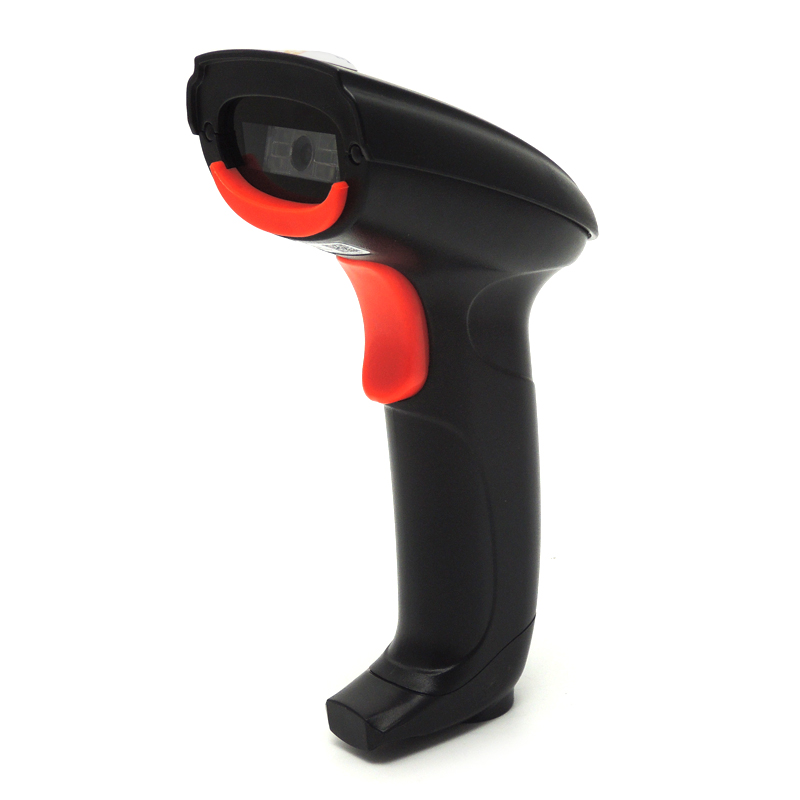

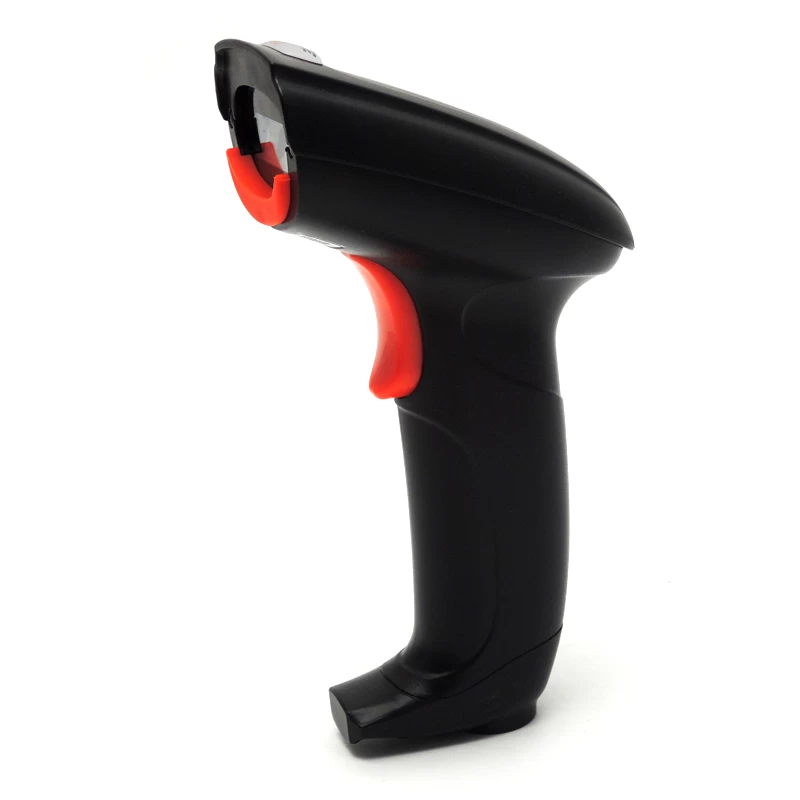

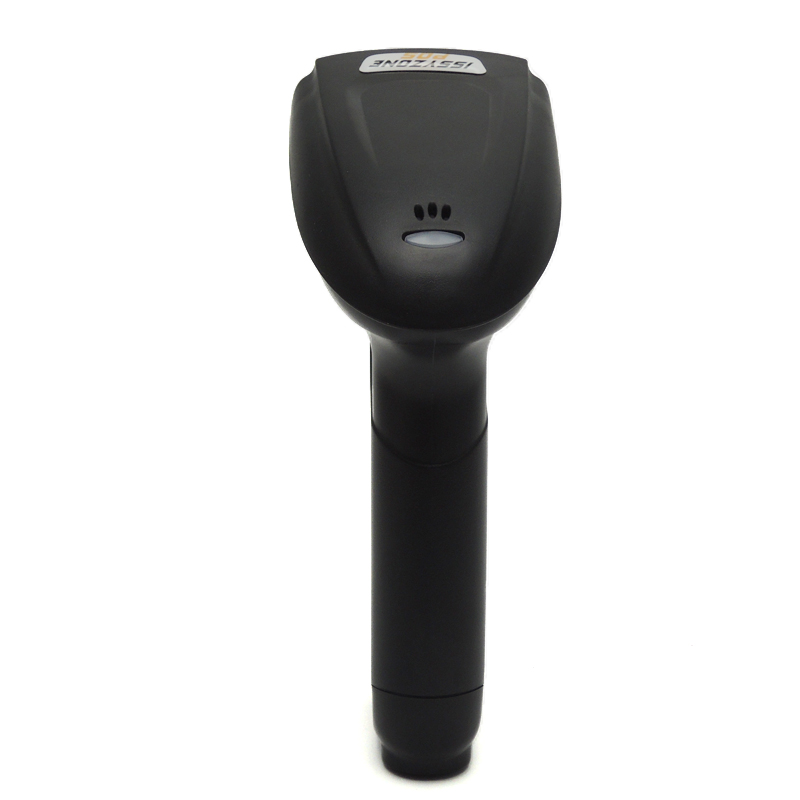

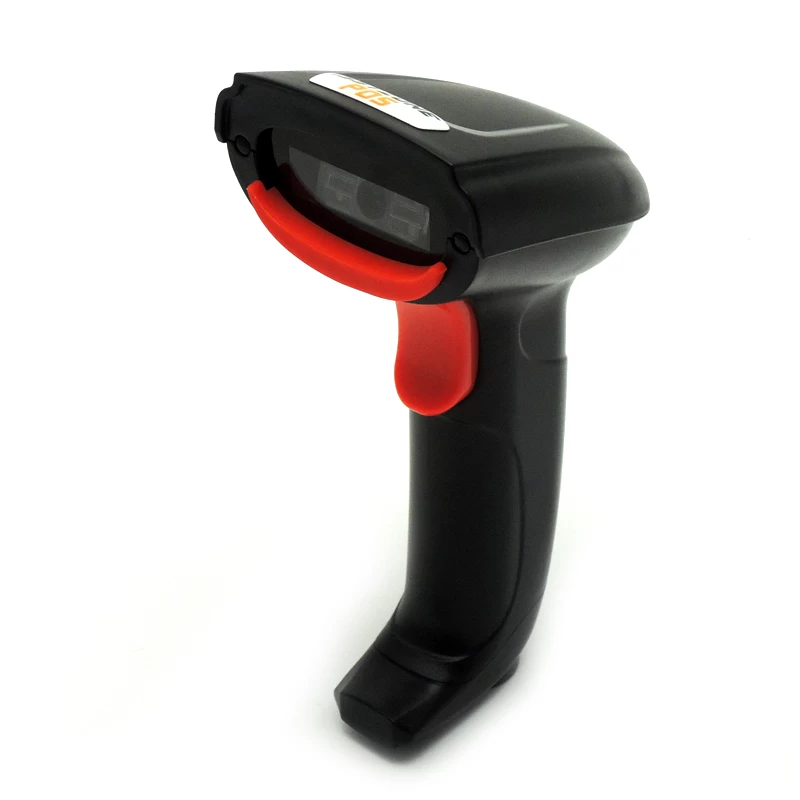

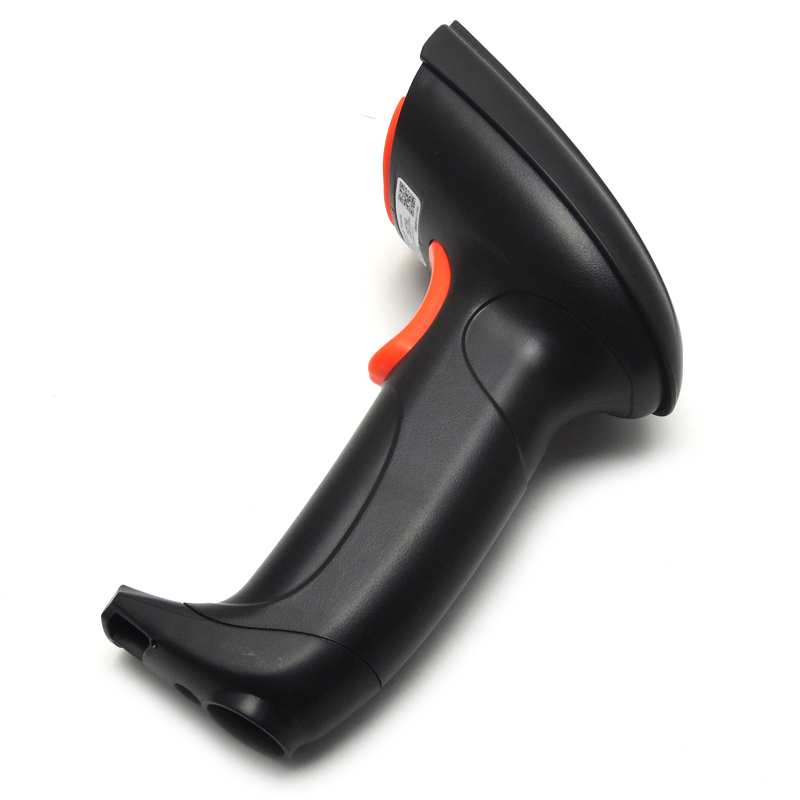

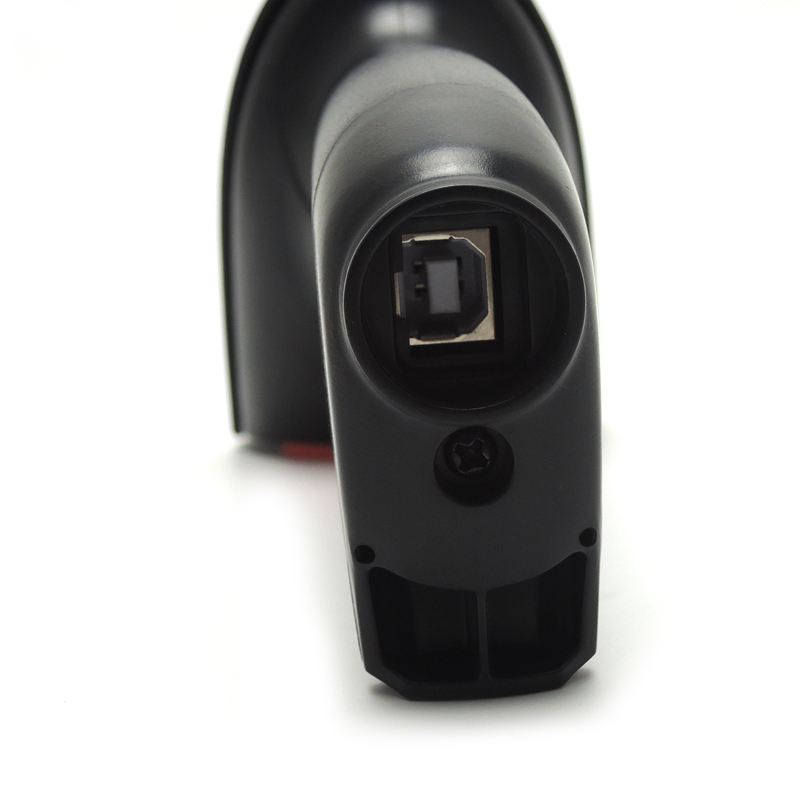

I2DBC018 2D Bluetooth QR Code Scanner Wireless For Any Android and Apple devices

Performance Parameter

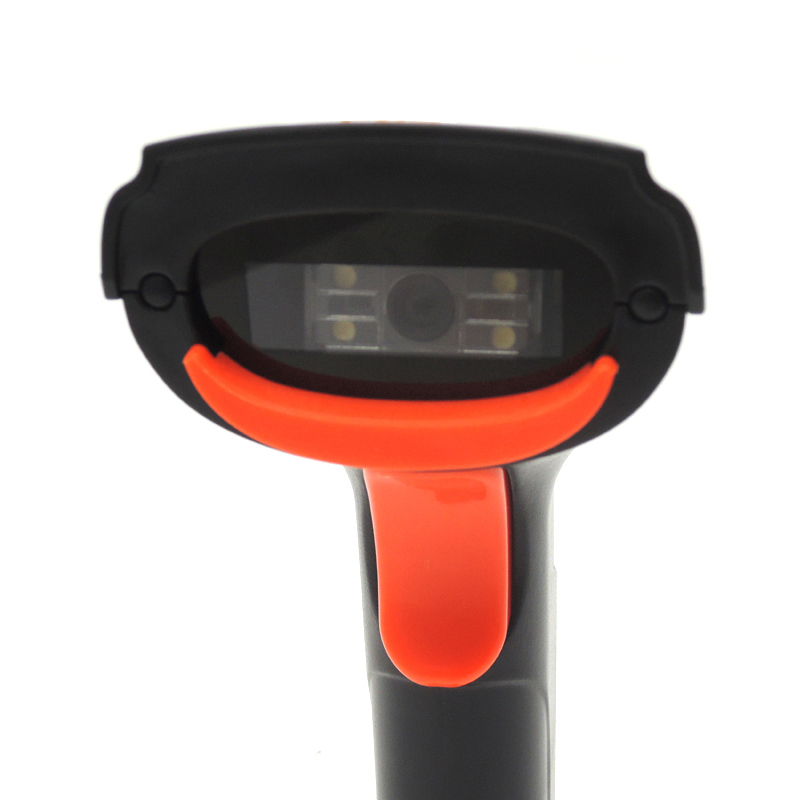

Light Source

Aimer:617nm LED White 6500K Illumination:625nm LEDs

Decode Capability

1D

UPC/EAN, UPC/EAN with supplementals, BooklandEAN,
ISSN, UCC Coupon Extended Code, Code 128,  
GS1-128, ISBT 128, Code 39, Code 39 Full ASCII,  
Trioptic Code 39, Code 32, Code 93, Code 11,
Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar,
MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat,

2D

QR Code,PDF 417,Data Matrix

Scanning Type

Image CMOS

Trigger Mode

Manual /continuous scan

Roll/Pitch/Yaw

0~360°/±65° or greater/±60° or greater

Resolution

≥0.1mm(4mil)

Print Contrast

≥30%,minimum reflective

Indicator

LED,buzzer

Interface Support

Bluetooth

Physical Parameter

Dimension

180mm(L)x 65mm(W)x105mm(H)

Housing Materials

ABS

Weight

180g(with cable)

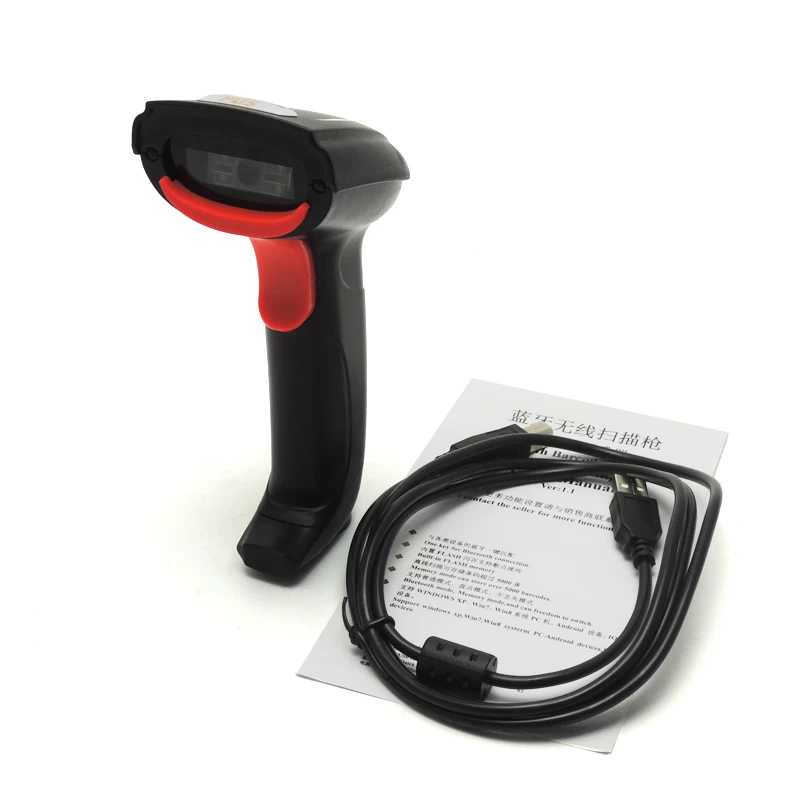

Cable Parameter

170CM

Electrical Parameter

Input Voltage

5VDC ±10%

Operating Power

150mA

Standby Power

90mA

Environmental Parameter

Operating Temperature

0°C to 50°C

Storage Temperature

 -40°C to 70°C

Humidity

10% to 80% relative humidity, non-condensing

Ambient Light Immunity

Immune to normal indoor lighting up to 1600 Lux and to sunlight up to 86000 Lux
