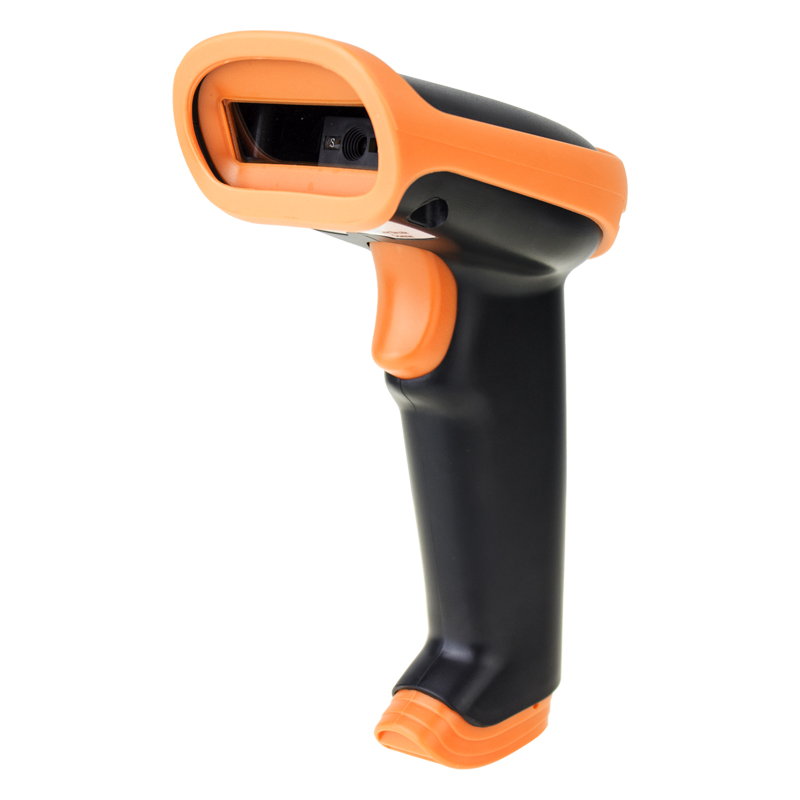

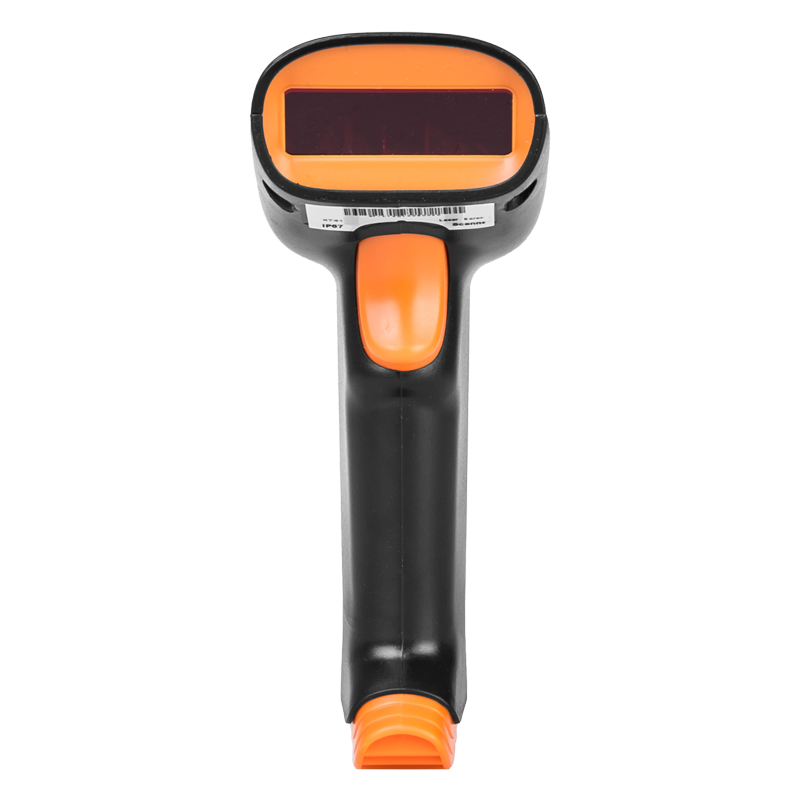

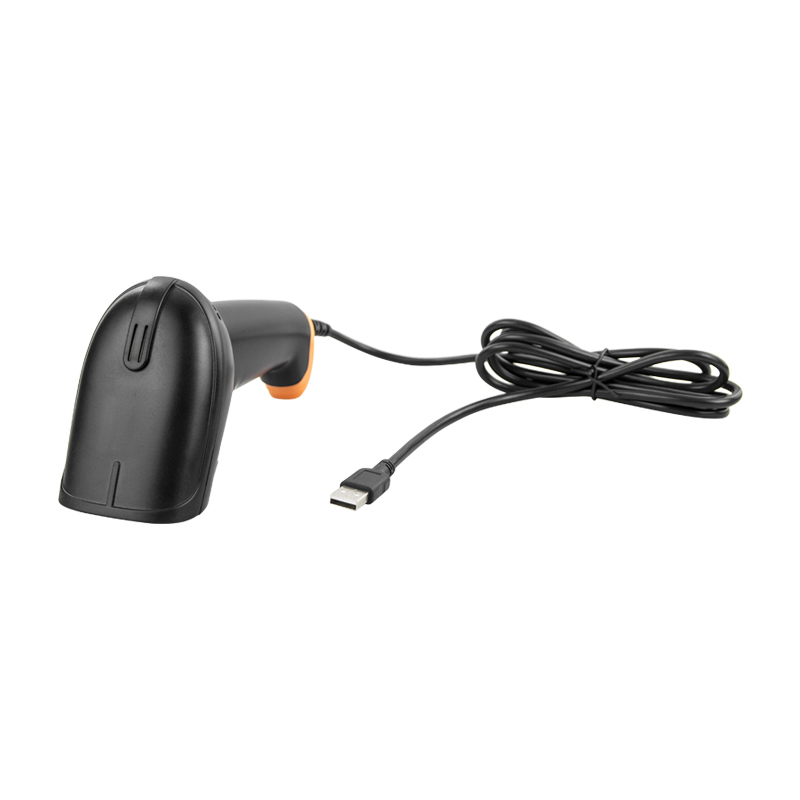

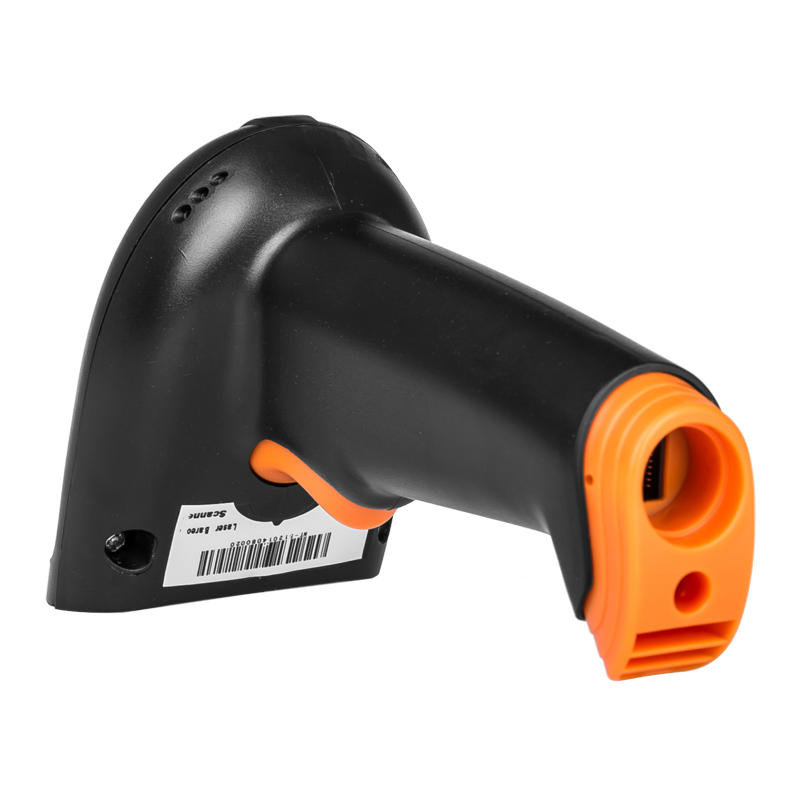

I2DBC032 Wireless 2D Barcode Scanner

Facebook Twitter Pinterest LinkedIn 分享
Feature
Light Resource CMOS
CPU 32 bit high resolution
Supported Symboligies

2D:  PDF417、QR Code (QR1/2, Micro)

、Data Matrix (ECC200, ECC000, 050, 080, 100, 140)、Chinese Sensible Code

1D : Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11,
Charging time 2~3hour
Scans per charge 30000 times
Precision ≥ 5 mil (0.10mm)
Decode speed 5 in/s(12.7 cm)
Decode error rate Less than 1/8 million
Depth of scan field Code 39  40mm~165mm(5mil)
Ean-13   50mm~365mm(13mil)
Data Matrix 35mm~115mm(10mil)
QR Code  35mm-145mm (15mil)
PDF 417  45mm-115mm(6.67mil)
Print Contrast Signal ≥ 30°
scan angle Yaw(Skew)45° & Pitch60°
Working Distance Over 50-150meter
Battery capacity 2000MAH
Mechanical / Electrical
Working Voltage 3.3 VDC ±5%
Current working 230mA
Standby: 3.4mA (RS232）, 54.0mA(USB)
Rated power consumption 186mW
Environment
Operating temperature -20°C-45°C
Storage temperature -20°C-45°C
Humidity 5%-85%
