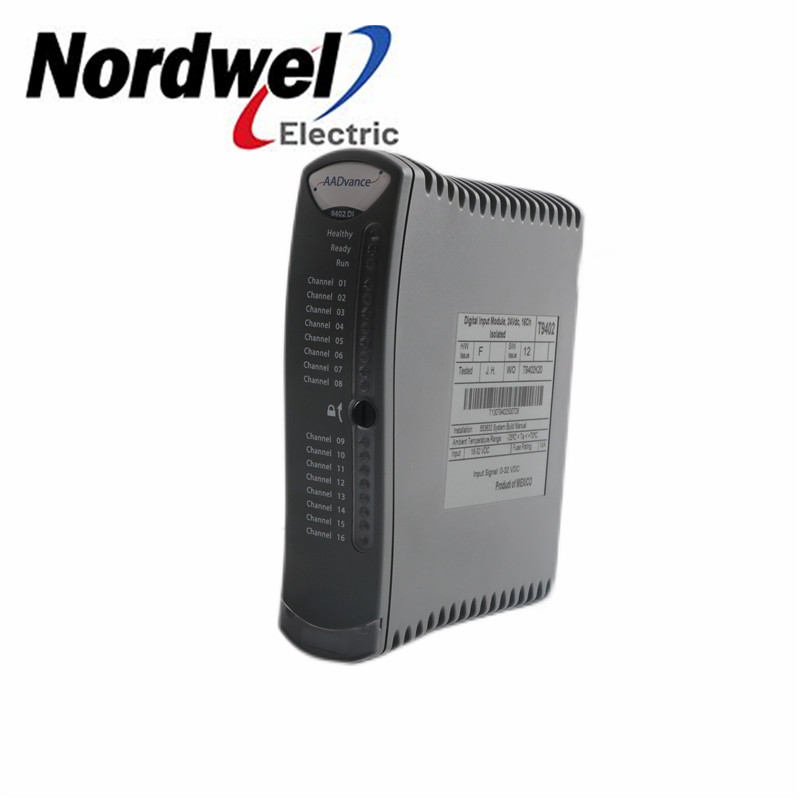

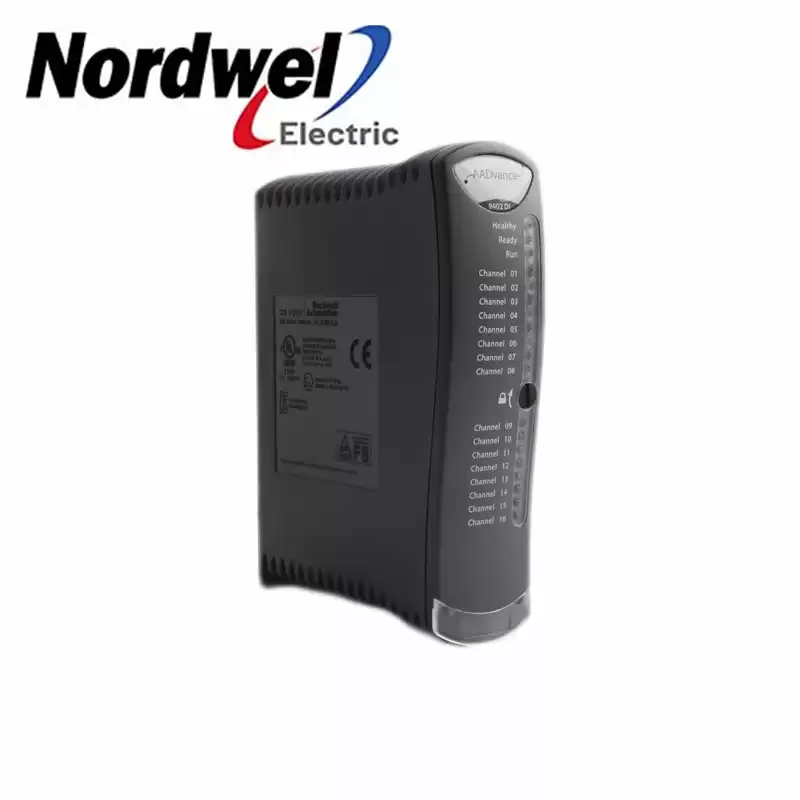

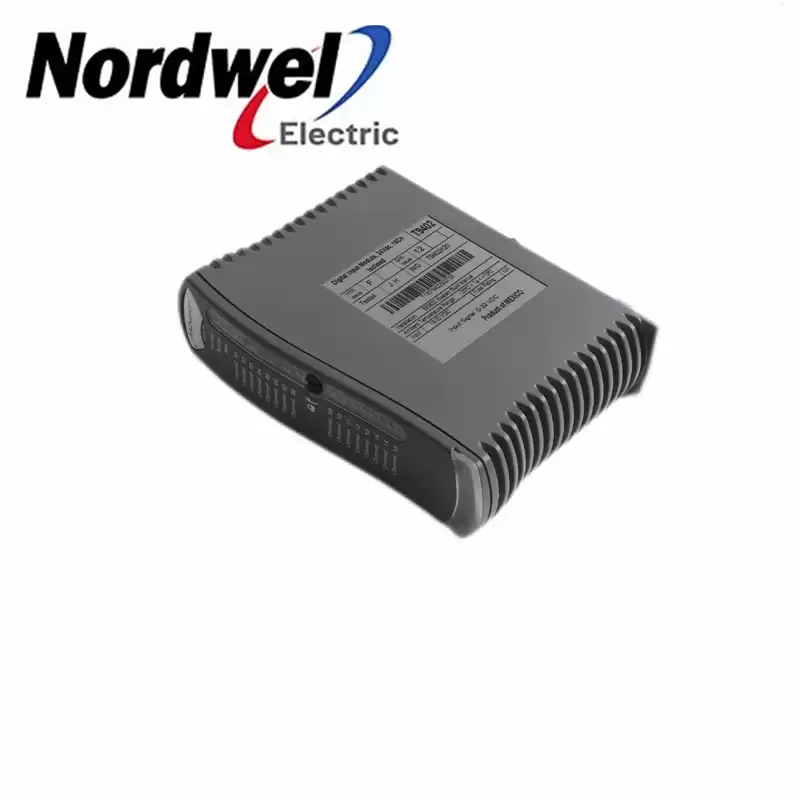

Full description: Digital Input Module, 24 V dc, 16 Channel, Isolated
DISCONTINUED BY MANUFACTURER
The Trusted® Power System is a high density flexible power supply designed to convert main line voltages of either
110 Vac or 240 Vac. Outputs are either 24 Vdc for Trusted product or 28 Vdc adjustable field power. The Trusted
Power System consists of a 1U Power Shelf with mechanical support, containing up to three 750 W Power Packs.
The Power Packs load share in configurations using one or more Power Shelves. Each Power Pack has an
individual supply connection via a mechanically retained IEC 60320 type connector. Each Power Shelf can supply
2250 W of power or 1500 W with n+1 redundancy from a single source. Multiple units can be connected for further
capacity or redundancy requirements. Diagnostic information of Power Pack status is provided via the Power Port,
which connects to the rear of the Power Shelf. This device monitors input and output conditions and reports out of
range faults and over-temperature/fan failure using relay contacts. The Power Port also allows connection of the
optional rack mounted Power Controller for live configuration of output voltage and current, monitoring up to 12
Power Packs in 4 Power Shelves.
