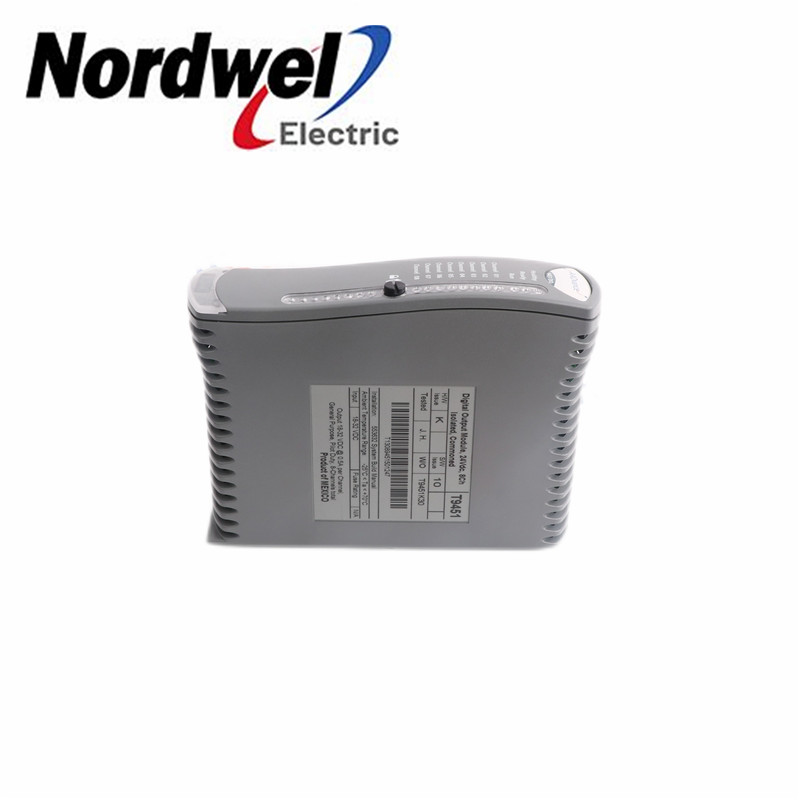

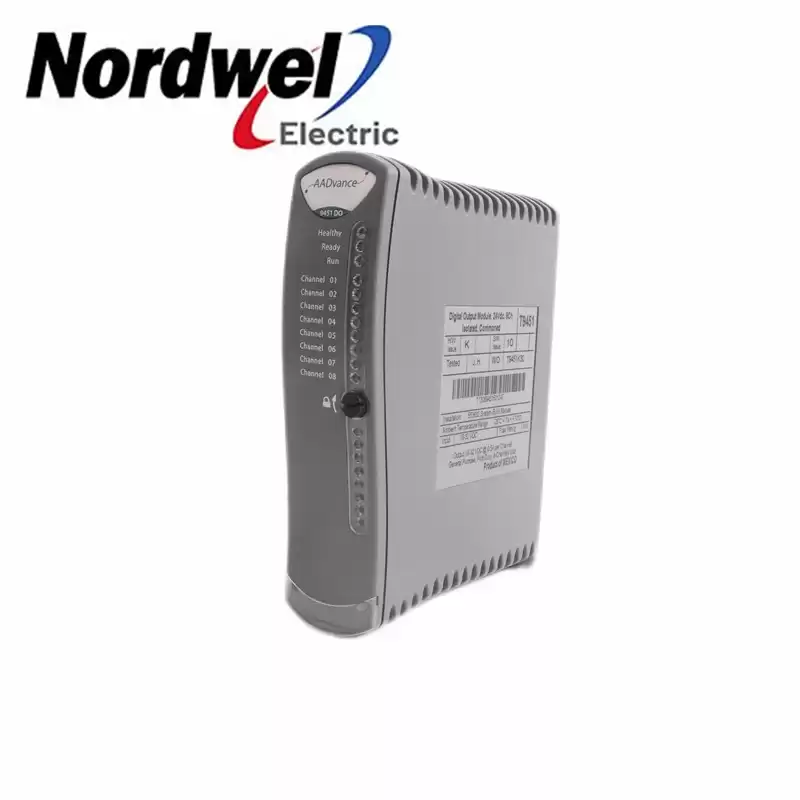

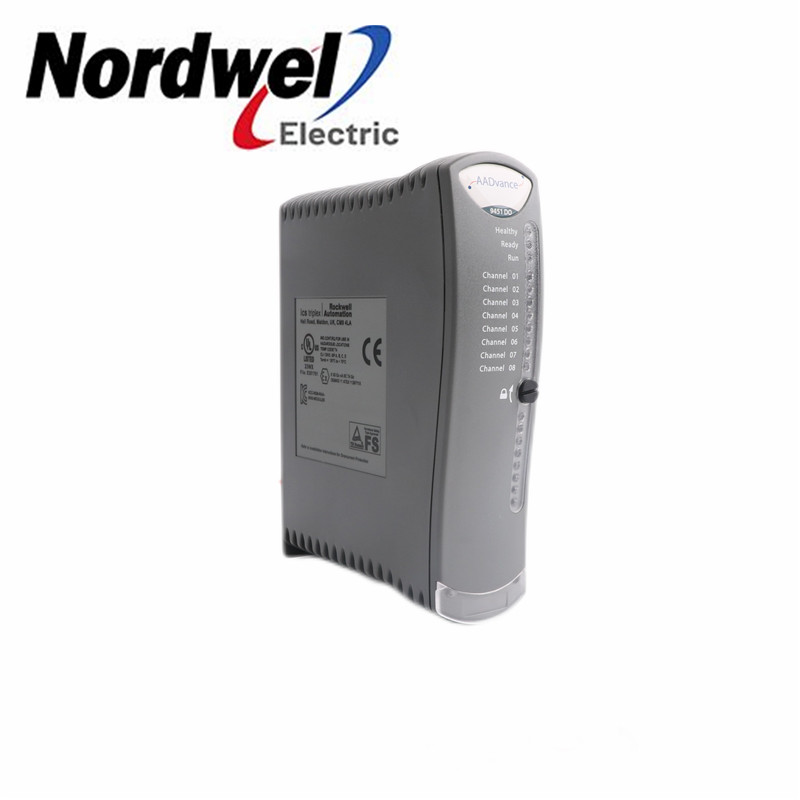

T9451
OUTPUT MODULE
8 POINT
DIGITAL
24 VDC
AADVANCE SAFETY
Trusted Communications Interface Product Overview The Trusted® Communications Interface (CI) is an
intelligent module that provides a range of communication services for the Trusted Controller, minimising
communication loading of the Triple Modular Redundant (TMR) Processor. A user-configurable module, the
CI can support multiple communication media. Up to four Communications Interfaces (CIs) can be
supported by a Trusted System.
The Trusted Expander Interface Adapter Unit T8312 comprises four, or seven 12-pin ODU connectors
(dependent on type of Unit), a printed circuit board (PCB), a 96-way C type connector which plugs into a
double 96-way connector assembly designed to be connected to the Trusted Expander Interface Modules
resident in the Controller Chassis. The Unit is contained within a metal enclosure and is designed to be
clipped onto the Controller Chassis rear connectors. A release button is provided to enable the Unit to be
disconnected.
