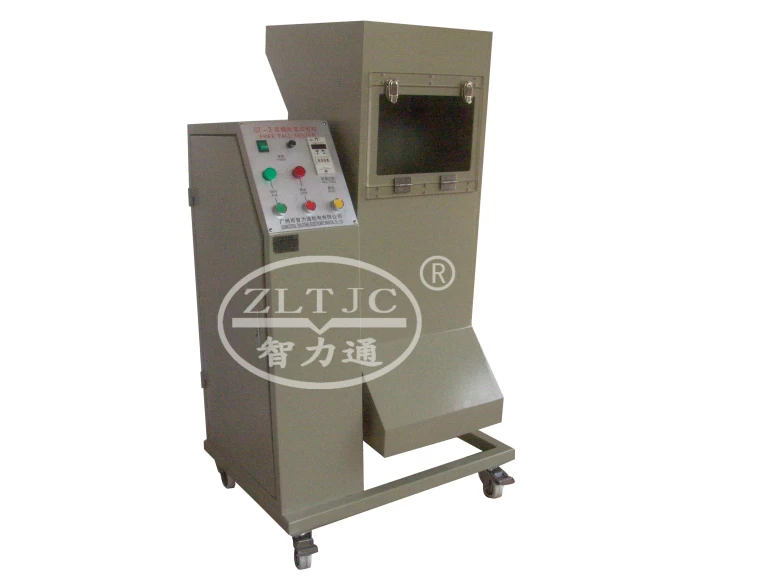

IEC60312 figure 16 Tumbling Barrel Safety Test Equipment

ZLT-GT4, similar to ZLT-GT2, but of larger dimensions for testing of accessories for vacuum cleaners, according to IEC60312 figure 16.



IEC60312 figure 16 Tumbling Barrel  Safety Test Equipment


Product details: ZLT-GT4


The ZLT Tumbling Barrel Tester simulates repeated falls which may occur to such devices as connectors or small remote control units which are normally attached to cables during use.


④Model:ZLT-GT4, similar to ZLT-GT2, but of larger dimensions for testing of accessories for vacuum cleaners, according to IEC60312 figure 16.
Inner height: 1070mm.
Fall height: 800mm.
Chute length: 400mm.

Bottom Impact Surface: 5mm steel and hard wooden plate.






①Model:ZLT GT1, is to determine the mechanical strength of lamp or electrical appliances or electrical components in accordance with IEC60598 figure 25 and VDE0620 Bild 27.

Power Supply: A.C.220V 50Hz, other voltages and frequencies on request.
Rate of falls: 10 times/min.
Speed of rotation: 5 r/min.
Inner height: 650mm.
Fall height: 500mm.
Chute Length: 275mm.

Bottom Impact Surface: 3mm steel.






②Model:ZLT-GT2, is to determine the mechanical strength of electrical appliances or electrical components in accordance with IEC60068-2-32 Amendment 2,employs a large clear acrylic access door for easy viewing and access to the chamber.
Inner height: 675mm or 1175mm(for 1m fall height)
Fall height: 500mm or 1000mm.
Chute length: 275mm.

Bottom Impact Surface: 3mm steel backed with 19mm hardwood.





③Model:ZLT-GT3, similar to ZLT-GT2, but according to BS1363 figure 20.
Inner height: 650mm.
Fall height: 500mm.

Bottom Impact Surface: 19mm nominal thick blockboard or suitable alternative.
