Chapter 1:

Basic Features

Product Name:

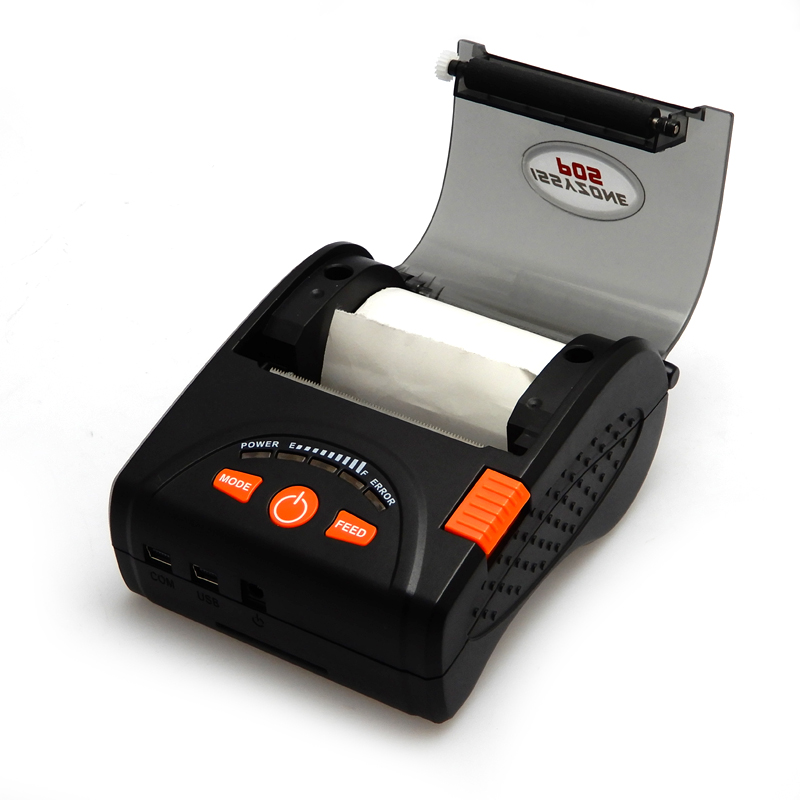

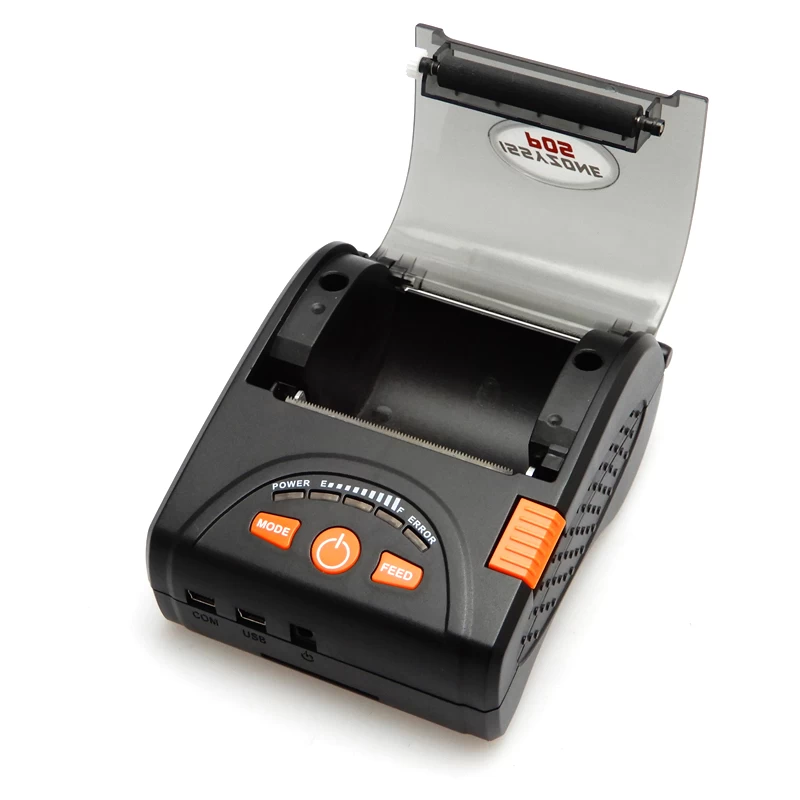

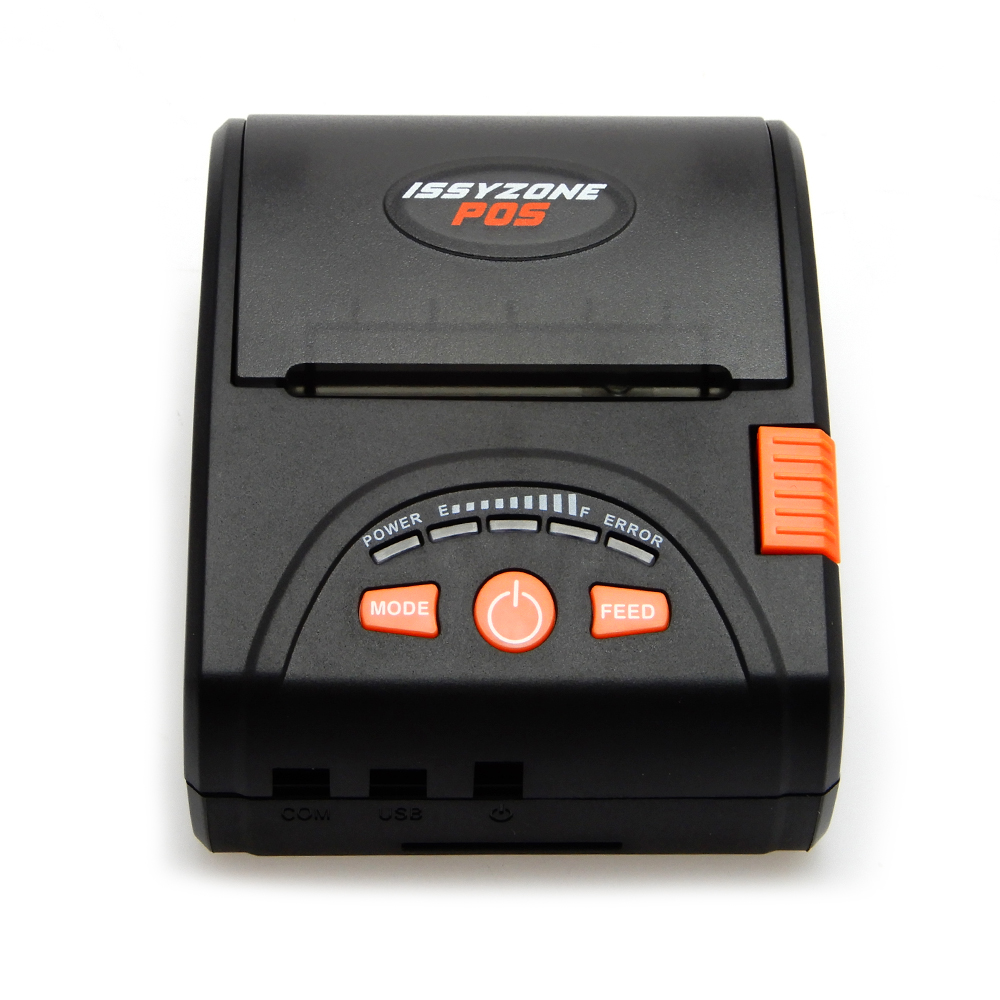

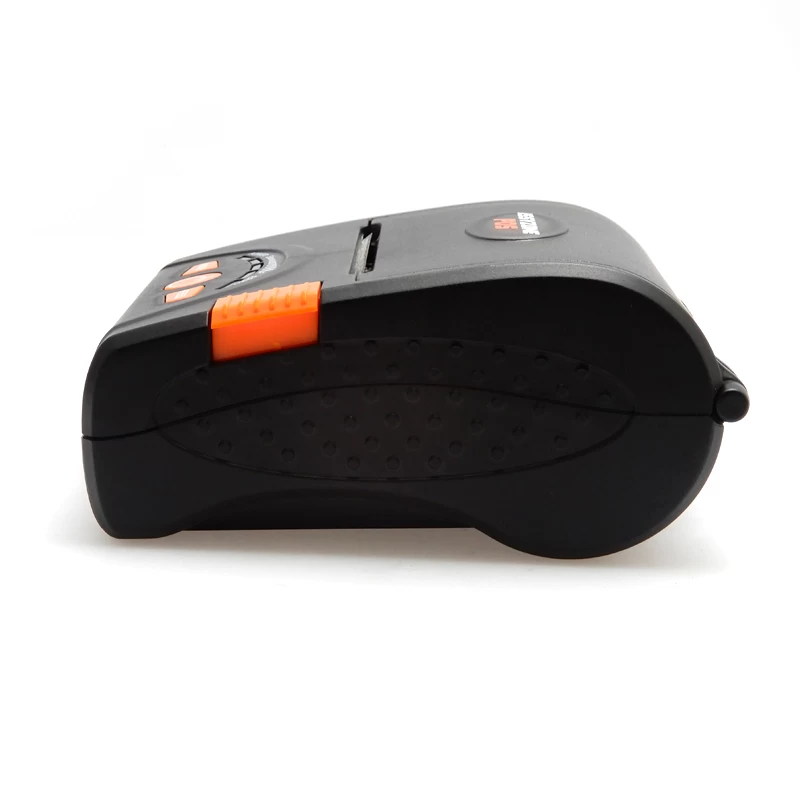

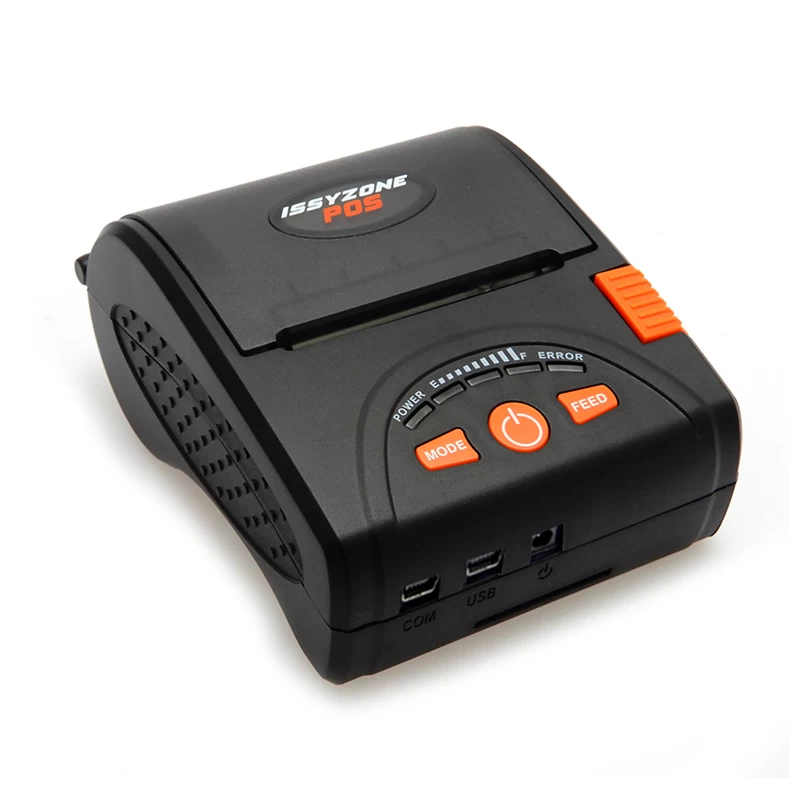

Thermal Bluetooth Receipt Printer

Model:

IMP001

It applies mobile products to supporting the use, and suited to outdoor work environments.

It can be applied to mobile products, and suitable for outdoor work environments

Applications:

The mobile police system

The tobacco distribution system

The utility meter reading system

The mobile office / mobile logistics systems

The portable instrumentation

The testing equipment, ancillary equipment.

Low operating costs (no ribbons, ink cartridges)

Weight:

about 500g (including accessories:  lithium-ion batteries, cable, test paper)

Size:

205*70*130mm

Chapter 2:

Parameter Details

Printing Method:

Thermal line printing

Print speed:

90mm/sec

Reliability TPH Life:

 100km

Resolution:

203DPI (8dot/mm)

Printing Width:

48mm (384dot)

Paper Width:

58±01mm

Roll Diameter:

φ≤50mm

Paper Type:

Thermal Paper

Power supply (optional):

rechargeable lithium batteries

Battery:

Lithium:      7.4VDC/1500mA,

Charging mode:

DC 9V/1.5A

Support the battery display function

Print parameters:

support to download the Logo trademark

Character size:

The 384 - point/line

The Font A: 12 * 24 points, (wide) 1.5 * 1.5 (high) mm

The Font B: 9 *17points, 1.1(wide) * 2.1 (high) mm

Jane/traditional: 24 * 24 points, (wide) 3.0 * 3.0 (high) mm

Printing Chinese character:

Chinese: simplified Chinese 24x24 point. support 18030 font library,support

Taiwan and HK traditional(complex font)

ANK:

ANK characters

Extendedcharactertable:

OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/Greek/Hebrew/EastEurope/Iran/WPC1252/OEM866/OEM852/OEM858/

IranII/Latvian/Arabic/PT151,1251/OEM747/WPC1257/Vietnam/OEM864/Hebrew/

WPC1255/Thai

Emulation:

ESC/POS/STAR command

Interface:

standard RS232/USB, Bluetooth 4.0/SPP agreement or infrared/IRCOMM

agreement (optional).

-10~50℃

Humidity:

10~90%
