Chapter 1:
|
Basic Features
|
|
Product Name:
|

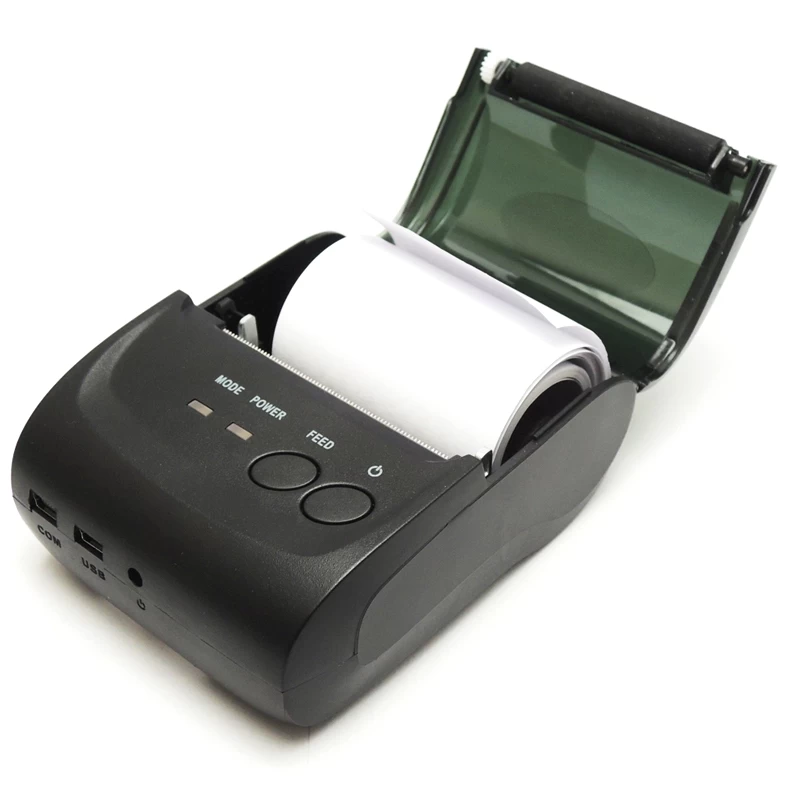

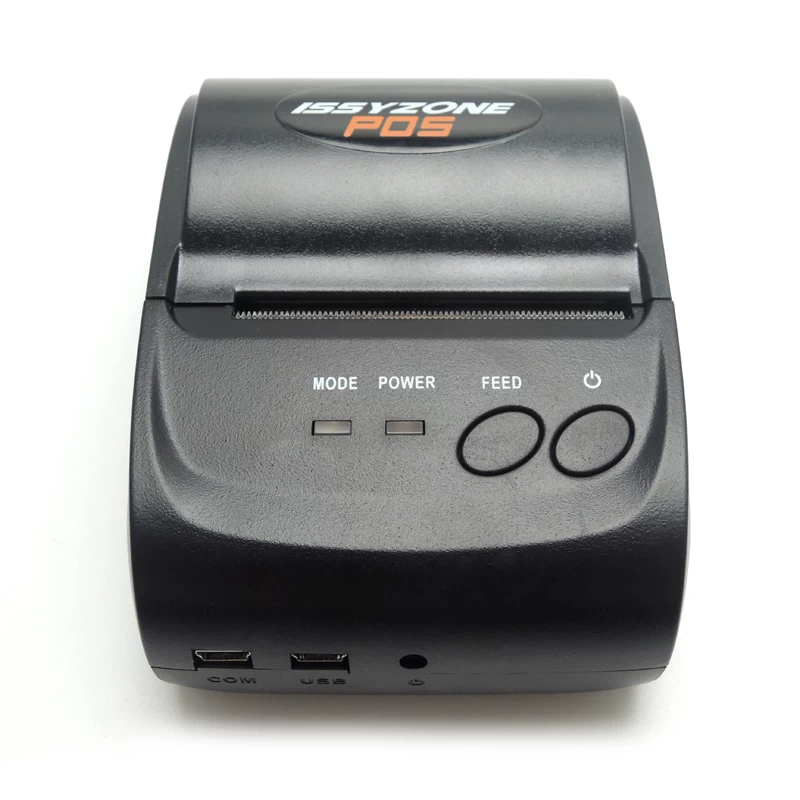

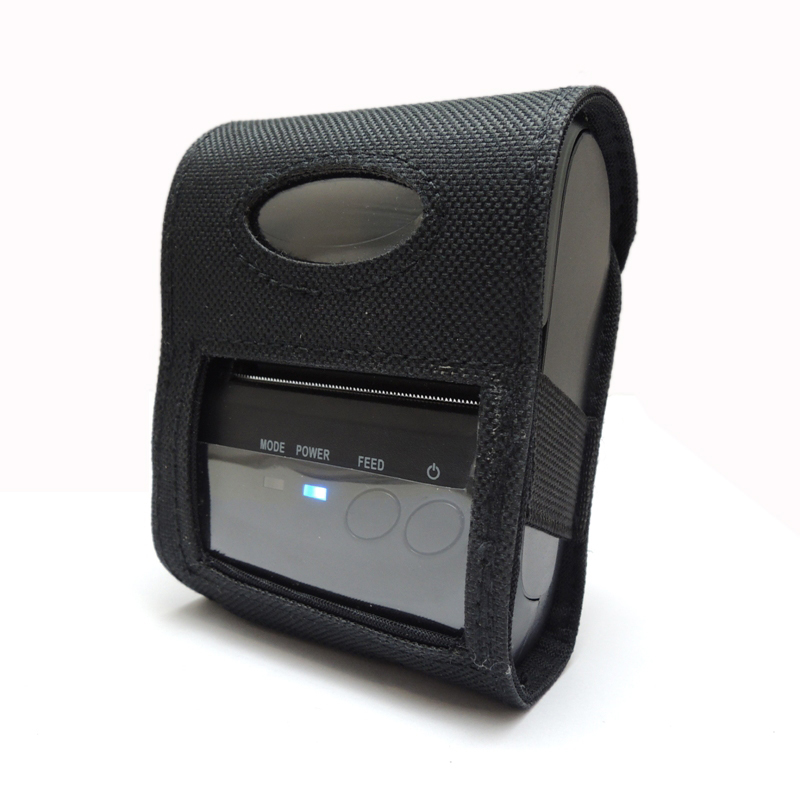

Thermal Bluetooth Receipt Printer
|
|
Model:
|
IMP006
|
|

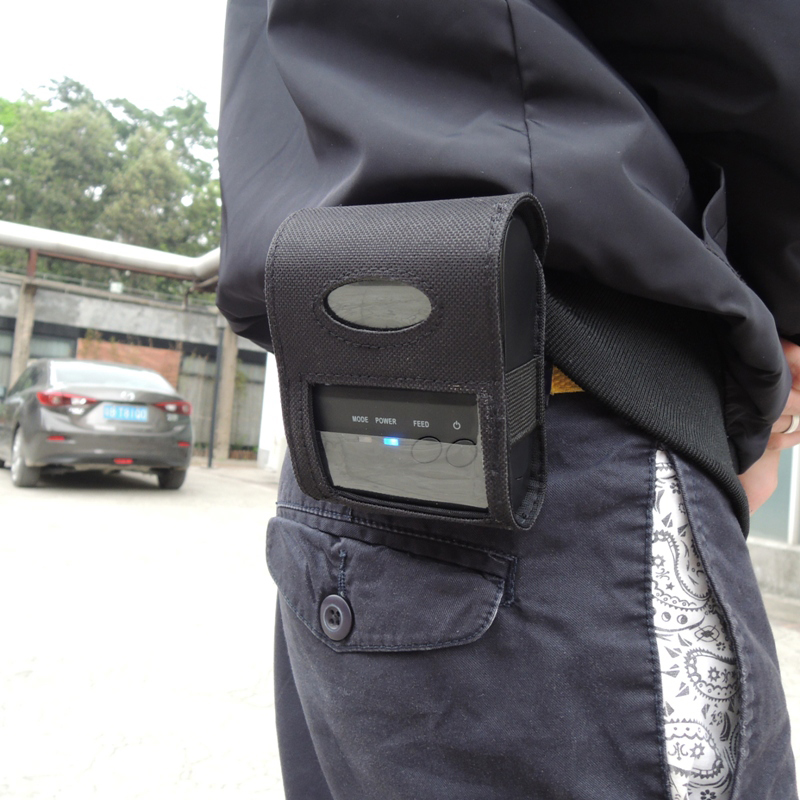

It applies mobile products to supporting the use, and suited to outdoor work environments.
|
|
It can
be applied to mobile products, and suitable for outdoor work environments
|
|
Applications:
|
The mobile police system
|
|
The tobacco distribution system
|
|
The utility meter reading system
|
|
The mobile office / mobile logistics systems
|
|
The portable instrumentation
|
|
The testing equipment, ancillary equipment.
|
|
Low operating costs (no ribbons, ink cartridges)
|
|
Weight:
|

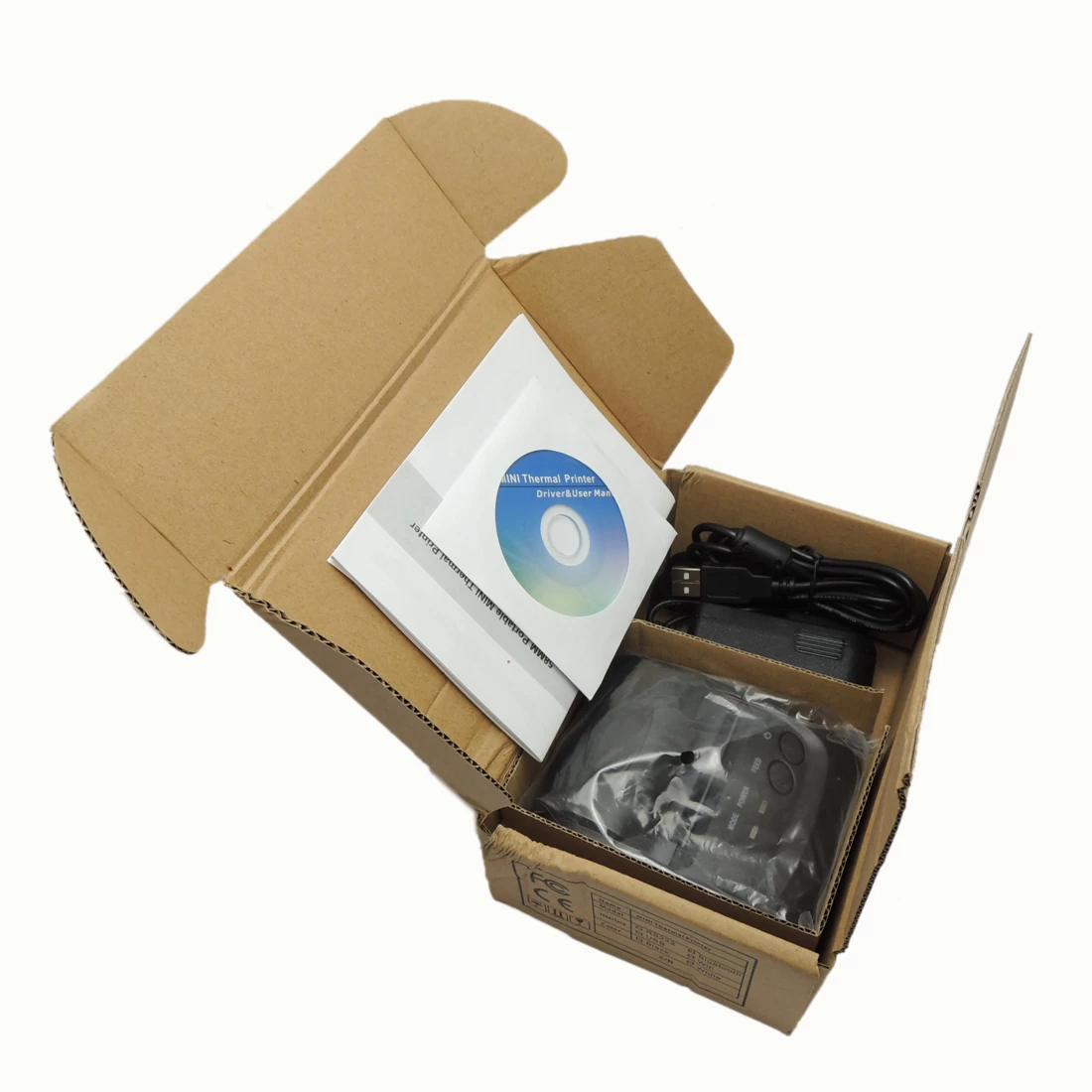

about 400g (including accessories: lithium-ion batteries, cable, test paper)
|
|
Size:
|
103.5*78*45.5mm
|
|
|
Chapter 2:
|
Parameter Details
|
|
Printing Method:
|
Thermal line printing
|
|
Print speed:
|
90mm/sec
|
|
Reliability TPH Life:
|
100km
|
|
Resolution:
|
203DPI (8dot/mm)
|
|
Printing Width:
|
48mm (384dot)
|
|
Paper Width:
|
58±01mm
|
|
Roll Diameter:
|
φ≤40mm
|
|
Paper Type:
|
Thermal Paper
|
|
Power supply (optional):
|
rechargeable lithium batteries
|
|
Battery:
|

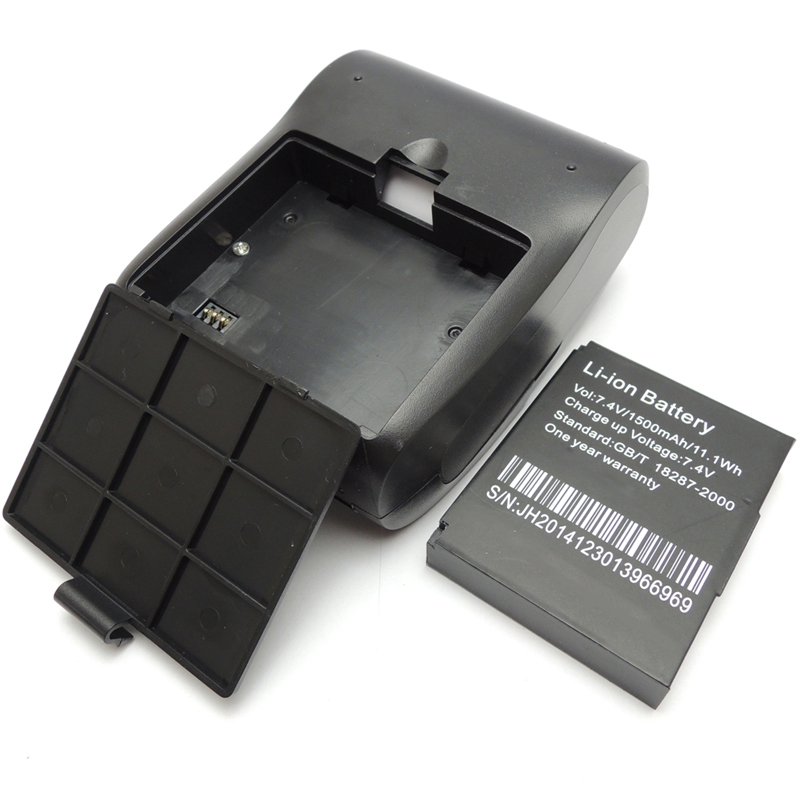

Lithium: 7.4VDC/1500mA,
|
|
Charging mode:
|
DC 9V/1.5A
|
|
Support the battery display function
|
|
Print parameters:
|
support to download the Logo trademark
|
|
Character size:
|
The 384 - point/line
|
|
The Font A: 12 * 24 points, (wide) 1.5 * 1.5 (high) mm
|
|
The Font B: 9 *17points, 1.1(wide) * 2.1 (high) mm
|
|
Jane/traditional: 24 * 24 points, (wide) 3.0 * 3.0 (high) mm
|
|
Printing Chinese character:
|
Chinese: simplified Chinese 24x24 point. support 18030 font library,support
|
|
Taiwan and HK traditional(complex font)
|
|
ANK:
|
ANK characters
|
|
Extendedcharactertable:
|
OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/Greek/Hebrew/EastEurope/Iran/WPC1252/OEM866/OEM852/OEM858/
|
|
IranII/Latvian/Arabic/PT151,1251/OEM747/WPC1257/Vietnam/OEM864/Hebrew/
|
|
WPC1255/Thai
|
|
Emulation:
|
ESC/POS/STAR command
|
|
Interface:
|

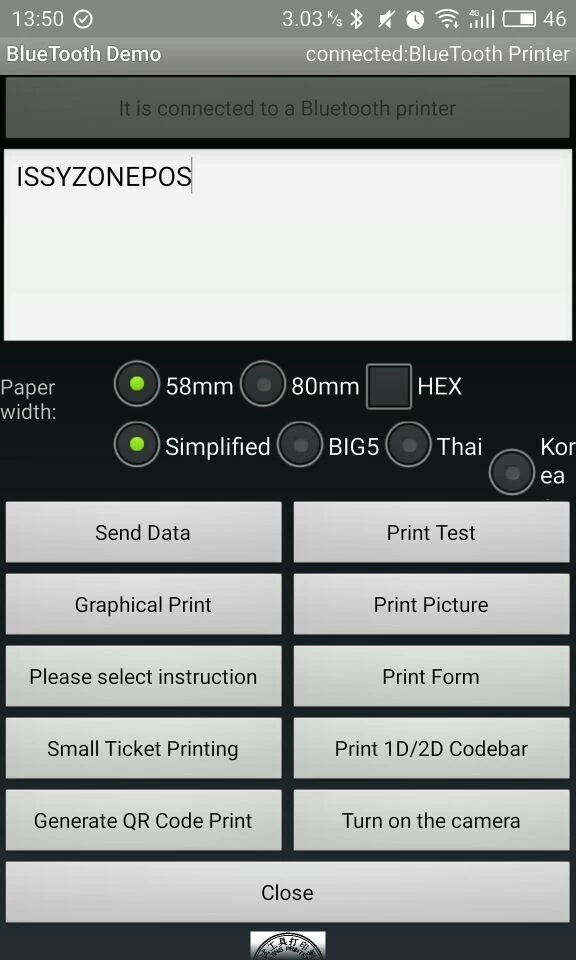

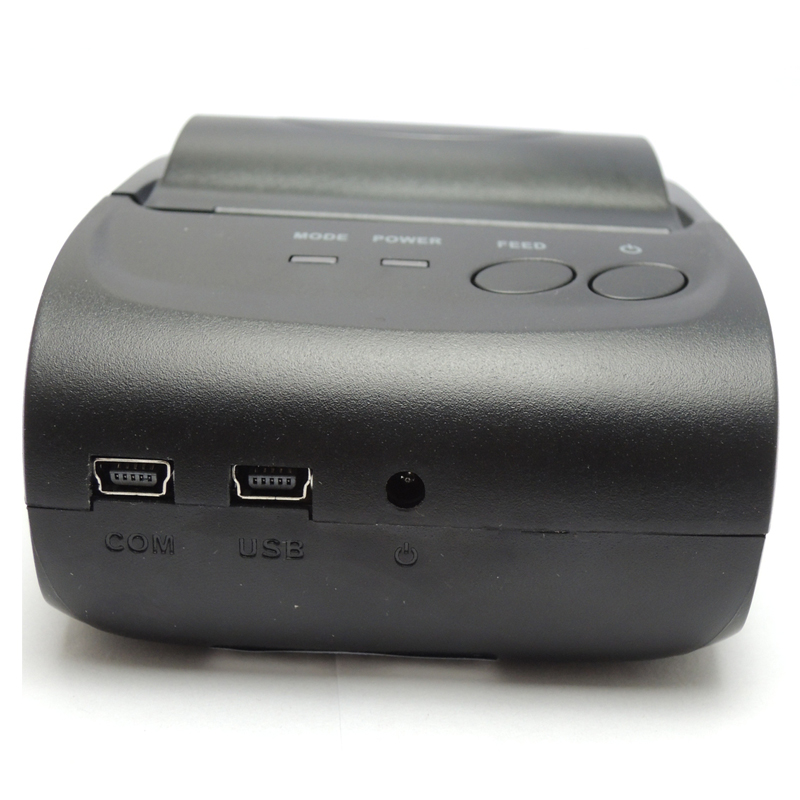

standard RS232/USB, Bluetooth 4.0/SPP agreement or infrared/IRCOMM
|
|
agreement (optional).
|
|
Working Temperature:
|
-10~50℃
|
|
Humidity:
|
10~90%
|
