Imported Japan NICHIA 405nm UV LED NCSU035C Ultraviolet Light Chips

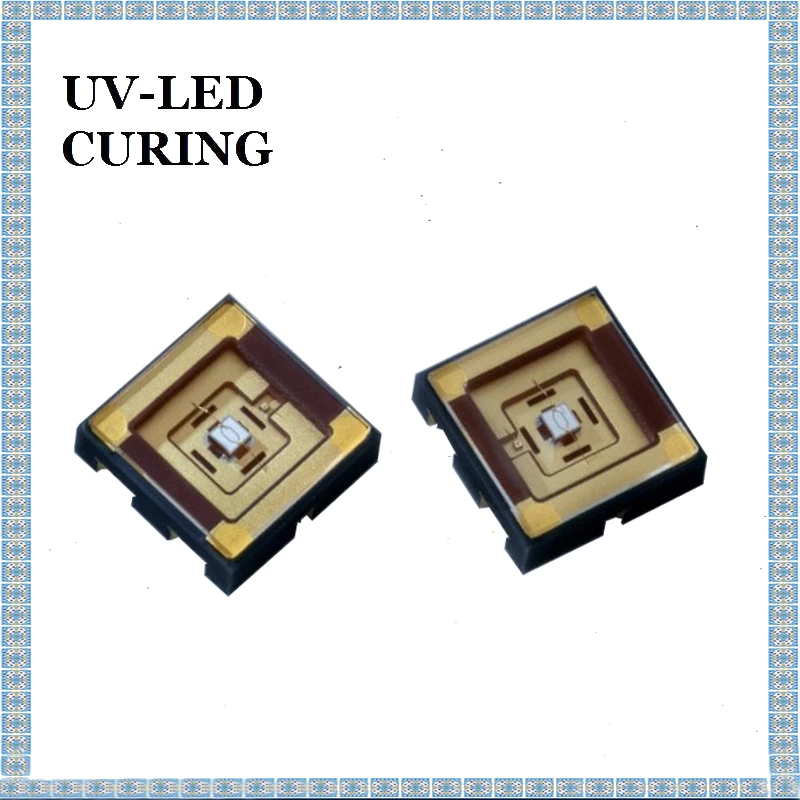

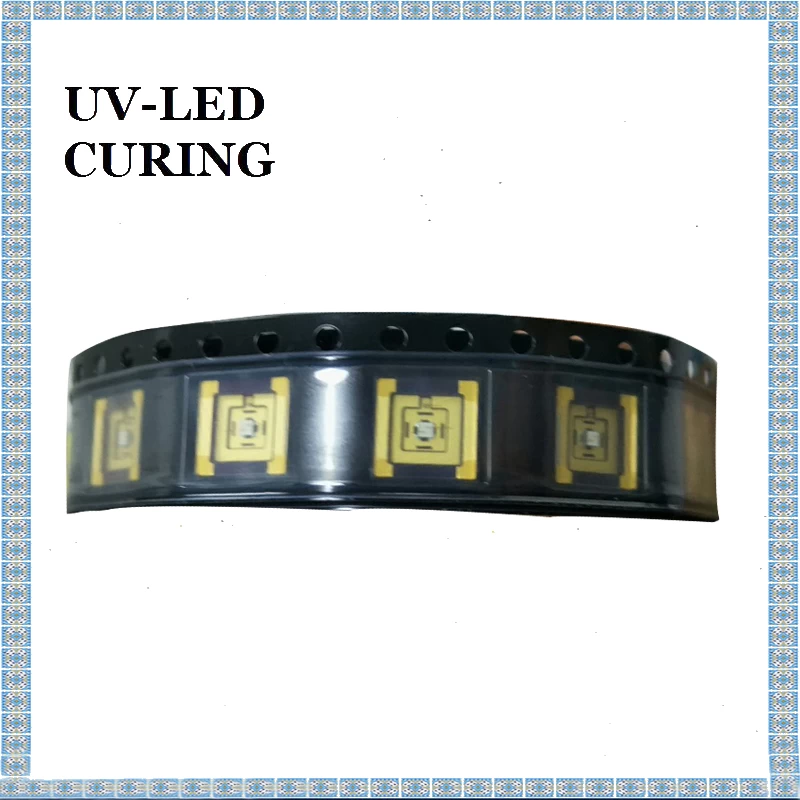

Japan NICHIA 405nm Ultraviolet Light Chips, size : 6868, Flat Window 120 degree quartz glass encapsulation, 3D Printer Curing Lamp



Japan NICHIA 405nm UV LED Lights is 6868 Flat Window 120 degree quartz glass encapsulation, 3D Printer Curing Lamp


Parameters of High Performance 405nm LED Lighting for UV Curing

Lens

Hard quartz glass 120°angle of divergence

Forward Current

700mA

Forward Voltage

3.5-3.9V

Power Dissipation

3.08W

Radiant Flux

800mW/cm2

Peak Wavelength

405nm

Encapsulation Dimension

6868, 6.8*6.8*1.9 L*W*H(mm)


Appilcations of NICHIA NCSU035C Ultraviolet LEDs Curing UV Coating :

1. Curing UV Epoxy Resin

2. Special for 3D Printing


Specifications of High Efficiency 405nm NCSU035C SMD-LED UV Lights :

1.Absolute Maximum Ratings

Item

Symbol

Absolute maximum rating

Unit

Forward current

IF

700

mA

Pulse forward current

IFP

1000

mA

Allowable reverse current

IR

85

mA

Power dissipation

PD

2.73

W

Operating temperature

Topr

-10~85

Storage temperature

Tstq

-40~100

Junction temperature

TJ

130

* Absolution Maximum Ratings at Ts=25℃

* TFP conditions with pulse width ≤10 ms and duty cycle ≤ 10%


2.Initial Electrical / Optical Characteristics

Item

Symbol

Condition

Typ

Max

Unit

Forward voltage

VF

IF=500mA

3.4

-

V

Radiant flux

Φe

IF=500mA

770

-

mW

Peak Wavelength

λp

IF=500mA

405

-

nm

Spectrum half width

△λ

IF=500mA

12

-

nm

Thermal resistance

RθJS

-

4.3

5.3

/W

* Characteristics at Ts=25℃.

* Radiant flux value as per CIE 127:2007 standard.

* RθJS is the thermal resistance from the junction to the Ts measurement point.

* It is recommended to operate the LEDs at a current greater than 10% of the sorting current to stabilize the LED characteristics.


3.RANKS

Item

Rank

Min

Max

Unit

Forward voltage

M

3.5

3.9

V

L

3.1

3.5

Radiant flux

P6d22

870

950

mW

P6d21

800

870

P5d22

730

800

P5d21

670

730

Peak wavelength

U405

400

410

nm

* Ranking at Ts=25℃

* Forward voltage tolerance : ±0.05V

* Radiant flux tolerance : ±6.5%

* Peak wavelength tolerance : ±3nm

* LEDs from the above ranks will be shipped. The rank combination ratio per shipment will be decided NICHIA.

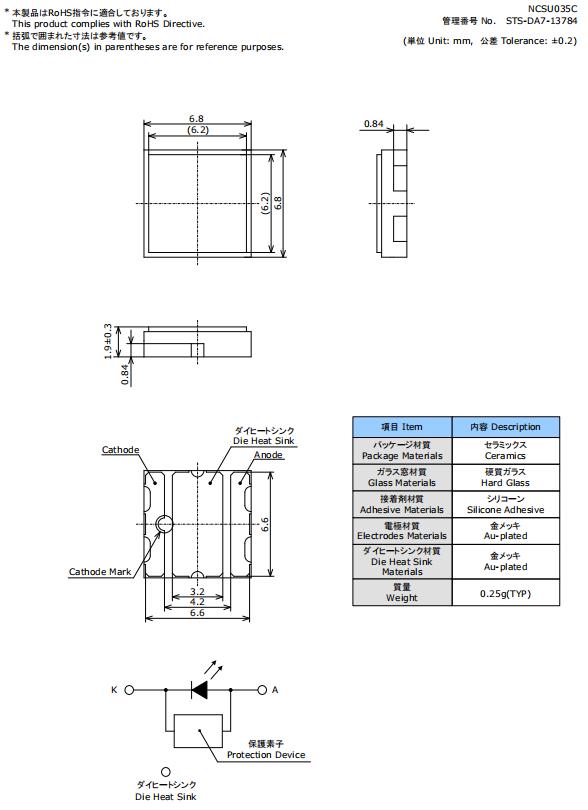

Outline Dimensions of Installing NICHIA Ultraviolet LED Lights for UV Flashlight :

High Power Japan NICHIA UV LEDs Solding PCB

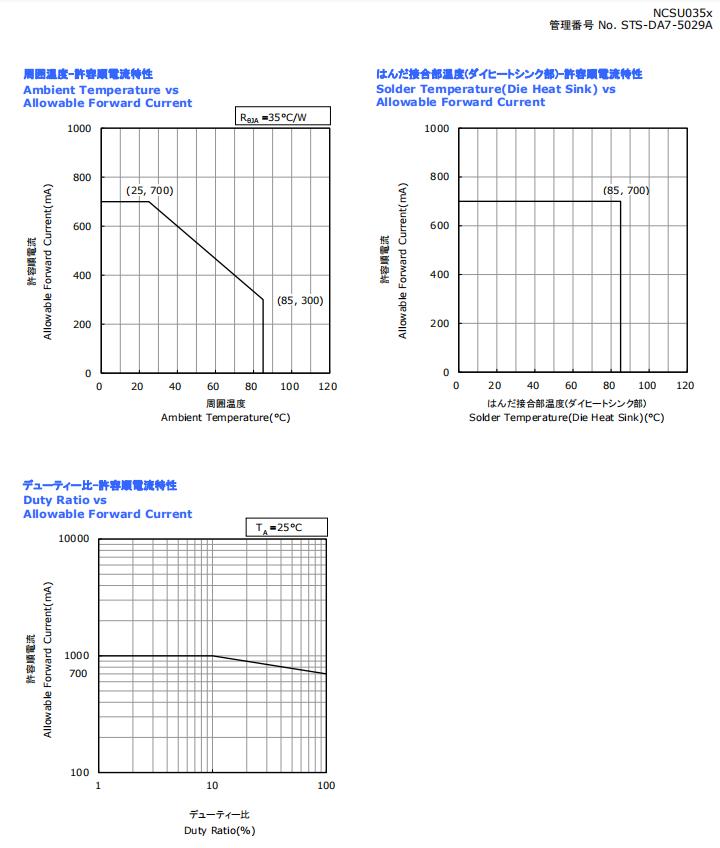

Derating Characteristics of Imported Japan NICHIA UV LEDs Solding PCB :

Industrial Specialized 405nm Ultraviolet Light Emitting Diodes for UV Curing

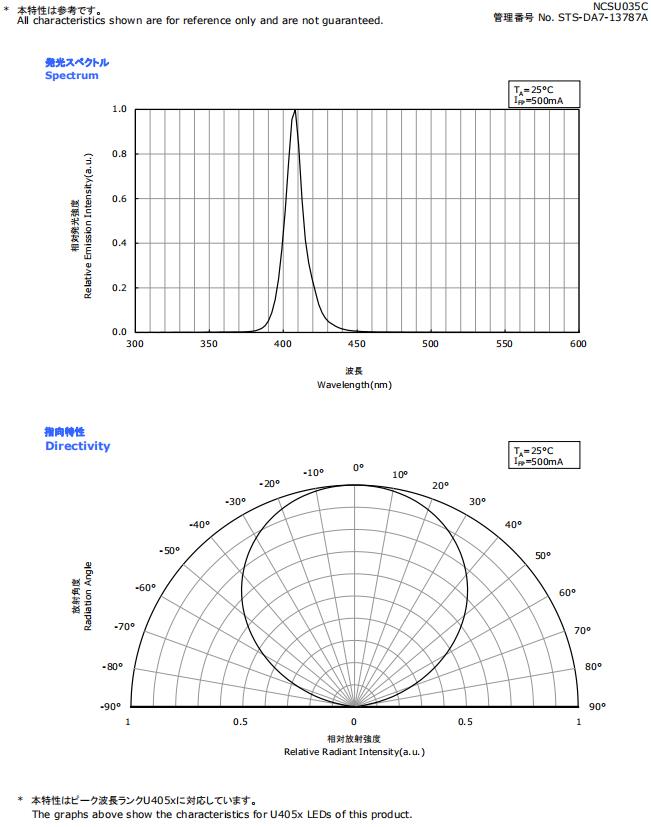

Optical characteristics of NICHIA 405nm Ultraviolet Light Emitting Diodes :

Multifunctional NICHIA UV Flashlight Lights 405nm Wholesalers

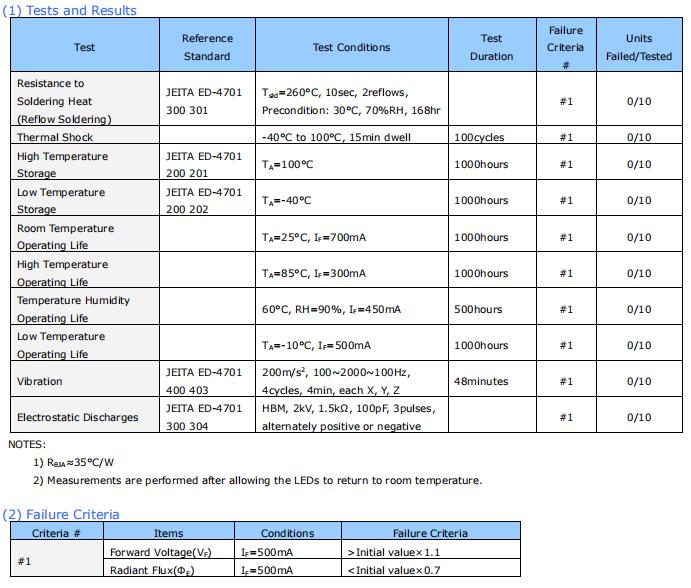

Reliability of NICHIA 405nm UV Flashlight Lights :

NICHIA 405nm Ultraviolet Light Emitting Diodes Curing UV Printing
