INA Radial insert ball bearings GE45-XL-KRR-B:
GE45-XL-KRR-B Bearing Specification :
|
Bearing
No.
|
GE45-XL-KRR-B
|
|
inner
size d
|
45 mm
|
|
Outer
size DSP
|
85 mm
|
|
Outer
ring Bore B1
|
56,5 mm
|
|
Iner
ring Bore B
|
42,9 mm
|
|
C
|
22 mm
|
|
C2
|
26,4 mm
|
|
Ca
|
6,4 mm
|
|
D1
|
72,3 mm
|
|
d1
|
57,9 mm
|
|
d3 max
|
63 mm
|
|
S
|
21,4 mm
|
|
W
|
5 mm
|
|
m
|
0,83 kg
|
|
Cr
|
34500 N
|
|
C0r
|
20400 N
|

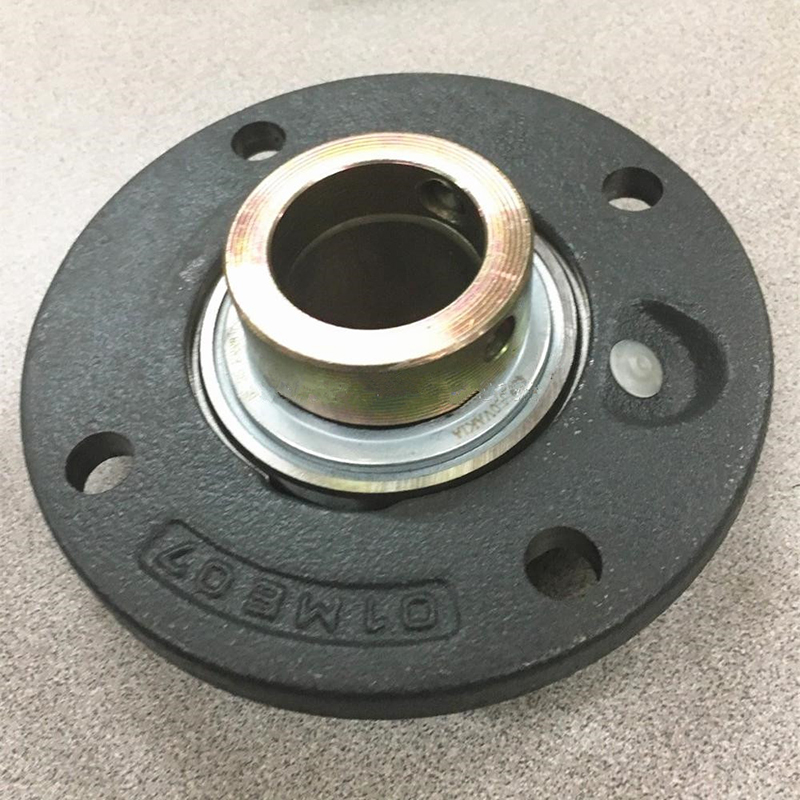

Housing units have different type such as plummer block, flanged and take-uphousing units in designs. The units can be matched with cast iron or sheet steel housings in which the radial insert ball bearings are fitted. GE45-XL-KRR-B bearing can be matcher with a bearing housing unit ,the new bearing unit is Pillow Block RME45-XL.
We Can Provide Other INA Series Bearing Such As GE**, CNE**, CRAE**,
GRAE25-XL-NPP-B,GNE25-XL-KRR-B,GE25-XL-KRR-B
GRAE40-NPP-B,RAE40-NPP-B,E-40-KRR-B,GE40-KRR-B,GE40-KRR-B-FA164,GE40-KRR-B-FA101,
GNE40-KRR-B,GE40-KTT-B,GE40-KRR-B-2C,GE40-KLL-B,GRAE45-NPP-B,GE45-KRR-B,GE45-KTT-B,GE45-KLL-B
GRAE50-NPP-B,RAE50-NPP-B,GE50-KRR-B,GE50-KRR-B-FA164,GE50-KRR-FA101,GE50-KRR-B

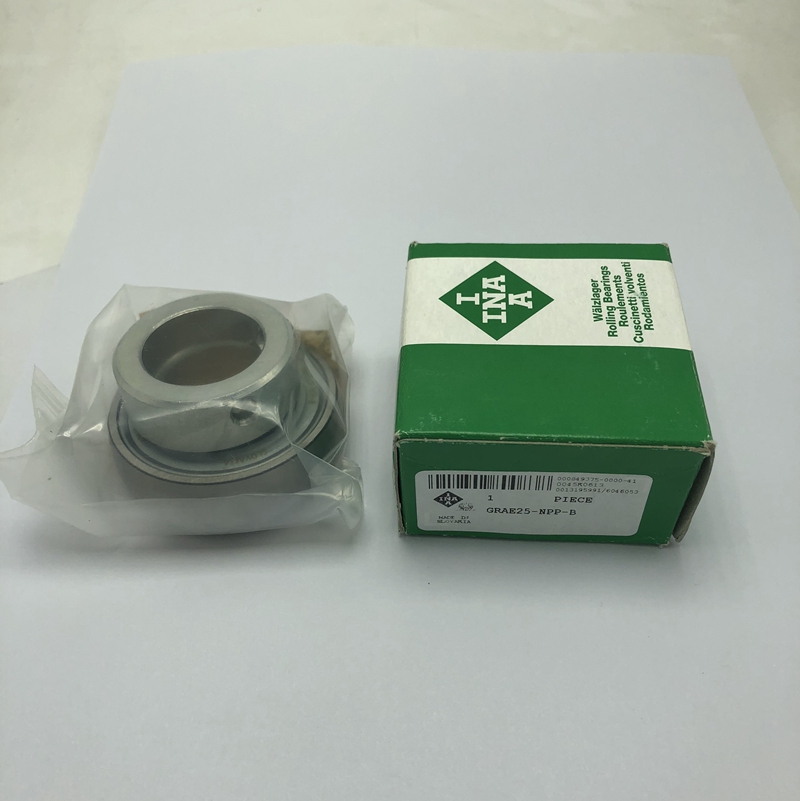

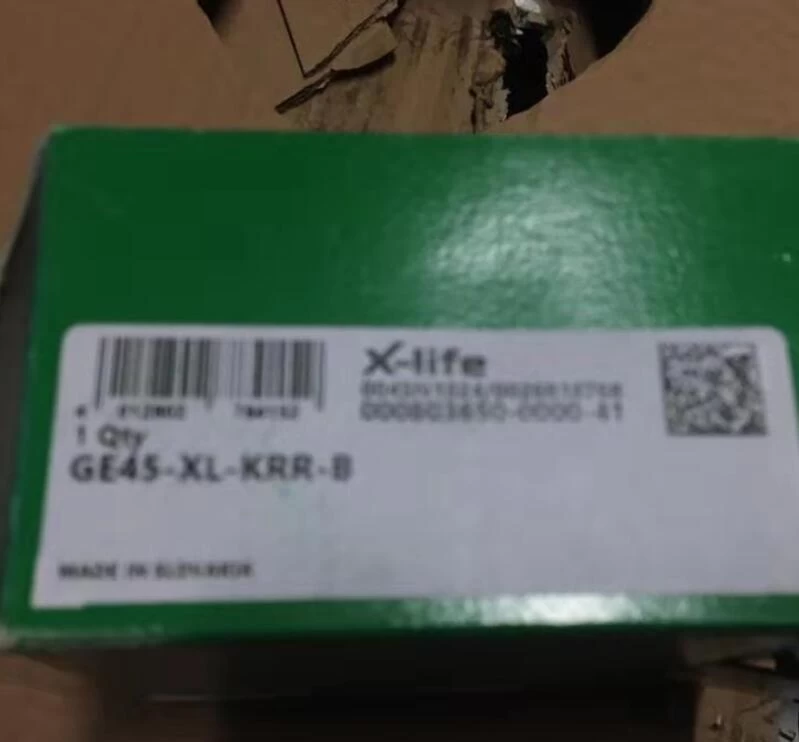

INA Brand Bearing Picture For Your Reference ,For More INA Bearing Number ,Pls Contact With Me Free.
