Housing units are the parts ready-to-fit ,they are consist of cast iron housings and the Chrome steel radial insert ball bearings,this new bearing housing can be work very well in reliability with all different operating environment, the bearings and housings are matched to each other. with the spherical outside surface of the bearing outer ring andthe concave housing bore, bearing housing is for staticangular misalignment of the shaft .The units are used predominantly as locating bearings, and the suitableas non-locating bearings under low loads and speeds.The housings are screw mounted on the adjacent construction.

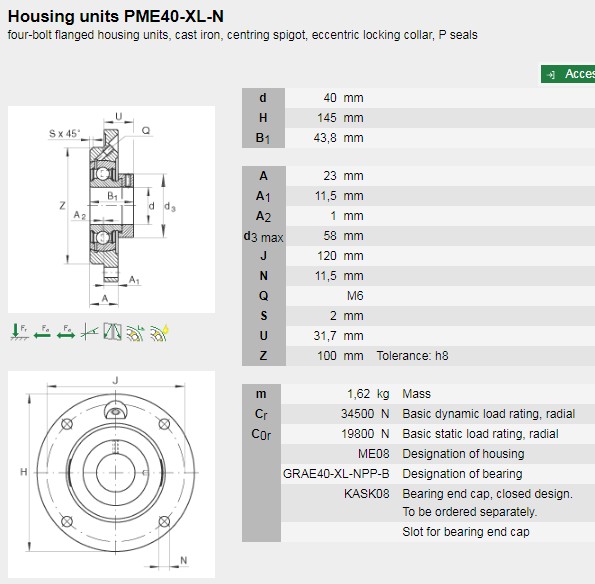

Germany Original High Qulaity INA Housing Units PME40-XL-N Introduction :
Bearing Unit :PME40-XL-N
Type : Four-bolt flanged housing units
Housing ：ME08
Match insert ball bearing : INA GRAE40-XL-NPP-B
Size :40*145*43.8mm
Material : housing with cast iron ,inset ball bearing with Chrome steel
We Can Provide High Qulity INA Housing Unit PME Number For Your Reference :
|
Housing
Units No.:
|
d(mm)
|
H(mm)
|
B1(mm)
|
|
PME20-XL-N
|
20
|
100
|
31
|
|
PME25-XL-N
|
25
|
115
|
31
|
|
PME30-XL-N
|
30
|
125
|
35.8
|
|
PME35-XL-N
|
35
|
135
|
39
|
|
PME40-XL-N
|
40
|
145
|
43.8
|
|
PME45-XL
|
45
|
155
|
43.8
|
|
PME50-XL-N
|
50
|
165
|
43.8
|
|
PME55-XL
|
55
|
185
|
48.4
|
|
PME60-XL-N
|
60
|
195
|
53.1
|
INA Bearing Unit ,Bearing Housing ,And Radial Insert Ball Beaing March ,With This New Bearing Unit , They Can Widely Use In Different Application :
|
Units
|
Housing
|
Radial insert
ball bearing
|
|
PME20-N
|
GG.ME04-N
|
GRAE20-NPP-B
|
|
PME20-N
|
GG.ME04-N
|
GE20-KRR-B
|
|
TME20-N
|
GG.ME04-N
|
GE20-KTT-B
|
|
PMEY20-N
|
GG.ME04-N
|
GAY20-NPP-B
|
|
RMEY20-N
|
GG.ME04-N
|
GYE20-KRR-B
|
|
PME25-N
|
GG.ME05-N
|
GRAE25-NPP-B
|
|
PME25-N
|
GG.ME05-N
|
GE25-KRR-B
|
|
TME25-N
|
GG.ME05-N
|
GE25-KTT-B
|
|
PMEY25-N
|
GG.ME05-N
|
GAY25-NPP-B
|
|
RME25-N
|
GG.ME05-N
|
GYE25-KRR-B
|
|
PME30-N
|
GG.ME06-N
|
GRAE30-NPP-B
|
|
PME30-N
|
GG.ME06-N
|
GE30-KRR-B
|
|
TME30-N
|
GG.ME06-N
|
GE30-KTT-B
|
|
PMEY30-N
|
GG.ME06-N
|
GAY30-NPP-B
|
|
RME30-N
|
GG.ME06-N
|
GYE30-KRR-B
|
|
PME35-N
|
GG.ME07-N
|
GRAE35-NPP-B
|
|
PME35-N
|
GG.ME07-N
|
GE35-KRR-B
|
|
TME35-N
|
GG.ME07-N
|
GE35-KTT-B
|
|
PMEY35-N
|
GG.ME07-N
|
GAY35-NPP-B
|
|
RME35-N
|
GG.ME07-N
|
GYE35-KRR-B
|
|
PME40-N
|
GG.ME08-N
|
GRAE40-NPP-B
|
|
PME40-N
|
GG.ME08-N
|
GE40-KRR-B
|
We also can produe INA Insert Ball Bearing spherical outer ring,location by eccentric locking collar,P seals on both sides as below series :
GRAE12NPPB,GRAE15NPPB,GRAE17NPPB,GRAE20NPPB,GRAE35NPPB,GRAE40NPPB,GRAE45NPPB,GRAE50NPPB
|
Bearing Series
|
For
shaft diameter in mm
|
Features
|
|
GRAE..-NPP-B
|
12-60mm
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides
|
|
RAE..-NPP-B
|
12-50mm
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides
|
|
RALE..-NPP-B
|
20-30mm
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides
|
|
RA..-NPP-B
|
5/8''-1 1/2''
|
Spherical outer ring,location by
eccentric locking collar ,P seals on both sides,inch size bore
|
|
GE..-KRR-B
|
17-120
|
Spherical outer ring,location by
eccentric locking collar ,R seals on both sides
|
Application Of INA Bearing Housing :
INA Bearing Unt can be widely used in metallurgy ,mining ,petroleum,chemical,coal,cement ,paper,windpower,heavy machinery ,enginnering machinery,port machinery and other industries.
1. With high precision INA Bearing Unit can be use in Auto wheel hub, Auto engine, Auto axle.
2. Agricultural machinery, Rotary plow bearings, Tractor, Water pump, Oil engine harvester, Seeder, Tricycle, Farm vehicle, Cultivator
3.Engineering machinery, Excavator, Dozer, Paver, Loader, Hoisting machinery, Piling soil machinery
4. Steel mill machinery, Oil field machinery, Motorship machinery
5. Hardware tool, Electric power tool, Household appliance industry
6. Electronic toys, Fitness equipment, Building machinery
7. Series Of Pumps, Antiseptic Pump, Water pump, Submersible pump, Sewage pump
