Inch Rod Ends SJF..T


Ball: 440C Stainless Steel, Heat treated, HRC56 min Precision ground, Polished

Body: 17-4Ph Stainless steel heat treated

Race: 17-4Ph Stainless steel heat treated

Sliding contact surfaces: Steel/PTFE composite or Steel/PTFE fabric


Facebook Twitter Pinterest LinkedIn 分享

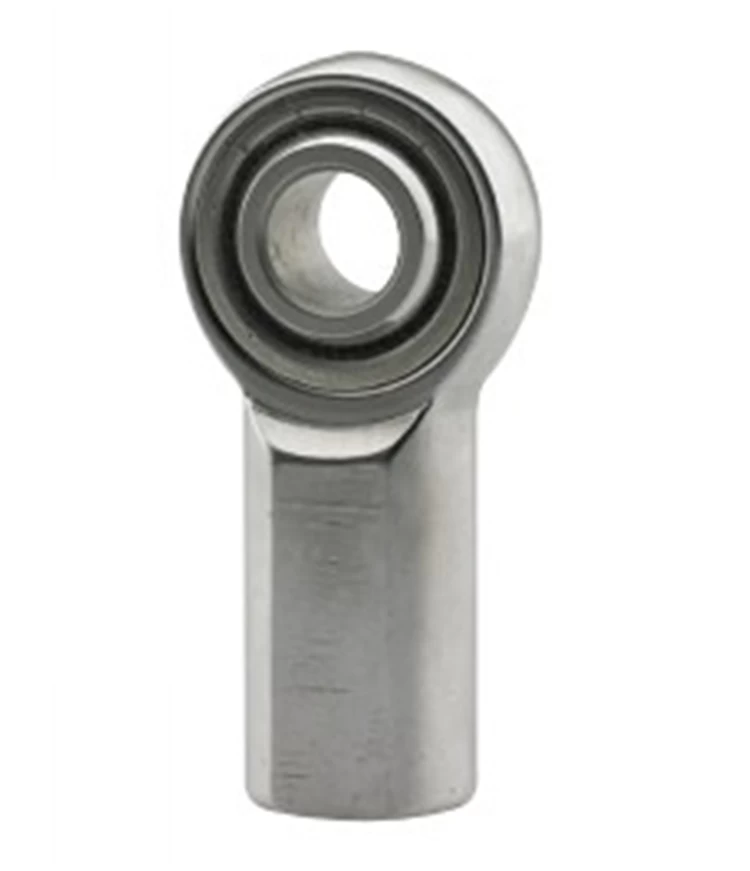

Stainless Steel Rod Ends SJF12T

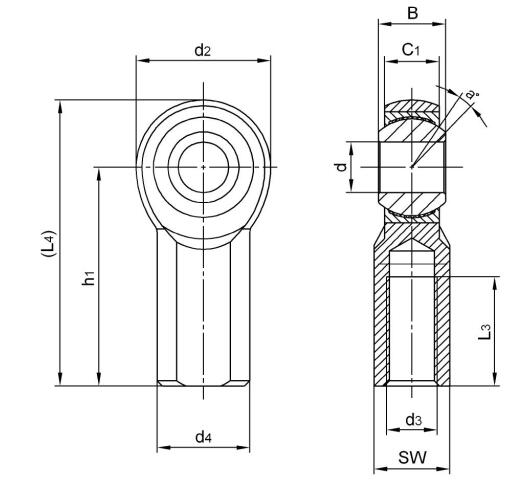

Bearing No. Dimensions(mm/inches)
Ball
dia
a°
mis.
angle
Load
ratings
(KN)
weight
≈ kg
d+0.038
  -0 012
B C1 d2
d3
UNF-2B
h1 l1 (l2) d4 SW
SJF4T 6.35 9.53 7.14 20.47 1/4-28 33.32 15.88 43.55 11.89 9.52 13.48 16 21.3 0.026
SJF4T 0.2500 0.375 0.281 0.806 1/4-28 1.312 0.625 1.714 0.468 0.375 0.531 16 21.3 0.026
SJF5T 7.938 11.11 8.74 22.86 5/16-24 34.93 17.45 46.35 12.7 11.1 15.06 14 26.3 0.041
SJF5T 0.3125 0.437 0.344 0.900 5/16-24 1.375 0.687 1.825 0.500 0.437 0.593 14 26.3 0.041
SJF6T 9.525 12.7 10.31 26.03 3/8-24 41.28 22.22 54.29 17.45 14.27 17.45 12 32.7 0.068
SJF6T 0.3750 0.500 0.406 1.025 3/8-24 1.625 0.875 2.13 0.687 0.562 0.687 12 32.7 0.068
SJF7T 11.112 14.27 11.1 29.21 7/16-20 46.02 25.4 60.6 19.05 15.88 19.83 14 35.2 0.089
SJF7T 0.4375 0.562 0.437 1.150 7/16-20 1.812 1.000 2.38 0.750 0.625 0.781 14 35.2 0.089
SJF8T 12.7 15.88 12.7 33.96 1/2-20 53.98 28.58 70.96 22.22 19.05 22.22 12 55.7 0.149
SJF8T 0.5000 0.625 0.500 1.337 1/2-20 2.125 1.125 2.97 0.875 0.750 0.875 12 55.7 0.149
SJF10T 15.875 19.05 17.27 38.74 5/8-18 63.5 34.93 82.87 25.4 22.22 26.97 16 61.6 0.216
SJF10T 0.6250 0.750 0.562 1.525 5/8-18 2.500 1.375 3.262 1.000 0.875 1.062 16 61.6 0.216
SJF12T 19.05 22.23 17.45 45.09 3/4-16 73.03 41.28 95.57 28.58 25.4 31.75 14 96.3 0.327
SJF12T 0.7500 0.875 0.687 1.775 3/4-16 2.875 1.625 3.762 1.125 1.000 1.250 14 96.3 0.327


Can supply rod ends with different pitch or accuracy of thread.

For left-hand thread, suffix "L" is added to bearing numbers. e.g.: SJFL6T 3/8-24L
