Products Descriptions:

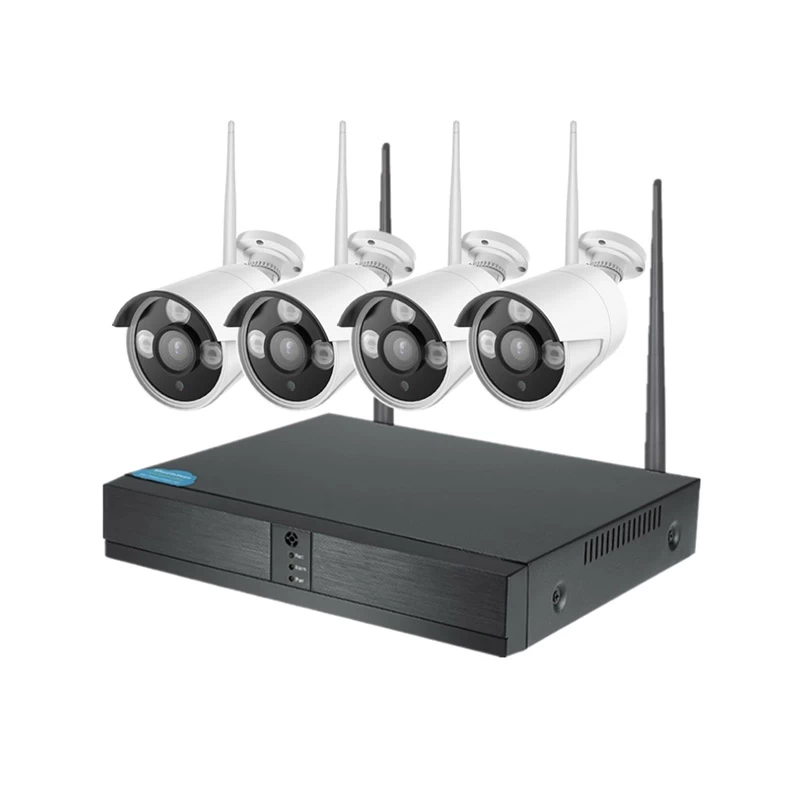

【Auto-Pair 1080P Wireless Security Camera System with Plug and Play】The security camera system will auto pair security cameras to NVR recorder, there is no need to hook any video cables from the cameras to the NVR video recorder, but security cameras are not battery powered, each security camera has a power supply with around 10 feet of power cord, and they will need to be plugged into a power.
【8 Channel Expandable】The NVR Security Camera System Wireless Support Up to 8pcs Cameras. Only Compared with Weatherproof Bullet Indoors&Outdoors 1080P Wireless Security Cameras, provide you Crystal Super Clear Image, Night Vison Up to 65ft/20M. Up to 8TB HDD（optional） Pre-installed for Continuous Recording at Highest Resolution, protect your Home and Business 24/7.
【Weatherproof & Enhanced Night Vision】The wifi security cameras work perfectly Indoors and Outdoors. Whether It’s Raining, 0°C to 55°C, Our Camera will Keep Watch Your Home. See Clearly in the Dark. LEDs evenly Illuminate the Whole Room, So Whether It’s Pitch Black or Low Light, Pixels Stay Bright and Crisp. Home Security Camera System Builds a More Powerful Wireless Signal Coverage and Works without Disturbing Your Regular Internet Speed.
【Remote View Anywhere & Easy Set-Up】The home wireless security camera system allows you to View the Live Video Remotely Anytime and Anywhere with wifi/4G on smart Phone, Pad and PC. Download Free APP“XMEYE” from Andriod or iOS, you can quickly and easily connect to your Smartphone, tablet, or PC. Email Notification & Mobile Push Alerts When Motion Detection. Motion detection recording allows you save more capacity hard drive.
【Quality & Support Guarantee】Employed the most advanced chipset solution on the market and UL certified power supply for reliable video quality and wi-fi connection; 12 Month Warranty and Lifetime Free Technical Support. Any more problem with this home security camera system, please contact us freely.
Products Specifications:
|

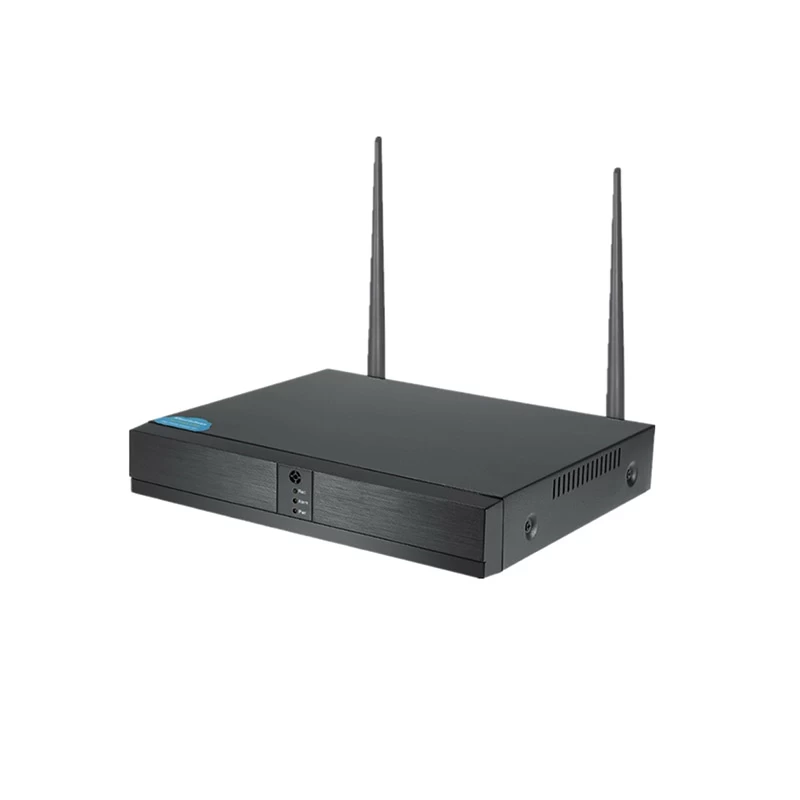

WiFi NVR Specification
|
|
System
|
Main processor
|
Hi 3536D
|
|
Operating System
|
Embedded Linux
|
|
System resources
|
Simultaneous multi-channel real-time recording, playback, network operation, USB backup
|
|
Interface
|
Operator interface
|
16-bit true color graphic menu operation interface, support mouse operation
|
|
Preview
|
1/4
|
|
Video input (IP)
|
4*1080P
|
|
Access bandwidth
|
24Mbps
|
|
Forwarding bandwidth
|
24Mbps
|
|
Video compression
|
H.265+
|
|
Display quality
|
Max 1080P
|
|
Playback quality
|
1080P
|
|
Decode
|
4*1080P
|
|
VR
|
Unsupport
|
|
Motion detection
|
Support(depend on camera)
|
|
Audio
|
Audio compression
|
G.711A
|
|
Intercom
|
Unsupport
|
|
Record & playback
|
Recording mode
|
Manual>Alarm>Dynamic Detection>Timing
|
|
Local payback
|
4*1080P
|
|
Search mode
|
Search by Time/Calendar/Event/Channel
|
|
Record storage
|
HDD、Network
|
|
Backup mode
|
Network backup, USB hard disk, USB burner, SATA burner
|
External
Interface
|
Video output
|
1ch VGA，1ch HDMI HD output
|
|
Audio I/O
|
0/0
|
|
Alarm I/O
|
0/0
|
|
Network interface
|
1*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI
|
|
USB interface
|
2*USB2.0 ports
|
|
HDD
|
1* SATA(Up to 8TB for each disk)
|
|
ESATA
|
No
|
|
Serial interface
|
No
|
|
Other
|
ONVIF
|
No
|
|
Power supply
|
12V/2A
|
|
Power Consumption
|
<10W(Without HDD)
|
|
Work environment
|
Temperature:0℃-＋55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp
|
|
Dimension
|
254mm*215mm*42mm
|
|
Weight
|
1.05KG
|
|
|
|
|
|
WiFi Camera Specification
|
|
To configure
|
Processor + sensor
|
HI3516EV100+SC2235P 1/3" Progressive Scan Sensor
|
|
Low illumination
|
Color: 0.1 Lux; B/W: 0.01 Lux
|
|
Effective pixel
|
HD 1080P
|
|
Lens
|
HD lens 3.6MM
|
|
Infrared lamp
|
3pcs X ￠10 Lamp beads
|
|
Infrared distance
|
20~30 m
|
|
Day&night
|
IR cut filter with auto switch
|
|
General
|
setting
|
Saturation, brightness and contrast ;
are adjustable through IE browser or client software.
|
|
Video compression
|
H.265+
|
|
temperature
|
-10℃-＋60℃
|
|
humidity
|
10%-90% RH
|
|
Power supply
|
DC12V 1A
|
|
Consumption
|
MAX 6W
|
|
Waterproof grade
|
IP66
|
|
Dimension
|
180mm*62mm*60mm
|
|
Weight
|
0.35 kg
|
