Airflow Water Cooling Portable air Cooler Industrial Evaporative Air Cooler Warehouse Factory Cooling System
The Characteristic Of Indirect Evaporative Air Cooler Heat Exchanger
● The size of heat exchanger can be customized according to requirements.
● Modular combination for easy on-site assembly.
●The products made of ECO-friendly polymer materials.
●The product has good hydrophilicity and high evaporation efficiency.
●Preservative,strong weather resistance,high structural strength and good sealing.
●Washable and long working life.
Specification:
| Model |
face velocity (m/s) |
evaporation efficiency (%) |
Air resistance (Pa) |
| 6mm Each piece distance |
2.0-3.0 |
60-70 |
135-300 |
| 8mm Each piece distance |
2.0-3.0 |
56-62 |
116-274 |
| 10mm Each piece distance |
2.0-3.0 |
52-55 |
97-218 |
| 12mm Each piece distance |
2.0-3.0 |
40-46 |
68-152 |
Characteristics:

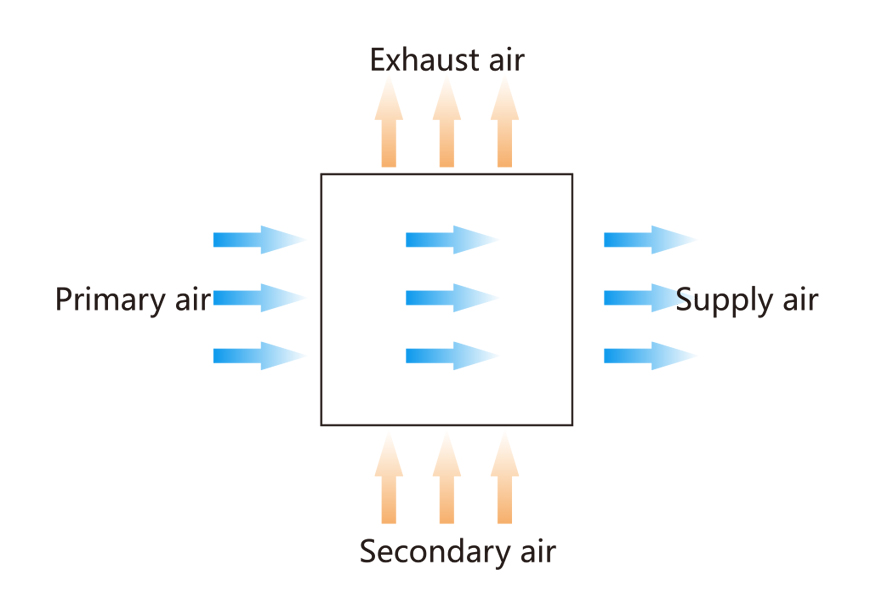

Indirect Evaporative Air Cooler Heat Exchanger Working Principle
Through the indirect heat exchanger, the air to be treated (primary air) and the wet cold air (secondary air) obtained by direct evaporative cooling are exchanged for heat, so as to realize the effect of cooling during same humidity.
Reliability Verification Of Indirect Evaporative Air Cooler Heat Exchanger

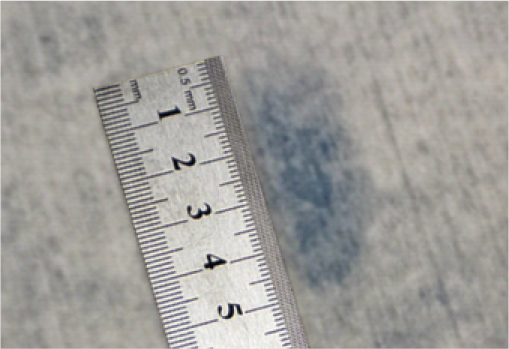

Hydroscopicity Verification
The expansion range of water absorption is 5cm.

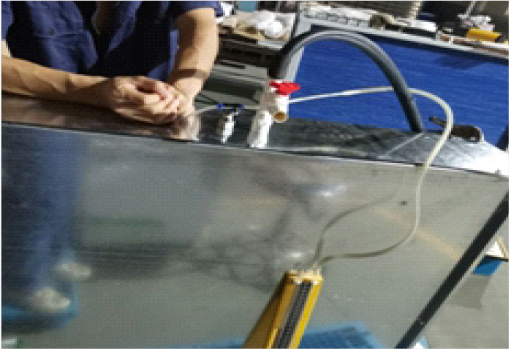

Air Impermeability Verification
120mm water column, stand for 15 minutes, no leakage.

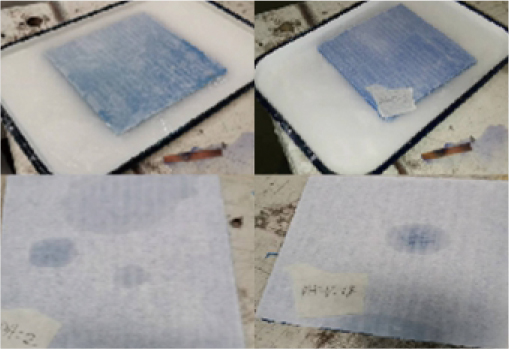

Acid And Alkali Resistance Verification
Soaked in PH=2 and PH=12 solution separately, took it out after 12hours, no abnormality were found.
Temperature Resistance Verification
No abnormality after being placed in an environment of 50°C-60°C for a whole day.

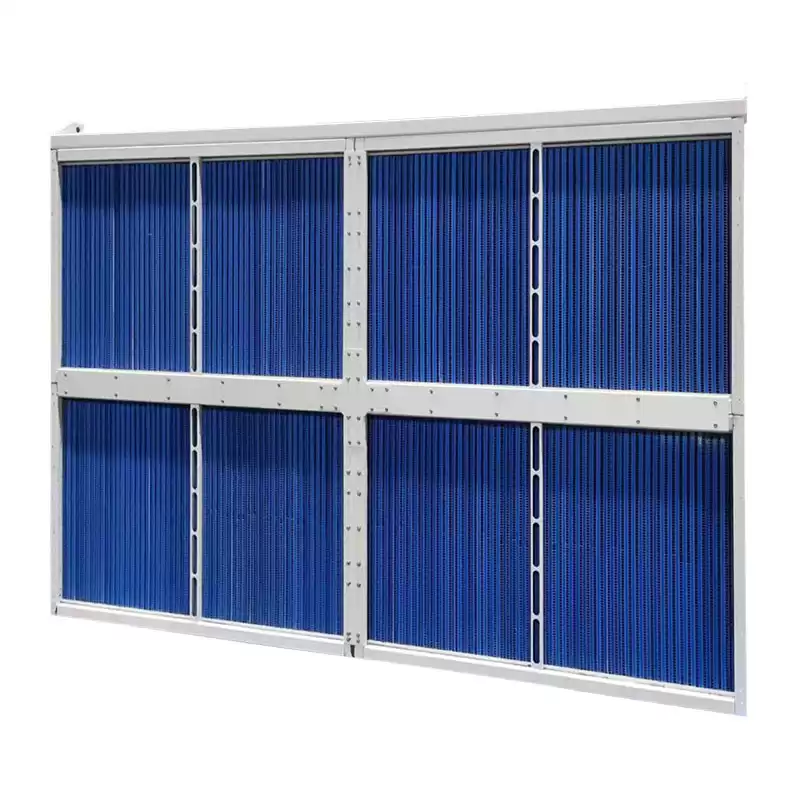

Indirect Evaporative Air Cooler Heat Exchanger
Applicable to data centers,hospitals,schools, airports,high-speed rail station. Shopping malls, libraries, gymnasiums, exhibition halls, etc.

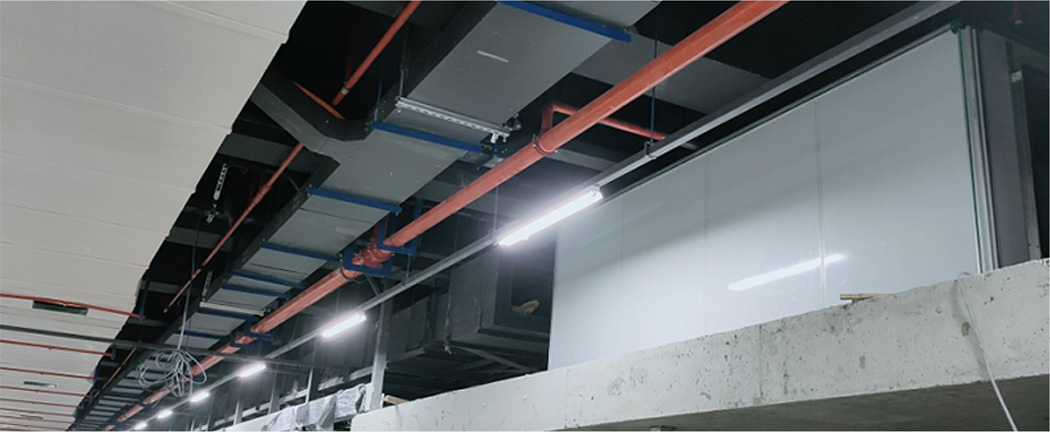

Indirect Evaporative Air Cooler For Public Medical Use
Assembling unit: Select 3 sets of Aolan's dew point indirect evaporative air cooler units,Total fresh air volume of equipment: 60000 m3/h.
Project introduction:The project uses Aolan's combined dew point indirect evaporative air cooler unit,As the cooling equipment for the public medical area on the outpatient floor of a hospital complex in northwest China,In summer and transition season, make the public medical area on all floors achieve a comfortable environment of ventilation and cooling,Provide fresh air meeting basic requirements in winter.
