Indoor Optical Armored Cable Singlemode Multimode

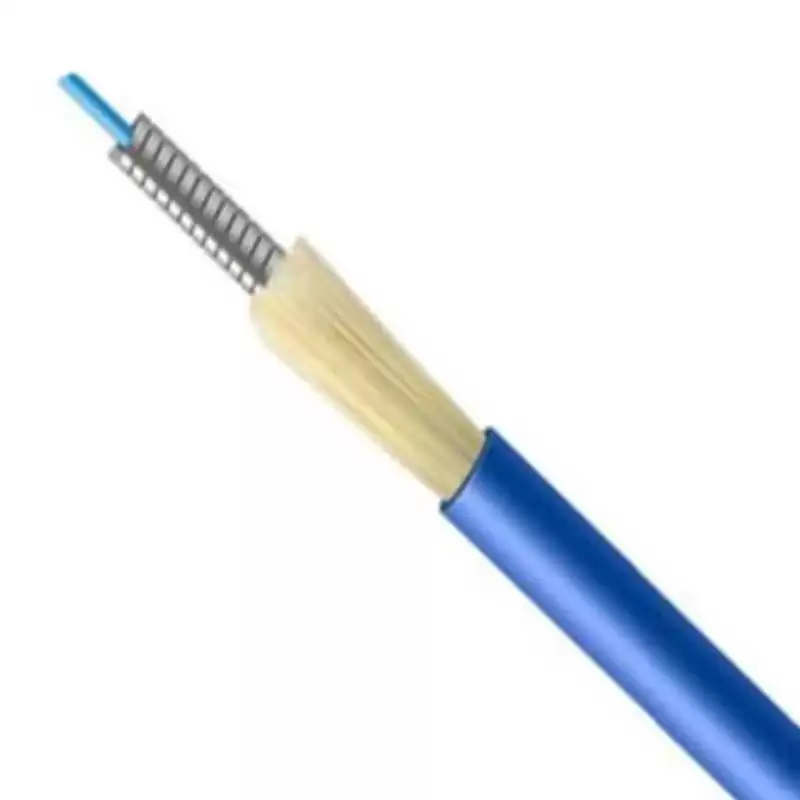

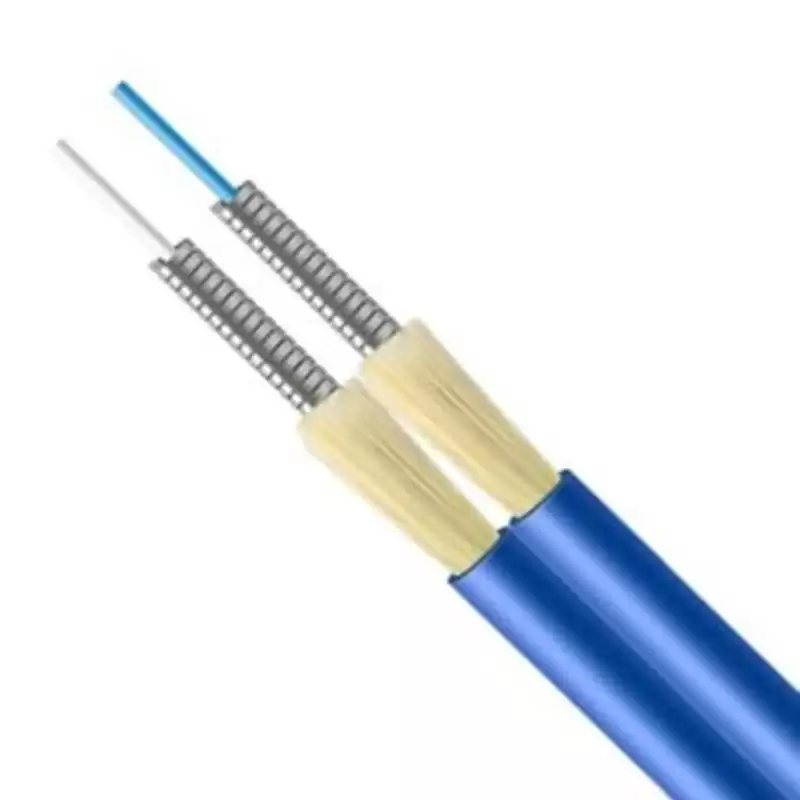

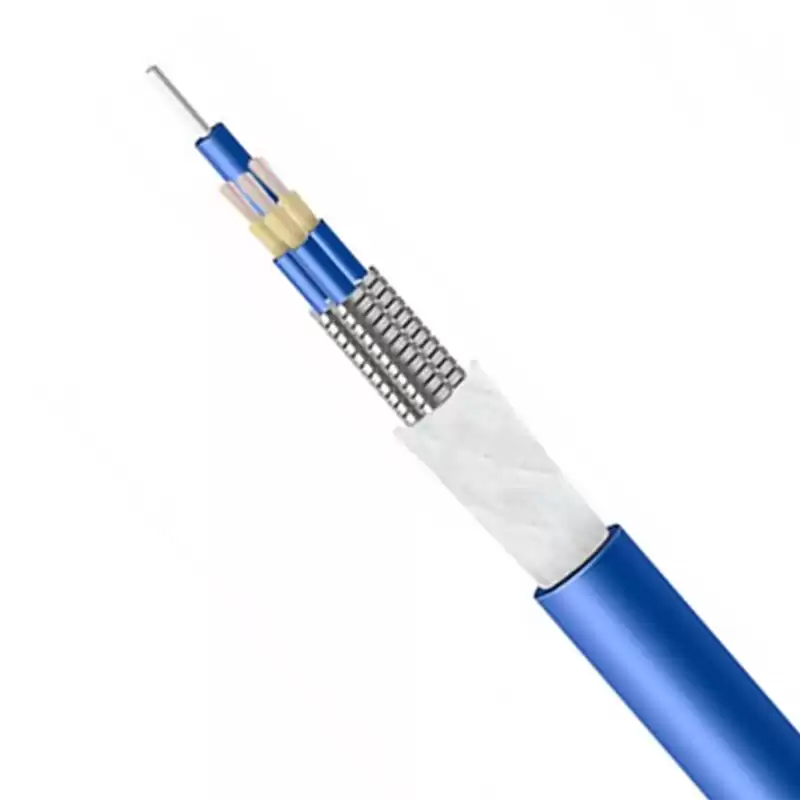

The armored fiber optic cable is often
installed in a network for added mechanical protection. It offers ruggedness

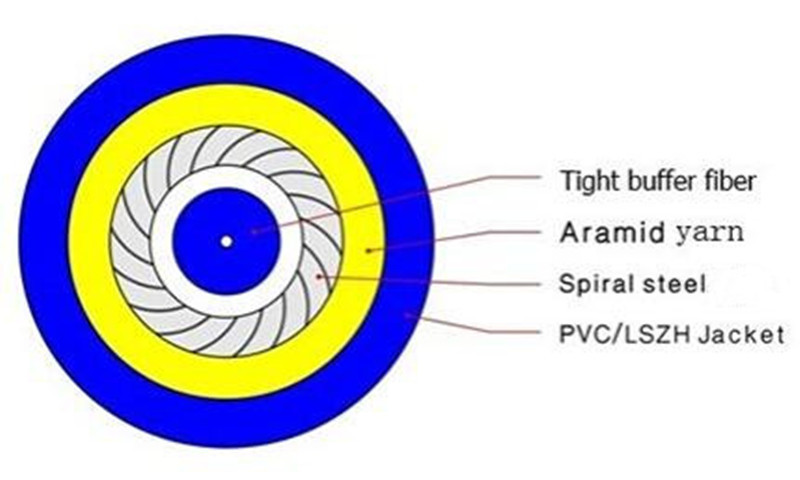

and superior crush resistance. Corrugated armor is a coated steel tape folded
around the cable longitudinally. SZOPT emphasizes the quality level from incoming
raw materials,each process of production technology.The outer sheath can be
PVC/LSZH/OFNP/TPU/PE or custom,the regular fiber counts are from 1 to 48C,OEM&ODM
is welcome.
Application:
Indoor FTTH;
For patch cords and pigtails;
For communication equipment.
Feature:
Good mechanical and environmental characteristics;
Flame retardant characteristics;
Cable jacket options:PVC,LSZH

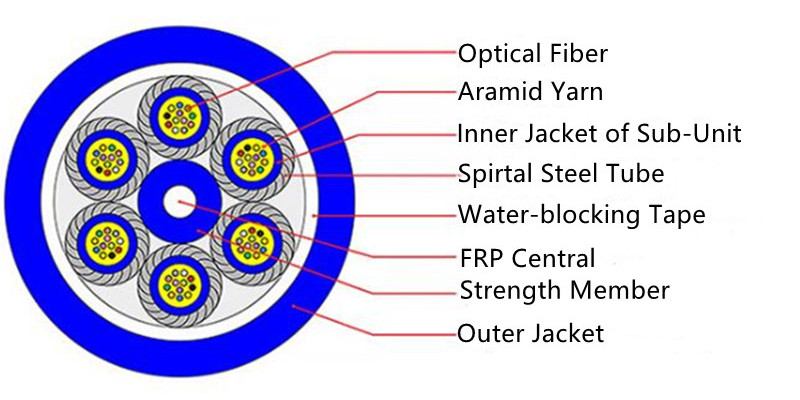

Strength Member options:Steel,FRP,KFRP.
Package:

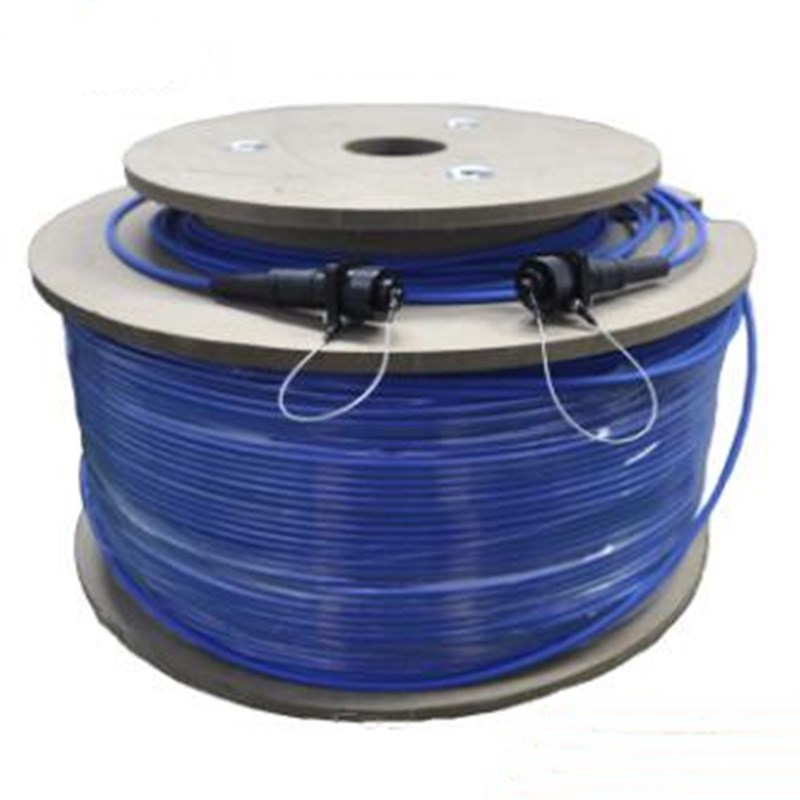

1km/2km/3km per roll or custom,then put into a carton box.
Mechanical
Characteristics:
|
Tensile Strength
|
Long Term
|
300N
|
|
Short Term
|
1000N
|
|
Crush Resistance
|
Long Term
|
500N/100mm
|
|
Short Term
|
1000N/100mm
|
|
Bending Radius
|
Dynamic
|
20D
|
|
Static
|
10D
|
Optical Characteristics:
|
|
|
G652D
|
G657A1
|
G657A2
|
G657B3
|
G.655
|
62.5/125
|
50/125
|
|
Attenuation
(+20℃)
|
@850nm
|
|
|
|
|
|
≤3.5dB/km
|
|
@1300nm
|
|
|
|
|
|
≤1.5dB/km
|
|
@1310nm
|
≤0.45dB/km
|
≤0.40dB/km
|
≤0.45dB/km
|
≤0.50dB/km
|
|
|
|
@1550nm
|
≤0.30dB/km
|
≤0.50dB/km
|
|
|
|
Bandwidth
（Class A）
|
@850
|
|
|
|
|
|
≥200MHZ·km
|
≥500MHZ·km
|
|
@1300
|
|
|
|
|
|
≥500MHZ·km
|
≥500MHZ·km
|
|
Numerical Aperture
|
|
|
|
|
|
|
0.275±0.015NA
|
0.200±0.015NA
|
|
Cut-off Wavelength
|
|
≤1260nm
|
|
≤1480nm
|
|
|
