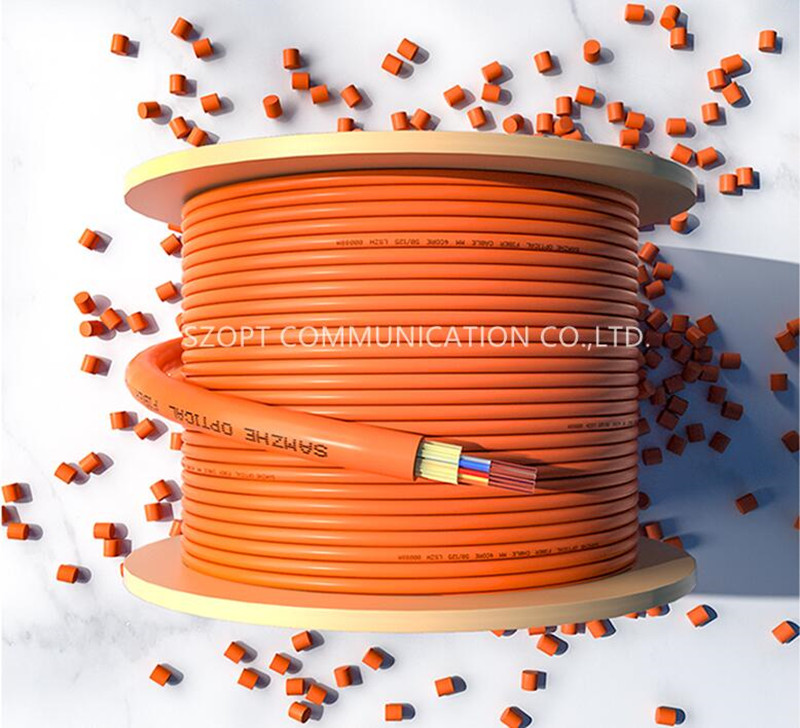

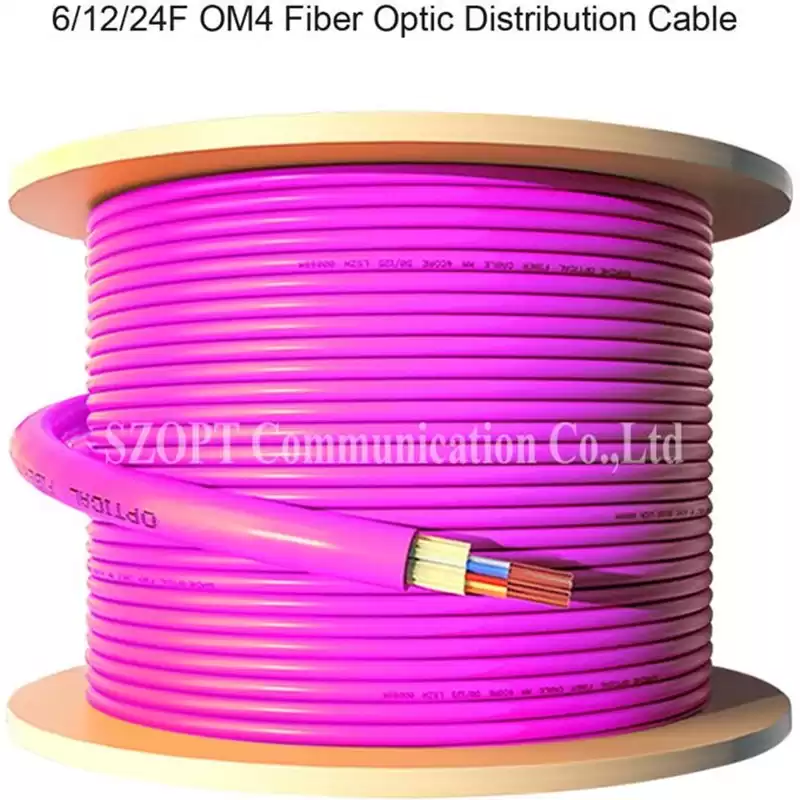

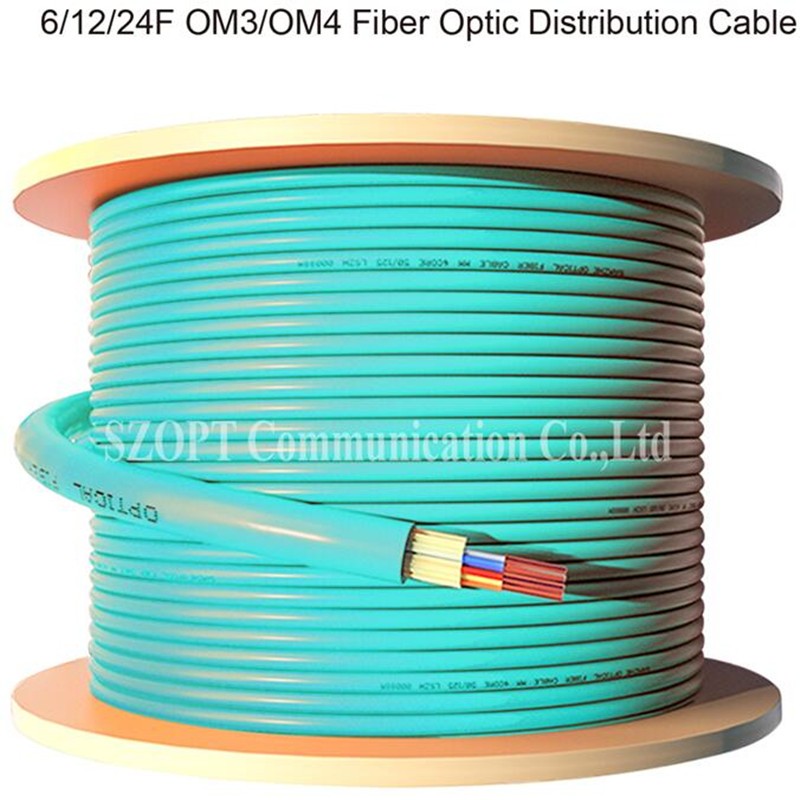

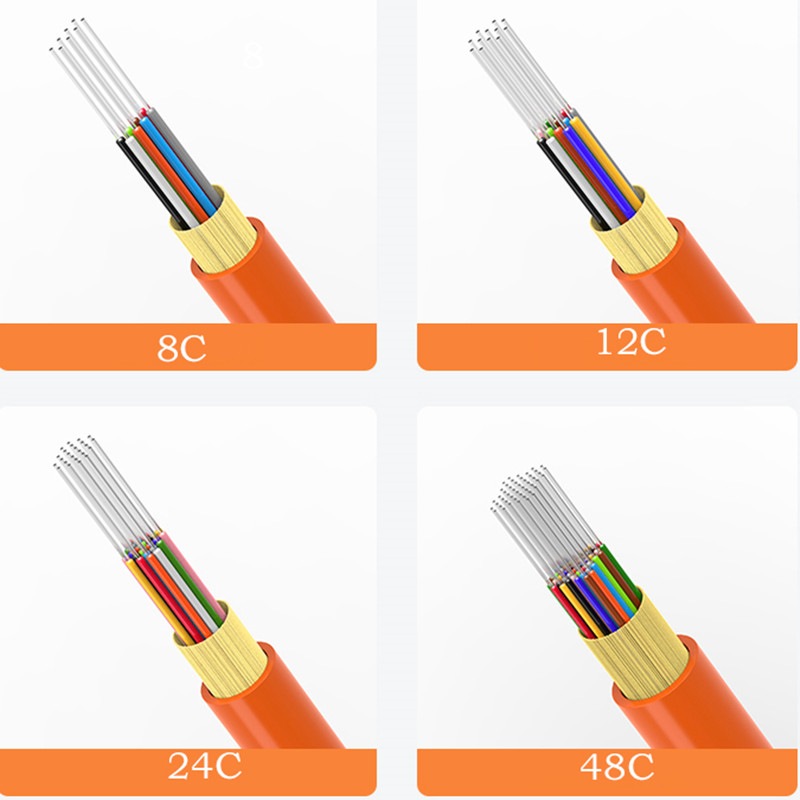

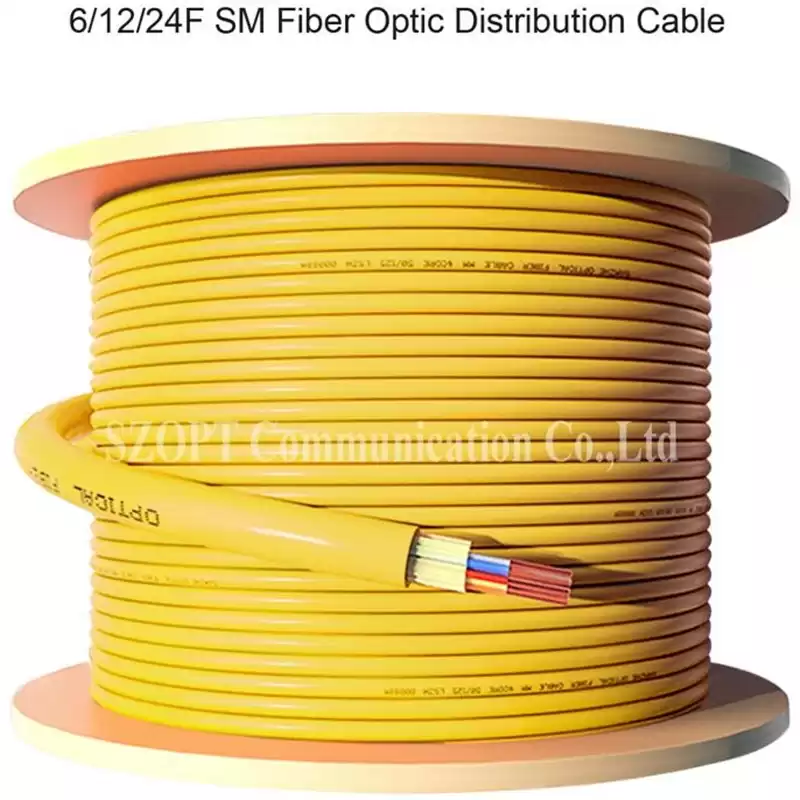

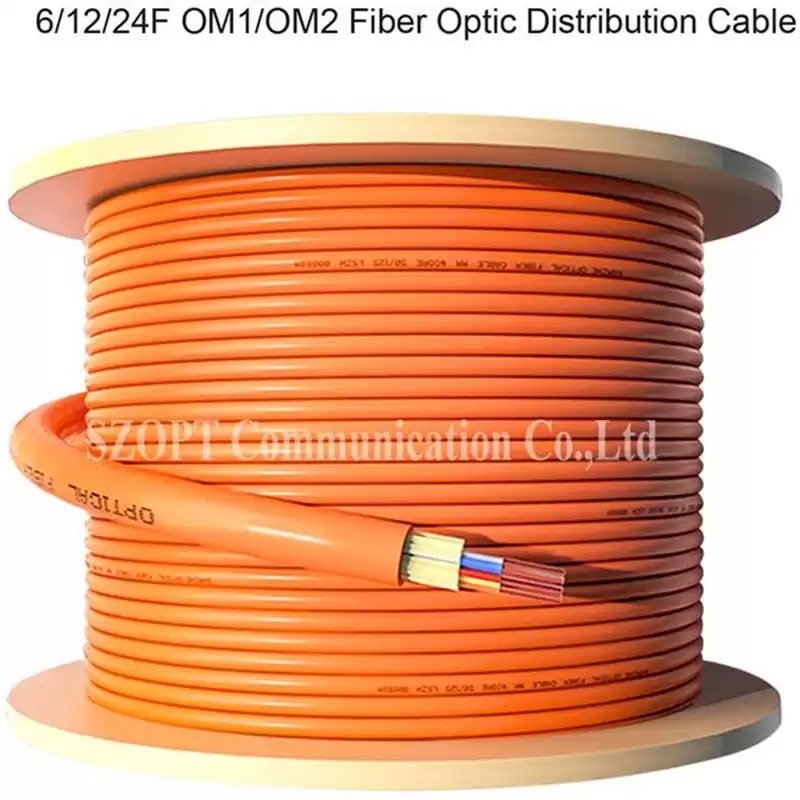

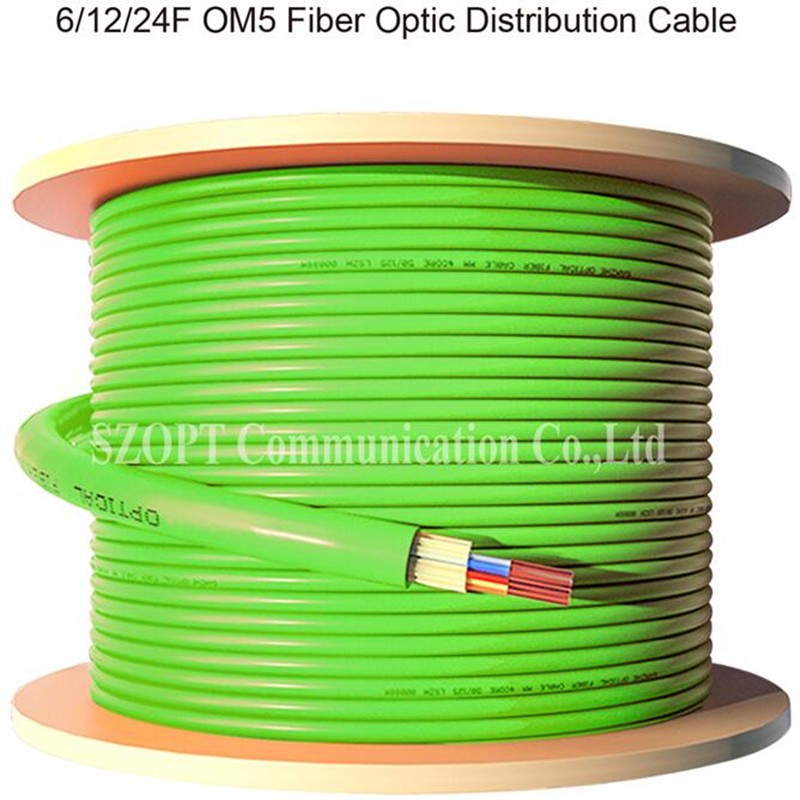

Indoor Optical Cable 6/12/24/48C Distribution Singlemode Multimode
Our indoor cables are widely used in building wiring applications. Installed in walls, between floors, in plenum air handling ducts and under data center floors.
SZOPT's indoor cable that specifically used for patching applications is typically more robust in design, and capable of superior flex and crush requirements. High volume connectorization processes require cable diameter consistency, long continuous lengths, and outstanding appearance aesthetics. Our patch cable designs provide the assembler with interconnect solutions backed by years of proven performance.
Application:
Indoor FTTH;
For patch cords and pigtails;
For communication equipment.
Feature:
Good mechanical and environmental characteristics;
Flame retardant characteristics;
Cable jacket options:PVC,LSZH

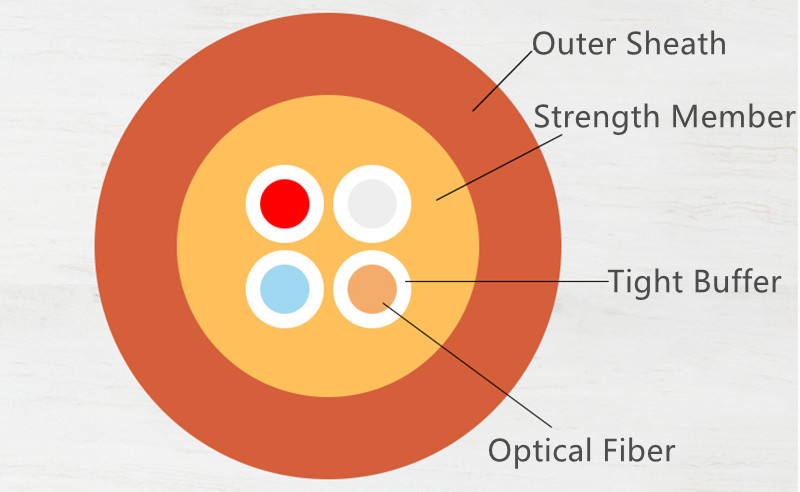

Strength Member options:Steel,FRP,KFRP.
Package:
1km/2km/3km per roll or custom,then put into a carton box.
Mechanical
Characteristics:
|
Tensile Strength
|
Long Term
|
60N
|
|
Short Term
|
100N
|
|
Crush Resistance
|
Long Term
|
100N/100mm
|
|
Short Term
|
500N/100mm
|
|
Bending Radius
|
Dynamic
|
20D
|
|
Static
|
10D
|
Optical Characteristics:
|
|
|
G652D
|
G657A1
|
G657A2
|
G657B3
|
G.655
|
62.5/125
|
50/125
|
|
Attenuation
(+20℃)
|
@850nm
|
|
|
|
|
|
≤3.5dB/km
|
|
@1300nm
|
|
|
|
|
|
≤1.5dB/km
|
|
@1310nm
|
≤0.45dB/km
|
≤0.40dB/km
|
≤0.45dB/km
|
≤0.50dB/km
|
|
|
|
@1550nm
|
≤0.30dB/km
|
≤0.50dB/km
|
|
|
|
Bandwidth
（Class A）
|
@850
|
|
|
|
|
|
≥200MHZ·km
|
≥500MHZ·km
|
|
@1300
|
|
|
|
|
|
≥500MHZ·km
|
≥500MHZ·km
|
|
Numerical Aperture
|
|
|
|
|
|
|
0.275±0.015NA
|
0.200±0.015NA
|
|
Cut-off Wavelength
|
|
≤1260nm
|
|
≤1480nm
|
|
|
