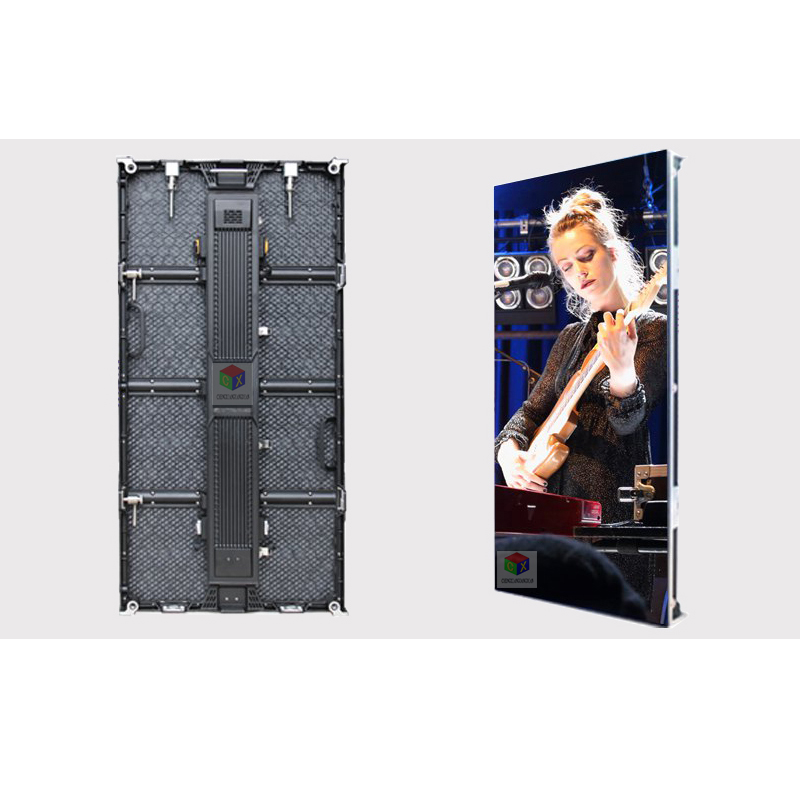

Features

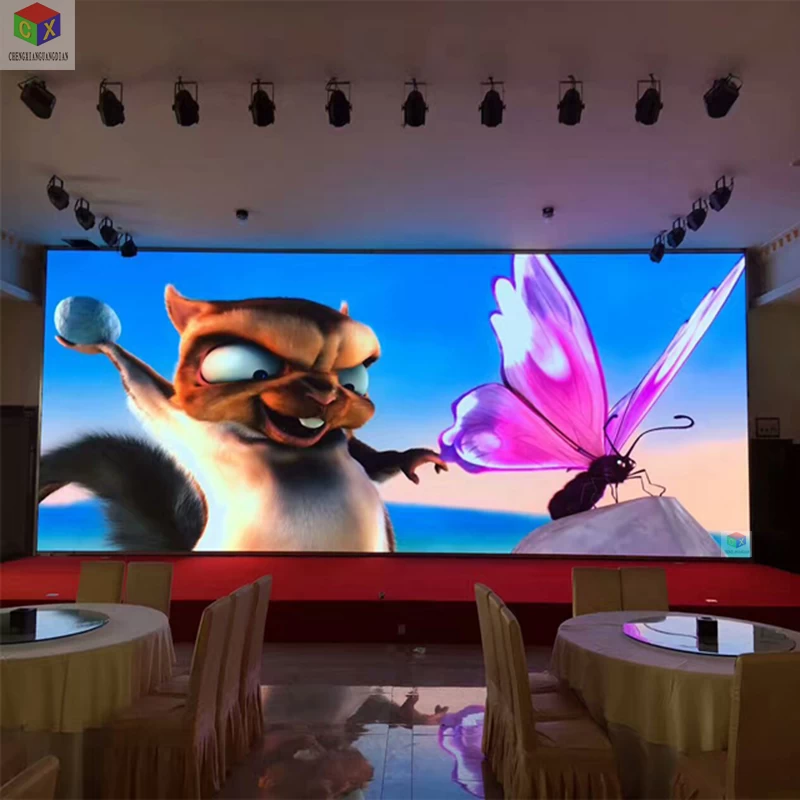

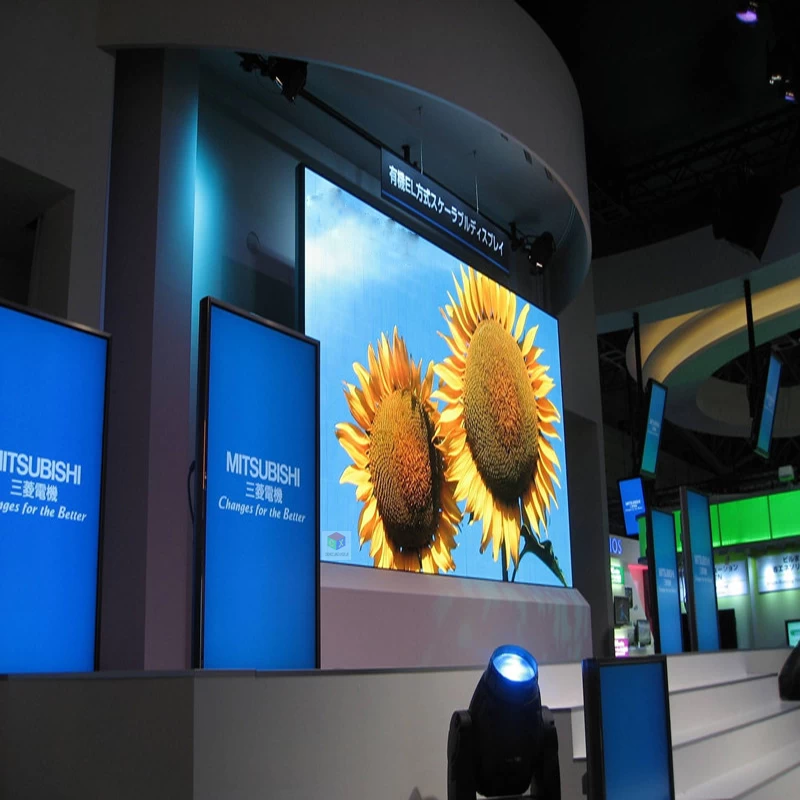

1.Wide Application: Stage rental events, entertainment, indoor and outdoor environment.
2.Light Weight:Using aluminum profile material, the cabinet weight is only 7kg.
3.High Contrast Ratio: novel design of mask,contrast ratio can reach 3000:1.
4.Quiet:Direct current fan only has little noise.
5.Thin:the thickest part of cabinet is only 60mm.
6.High Precision:each cabinet of precision deviation <0.5mm.
7.High Refreshing:Usually 2500Hz by Chipone IC,but it can reach higher refresh rate if use better IC.
8.Convenient and Fast Installation.
9.Best Cabinet Size: 500mm*1000mm and 500mm*500mm
Specification
|
Pixel Pitch
|
4.81 mm
|
|
Pixel Density
|
43264dots/sqm
|
|
Color Configuration
|
1R1G1B
|
|
LED Package
|
SMD2121
|
|
Module Size
|
250mm x 250mm
|
|
Module Resolution
|
52dots x 52dots
|
|
Drive Mode
|
1/13 Scan Constant Current
|
|
Brightness
|
>1500cd/sqm
|
|
Viewing Distance
|
4m-50m
|
|
Cabinet Size
|
500mm x 500mm
|
|
Cabinet Material
|
Die-casting Aluminum
|
|
Cabinet Weight
|
7KG
|
|
Viewing Angle
|
H: 120°; V:120°
|
|
Refresh Rate
|
1920HZ
|
|
Frame Rate
|
120frame/sec
|
|
Grey Scale
|
16.7M colors(Synchronized)
|
|
Color Temperature
|
R.G.B brightness 256 level adjustable
|
|
Power Input
|
AC110V/ 220V ±10, 50HZ
|
|
Max Power Consumption
|
800W/sqm
|
|
Ave. Power Consumption
|
200W/sqm
|
|
Storage Temperature
|
-40~+85 degree
|
|
Working Temperature
|
-20~+65 degree
|
|
Blind Spot Rate
|
<1/10000
|
|
MTBF
|
>10,000 Hours
|
|
Life Span
|
>100,000 Hours
|
|
Waterproof
|
IP30
|
|
Operating Humidity
|
10%~95%
|
|
Control System
|
LINSN/NOVA
|
|
Control PC
|
With DVI Graphic card
|
|
PC Display Resolution
|
1280x1024
|
|
Operating System
|
Win 98, Win2000, XP, Win7 ,Win8.etc
|
|
Video Signal Mode
|
RF,S-Video, RGB, RGBHV, YUV, YC etc
|
|
Certificate
|
CE, RoHS
|
