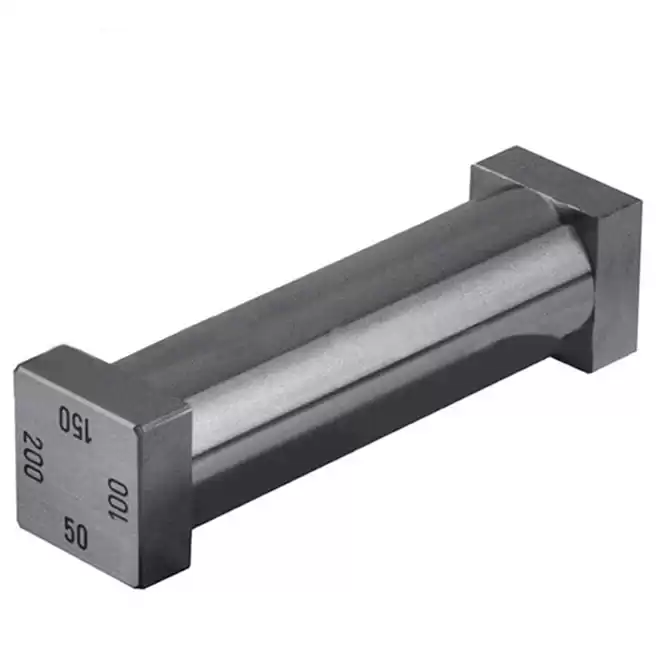

Industrial Four Sides Wet Film Applicator
1.TMAX-DSP is designed for use on a flat substrate coating uniformity paint,adhesives and
similar products.Our company put more grooves precision coating
device diversity and alternative fixed groove coating device is incorporated in a meter.
2.Technical parameters:
2.2 High grade stainless steel wear-resistant material
2.3 The effective coating width:
TMAX-DSP206 Universal type → 80mm (coating device total length 100mm)
TMAX-DSP205 lengthened type → 160mm (coating device total length 190mm)
3.Ordering Information:
|
Universal type
|
The effective coating width
|
|
TMAX-DSP206
|
80mm (coating device total length 100mm)
|
|
TMAX-DSP206/1
|
(5µm,10µm,15µm,20µm)
|
|
TMAX-DSP206/2
|
(25µm,50µm,75µm,100µm)
|
|
TMAX-DSP206/3
|
(50µm,100µm,150µm,200µm)
|
|
TMAX-DSP206/4
|
(30µm,60µm,90µm,120µm)
|
|
Lengthened type
|
The effective coating width
|
|
TMAX-DSP205
|
160mm (coating device total length 190mm)
|
|
TMAX-DSP205/2
|
(25µm,50µm,75µm,100µm)
|
|
TMAX-DSP205/3
|
(50µm,100µm,150µm,200µm)
|
|
TMAX-DSP205/4
|
(30µm,60µm,90µm,120µm)
|
|
TMAX-DSP205/5
|
(100µm, 200µm,300µm,400µm)
|
|
TMAX-DSP205/6
|
(50µm, 75µm,100µm,150µm)
|
|
TMAX-DSP205/7
|
(100µm, 150µm,200µm,250µm)
|
|
TMAX-DSP205/8
|
(250µm, 500µm,750µm,1000µm)
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
