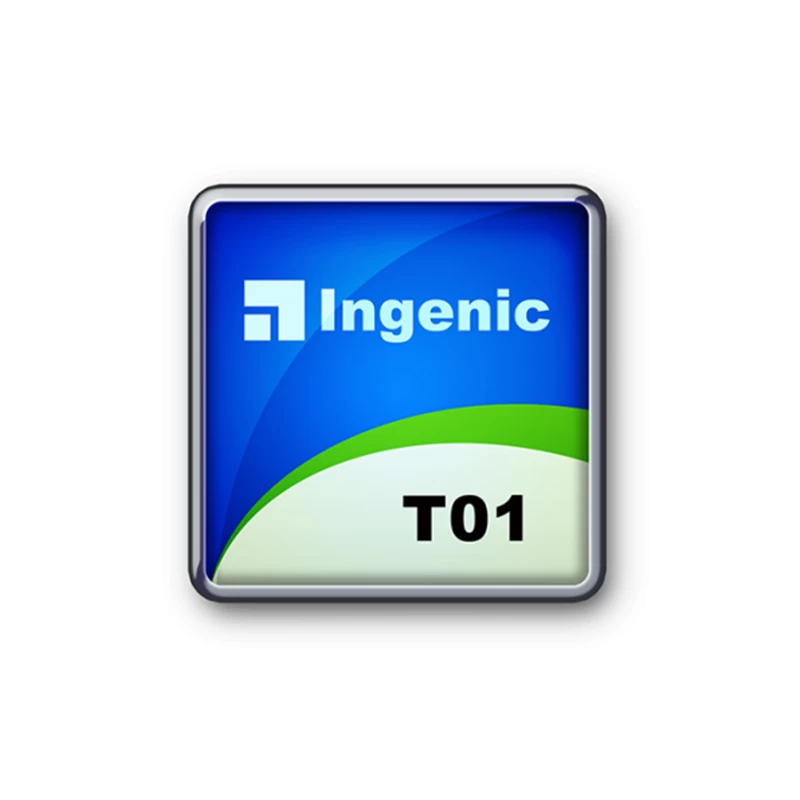

Ingenic T01 video analysis AI coprocessor

• Professional video analysis AI coprocessor

• High performance face/ up-body/ humanoid detection

• Stable intrusion alarm, passenger flow statistics, face capture, face recognition and other AI applications

• Extremely low running power consumption

Facebook Twitter Pinterest LinkedIn 分享

Products Description:

Ingenic has been designing MIPS based SoCs using their Xburst processor engine for several years, which are found in tablets, development boards, and wearables. The company has now launched T10 smart video processor based on the same MIPS32 processor but mobile camera, security survey, video talking, video analysis and so on with image resolution up to 1280×960 (datasheet says 1280×1024), and videos up to 720p30 or VGA @ 30fps

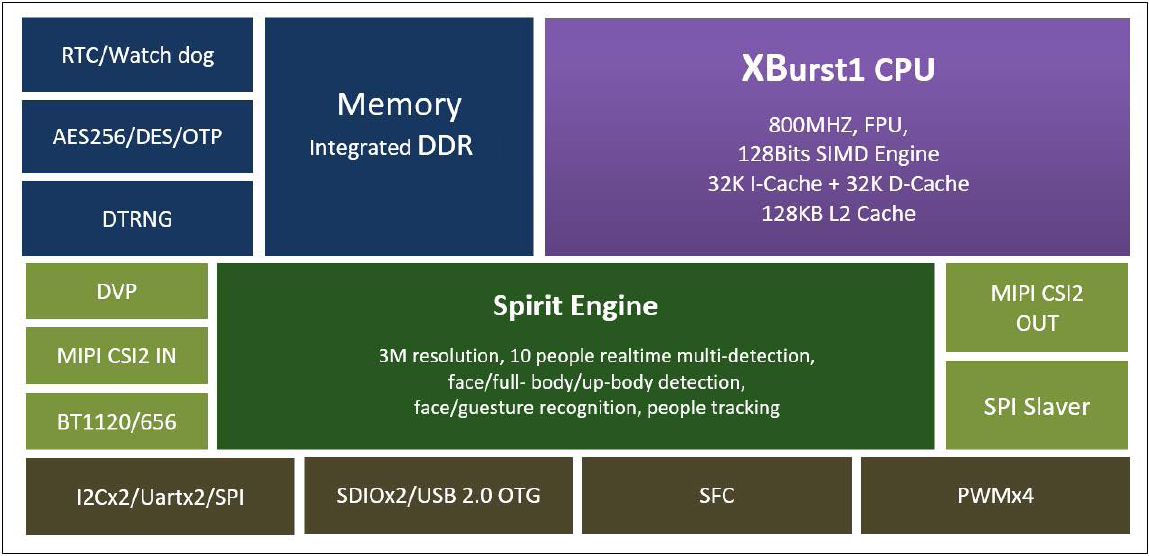

T01 Block Diagram:


Products Specifications:

CPU XBurst®-1 core 600MHZ/1GHZ
– XBurst® RISC instruction set
– XBurst® SIMD128 instruction set
– XBurst® FPU instruction set supporting both single and double floating point format which are IEEE754 compatible
– XBurst® 9-stage pipeline micro-architecture, the operating frequency is 800MHz
Memory Integrated DDR
Spirit engine More than 10 people realtime multi-detection.
Max input resolution 2048x2048 @60fps.
Video input/output Video input
– DVP Input data format: YUV422, RGB565, RGB555, RAW8, RAW10, RAW12.
– BT656/BT1120
– MIPI CSI2 IN (Ingenic Host Soc Only)
Video output
– MIPI CSI2 OUT (Ingenic Host Soc Only)
Result output Synchronous serial slave interfaces (SSI_SLV)
– 3 protocols support: Motorola’s SPI, TI’s SSP and National’s Microwire
– Full-duplex, transmit-only or receive-only operation for Motorola’s SPI and TI’s SSP
– Half-duplex, transmit-only or receive-only operation for National’s Microwire
USB 2.0 interface
– Complies with the USB 2.0 standard for high-speed (480 Mbps) functions and with the On-The-Go supplement to the USB 2.0 specification
– Operates either as the function controller of a high- /full-speed USB peripheral or as the host/peripheral in point-to-point or multi-point communications with other USB functions
– 16 Endpoints:
– Dedicate FIFO
– Supports control, interrupt, ISO and bulk transfer
