Item No
|
UI-SS05
|
Installation
Site
|
Flat/Slope
Tin Roof (0-60 Degree)
|
|
Material
|
Aluminum
6005 T5
Stainless Steel 304
|
Max Wind
Speed
|
60 m/s
|
|
Warranty
|
10 Years
|
Max Sonw
Load
|
1.4 KN/M2
|
|
Service
Life
|
25 Years
|
Max Building
Height
|
65 ft (20m)
|
1.Innovative Solution
The mount system is in new design and can fit the unique roof sheet.
2. Simple and Safe

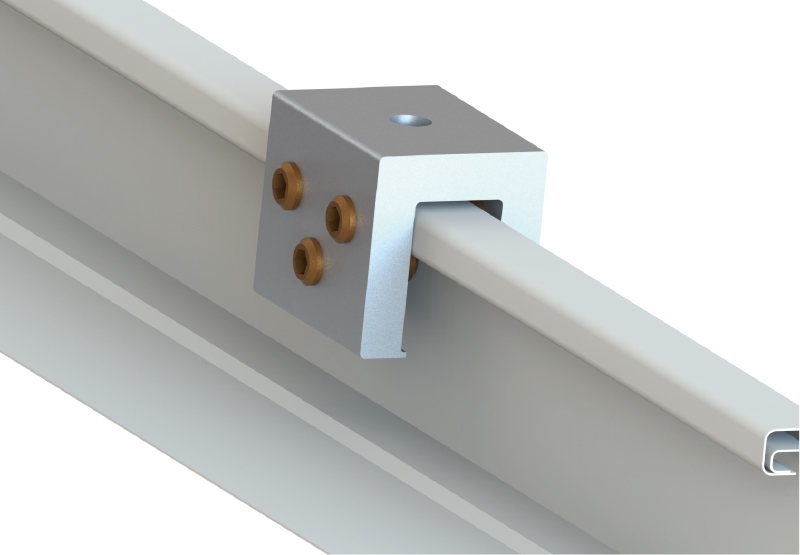

Fasten the connection part with screws from three sides which increasing the connecting areas and make sure the safety of your project.

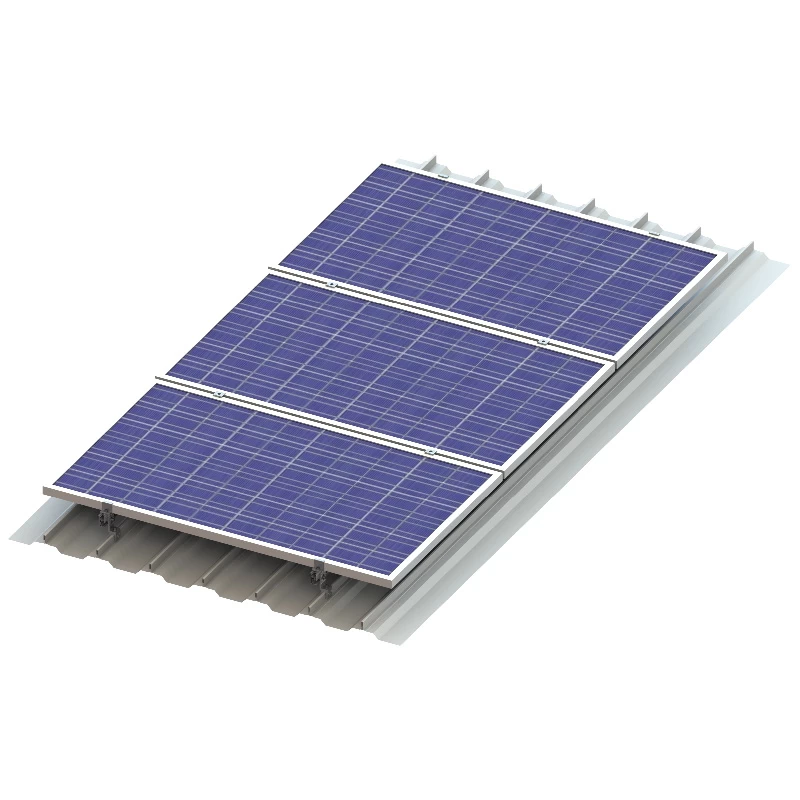

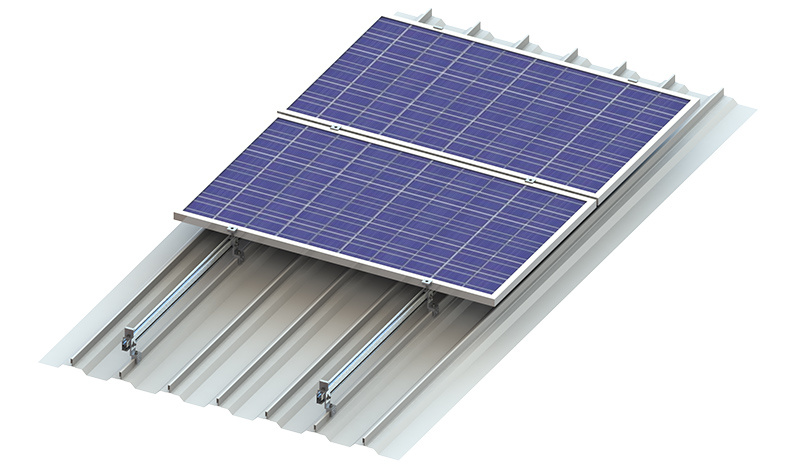

Roof Mounting System - UISolar roof mounting systems with patented rail, highly pre-assembled components can be your better choice.
