input 110v 12v 45w triac dimmable led panel light driver

input 110v triac dimmable led driver; high stability led power supply; constant voltage transformer

Facebook Twitter Pinterest LinkedIn 分享
Product Description
Product parameters:
Model  SMT-012-045VD SMT-024-045VD
Single Output features Constant voltage 12vDC   24vDC



output current 3.75Amp 1.875Amp
output power 45watt 45watt
Ripple & Noise 250mV
Current Regulation ±3%
Starting time 1000mS/230Vac, 3000mS/110Vac
Input Voltage range 100Vac-265Vac
Frequency range 47Hz-63Hz
Power factor PF>0.93/230Vac,PF>0.92/110Vac
Efficiency 87%/110Vac , 86%/230Vac
Inrush Current 20A/110Vac, 40A/230Vac
Leakage Current <1mA/120Vac,240Vac
Protection short circuit
Single Protection,Hiccup ,recovery after the fault removed.
Over voltage Protection mode:Limit highest voltage, recovery after the fault removed.
Over temperature 105oC±5 oC ( Internal radiator's temperature)
over load Protection mode:Closed Output voltage,recovery after temperature automatic recovery.

Specifications:

  1. Efficiency > 85%
  2. PF>0.90
  3. working mode: constant voltage
  4. dimming mode: traic dimmable
  5. Case material: plastic housing
  6. produt cord:connecting terminal(IP20) / 18AWG*20CM
  7. 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

Features:

  1. High efficiency,save energy ,protected environment.
  2. High stability and low ripple, increase light efficiency and decrease light attenuation.
  3. Meet to safety standard and EMC
  4. Assure LED stability long lift and light efficiency by constant voltage.
  5. Protections:Short circuit/Overload/Over temperature
  6. Cooling by free air convection
  7. 100% full load burn-in test.
  8. Suitable for LED lighting

Safety:

  1. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
  2. Withstand Voltage : I/P-O/P: 3000KVAC
  3. Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Application:

  1. Indoor LED illuminating lights
  2. LED Neon, LED urban Decoration
  3. LED Lighting Advertising,LED Display
  4. Safety Protection Apparatus
  5. Telecommunications, Networks
  6. Vehicle Lights, Controller Panels

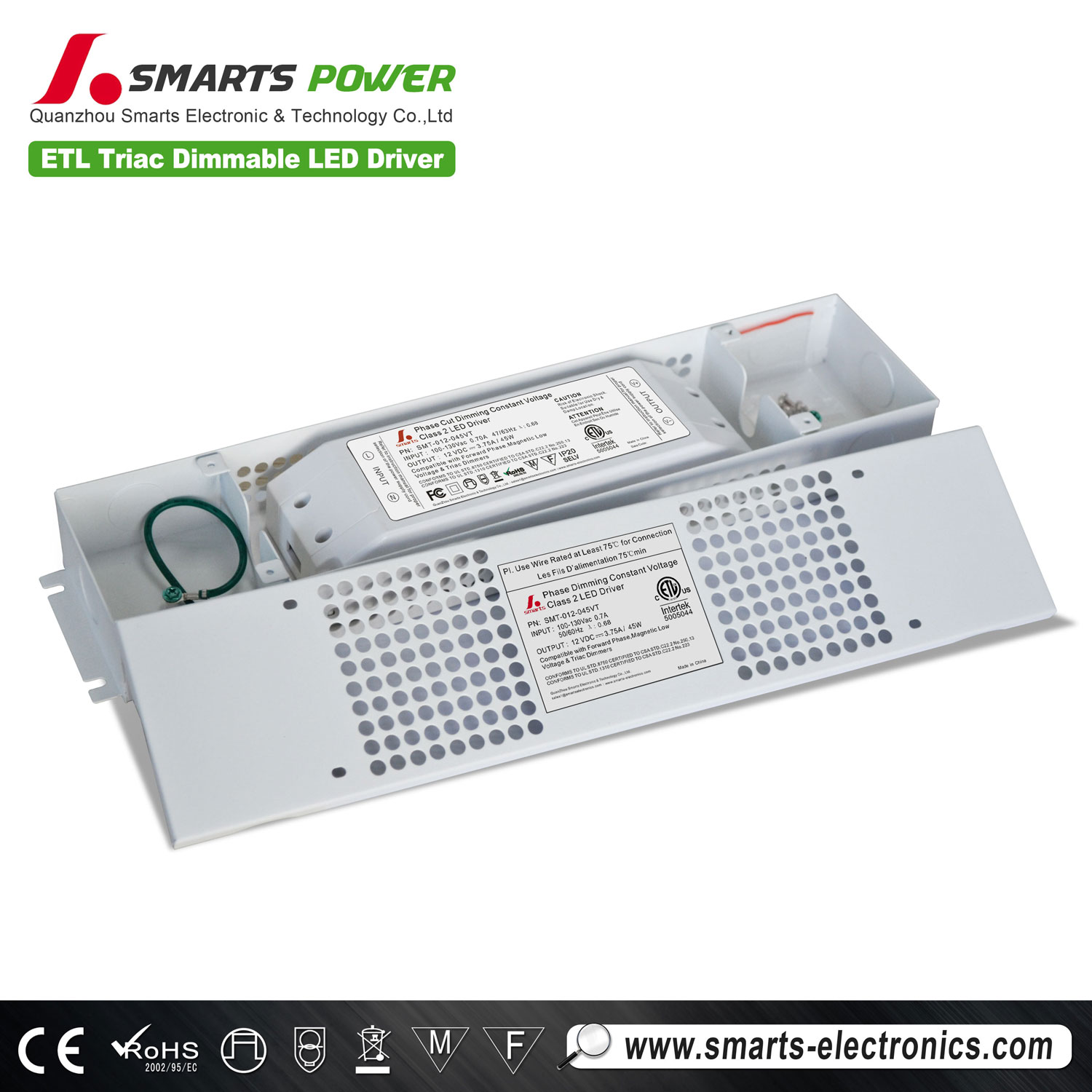

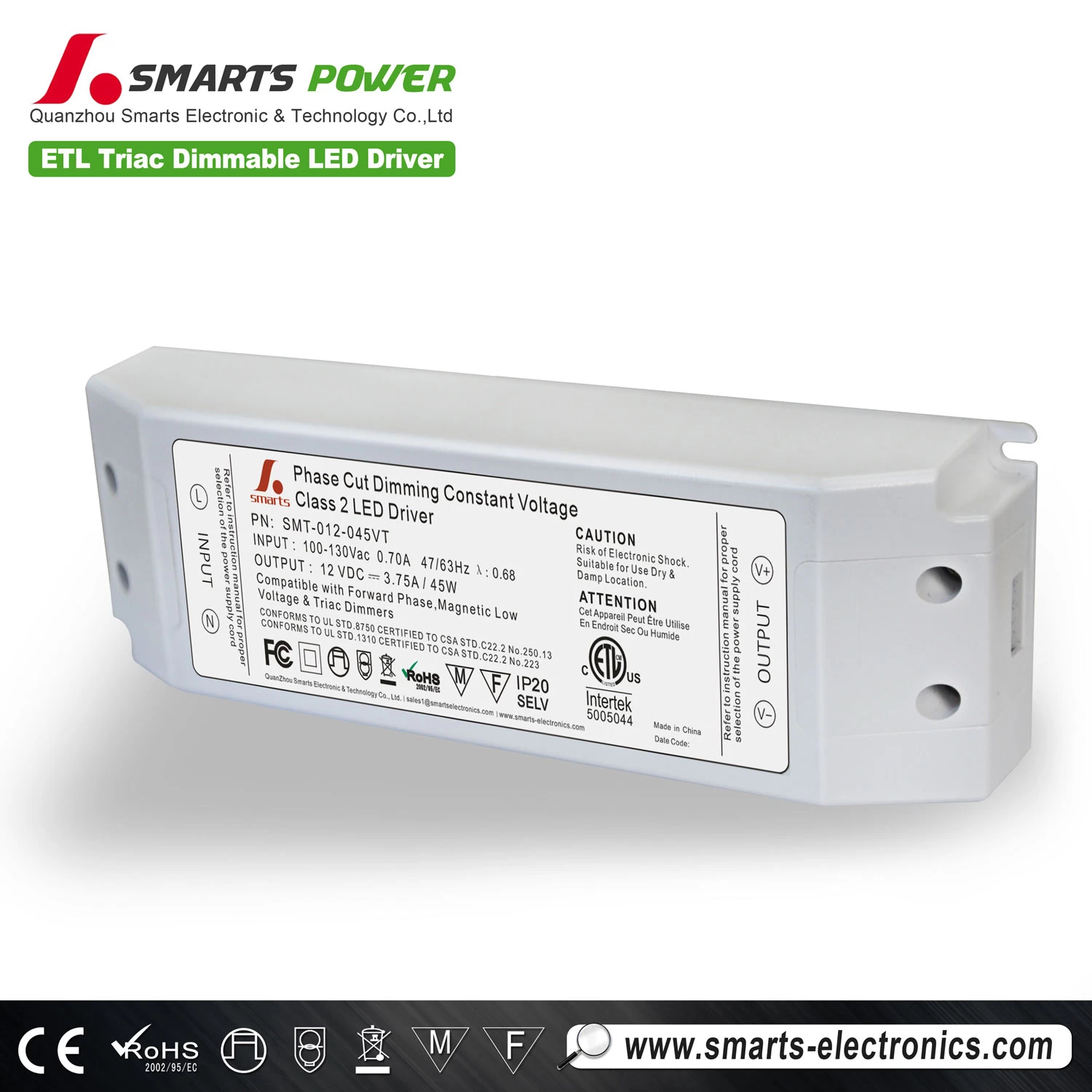

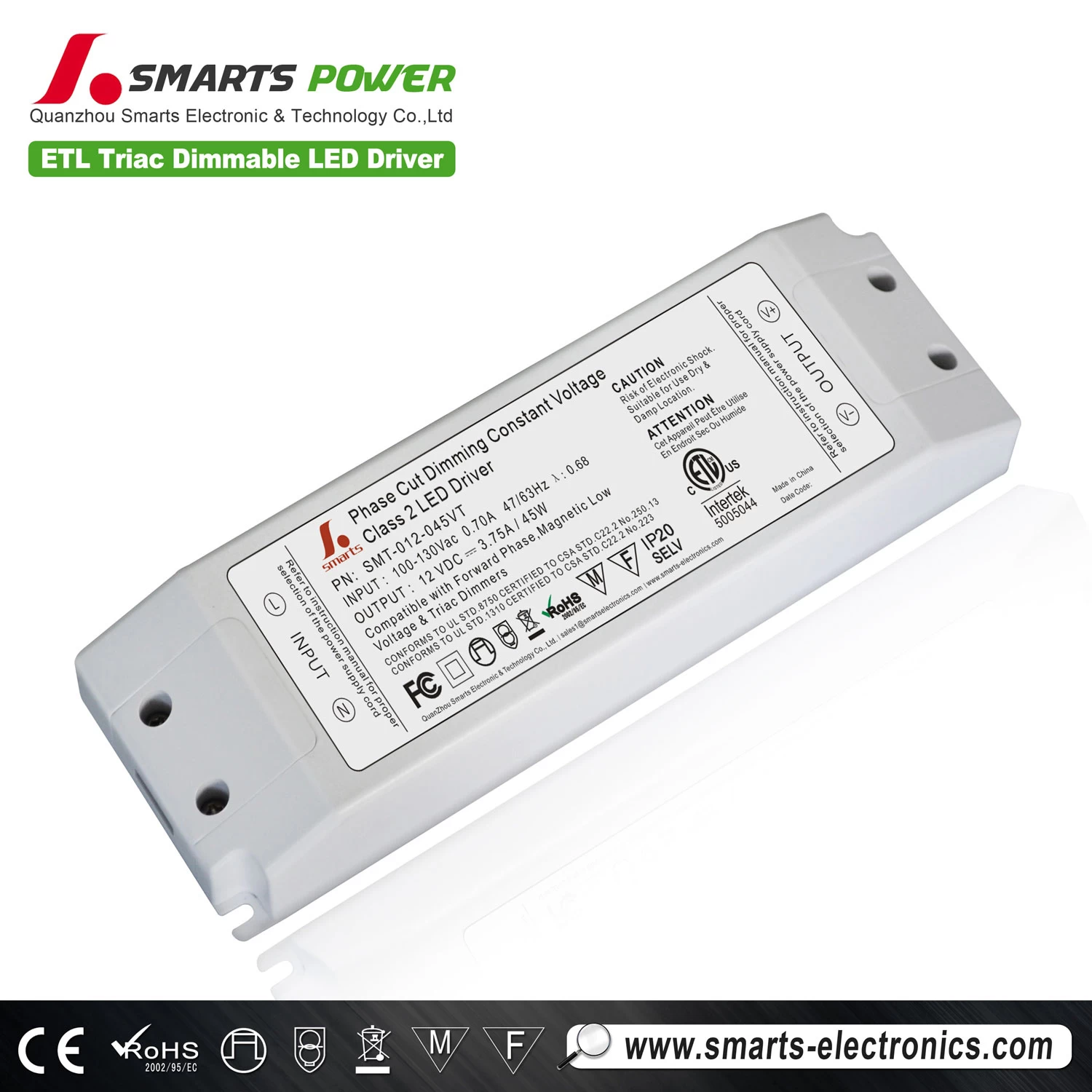

45w constant voltage LED triac dimmable driver/power supply
