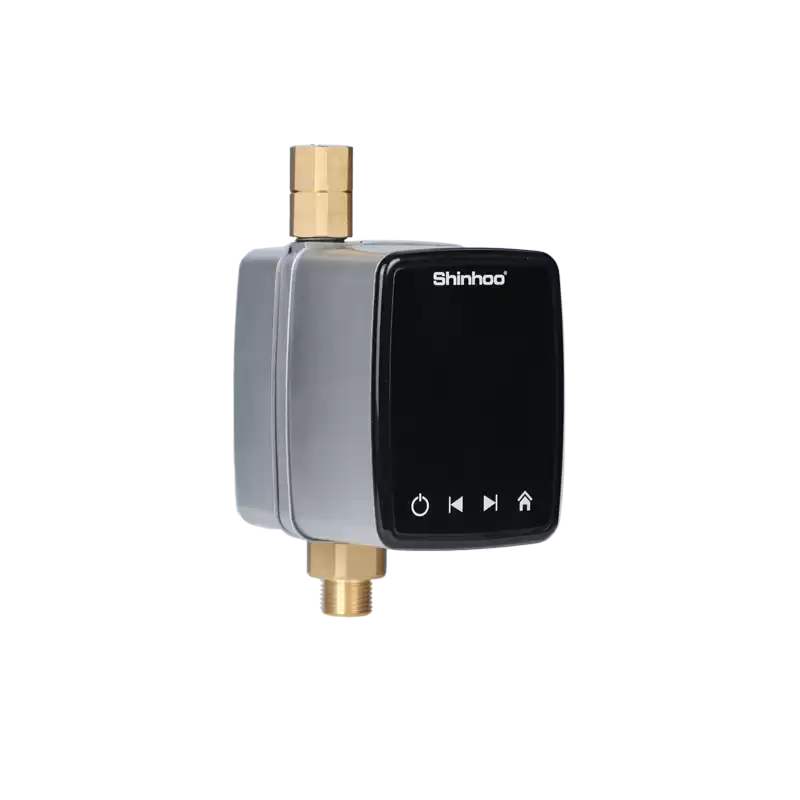

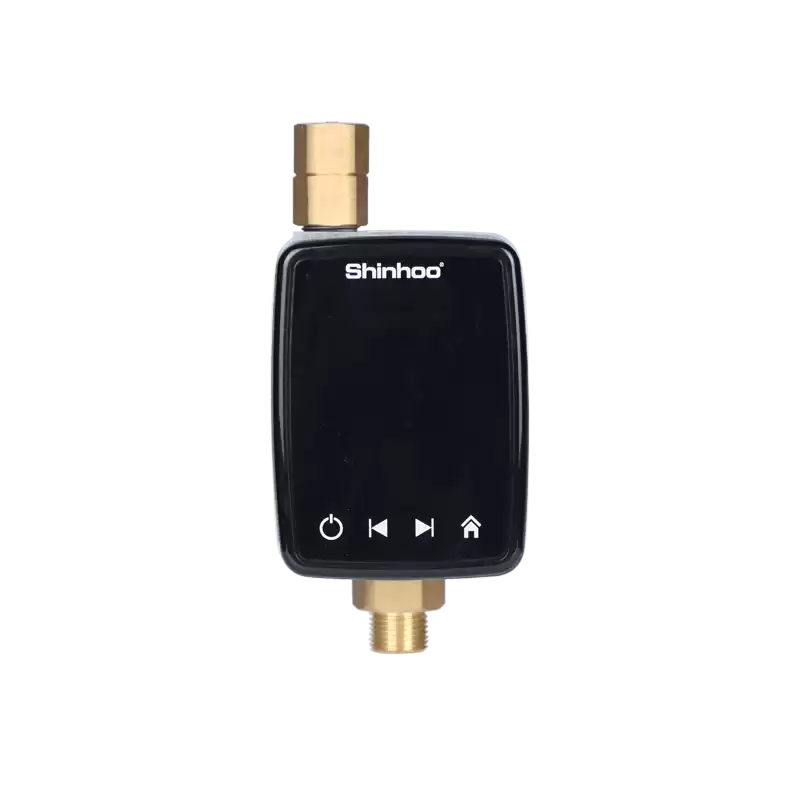

Product Item:Recirculation Pump SPA15-12E
Characteristics:
1.compact and beautiful appearance
2.low energy consumption and save time:only 3 seconds to have hot water
and don't need to wait which helps you save more water and electricity
3.safe:low voltage and high efficiency permanent magnet variable frequency
motor that has smart self-defense
4.comfortable:low noise and easy to install, this circulator pump also has one-click
start, timing mode, all-day mode that can be set at a fixed temperature and time
according to your needs
Parameters:
|
Max Flow：20 L/min
|
Max Head：12 m
|
Voltage：220V
|
Max Current：2.5A
|
|
Rated Flow：10 L/min
|
Rated Head：8 m
|
Max Power：60 W
|
Noise：＜42dB（A）
|
|
System
pressure：10bar
|
Temperature
class:TF80
|
Protection
level：IP44
|
Insulation
class：H
|
|
Dimensions：140mm*115mm*85mm
|

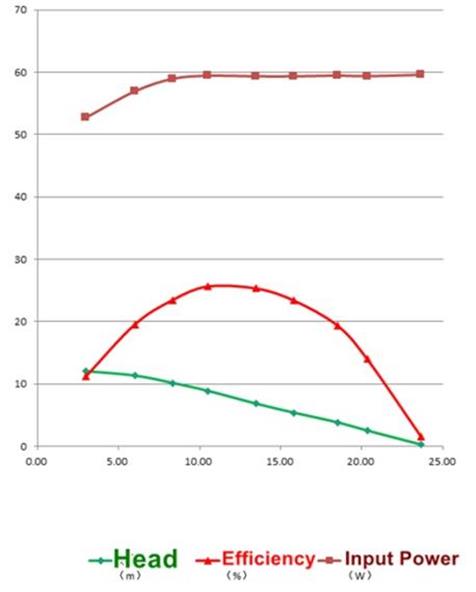

Performance Curve:

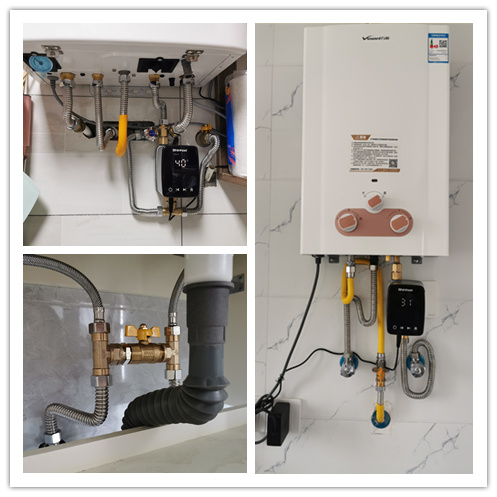

Application:
