Instrument Transformer

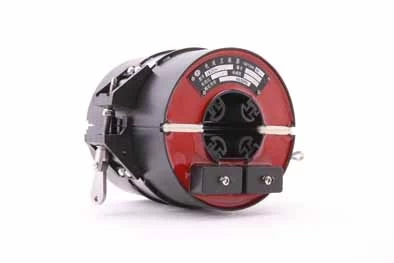

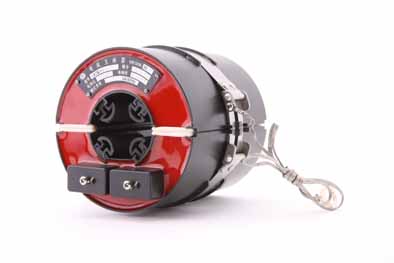

LMZK3 split core instrument transformer is suitable for measurement of primary current, or for protection of electrical equipments such as microcomputer in 10KV and 35KV AC power distribution networks. It is widely used in fully insulated ring network switchgears such as ABB-Safe Ring/Safe Plus...and cable distribution boxes. The transformer can be directly installed at the inlet and outlet of the GIS or AIS cables. The semicircular ring core and secondary windings are vacuum poured by insulated resin. This CT is also used for signal acquisition for RTU or FTU.

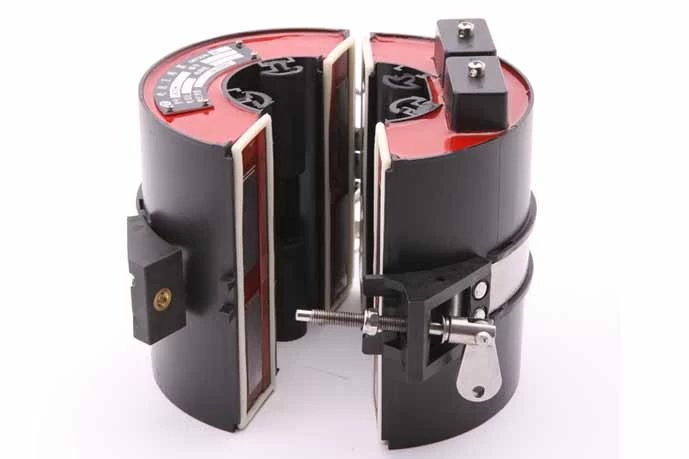

LMZK3 split core (easy to open-close type) Instrument Transformer is convenient for installation (no need to reconstruct the substation power cable networks).
P1, P2 are primary polarity terminals. S1, S2 are secondary polarity terminals.

P2, S2 are homonymous (minus polarity).



TECHNICAL PARAMETERS of Split Core Instrument Transformer LMZK3


Model

LMZK3-10

Voltage level

10kV

Rated primary current

50-600A

Rated burden

≤5VA

Rated frequency

50Hz or 60Hz

Rated secondary current

5A or 1A

Rated continuous over-current

120%I1

Insulation strength

AC 3kV, 1min

Applicable primary cable diameter

Φ20mm to φ40mm

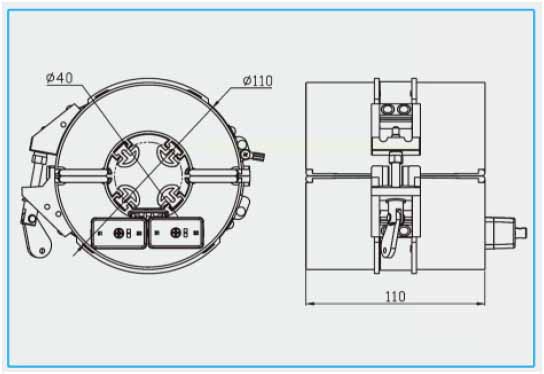

Dimensions (d×D×H) (mm)

φ50xφ110x110

Operating temperature

-25°C to +40°C


TECHNICAL DATA of Split Core Instrument Transformer LMZK3


Model

LMZK3-10

Voltage level

10kV

Type

Current transformer for measurement

Current transformer for protection

Current transformer for measurement & protection

Accuracy class

0.5

1

10P10

10P5

0.5

1

10P10

10P5

Current rating
PRI:SEC
Amperes

Rated burden (VA)

Rated burden (VA)

Rated burden (VA)

100:1

2.5

3.75

2.5

5

1.5

2.5

1.5

2.5

150:1

2.5

3.75

2.5

5

1.5

2.5

1.5

2.5

200:1

2.5

5

3.75

5

2.5

3.75

1.5

3.75

300:1

3.75

5

5

3.75

2.5

5

400:1

5

5

5

3.75

5

500:1

5

5

5

5

600:1

5

5

5

5

100:5

2.5

3.75

2.5

3.75

1.5

2.5

2.5

150:5

2.5

3.75

2.5

3.75

1.5

2.5

2.5

200:5

2.5

5

2.5

3.75

2.5

3.75

2.5

3.75

300:5

3.75

5

3.75

5

3.75

5

2.5

5

400:5

5

5

5

3.75

5

500:5

5

5

5

5

600:5

5

5

5

5
