INSOCOAT Bearing 6316 C3VL0241 Introduction :
|
Part Number
|
6316 C3VL0241
|
|
Brand
|
BOBO or OEM brand as request
|
|
Dimension
|
80*170*39mm
|
|
inner Dia
|
80mm
|
|
Outside Dia
|
170mm
|
|
Width
|
39mm
|
|
Precision
|
P0(ABEC-1) P6 (ABEC-3), P5 (ABEC-5), P4 (ABEC-7), P2 (ABEC-9)
|
|
Bearing seal type
|
Open
|
|
Row
|
Single
|
|
Ring Material
|
Gcr15 chrome steel, AISI52100
|
INSOCOAT Insulated Bearings Introduction :
Insocoat bearings is designed to prevent current from flowing through the bearing
Insocoat bearings is bearing inner rings or outer ring coated with an insulated alumina layer, and a sophisticated plasma spray process is applied to obtain an excellent quality finish.
Insulated coated bearing are very cost-effective solution compared to other insulation methods.

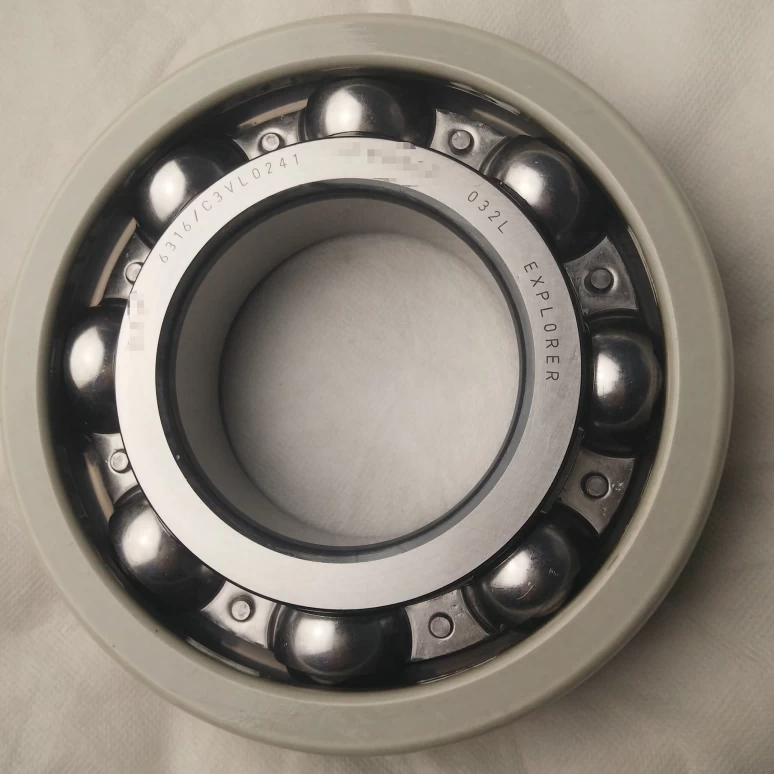

INSOCOAT Ball Bearing Pictures :
China Best Insocat Bearing Features:
1.Resistant to electrical corrosion
By integrating the insulation performance into the bearing, INSOCOAT bearings can improve reliability and increase machine uptime by actually eliminating the problem of electrical corrosion.
2.High resistance
The alumina coating has a minimum resistance of 200MΩ and can withstand voltages up to 3000 V DC.
3.Stable electrical performance
Plasma spraying is usually hygroscopic and therefore easily susceptible to condensation and infiltration. To prevent this effect, INSOCOAT bearings are treated with a unique sealant.
We can produce INSOCOAT insulated bearings including below two type:
-
Single row deep groove ball bearing
-
Single-row cylindrical roller bearings
6214M/C3/VL0241 6215M/C3/VL0241 6216M/C3/VL0241 6217M/C3/VL0241
6218M/C3/VL0241 6219M/C3/VL0241 6220M/C3/VL0241 6221M/C3/VL0241
6222M/C3/VL0241 6223M/C3/VL0241 6224M/C3/VL0241 6225M/C3/VL0241
6226M/C3/VL0241 6227M/C3/VL0241 6228M/C3/VL0241
6312M/C3/VL0241
NU1016ECM/C3VL0241 NU216ECM/C3VL0241 NU316ECM/C3VL0241 NU416ECM/C3VL0241
NU1017ECM/C3VL0241 NU217ECM/C3VL0241 NU317ECM/C3VL0241 NU417ECM/C3VL0241
NU1018ECM/C3VL0241 NU426ECM/C3VL0241 NU318ECM/C3VL0241 NU418ECM/C3VL0241
NU1019ECM/C3VL0241 NU219ECM/C3VL0241 NU319ECM/C3VL0241 NU419ECM/C3VL0241
NU1020ECM/C3VL0241 NU220ECM/C3VL0241 NU320ECM/C3VL0241 NU420ECM/C3VL0241
