Insulation epoxy fiber glass laminated sheet FR4 G10

We can provide you with High Precision FR4 Machining Parts G10 G11 Epoxy Resin Glass Sheet with best quality.  JY Machinery was founded in 2004. It is one of the leading China manufactuers and suppliers of laminated insulation materials. We has a full range of insulated products. Sheets & Rods from thin to extra-thick, like FR4,G10,G11,3240,GPO-3,Phenolic Sheets, etc.



High Precision FR4 Machining Parts G10 G11 Epoxy Resin Glass Sheet is a thermoset Composite Material which are made of Epoxy Resin and fillers and fiberglass.

FR4 Epoxy Fiberglass laminate sheet owns the character of high temperature resistance,High-intensity,flame-retardant grades to UL94-V0,high mechanical properties and dielectric properties.good heat resistance,good smoothness,etc.

As an excellent insulation Board, FR4 G10 Epoxy Glass Sheet has strong mechanical processing performance, and can cut, engrave, punch, mill, and grind various processes to achieve the shape desired by customers.


Product Parameters:

EPOXY GLASS CLOTH LAMINATED SHEET TYPE FR-4

JY-QC-0929A                                                                                                                                              Date: Jul. 25, 2018

No.

Test Item

Test condition

 Unit

Standard Value

Testing Result

1

Density

ISO 1183

 g/cm3

≥1.70

1.85

2

Moisture Absorption (0.125”)

ASTM D-570

 %

0.15 max

0.10

3


Breakdown Voltage                                        Condition A
(0.062”)                                                Condition D-48/50


ASTM D-149

 kV


45 min
40 min



66
65


4


Permittivity @ 1 MHz                                     Condition A
(0.062'')                                                Condition D-48/50


ASTM D-150

‐‐


5.2 max
5.4 max



4.4
4.5


5


IZOD Strength (0.062”)                                Length-Wise
                                                                     Cross-Wise


ASTM D-229


 ft-lb/in
Notched



7.0 min
5.5 min



13
12


6


Flexural Strength (0.062”)                             Length-Wise
                                                                     Cross-Wise


ASTM D-790

 ksi (MPa)


60.0 (414) min
50.0 (345) min



80 (552)
70 (483)


7


Flexural Modulus (0.062”)                             Length-Wise
                                                                     Cross-Wise


‐‐

 ksi (GPa)

‐‐


2,900 (20)
2,600 (18)


8

Tensile Strength (0.125”)                              Length-Wise

ASTM D-638

 ksi (MPa)

‐‐

62 (430)

9

Compressive Strength, Flat-Wise (0.500”)

ASTM D-695

 ksi (MPa)

‐‐

66 (455)

10


Bonding Strength (0.500”)                             Length-Wise
                                                                     Cross-Wise


ASTM D-229

 Lb (kg)


2000 (907) min
1600 (725) min



2,500 (1,133)
1,900 (862)


11

Shear Strength (punch type, 0.062”)

ASTM D-732

 psi (MPa)

‐‐

21,500 (148)

12

Temperature Index

ASTM D-2304

 ℃

‐‐

130

13

Coecient of Thermal Expansion

ASTM E-228

 '/''℃x10-6

‐‐

15

14

Flammability Rating

UL94

 Class

V-I

V-0

15


Dissipation Factor @ 1 MHz                           Condition A
(0.062”)                                                Condition D-48/50


ASTM D-150

 ‐‐


0.025 max
0.035 max



0.014
0.015


16

Dielectric Strength (Condition A)

ASTM D-149

 V/mil

‐‐

635

17

Arc Resistance (0.125”)

ASTM D-495

 Sec

‐‐

140

18

Comparative Tracking Index (0.125”)

ASTM D-3638*

 V

‐‐

230

thickness/mm

tolerance/mm

thickness/mm

tolerance/mm

0.2-0.3

± 0.02

20

± 0.5

0.4-0.7

± 0.03

25-30

± 0.6

0.8-1.2

± 0.05

35-40

± 1

1.5-2

± 0.1

40-100

± 1.5

3-6

± 0.2





8-12

± 0.3





15

± 0.4

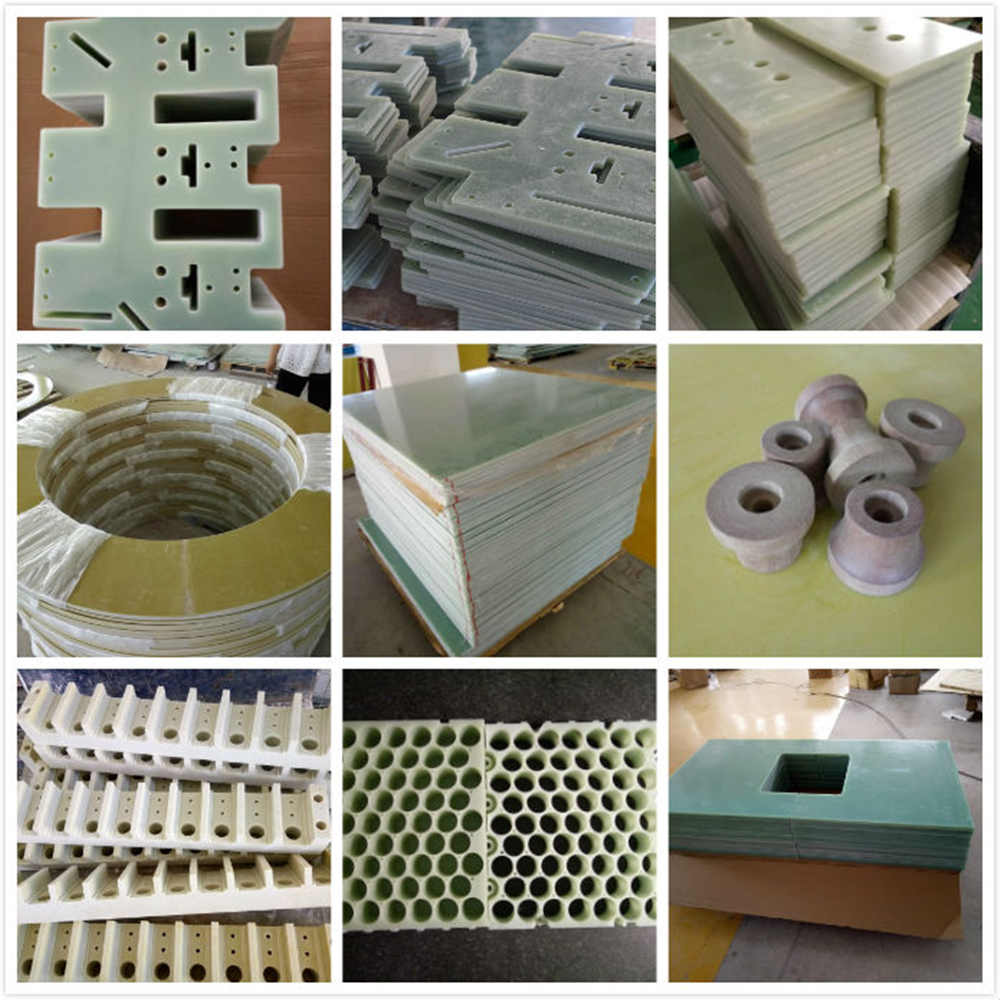

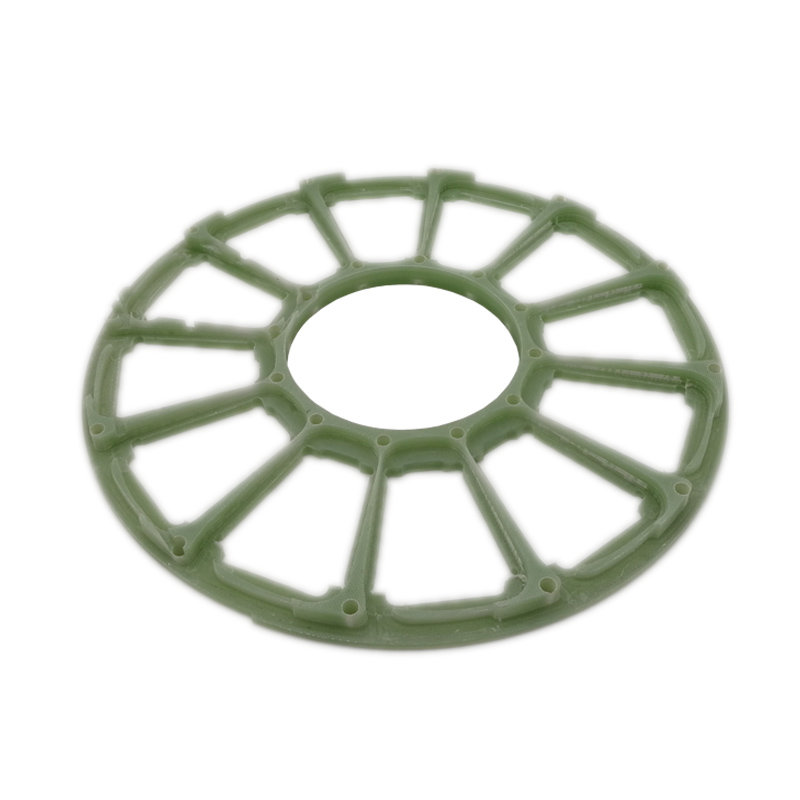

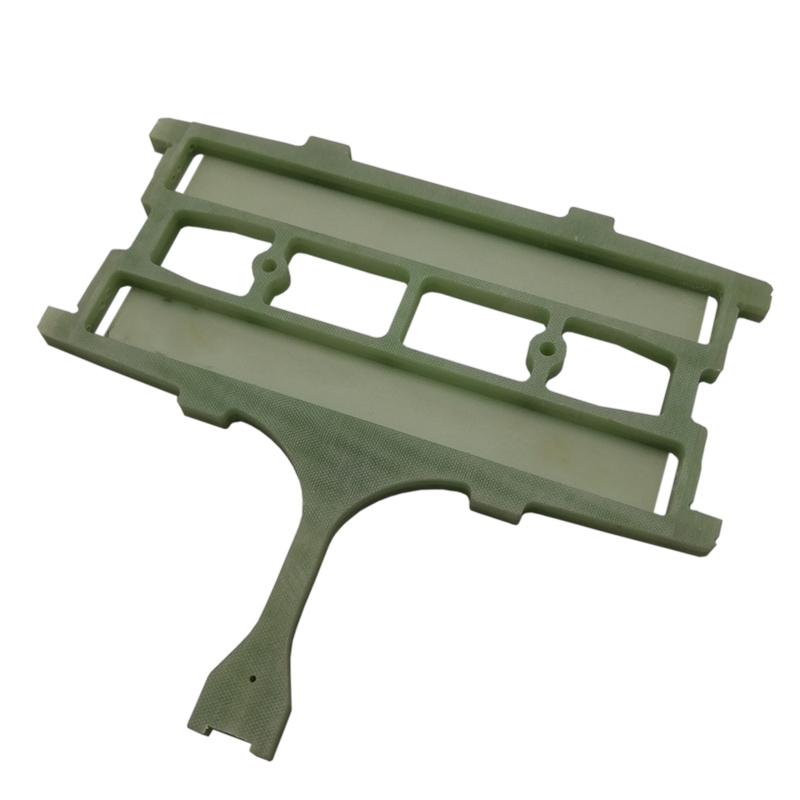

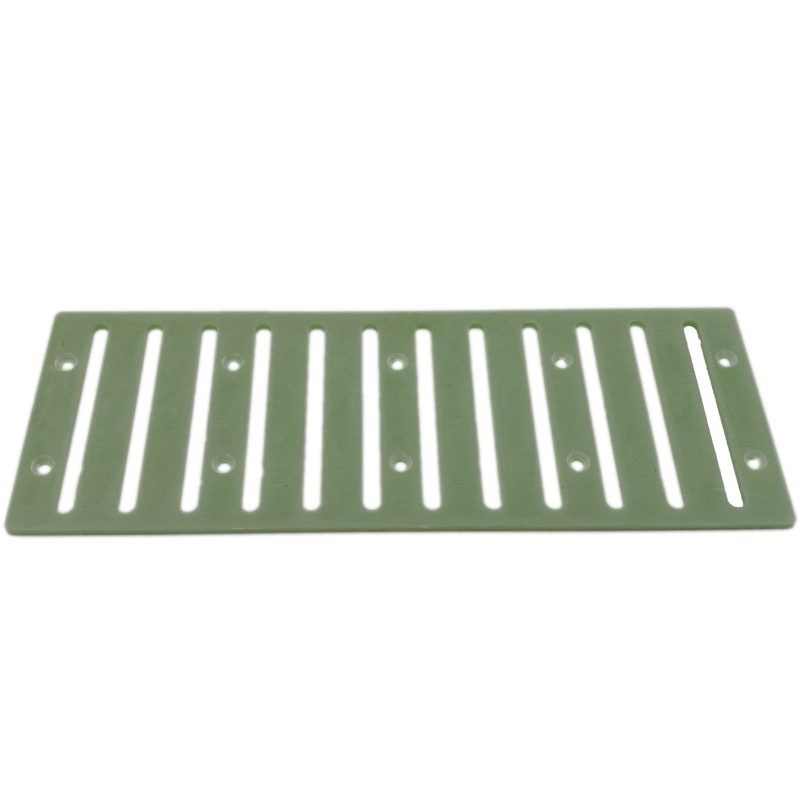

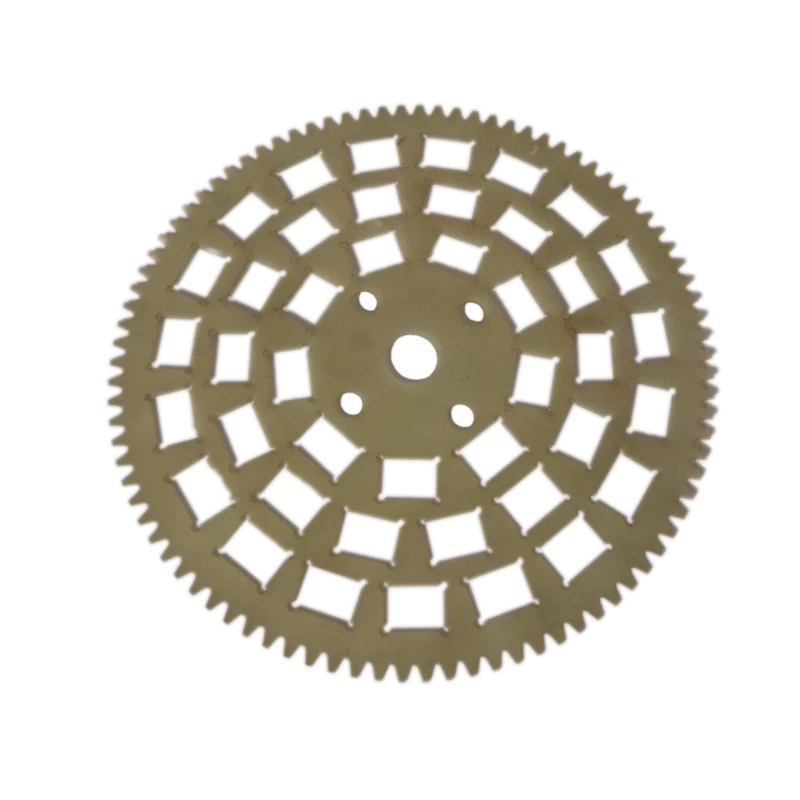

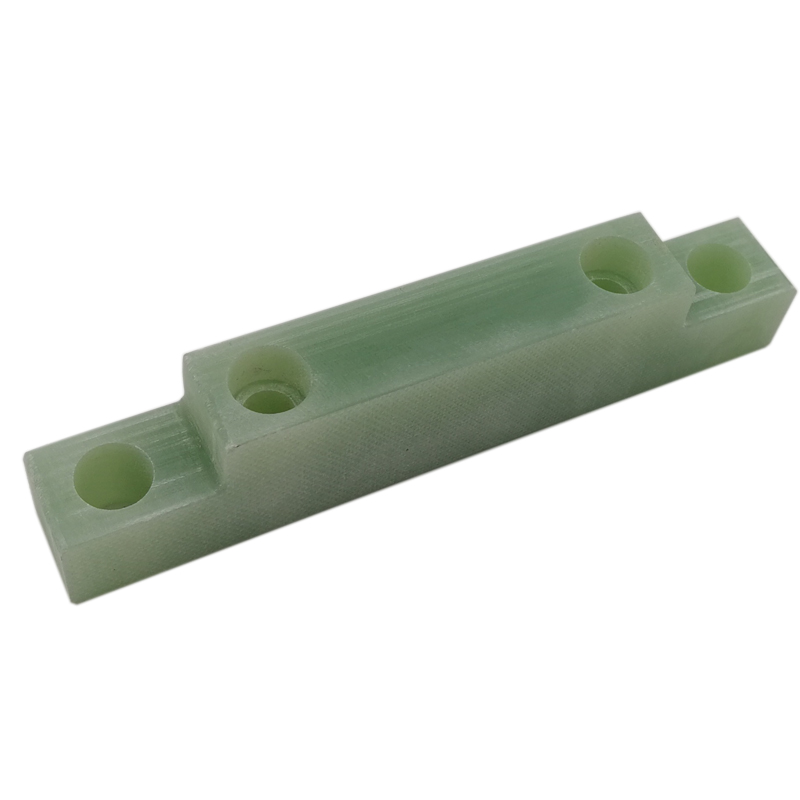

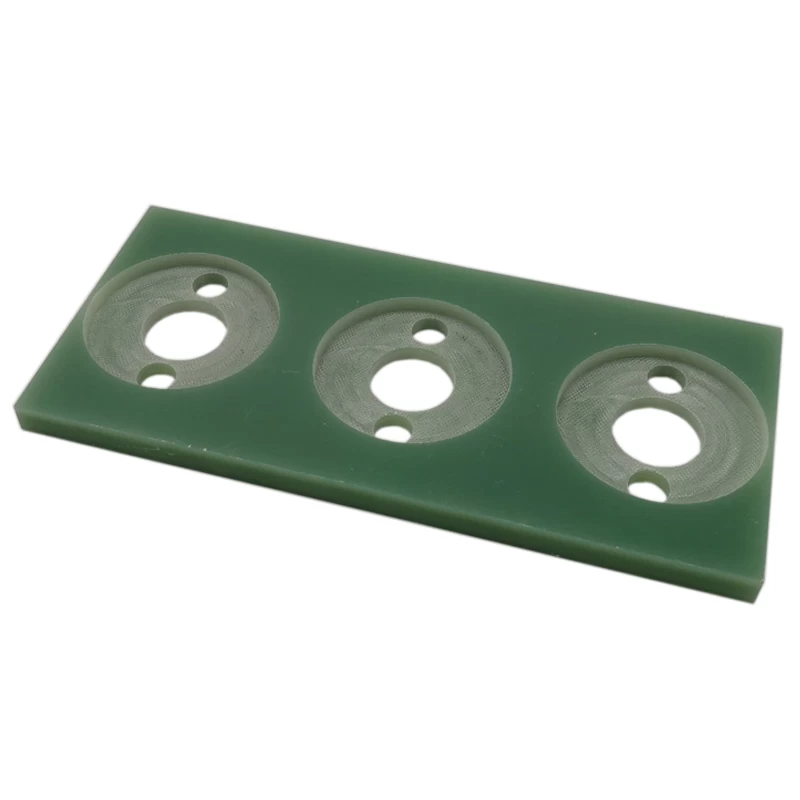

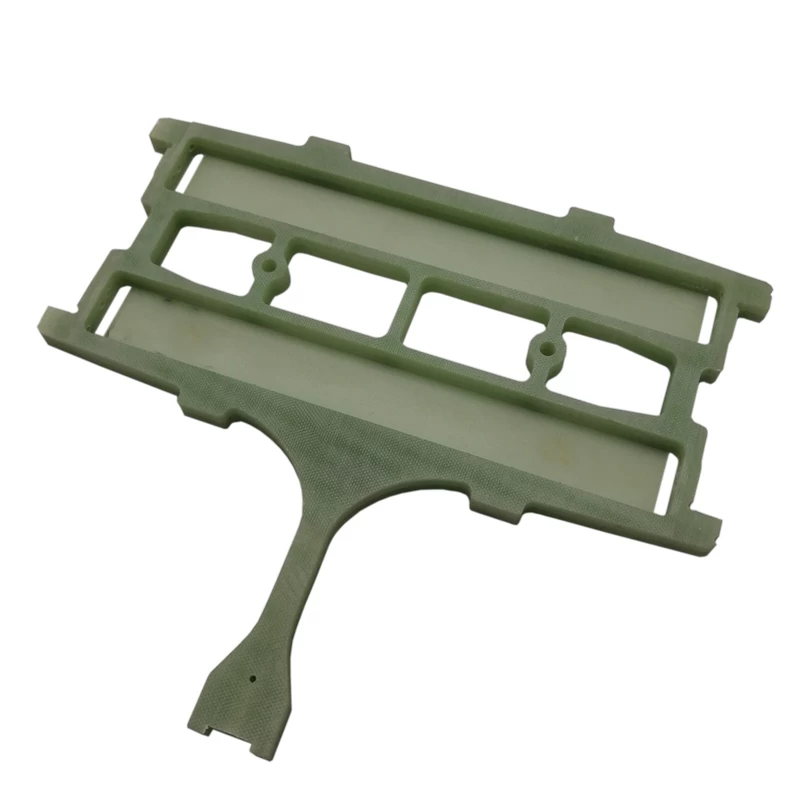

 Product Show:



 Products Features:

High Precision FR4 Machining Parts G10 G11 Epoxy Resin Glass Sheet is woven fiberglass soaked in an epoxy resin and then compressed and baked. It is very dense, lightweight, and impervious to water.  The advantages of this material:

Strong, stiff, tough and durable
Excellent dielectric strength
Good machinability
Light weight
Heat and water resistant
Corrosion and chemical resistant
Good mechanical strength
Excellent wear properties
Good dimensional stability
Low moisture absorption
Excellent creep resistance


Our Servies:

1.Rich Experience

Professional materials background and non-metallic materials processing experiences with more than 14 years,using in industry field like transformer,generator,electric motor,etc.

2.Provide one-stop service from raw material sheet supply to customized further processing of nonmetal insulating parts.
We can develop and produce various high standards and personalized products according to customers' requirement.


3.Pre-sales Service

We have professional sales team to offer comprehensive technical and business consultation services. Designing and fabricating targeted products according to the special requirements of clients.

4.After-sales Service
Highly inspecting equipment in every working procedure, quality comes first.

5.Our Advantage

Competitive price,Flexible payment options,Quick speed.
Always ready for supplying the best solution for your various application.


Main Application:

With high mechanical strength, Insulation, heat resistance, electrical properties and good moisture resistance properties. Widely range of applications, for example: Suitable for using as insulating structural parts in electric equipment, such as electric generators, motors, switch board, pcb , etc.


Main Product Categories:

1.Machining Insulation Parts
2.Epoxy Glass Fiber Cloth Laminated Sheets
3.Phenolic Laminated Sheets
4.Insulation Rods&Tubes
5.Pultruded Profiles
