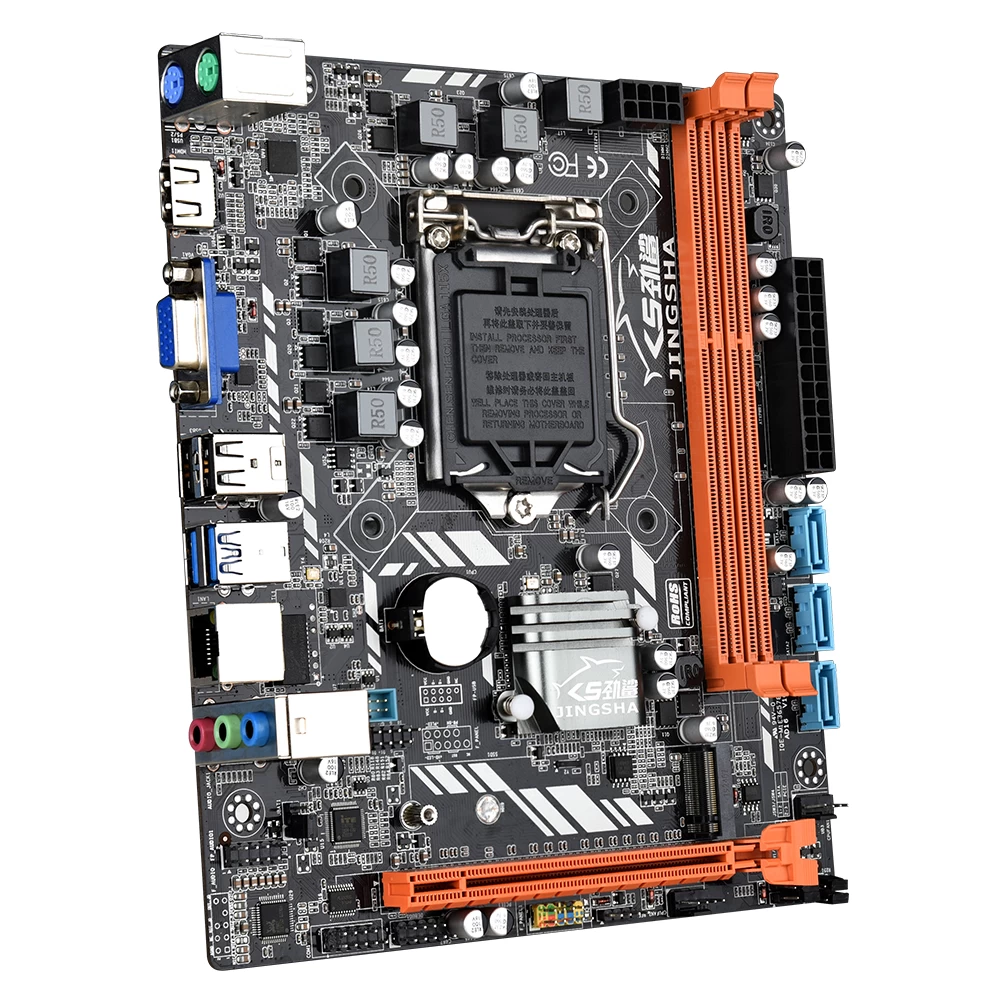

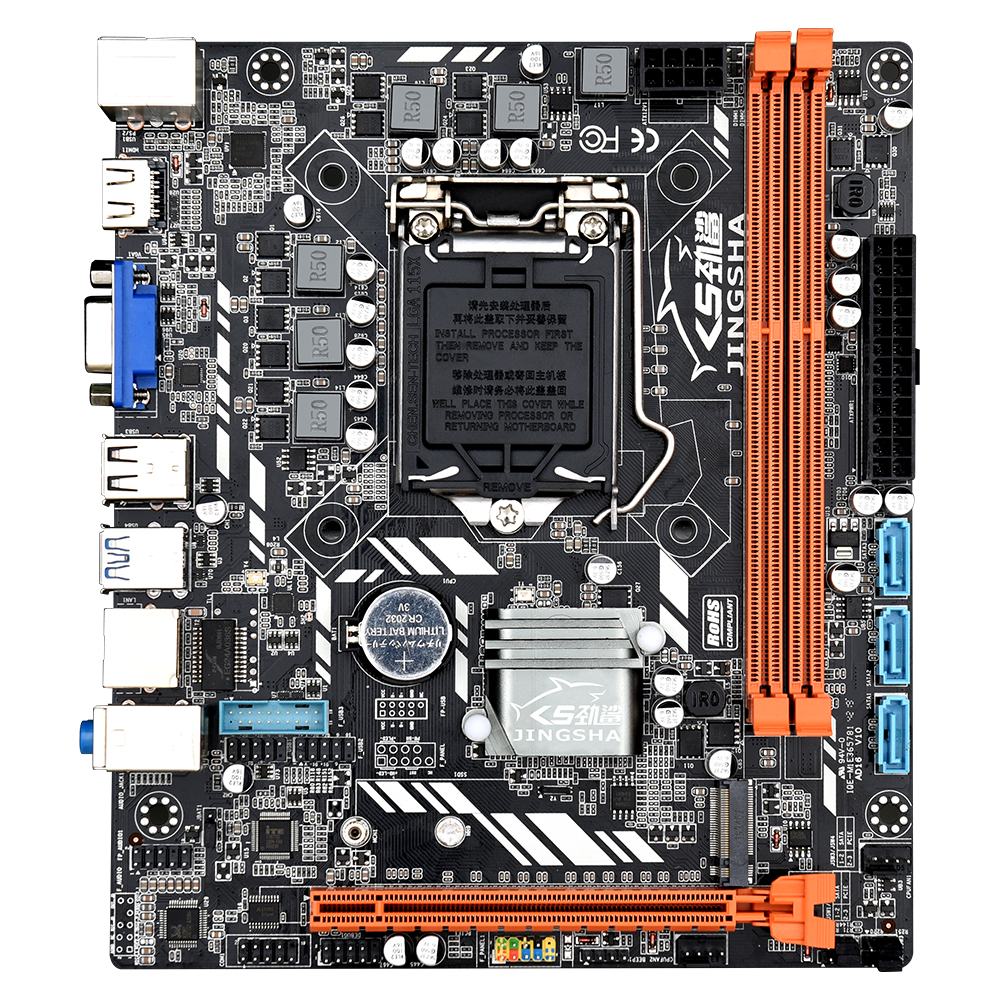

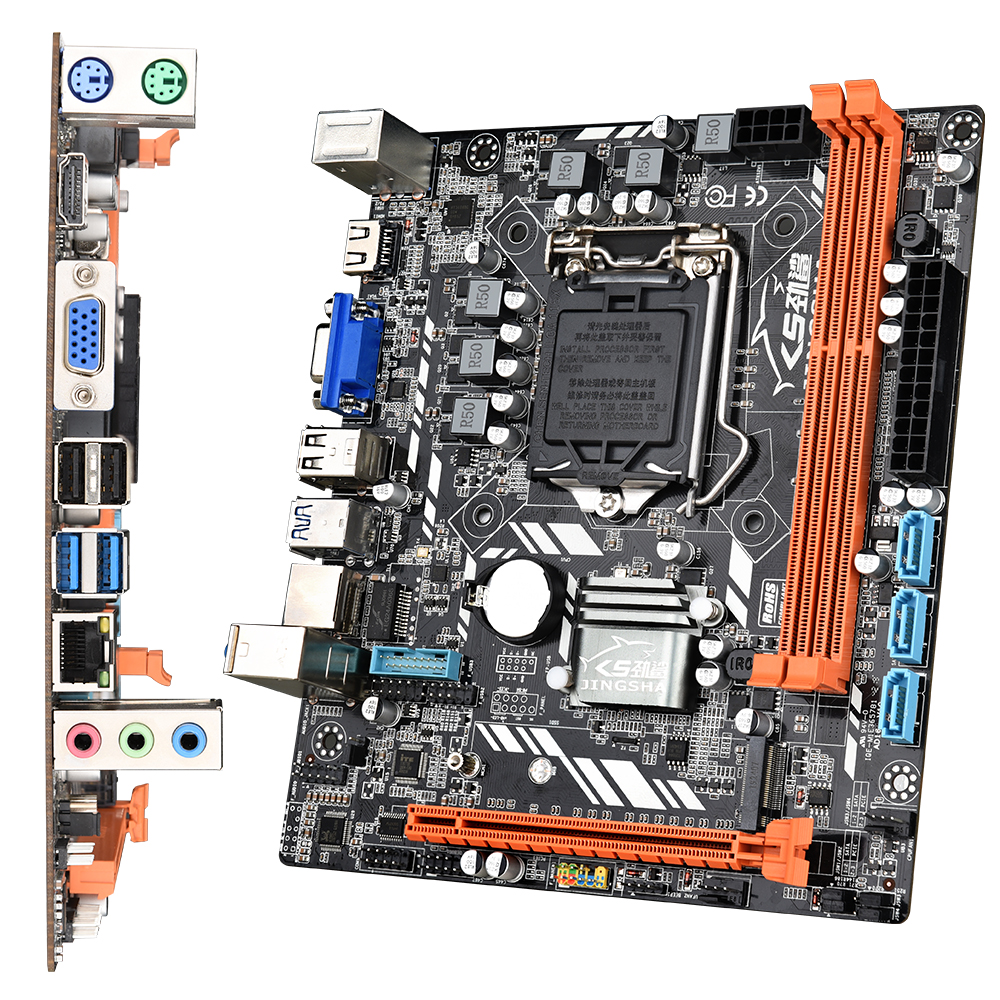

Intel H310 chipset LGA1151 motherboard with dual channel DDR3

  • LGA 1151 motherboard
  • Intel H310 chipset with LGA1151 socket, support Intel Core/Xeon series processors
  • Dual channel DDR3 up to 16GB
  • Dual Gigabit LAN
  • PCIE 3.0 16x slots
  • 3 SATA3 (6Gb/s) slots
  • NVME M.2 slot

  • MemoryDual channel DDR3 up to 16GB
  • ChipsetIntel H310 chipset
  • CPU socketLGA 1151
Facebook Twitter Pinterest LinkedIn 分享

Intel H310 chipset Motherboard
LGA 1151 socket support 9th Gen. Intel i3/i5/i7 Processors

Details...

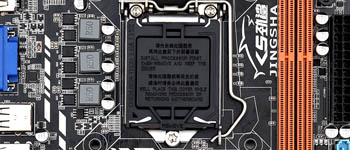

CPU

Intel LGA 1151, support 9th Gen. i3/i5/i7 processor

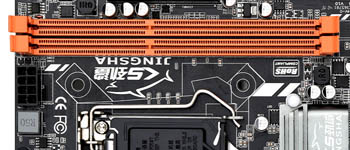

MEMORY

2 X 240-Pin DDR3 DIMM Slots
Support Up To 16GB Of System
Memory, Dual Channel DDR3
1066/1333/1600mhz Architecture.

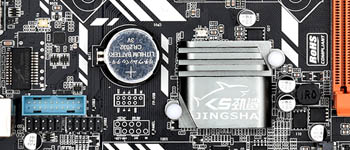

H310 CHIPSET

Intel H310 chipset

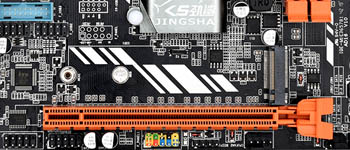

PCI-E Slots

1 x PCI Express 3.0 x16 slot
delivers the utmost graphics
experience

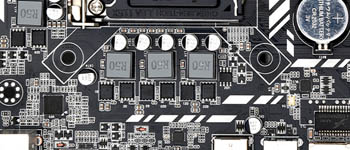

Solid Capacitors

6 Phases Power Supply With
All Solid Capacitors.

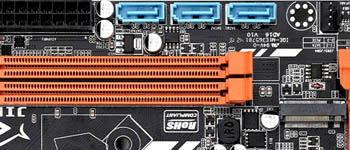

Storage

3 x SATA III ports
Support 6Gb/s transmition rate

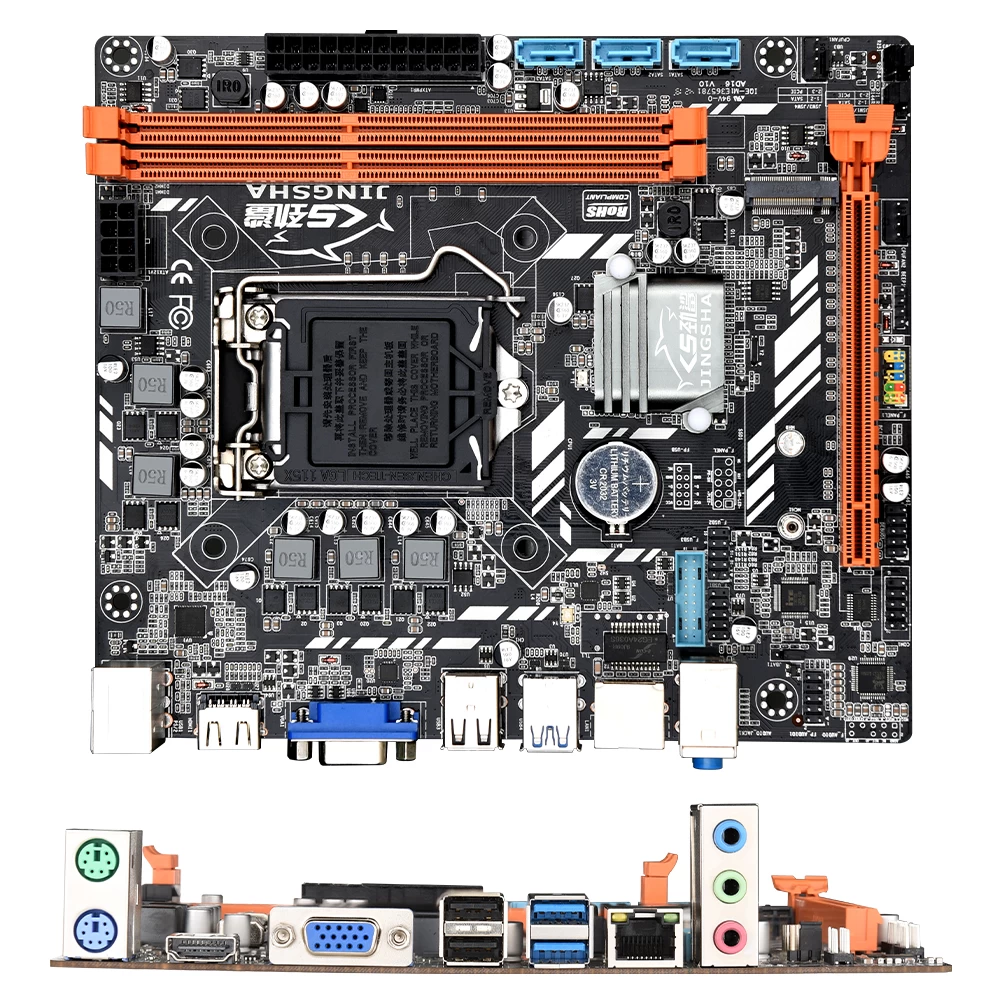

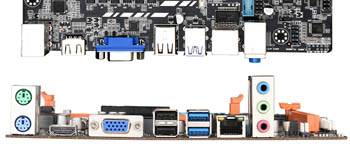

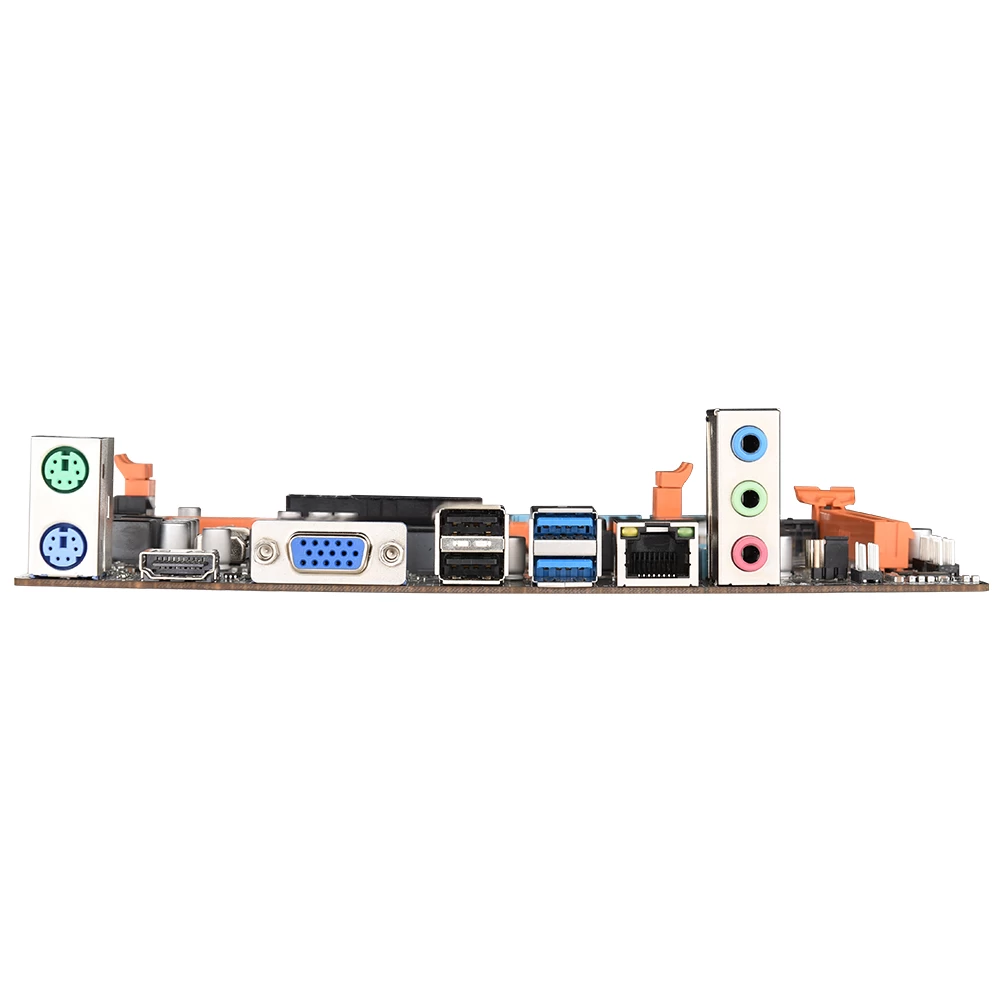

VGA + HDMI

Support VGA+HDMI 2 displays

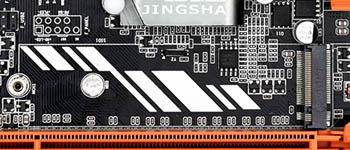

NVME M.2

Support NVME M.2 slot
3Gbps high speed transmission rate,
bandwidth for multi-purpose usage.

List of 9th generation Coffee Lake processors

Desktop processors
Processor
branding 		Model Cores
(Threads) 		Base CPU
clock rate 		Turbo clock rate GPU max GPU
clock rate 		L3 cache TDP Memory
support
Number of cores used
1 2 3 4 5 6 7 8
Core i9 9900KS 8 (16) 4.0 GHz 5 UHD 630 1.20 GHz 16 MiB 127 W Up to
128 GiB
DDR4-2666
9900K 3.6 GHz 5 4.8 4.7 95* W
9900KF N/A
9900 3.1 GHz UHD 630 1.20 GHz 65 W
9900T 2.1 GHz 4.4 35 W
Core i7 9700K 8 (8) 3.6 GHz 4.9 4.8 4.7 4.6 12 MiB 95 W
9700KF N/A
9700 3.0 GHz 4.7 UHD 630 1.20 GHz 65 W
9700F N/A
9700T 2.0 GHz 4.3 UHD 630 1.20 GHz 35 W
Core i5 9600K 6 (6) 3.7 GHz 4.6 4.5 4.4 4.3 N/A 1.15 GHz 9 MiB 95 W
9600KF N/A
9600 3.1 GHz UHD 630 1.15 GHz 65 W
9600T 2.3 GHz 3.9 35 W
9500 3.0 GHz 4.4 1.10 GHz 65 W
9500F N/A
9500T 2.2 GHz 3.7 UHD 630 1.10 GHz 35 W
9400 2.9 GHz 4.1 4 3.9 1.05 GHz 65 W
9400F N/A
9400T 1.8 GHz 3.4 UHD 630 1.05 GHz 35 W
Core i3 9350KF 4 (4) 4.0 GHz 4.6 N/A N/A 8 MiB 91 W Up to
64 GiB
DDR4-2400
9320 3.7 GHz 4.4 UHD 630 1.15 GHz 62 W
9300 4.3
9300T 3.2 GHz 3.8 1.10 GHz 35 W
9100 3.6 GHz 4.2 4.1 4 6 MiB 65 W
9100F N/A
9100T 3.1 GHz 3.7 UHD 630 1.10 GHz 35 W
Pentium
Gold 		G5620 2 (4) 4.0 GHz N/A 4 MiB 54 W
G5600T 3.3 GHz 1.05 GHz 35 W
G5420 3.8 GHz UHD 610 54 W
G5420T 3.2 GHz 35 W
Celeron G4950 2 (2) 3.3 GHz 2 MiB 54 W
G4930 3.2 GHz
G4930T 3.0 GHz 1.00 GHz 35 W
Workstation Processors
Processor
branding 		Model Cores
(Threads) 		Base CPU
clock rate 		Max. Turbo
clock
rate 		GPU max GPU
clock
rate 		L3
cache 		TDP Memory
support
Xeon E 2288G 8 (16) 3.7 GHz 5.0 GHz UHD P630 1.20 GHz 16 MiB 95 W Up to
128 GiB
DDR4-2666
ECC memory
supported
2278G 3.4 GHz 80 W
2286G 6 (12) 4.0 GHz 4.9 GHz 12 MiB 95 W
2276G 3.8 GHz 80 W
2246G 3.6 GHz 4.8 GHz
2236 3.4 GHz N/A
2226G 6 (6) 4.7 GHz UHD P630 1.20 GHz
2274G 4 (8) 4.0 GHz 4.9 GHz 8 MiB 83 W
2244G 3.8 GHz 4.8 GHz 71 W
2234 3.6 GHz N/A
2224G 4 (4) 3.5 GHz 4.7 GHz UHD P630 1.20 GHz
2224 3.4 GHz 4.6 GHz N/A
Mobile Processors
Processor
branding 		Model Cores
(Threads) 		Base CPU
clock rate 		Max. Turbo
clock
rate 		GPU GPU clock rate L3 cache TDP cTDP
Base Max. Down
Xeon E 2286M 8 (16) 2.4 GHz 5.0 GHz UHD P630 350 MHz 1.25 GHz 16 MiB 45 W 35 W
2276M 6 (12) 2.8 GHz 4.7 GHz 1.20 GHz 12 MiB
Core i9 9980HK 8 (16) 2.40 GHz 5.00 GHz UHD 630 1.25 GHz 16 MiB N/A
9880H 2.30 GHz 4.80 GHz 1.20 GHz 35 W
Core i7 9850H 6 (12) 2.60 GHz 4.60 GHz 1.15 GHz 12 MiB
9750H 4.50 GHz
9750HF N/A
Core i5 9400H 4 (8) 2.50 GHz 4.30 GHz UHD 630 350 MHz 1.10 GHz 8 MiB

List of 8th generation Coffee Lake processors

Desktop processors
Processor
branding 		Model Cores
(Threads) 		Base CPU
clock rate 		Turbo clock rate[GHz] GPU max GPU
clock rate 		L3
cache 		TDP Memory
support
Number of cores used
1 2 3 4 5 6
Core i7 8086K 6 (12) 4.0 GHz 5 4.6 4.5 4.4 4.3 UHD 630 1.20 GHz 12 MiB 95 W * Up to
128 GiB
DDR4-2666
8700K 3.7 GHz 4.7
8700 3.2 GHz 4.6 4.5 4.4 4.3 65 W
8700T 2.4 GHz 4 4.0[20] 3.9 3.8 35 W
Core i5 8600K 6 (6) 3.6 GHz 4.3 4.2 4.1 1.15 GHz 9 MiB 95 W
8600 3.1 GHz 65 W
8600T 2.3 GHz 3.7 3.6 3.5 35 W
8500 3.0 GHz 4.1 4 3.9 1.10 GHz 65 W
8500T 2.1 GHz 3.5 3.4 3.3 3.2 35 W
8400 2.8 GHz 4 3.9 3.8 1.05 GHz 65 W
8400T 1.7 GHz 3.3 3.2 3.1 3 35 W
Core i3 8350K 4 (4) 4.0 GHz N/A 1.15 GHz 8 MiB 91 W Up to
64 GiB
DDR4-2400
8300 3.7 GHz 62 W
8300T 3.2 GHz 35 W
8100 3.6 GHz 1.10 GHz 6 MiB 65 W
8100F N/A N/A
8100T 3.1 GHz UHD 630 1.10 GHz 35 W
Pentium Gold G5600 2 (4) 3.9 GHz 4 MiB 54 W
G5500 3.8 GHz
G5500T 3.2 GHz 35 W
G5400 3.7 GHz UHD 610 1.05 GHz 54 W
G5400T 3.1 GHz 35 W
Celeron G4920 2 (2) 3.2 GHz 2 MiB 54W
G4900 3.1 GHz
G4900T 2.9 GHz 35 W
Workstation Processors
Processor
branding 		Model Cores
(Threads) 		Base CPU
clock rate 		Max. Turbo
clock rate 		GPU max GPU
clock rate 		L3
cache 		TDP Memory
support
Xeon E 2186G 6 (12) 3.8 GHz 4.7 GHz UHD P630 1.20 GHz 12 MiB 95 W Up to
128 GiB
DDR4-2666
ECC memory
supported
2176G 3.7 GHz 80 W
2146G 3.5 GHz 4.5 GHz 1.15 GHz
2136 3.3 GHz N/A
2126G 6 (6) UHD P630 1.15 GHz
2174G 4 (8) 3.8 GHz 4.7 GHz 1.20 GHz 8 MiB 71 W
2144G 3.6 GHz 4.5 GHz 1.15 GHz
2134 3.5 GHz N/A
2124G 4 (4) 3.4 GHz UHD P630 1.15 GHz
2124 3.3 GHz 4.3 GHz N/A
2104G 3.2 GHz N/A UHD P630 1.10 GHz 65 W
Mobile Processors
Processor
branding 		Model Cores
(Threads) 		Base CPU
clock rate 		Max. Turbo
clock rate 		GPU GPU clock rate L3
cache 		L4 cache
(eDRAM) 		TDP cTDP
Base Max. Down
Xeon E 2186M 6 (12) 2.9 GHz 4.8 GHz UHD P630 350 MHz 1.20 GHz 12 MiB N/A 45 W 35 W
2176M 2.7 GHz 4.4 GHz
Core i9 8950HK 2.9 GHz 4.8 GHz UHD 630 350 MHz N/A
Core i7 8850H 2.6 GHz 4.3 GHz 1.15 GHz 9 MiB 35 W
8750H 2.2 GHz 4.1 GHz 1.10 GHz
8700B 3.2 GHz 4.6 GHz 1.20 GHz 12 MiB 65 W N/A
8569U 4 (8) 2.8 GHz 4.7 GHz Iris Plus 655 300 MHz 8 MiB 128 MiB 28 W N/A
8559U 2.7 GHz 4.5 GHz 20 W
8557U 1.7 GHz Iris Plus 645 1.15 GHz 15 W N/A
Core i5 8500B 6 (6) 3.0 GHz 4.1 GHz UHD 630 350 MHz 1.10 GHz 9 MiB N/A 65 W N/A
8400B 2.8 GHz 4.0 GHz 1.05 GHz
8400H 4 (8) 2.5 GHz 4.2 GHz 1.10 GHz 8 MiB 45 W 35 W
8300H 2.3 GHz 4.0 GHz 1.00 GHz
8279U 2.4 GHz 4.1 GHz Iris Plus 655 300 MHz 1.15 GHz 6 MiB 128 MiB 28 W N/A
8269U 2.6 GHz 4.2 GHz 1.10 GHz 20 W
8259U 2.3 GHz 3.8 GHz 1.05 GHz
8257U 1.4 GHz 3.9 GHz Iris Plus 645 15 W N/A
Core i3 8100B 4 (4) 3.6 GHz N/A UHD 630 350 MHz N/A 65 W N/A
8100H 3.0 GHz 1.00 GHz 45 W 35 W
8109U 2 (4) 3.6 GHz Iris Plus 655 300 MHz 1.05 GHz 4 MiB 128 MiB 28 W 20 W
