Intruction

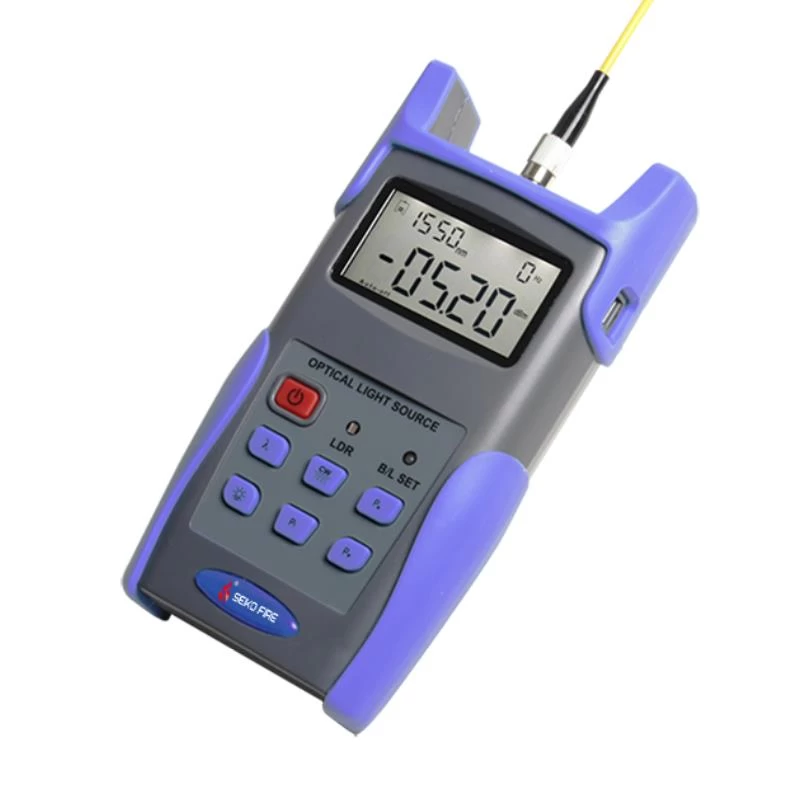

S106 handheld adjustable light source is Seikofire newly
designed fiber optic tester, it aims at fiber network installation, fiber
network engineering acceptance and fiber network maintenance. Combined usage
with S308 handheld optical power meter, it offers a quick and accurate testing
solution on both SM and MM fibers. The S106 provides 1 to 4 wavelengths and
output power can be adjustable on customer requests. Also, the S106 features
good appearance, good touch feeling and considerate humanity design.
Features
-
Wave ID information can be transmitted when used with S308 Optical Power
Meter.
-
Tone generation, 270HZ,330HZ,1KHZ,2KHZ
-
Output power can be adjustable
-
Output power value is shown on LCD display
-
Intelligent backlight control (light intensity can be adjusted properly
according to ambient light, which greatly reduced power consumption)
-
AA alkaline and AC adapter for power supply
-
Low battery indication
Applications
-
Maintenance in Telecom
-
Maintenance CATV
-
Fiber Optic Lab Testing
-
Other Fiber Optic Measurements
Specifications
|
Model
|
S106
|
|
Operating wavelength (nm)
|
1310/1550;1310/1490/1550/1625 (others
specify on requests)
|
|
Applicable fiber
|
SM, MM
|
|
Laser type
|
FP-LD (others specify on
requests)
|
|
Output Power (dBm)
|
-7(can be adjustable)
|
|
Adjustable step size (dBm)
|
＜0.5
|
|
Stability (dB, 30min, 20℃)
|
0.15
|
|
Modulation (Hz)
|
CW, 270, 330, 1K, 2K
|
|
Fiber Port
|
FC/PC
|
|
Alkaline Battery
|
3*AA, 1.5V
|
|
Power Supply Adaptor (V)
|
8.4
|
|
Battery Operating time (h)
|
45
|
|
Operation Temperature (℃)
|
-10～+60
|
|
Storage Temperature (℃)
|
-25～+70
|
|
Outline size (mm)/weight
|
180*90*45/(250g)
|
Standard
Package
-
S106 optical light source
-
3pcs 1.5V batteries
-
AC adaptor
-
User manual
-
Cotton swabs and soft carrying case
