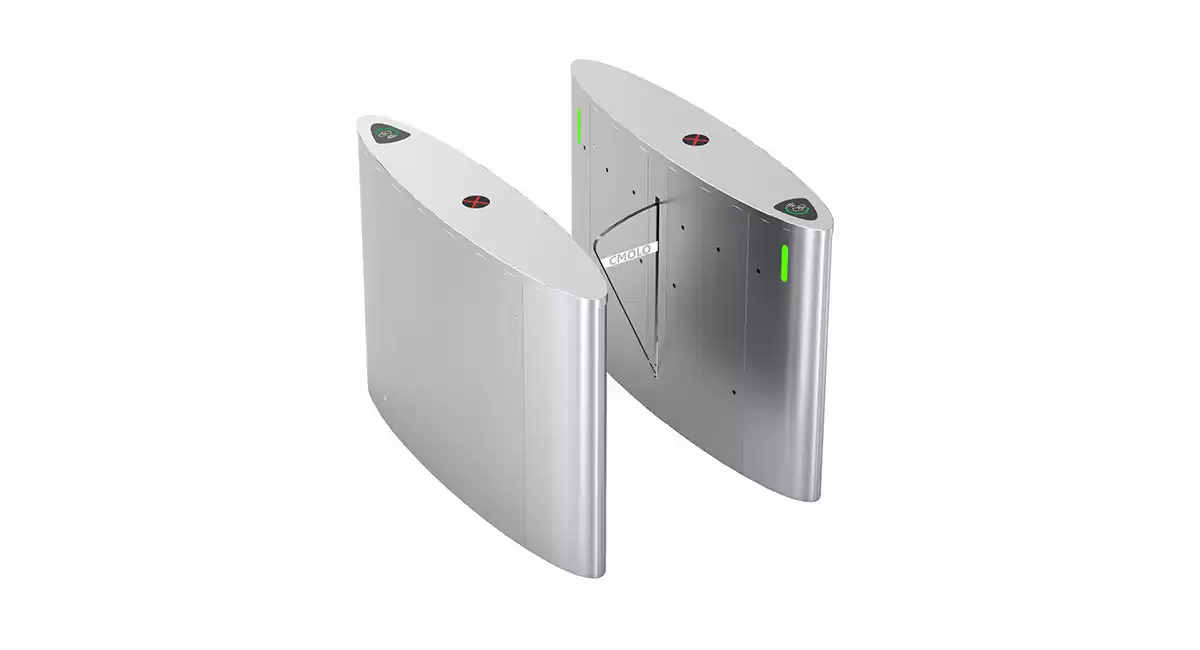

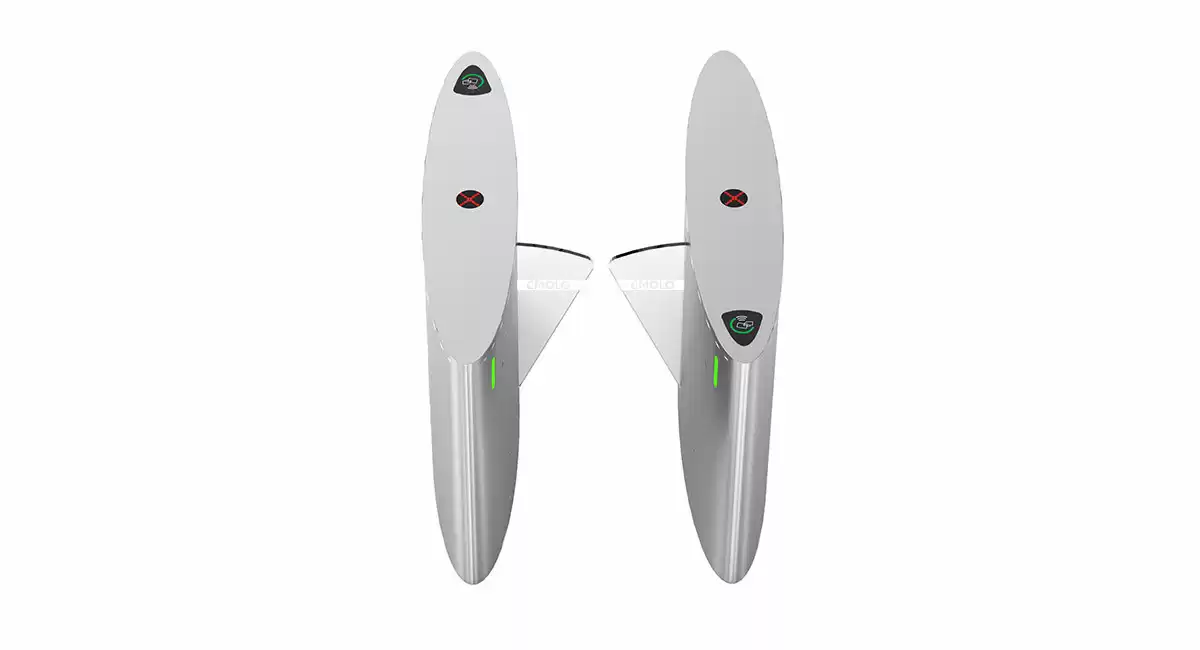

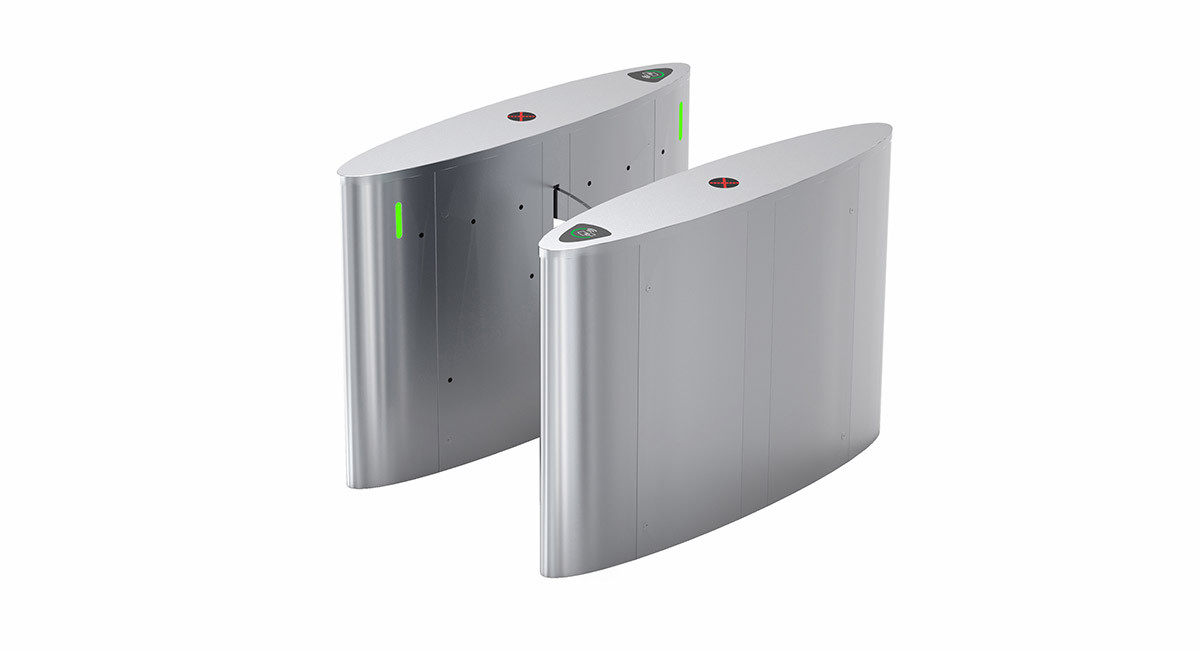

Intelligent Outdoor Turnstile Barrier Gate

The intelligent outdoor turnstile barrier gate CPW-331TBS has a lossless modular mechanism structure, and has the advanced servo control system and DSP+ARM motor control technology independently developed by CMOLO. The turnstile adopts DC brushless motor and exact positioning encoder, so as to make the flap barrier turnstile with advantages of high stability, high safety, long life service, accurate detection, fast, stable and silent running, etc.

The intelligent outdoor flap barrier turnstile CPW-331TBS has multiple waterproof and dustproof designs. The whole turnstile has been strengthened with sealing treatment to prevent external dust and moisture from entering the inside of the cabinet, so it has strong waterproof and dustproof capabilities.

The CPW-331TBS is suitable for both indoor & outdoor occasions such as scenic sport, factories, airports, government agencies, schools, hospitals, and leisure venue, office buildings, etc.







advanced core patented technology





high safety, triple anti-pinch





high stability, optimize the mechanism structure





long life, longer than 10 million times

















accurate & fast detection





high visitor flow rate usage





modular design, easy maintenance





high compatibility, high integration















IP65



high temperature resistance



low temperature resistance



condensation resistance





All-around Pedestrian Safety Protection



Triple anti-clamping

With triple anti-clamping technologies such as infrared anti-clamping, mechanical anti-clamping and anti-collision by advanced electric current detection, the outdoor turnstile barrier gate can protect pedestrian safety more comprehensively.



Anti-electric shock

All electric modules are designed to operate under the safety voltage of 24V, and configured with residual current protective device to prevent pedestrian from being injured by electric shocks.



Emergency open

Intelligent outdoor turnstile barrier gate equips with emergency escape control device, to make the system automatically open the flap to evacuate pedestrian.



Turnstile opens when power failure

With advanced and reliable design of automatic opening after power failure, the outdoor turnstile barrier gate will automatically unlock to make the passageway be an open status, which will be easier to evacuate pedestrian in the event of an emergency.





Advanced & Intelligent Turnstile Core Technology



High-precision mechanism structure

CMOLO's self-developed lossless modular mechanism structure and full CNC processing technology are to ensure that the precision and strength of the mechanism, and the use of advanced connecting arm design, so as to ensure the stability and long service life of the mechanism structure.



Advanced core logic algorithm

The outdoor turnstile barrier gate adopts advanced servo control system and DSP+ARM motor control technology, combined with the motor control algorithm independently developed by CMOLO, which can achieve precise control and positioning of the obstacle and maintain stable performance.

The barrier gate adopts CMOLO® patented passing detection algorithm and matrix photoelectric stereo detection technology, to sensitively detect illegal behaviors such as reversely passing and tailgating, and issues warnings in the form of sound and light, and can be linked with other security systems.



Long service life

The mechanism and control system of the intelligent outdoor turnstile barrier gate have been passed 10 million times life test.





Customization



Appearance Cabinet size, material and surface treatment process etc. of turnstile can be moderately customized.
System integration

Integrate with access control system, human body temperature measurement system, ticketing system, time attendance system, visitor system etc.

Integrate with QR code, face, fingerprint, ID/IC card, passport identification system etc.

Integrate with card collection system, and customize card collection device

Material of the gate

Tempered glass / acrylic / polycarbonate, and color can be customized.

Direction Indicator

The installation position of direction indicator can be adjusted.

The shape of direction indicator can be customized.
