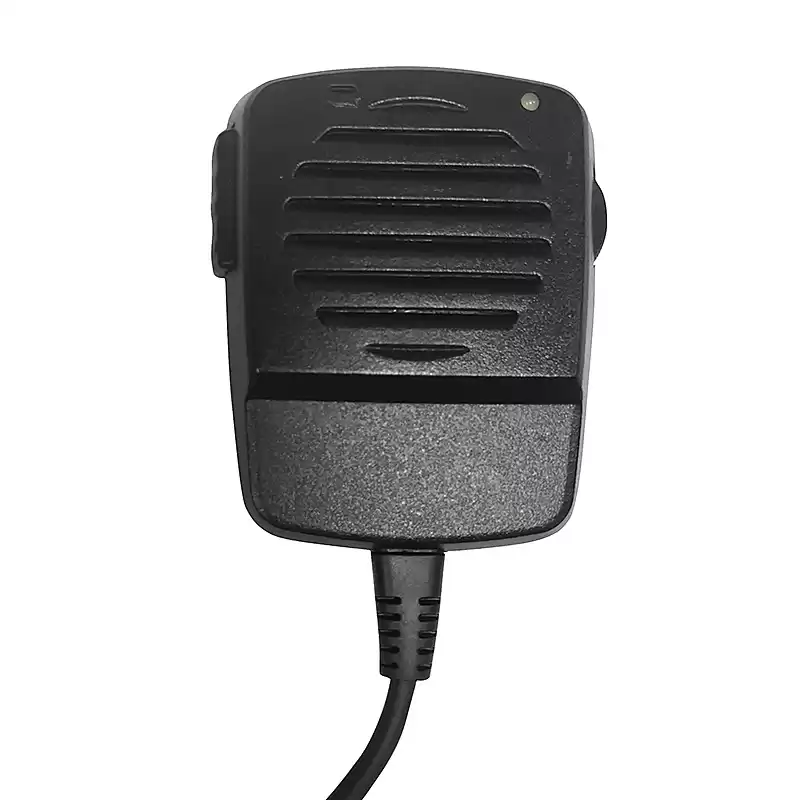

TS-197 Intercom handle
1. Product specifications
|
name
|
Intercom handle
|
|
size
|
See below
|
|
Wire spec
|
black PU OD4.2 4C
|
|
Shell spec
|
ABS black
|
|
weight
|
130g
|
2. Speaker electrical specifications
|
Speaker size
|
Φ40mm
|
|
Speaker impedance
|
4 Ohm±15%
|
|
Rated input power
|
2W
|
|
Distortion
|
<5%
|
|
Frequency response
|
200HZ~ 8KHZ
|
3. Microphone electrical specifications
|
MIC dimension
|
Φ6x2.7mm
|
|
Sensitivity
|
-5±1dB/U=2V; R=2.2KΩ. 1KHz
|

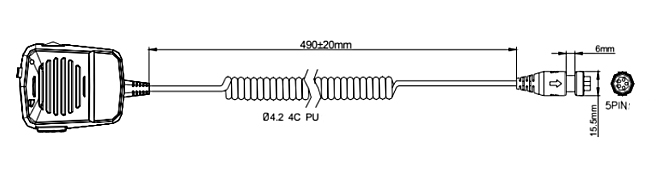

4. Finished drawing
