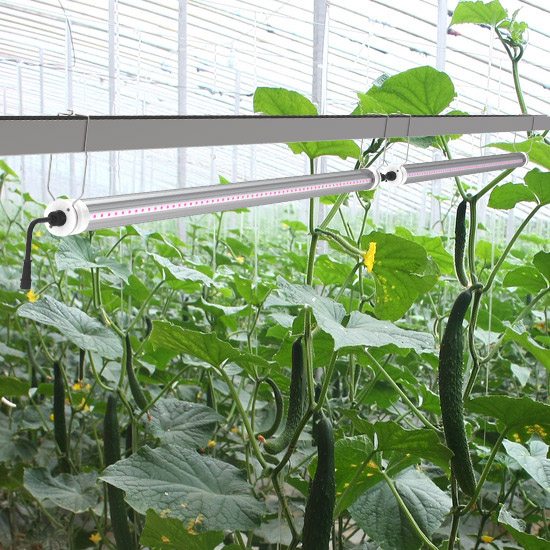

Interlight is a member of the horticulture product line from Sanan’s product release for 2019.This product provides a more efficient supplementary lighting scheme for the lower and middle parts of plants.The chainable main cable design and multiple installation methods for different applications. It is mainly used in greenhouse.
Features
-
High efficiency optical design
-
IP65 waterproof level, easy to clean
-
Chainable design
-
UV resistant material, durabl
-
Diversified installation methods

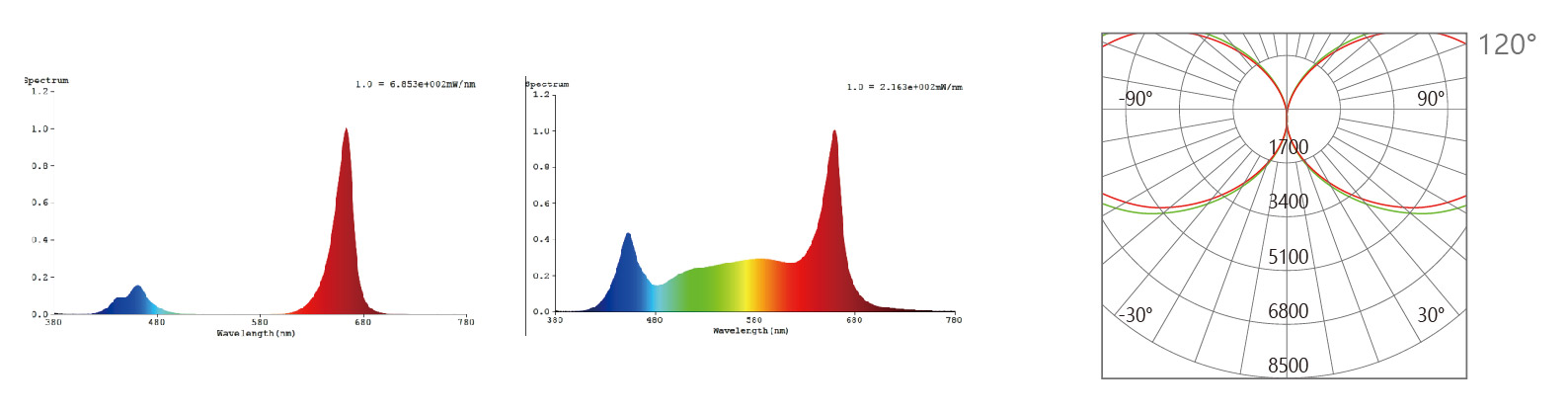

Spectrum
Dimension

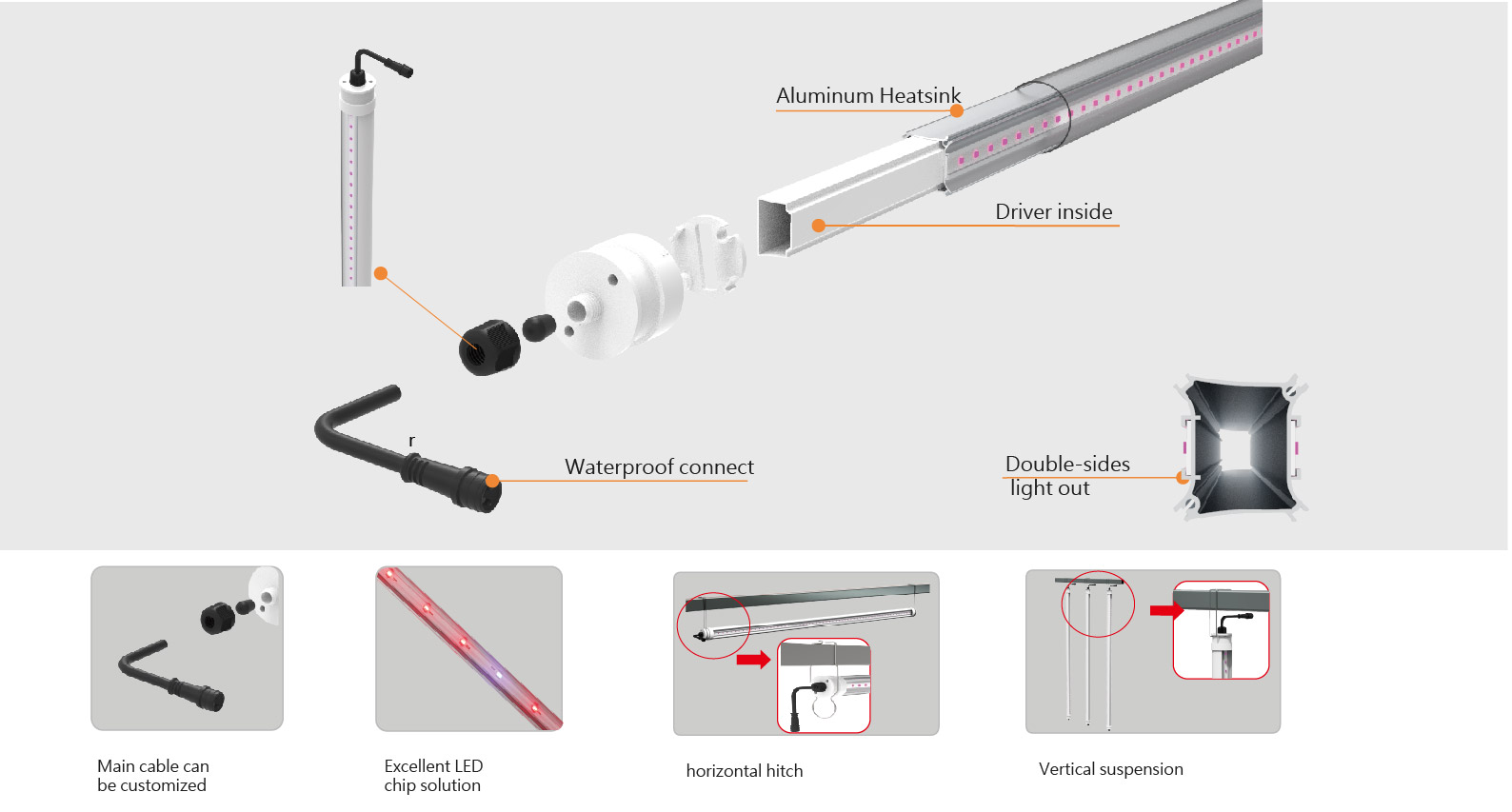

Exploded Drawing

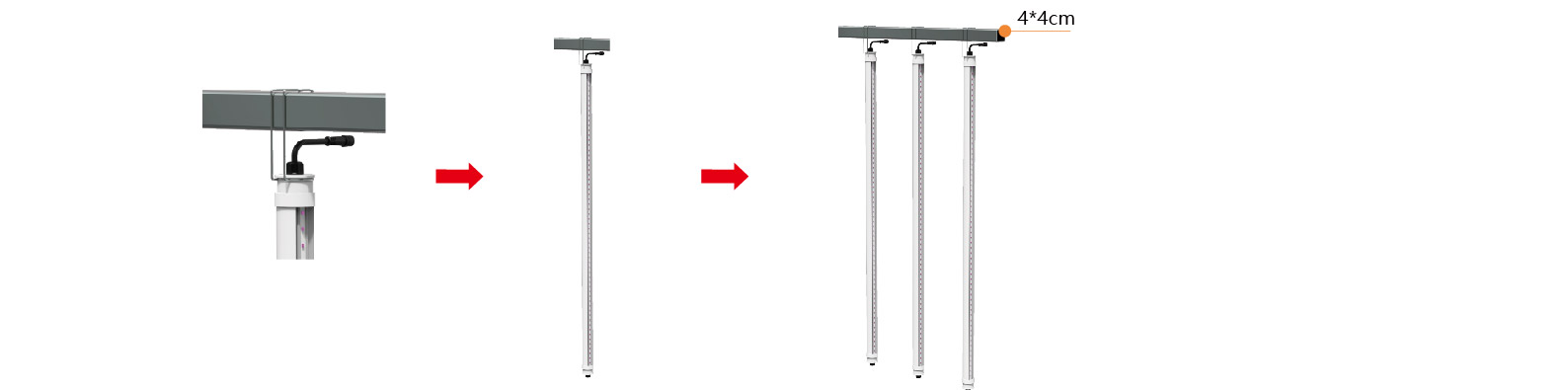

Installation

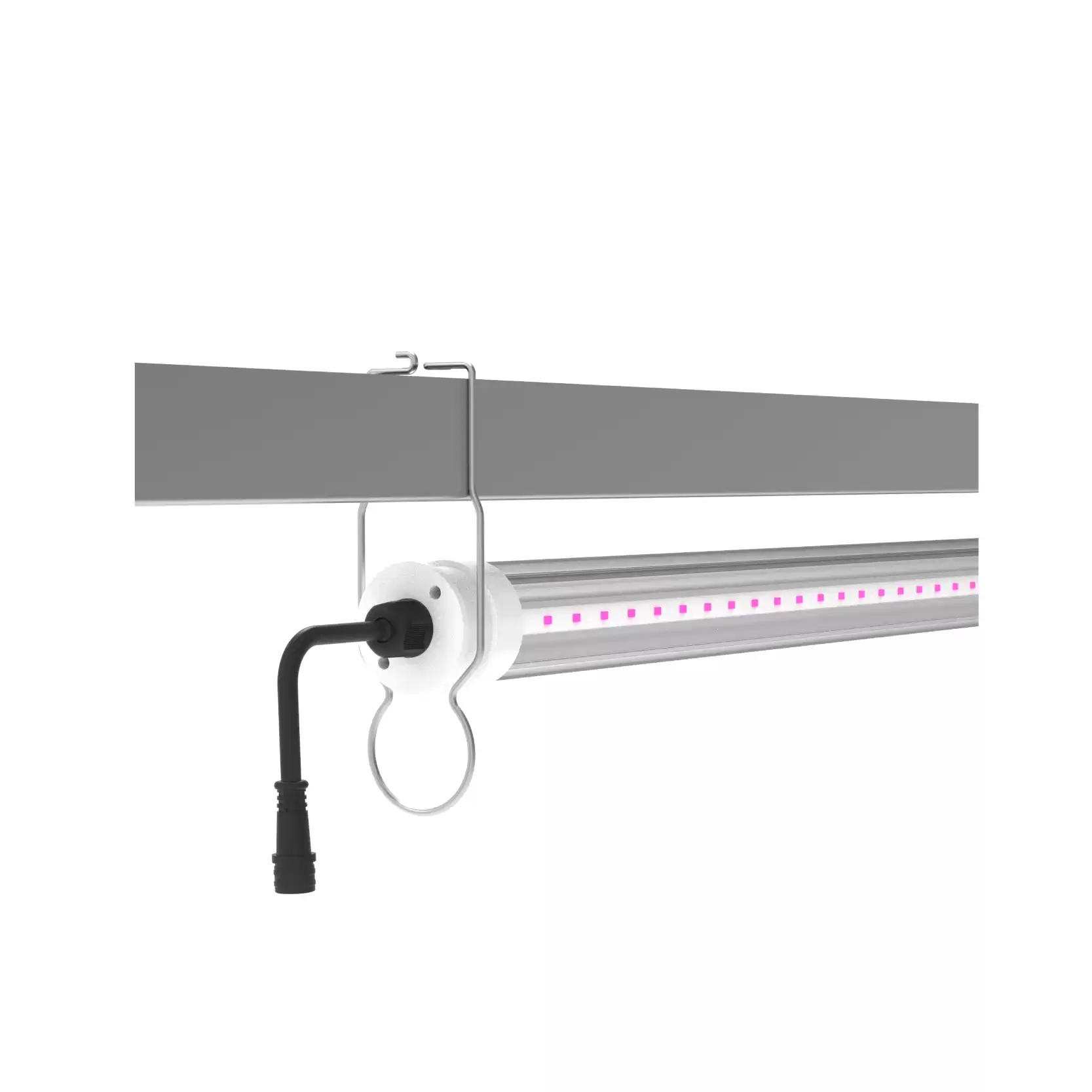

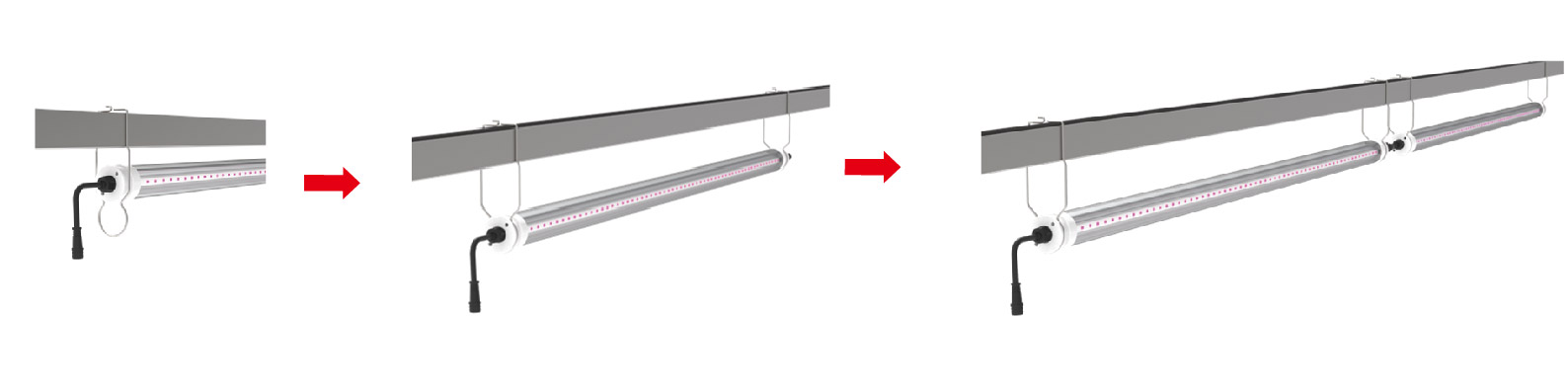

Quick installation, Hanging mounting

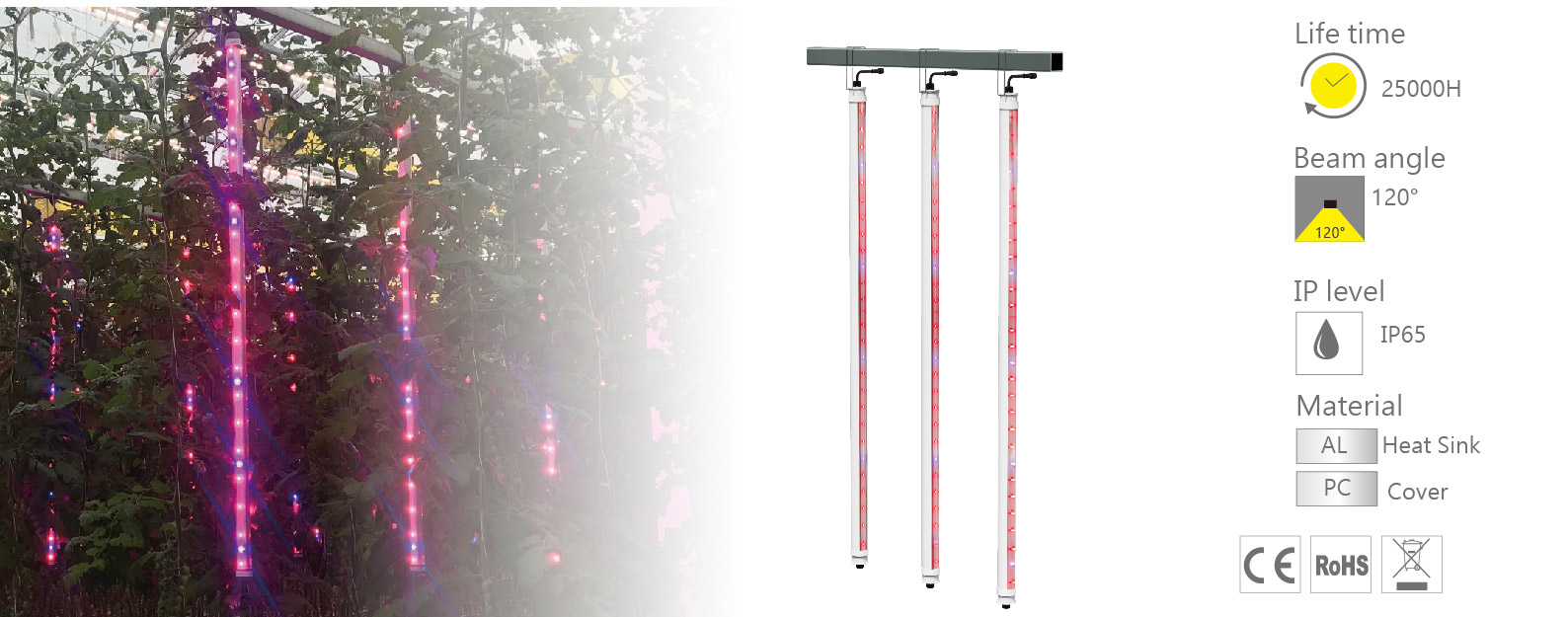

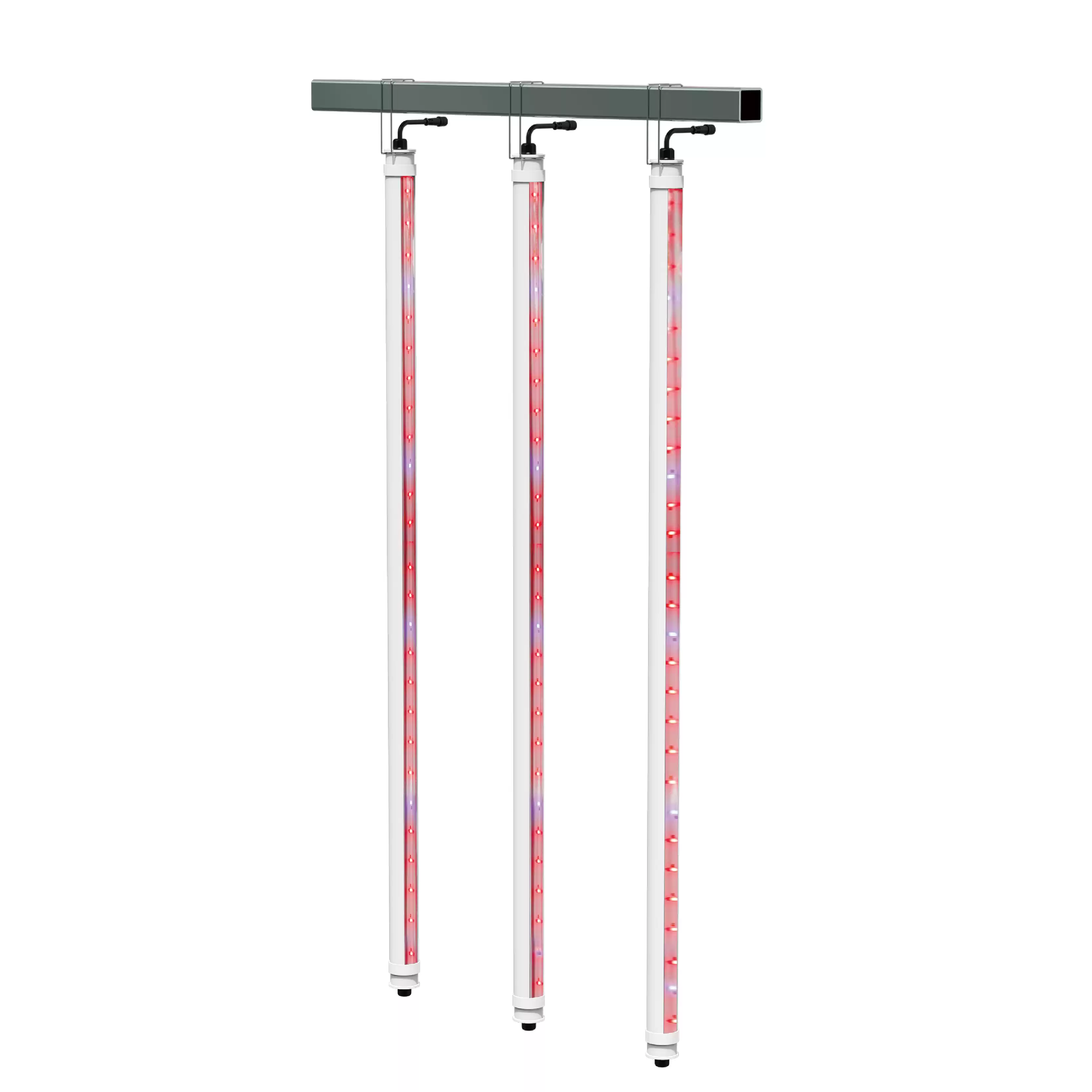

Vertical mounting C profile hanging
Parameter
|
Type
|
Interlight
|
|
Models
|
N040P4-N-K12-04
|
N040P4-D-K12-04
|
|
Voltage
|
100-240V
|
200-240V
|
|
100-277V（NA market)
|
|
Power
|
Up to 40W
|
|
Spectrum
|
B+R
|
|
PF
|
>0.9
|
|
PPF(380-780nm)
|
96umol/s
|
|
PPE
|
2.4umol/J
|
|
Beam Angle
|
330°
|
|
Operating Ambient Temperature
|
-20℃~40℃
|
|
Dimming
|
No-DIM
|
3 Step
Switch-DIM
|
|
Lifetime
|
25000H
|
|
IP Rating
|
IP65
|
|
Dimension（mm)
|
φ44*1207
|
φ44*1207
|
|
Material
|
AL+PC\ABS
|
|
Installation
|
C profile
Hanging(Horizontal/Vertical）
|
|
N.W.
|
10pcs/Carton 7.4kg
|
|
G.W.(Outer)
|
10pcs/Carton 9.41kg
|

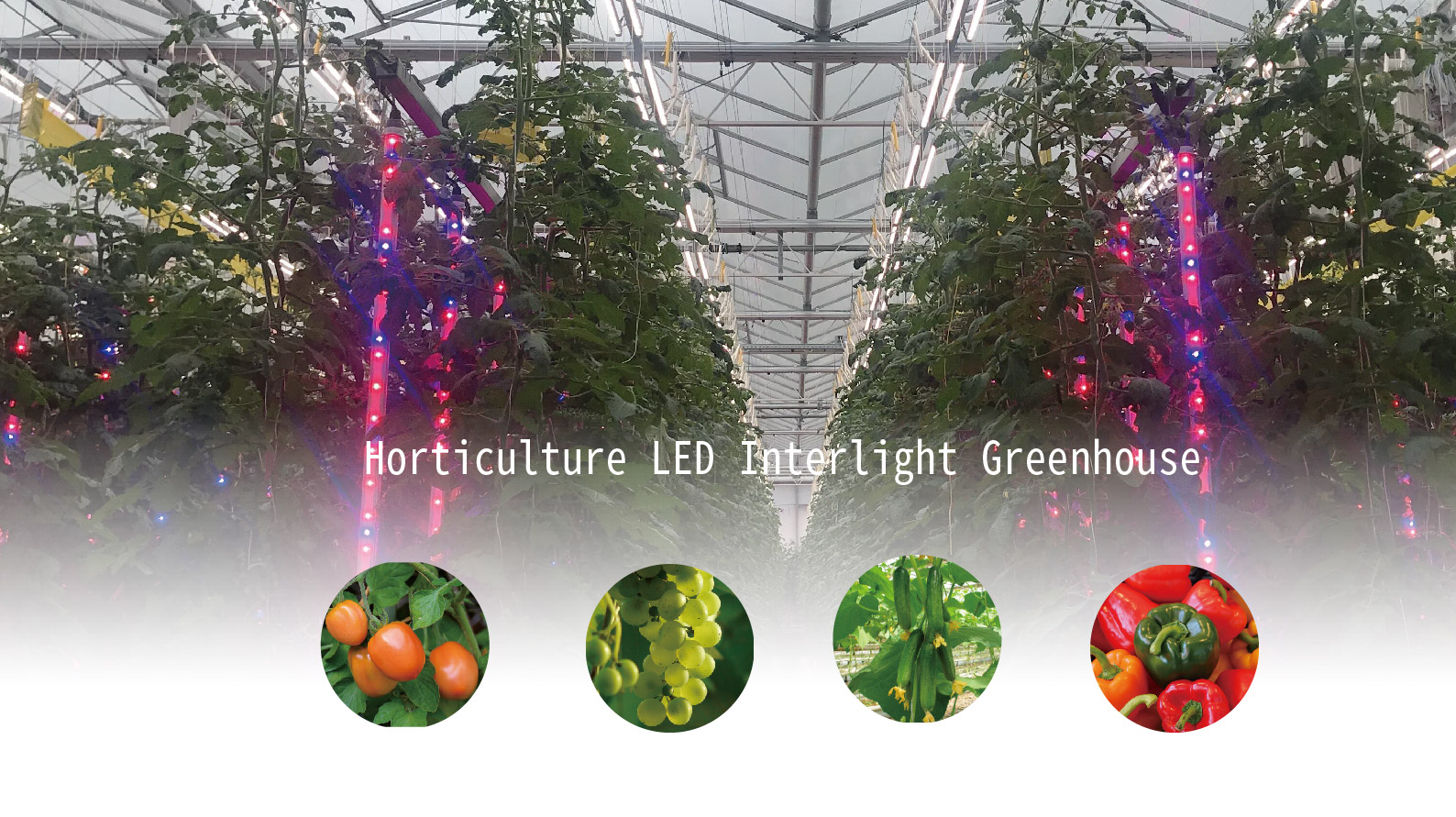

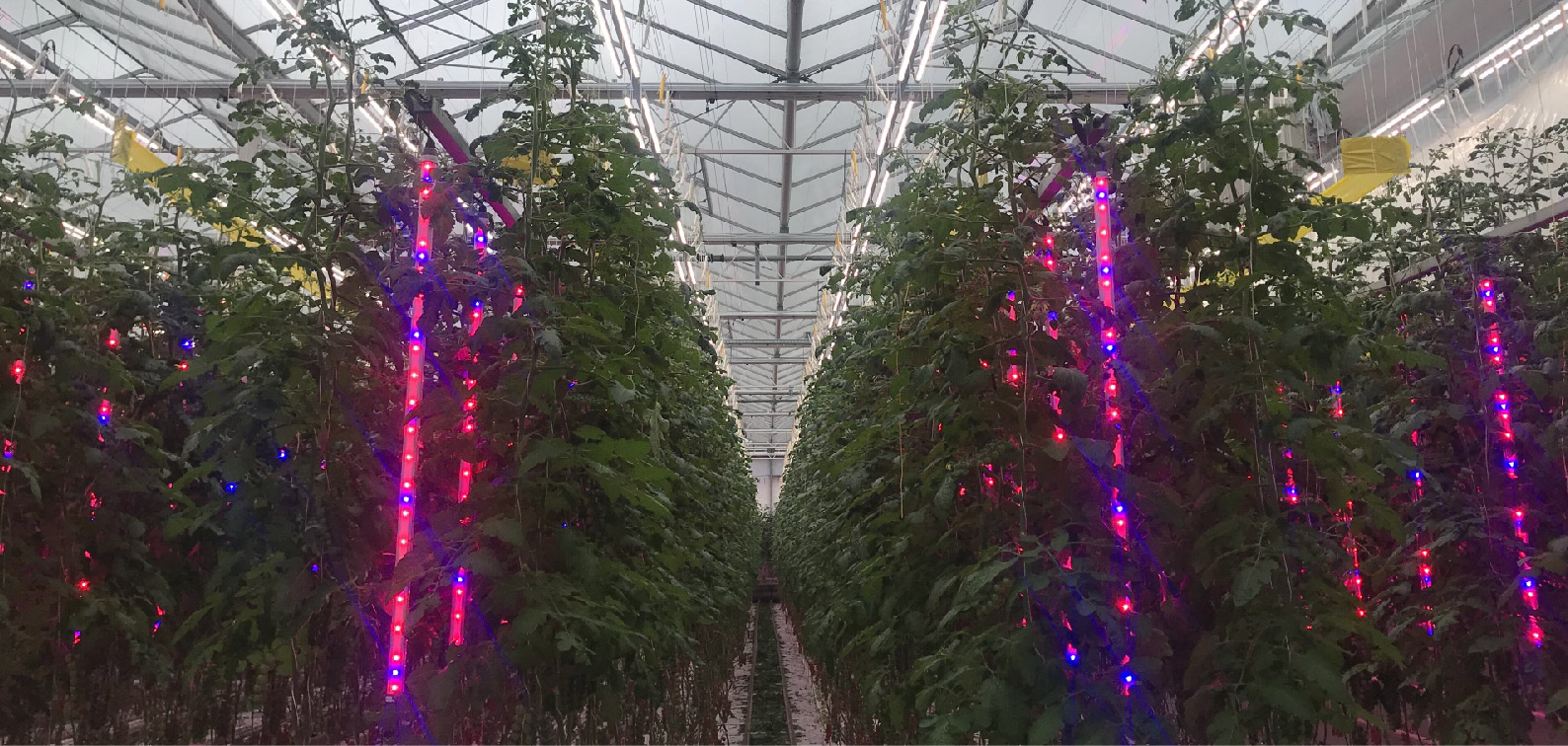

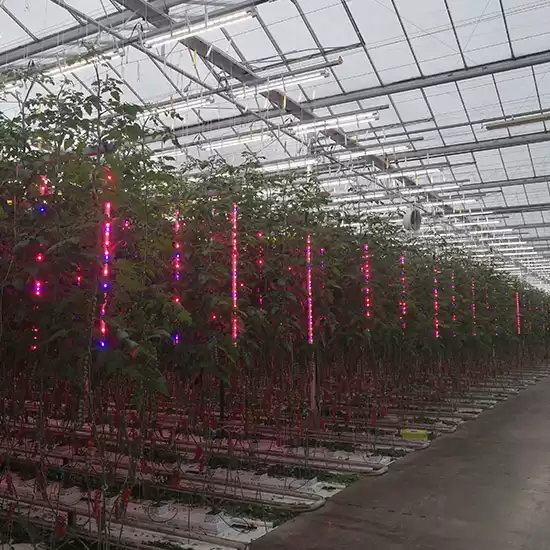

Application
About San’an
Strict Quality Control
SANAN’s Testing Center was set up in April 2013(Xiamen), specializing in LED application test.
It’s certificated by UL / TUV / CNAS / DEKRA to become as a third-party testing institution complying with ISO17025.
Taking quality as the top consideration, San’an Technology ensures product quality in every step from R&D through out to productive process
Energy Saving and Customized Design
FAQS:
Q: What is your MOQ?
A: MOQ is 1000 pcs. But we also accept test orders less than 1000 pcs quantity in the first time.
Q: How about the delivery time?
A: According to your order. Generally, we can finish your order in 30 days.
Q: What is your Toplight G3-2in1 LED Light fixture warranty?
A: 12 months for parts and labor against quality defects.
Q: Do you accept OEM or ODM?
A: Yes, of course, and we offer one-stop service for product design, mould design, mould manufacturing,injection, assembly and other aspects.
