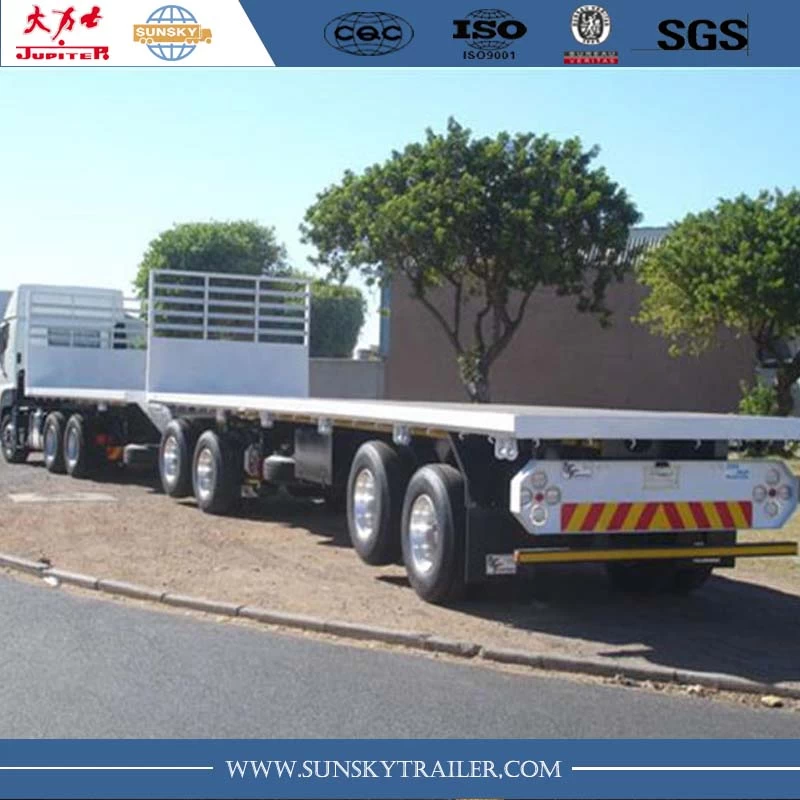

Interlink(20FT + 40FT ) flat bed trailer to transport container

Interlink Flatbed trailer to transport container.

Popular in Zambia,Zimbabwe and southern Africa countries.




Cheap Interlink(20FT + 40FT ) flat bed trailer to transport container


1.The main frame of sunsky interlink flat bed trailer is made of 16Mn high-tensile steel, reasonable structure, light weight, superior carrying capacity and no permanent deformation.

2.Can be made of foreign or domestic high-tensile steel to reduce tare weight, and the trailer is customizable!

3.Strong and Durable trailer body,light weight,very popular in Zambia ,Zimbabwe and other Southern Africa countries.

4.Powerful quality and people-oriented service,One year warranty!


Features:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1)Specialized:More than 30 years professional experience.
2)Quality-guarantee:One years guarantee term provided freely.

3)Sales service:Export more than 300 units to Africa, Southeastern Asia.
4)Customized: Products can be custom-made according to your design.


Specification:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

Style

Interlink(20FT+ 40FT) flat bed trailer

Dimension(L*W*H):

19600*2500*1570

Main frame:

Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process

Payload(kgs):

60000

Tare weight(kgs):

7600

Kingpin

3.5” bolt-in X2

Landing gear

19” X2

Tire size

315/80R22.5 (17sets)

Rim size

9.0*22.5 (17sets)

Axle

13ton X4

Brake system

Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank

Air Chamber

MBA T30/30

Electric system:

One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Suspension:

steel suspension with 8pcs of leafs spring

Container locks

12

Painting:

S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting


Our advantage and ability:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

sunsky interlink flat bed trailer



What others we can supply:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

sunsky interlink flat bed trailer




FAQ:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1. I want to reduce the tare weight of trailer,Can it be realized?


Answer: Yes,the trailer can be custom-built as your requirement.Can be made of foreign or domestic high-tensile steel to reduce tare weight.


2. I want to equip airbag suspension,how much will it cost?


Answer: Yes,of course.We can equip airbag suspension for you with super single tires.It will cost about USD 2000 for trailer with airbag suspension and 385/80R22.5 tires.
