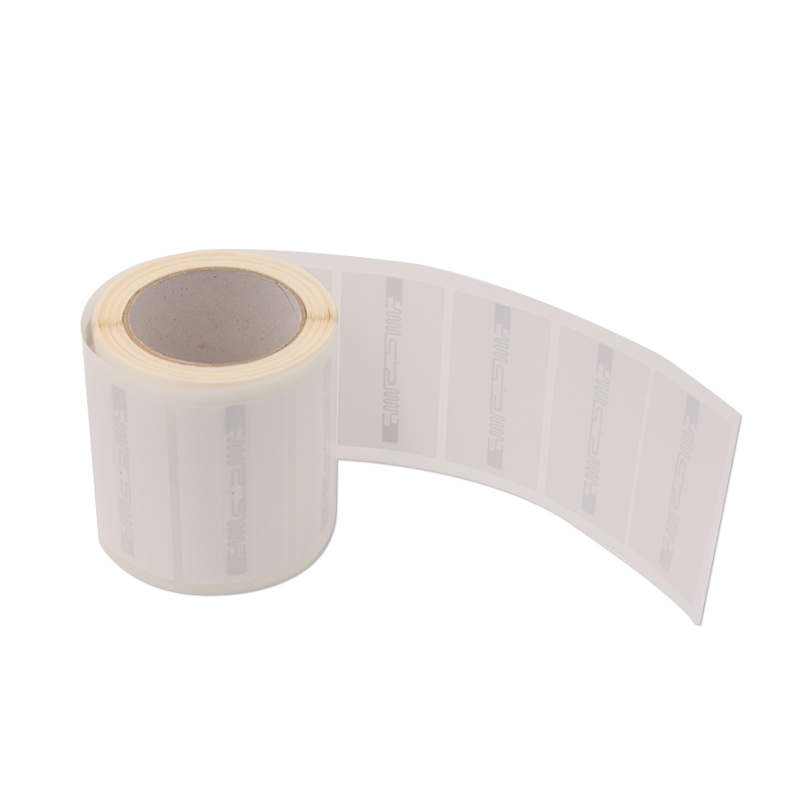

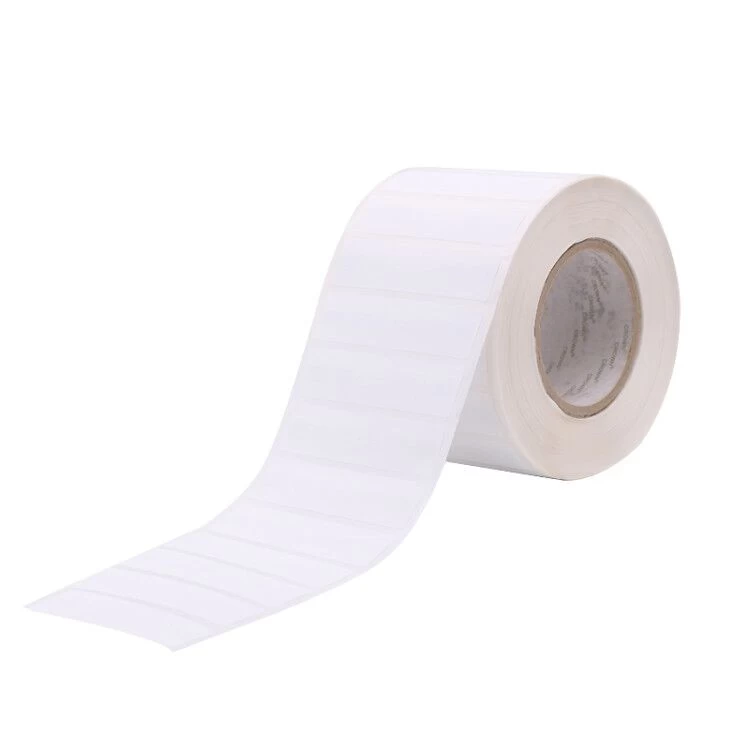

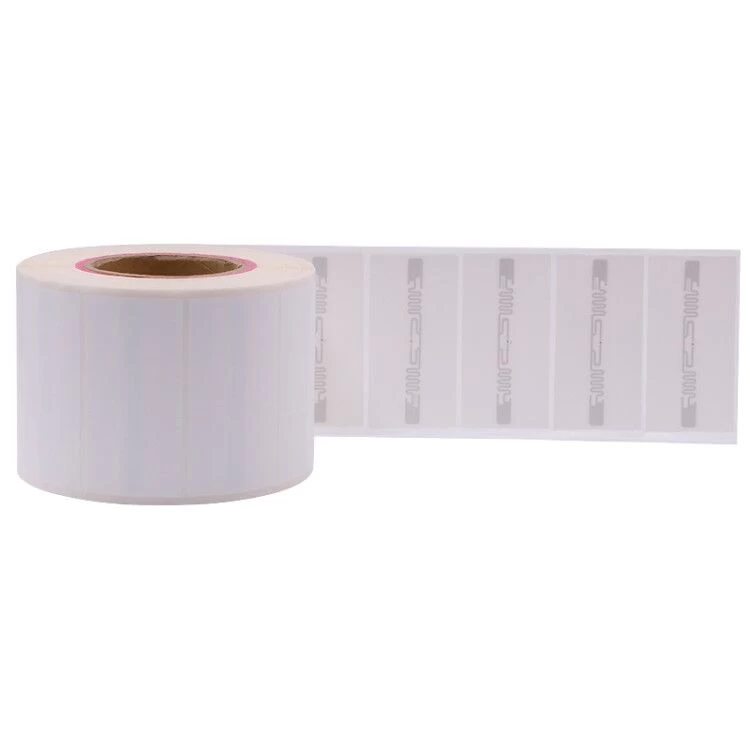

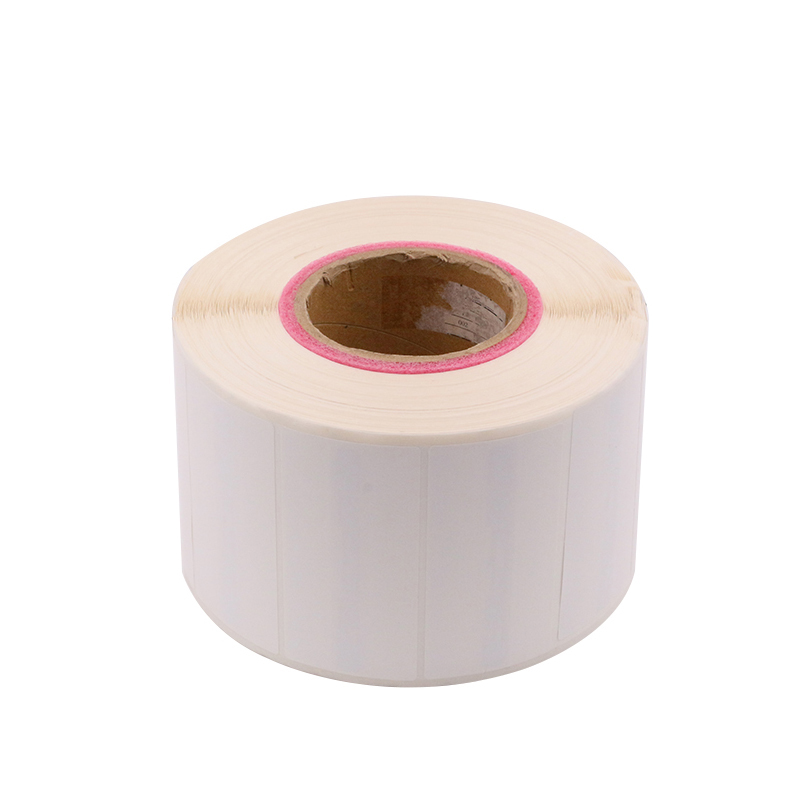

Inventory checking self adhesive passive paper uhf rfid tag

Passive RFID tags do not contain batteries, power is supplied by a reader. A coiled antenna within the tag forms a magnetic field which the tag draws power from. Once powered, radio waves are emitted which are then detectable by the reader and information is then fed back to a computer.

Facebook Twitter Pinterest LinkedIn 分享

Description

Model: Alien 9654,Alien9662

Standard: ISO18000-6C(EPC GEN2)

Chip type: Alien H3 Memory:32bits TID, 96bits EPC Number, 512bit user memory

Read distance:read(1~10m) (Reader dependent)

Write distance: write(1~3m) (Reader dependent)

Data retention:10 years

Anti-collision:Yes

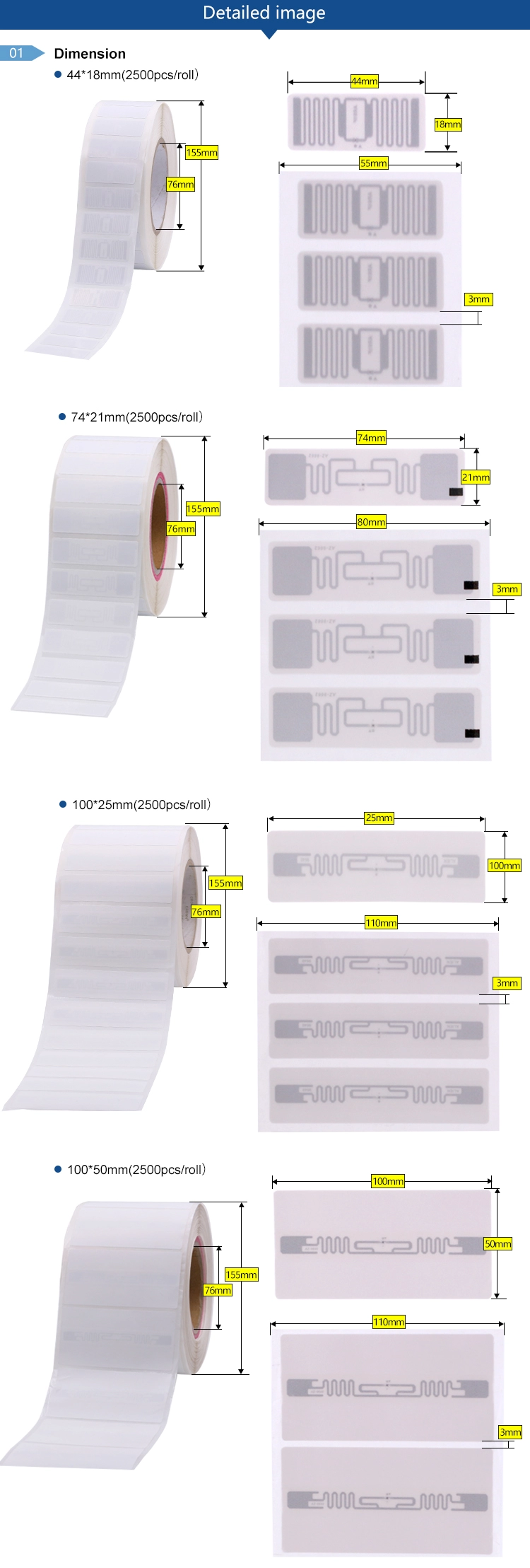

Dimension:110mm*45mm*0.3mm

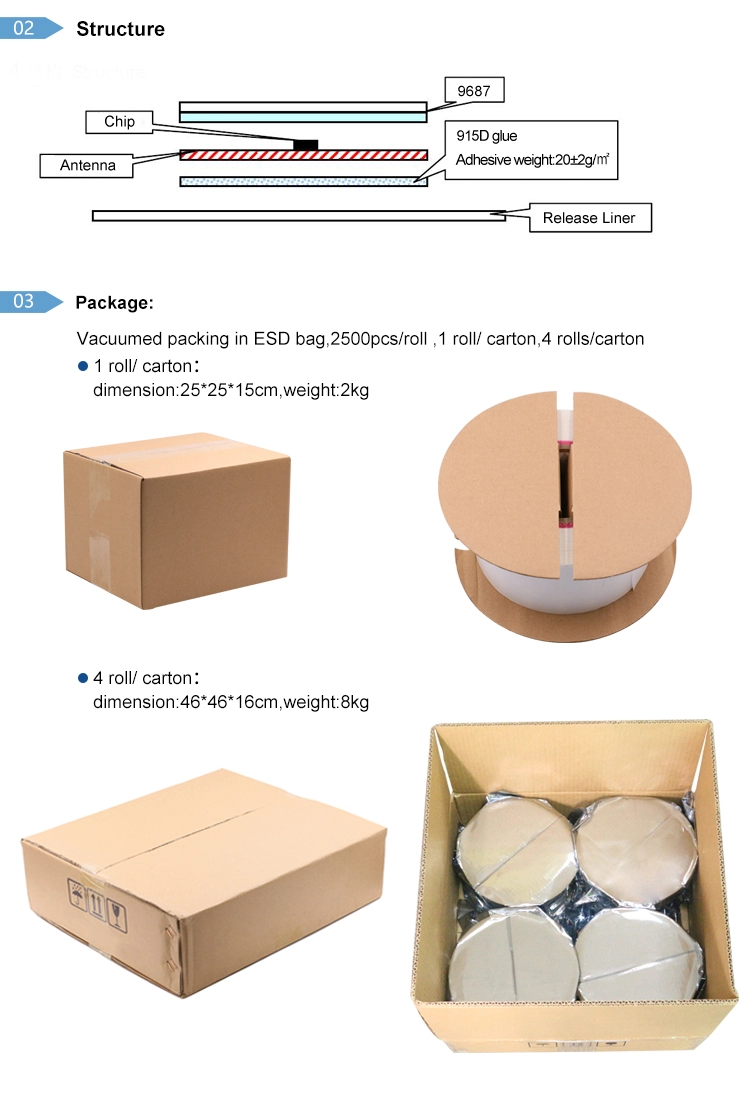

Base material: Thermal Paper/ Self-adhesive paper

Antenna material:Aluminum

Operating temperature:-10℃~+70℃

Application: Supermarket/Ticket/Asset Management/Parts Tracking and sorting, and so on. RFID labels are widely used in personnel management, Science, materials management, supply chain management, leasing and library management, retail supply chain management, anti-counterfeit protection, asset management, Factory automation, parcel, handling, fashion, consumer, enterprise and campus card, bus card, highway fees, parking, district management, micro-payment, e-purse and other fields.

3m Uhf Rfid Tags Adhesive
