Product Overview
|
Item
|
Description
|
|
Product Name
|
Frequency Inverter/ AC Drive
|
|
Model Number
|
V5/V6-GH-4TxxG, V5/V6-GA-4TxxG
|
|
Power Range
|
0.75kW-500kW
|
|
Rated Input Voltage
|
3 phase 380V/480V
|
|
Rated Output Voltage
|
3 phase 0 to rated input voltage
|
|
Input Frequency
|
50Hz/60Hz
|
|
Adaptable Motor
|
Asynchronous Motor
|
|
Control Mode
|
V/F Control, Vector Control, Sensorless Vector Control, Sensor Vector Control, Vector Torque Control
|
|
Communication
|
Modbus 485 RTU
|
|
IP Class
|
Standard IP20
|
|
Overload Capacity
|
150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
|
Feature
■ Perfect combination of PLC and high performance vector inverter on professional crane function
■ Strong startup torque under low frequency
■ Reliable brake control to eliminate glide-hook
■ Smooth and reliable lifting speed
■ Greater overload capacity
■ Better power optimization
■ Position processing and intelligent deceleration
■ Standard international bus communication and optimized communication format
■ Safe and sound keyboard operation
■ Comprehensive monitoring and protection with fault

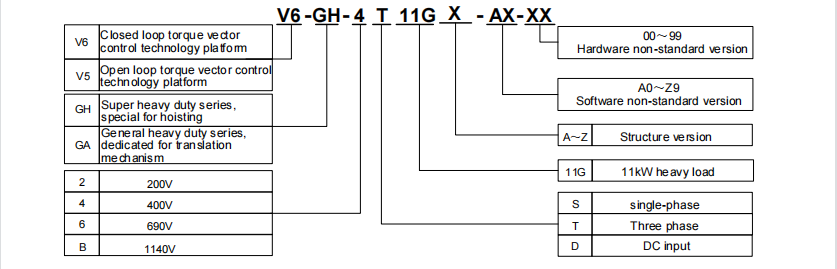

Model Explanation
Product Catalogue
V6−GH−4T□□□G□ ; and V5−GH−4T□□□G□ ; Three-phase 400V Constant torque/heavy-duty application
|
Power（kW）
|
0.4
|
0.75
|
1.5
|
2.2
|
3.7
|
5.5
|
7.5
|
11
|
15
|
18.5
|
22
|
30
|
37
|
45
|
55
|
|
Motor power（kW）
|
0.4
|
0.75
|
1.5
|
2.2
|
3.7
|
5.5
|
7.5
|
11
|
15
|
18.5
|
22
|
30
|
37
|
45
|
55
|
|
Output
|
Voltage (V)
|
Three-phase 0 to rated input voltage
|
|
Rated current (A)
|
2.5
|
3.8
|
5.5
|
9
|
13
|
17
|
24
|
30
|
39
|
45
|
60
|
75
|
91
|
112
|
150
|
|
Overload capacity
|
150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
|
|
Input
|
Rated Voltage /frequency
|
Three-phase 380V/480V; 50Hz/60Hz
|
|
Allowable voltage range
|
323V ~ 528V; Voltage unbalancedness ≤3%; allowable frequency fluctuation: ±5%
|
|
Rated current (A)
|
2.8
|
4.2
|
6.1
|
10
|
15
|
19
|
26
|
33
|
43
|
50
|
66
|
83
|
100
|
123
|
165
|
|
Braking unit*2
|
Built-in as standard
|
|
Protection class
|
IP20
|
|
Cooling mode
|
Self-cooling
|
Forced air convection cooling
|
|
Power (kW)
|
75
|
90
|
110
|
132
|
160
|
185
|
200
|
220
|
250
|
280
|
315
|
355
|
400
|
450
|
|
|
Motor power （kW）
|
75
|
90
|
110
|
132
|
160
|
185
|
200
|
220
|
250
|
280
|
315
|
355
|
400
|
450
|
|
|
|
Output
|
Voltage (V)
|
Three-phase 0 to rated input voltage
|
|
Rated current (A)
|
176
|
210
|
253
|
304
|
350
|
380
|
426
|
470
|
520
|
600
|
650
|
690
|
775
|
860
|
|
|
Overload capacity
|
150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
|
|
Input
|
Rated Voltage/frequency
|
Three-phase 380V/480V; 50Hz/60Hz
|
|
Allowable voltage range
|
323V ~ 528V; Voltage unbalancedness ≤3%; allowable frequency fluctuation: ±5%
|
|
Rated current (A)
|
160*
|
196*
|
232*
|
282*
|
326*
|
352*
|
385*
|
437*
|
491*
|
580*
|
624*
|
670*
|
755*
|
840*
|
|
|
Braking unit
|
External braking unit needed
|
|
Protection class
|
IP20
|
|
Cooling mode
|
Forced air convection cooling
|
* V6-GH-4T75G and V5-GH-4T75G above products are equipped with external DC reactor as standard.
*1 0.4~22kW structure version is A, 30~37kW structure version A means the main circuit is DC contactor, B is relay, 45kW and above need not be noted.
*2 0.4 to 55kW standard built-in brake unit, 15kW to 55kW If the brake unit is not required, the model must be equipped with −56, Products with 75kW and above must have an external brake unit.
V6−GA−4T□□□G□ ; and V5−GA−4T□□□G□ ; Three-phase 400V Constant torque/heavy-duty application
|
Power (kW)
|
0.75
|
1.5
|
2.2
|
3.7
|
5.5
|
7.5
|
11
|
15
|
18.5
|
22
|
30
|
37
|
45
|
55
|
75
|
|
Motor
power （kW）
|
0.75
|
1.5
|
2.2
|
3.7
|
5.5
|
7.5
|
11
|
15
|
18.5
|
22
|
30
|
37
|
45
|
55
|
75
|
|
Output
|
Voltage (V)
|
Three-phase 0 to rated input voltage
|
|
Rated current (A)
|
2.5
|
3.8
|
5.5
|
9
|
13
|
17
|
24
|
30
|
39
|
45
|
60
|
75
|
91
|
112
|
150
|
|
Overload capacity
|
150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
|
|
Input
|
Rated Voltage
/frequency
|
Three-phase 380V/480V; 50Hz/60Hz
|
|
Allowable voltage range
|
323V ~ 528V; Voltage unbalancedness ≤3%; allowable frequency fluctuation: ±5%
|
|
Rated current (A)
|
2.8
|
4.2
|
6.1
|
10
|
15
|
19
|
26
|
33
|
43
|
50
|
66
|
83
|
100
|
123
|
165
|
|
Braking unit*2
|
Built-in as standard
|
|
Protection class
|
IP20
|
|
Cooling mode
|
Self-cooling
|
Forced air convection cooling
|
|
Power (kW)
|
90
|
110
|
132
|
160
|
185
|
200
|
220
|
250
|
280
|
315
|
355
|
400
|
450
|
500
|
|
|
Motor
power （kW）
|
90
|
110
|
132
|
160
|
185
|
200
|
220
|
250
|
280
|
315
|
355
|
400
|
450
|
500
|
|
|
Output
|
Voltage (V)
|
Three-phase 0 to rated input voltage
|
|
Rated current (A)
|
176
|
210
|
253
|
304
|
350
|
380
|
426
|
470
|
520
|
600
|
650
|
690
|
775
|
860
|
|
|
Overload capacity
|
150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature)
|
|
Input
|
Rated Voltage
/frequency
|
Three-phase 380V/480V; 50Hz/60Hz
|
|
Allowable voltage range
|
323V ~ 528V; Voltage unbalancedness ≤3%; allowable frequency fluctuation: ±5%
|
|
Rated current (A)
|
160*
|
196*
|
232*
|
282*
|
326*
|
352*
|
385*
|
437*
|
491*
|
580*
|
624*
|
670*
|
755*
|
840*
|
|
|
Braking unit
|
External braking unit needed
|
|
Protection class
|
IP20
|
|
Cooling mode
|
Forced air convection cooling
|
* V6−GA−4T90G ;and V5−GA−4T90G ;above products are equipped with external DC reactor as standard.
*1 0.7~30kW structure version is A, 37~45kW structure version A means the main circuit is DC contactor, B is relay, 55kW and above need not be noted.
*2 0.7 to 75kW standard built-in brake unit, 18.5kW to 75kW If the brake unit is not required, the model must be equipped with −56, Products with 90kW and above must have an external brake unit.

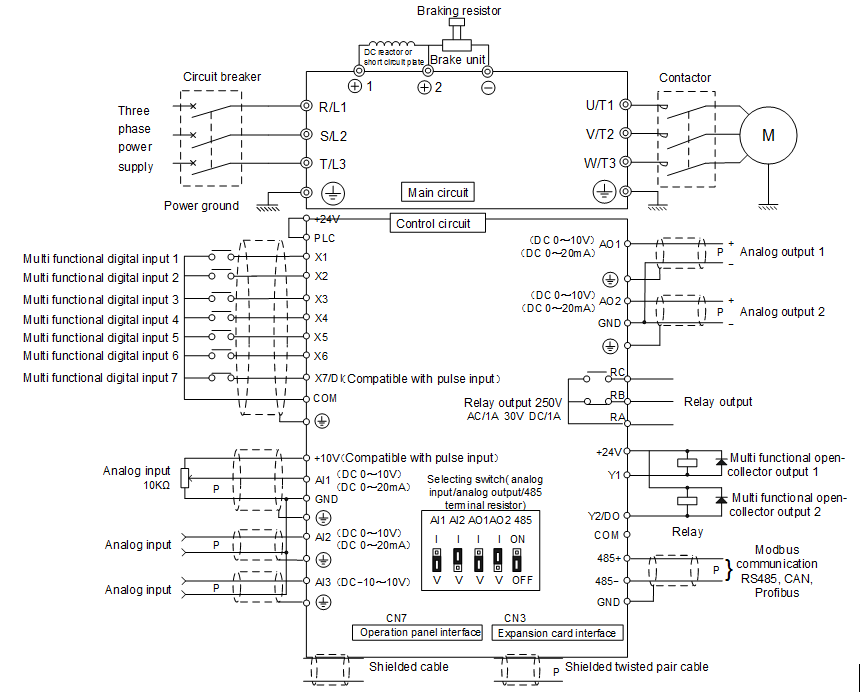

Terminal Wiring diagram
Installation Dimension
V6/V5−GH−4T5.5G，V6/V5−GA−4T7.5G ;and below power class
V6−GH−4T7.5G，V6−GA−4T11G and above power class ;

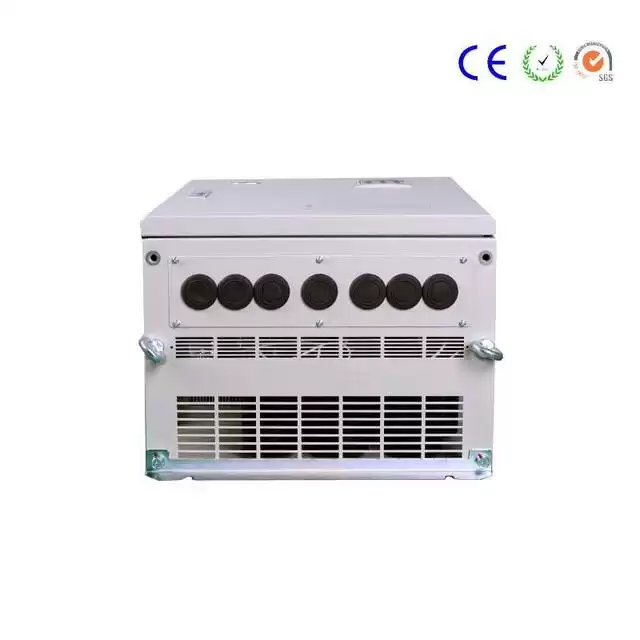

Product Appearance, Installation Dimensions, Approximate Weight
|
voltage
|
Inverter item
|
product outline, mounting dimension（mm）
|
weight（kg）
|
|
W
|
H
|
D
|
W1
|
H1
|
D1
|
T1
|
Install
hole d
|
|
400V
|
V6/V5−GH−4T0.4G
V6/V5−GA−4T0.75G
|
118
|
190
|
155
|
105
|
173
|
40.8
|
3
|
5.5
|
1.5
|
|
V6/V5−GH−4T0.75G
V6/V5−GA−4T1.5G
|
118
|
190
|
175
|
105
|
173
|
60.5
|
4
|
5.5
|
2.6
|
|
V6/V5−GH−4T1.5G
V6/V5−GA−4T2.2G
|
|
V6/V5−GH−4T2.2 G
V6/V5−GA−4T3.7G
|
|
V6/V5−GH−4T3.7G
V6/V5−GA−4T5.5G
|
155
|
249
|
185
|
136
|
232
|
69
|
8
|
5.5
|
; ;3
|
|
V6/V5−GH−4T5.5G
V6/V5−GA−4T7.5G
|
|
V6/V5−GH−4T7.5G
V6/V5−GA−4T11G
|
210
|
337
|
200
|
150
|
324
|
107.5
|
2.5
|
7
|
8.5
|
|
V6/V5−GH−4T11G
V6/V5−GA−4T15G
|
|
400V
|
V6/V5−GH−4T15G
V6/V5−GA−4T18.5G
|
285
|
440
|
220
|
200
|
425
|
107.5
|
2.5
|
7
|
17
|
|
V6/V5−GH−4T18.5G
V6/V5−GA−4T22G
|
|
V6/V5−GH−4T22G
V6/V5−GA−4T30G
|
|
V6/V5−GH−4T30G
V6/V5−GA−4T37G
|
315
|
575
|
227
|
220
|
553
|
123.5
|
2.5
|
10
|
25
|
|
V6/V5−GH−4T37G
V6/V5−GA−4T45G
|
|
V6/V5−GH−4T45G
V6/V5−GA−4T55G
|
400
|
615
|
265
|
270
|
590
|
123.5
|
3.0
|
10
|
35
|
|
V6/V5−GH−4T55G
V6/V5−GA−4T75G
|
|
V6/V5−GH−4T75G
V6/V5−GA−4T90G
|
465
|
745
|
325
|
343
|
715
|
156
|
3.0
|
12
|
55
|
|
V6/V5−GH−4T90G
V6/V5−GA−4T110G
|
|
V6/V5−GH−4T110G
V6/V5−GA−4T132G
|
540
|
890
|
385
|
370
|
855
|
205.5
|
4.0
|
14
|
85
|
|
V6/V5−GH−4T132G
V6/V5−GA−4T160G
|
|
V6/V5−GH−4T160G
V6/V5−GA−4T185G
|
|
V6/V5−GH−4T185G
V6/V5−GA−4T200G
|
|
V6/V5−GH−4T200G
V6/V5−GA−4T220G
|
700
|
1010
|
385
|
520
|
977
|
210
|
4.0
|
14
|
125
|
|
V6/V5−GH−4T220G
V6/V5−GA−4T250G
|
|
V6/V5−GH−4T250G
V6/V5−GA−4T280G
|
|
V6/V5−GH−4T280G
V6/V5−GA−4T315G
|
810
|
1358
|
425
|
520
|
1300
|
210
|
4.0
|
14
|
215
|
|
V6/V5−GH−4T315G
V6/V5−GA−4T355G
|
|
V6/V5−GH−4T355G
V6/V5−GA−4T400G
|
|
V6/V5−GH−4T400G
V6/V5−GA−4T450G
|
|
V6/V5−GH−4T450G
V6/V5−GA−4T500G
|
Note: the detailed definition of W, H, D, W1, H1, D1, T1 and installation hole D should refer to the standard specification.
Applications
Representative Industry and Applicable Machine
The 3 phase vector control Inverter of Shenzhen V&T Technologies Co.,Ltd. are widely used in Port, Ship, Marine Engineering, Mining, Construction, Metallurgy, Factories and other industries.
Port Wheel Crane, Gantry Crane, Tower Crane, Hoist, Electric Hoist, Crane, Mine Hoist, Winch, Grab Control and other machines.
