1. Details:
Usually the Hi-power arc welding inverter's single-ended pulse transformers require the transformer cores with low high frcqucncy loss, high Bs and low Br so that to achicvc bigger A B. Output filter and energy stored inductancc required the characteristics of high Bs, low loss and constant permeability, in this case, we made horizontal magnetic treatment on Nano-crystalline alloy to manufacture the transformer cores with low Br and constant permeability.
Application:
• Inverter Welding machine power supply
• X-ray, laser, communication power supply
• UPS and high frequency induction heating power supply
• Charging power supply
• Electrolytic and electroplate power supply
• Frcqucncy control of motor speed power supply
Product performance:
• High Bs —Reducing volume and weight of the cores
• High permeability and low Coercive force
• Low Br (Br < 0.2T) ---Higher magnetic flux density and output power
• Low core loss —Lower temperature rising, higher efficiency of the transformer
• Excellent temperature stability —Keep stable working at -50'C-130'C for long time

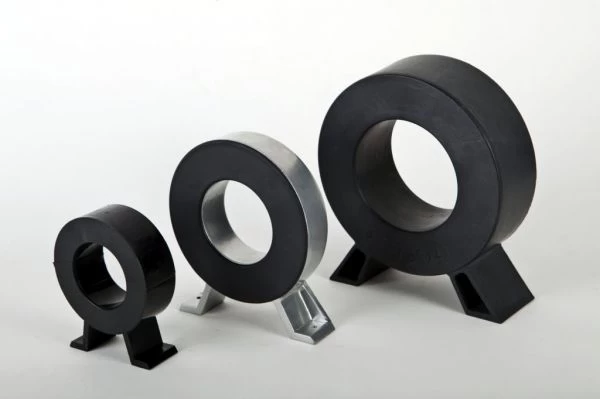

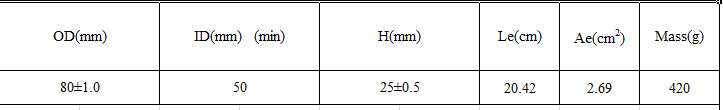

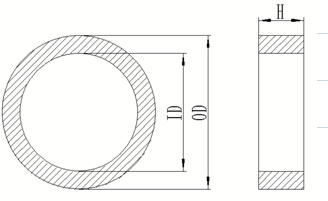

2.Dimensions of Core：
3. Magnetical Test：(AQL 0.65)
Test of Iron loss and AL according to GB/T 19346-2003( The test standard for Fe-base nanocrystalline alloy in China)
3.1 AL Test:

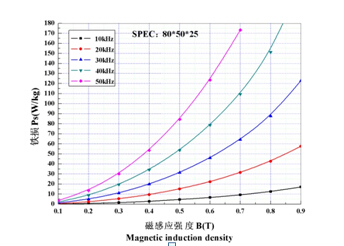

3.2 Loss Test:
Magnetic Induction Density：B=0.5T
Frequency：f=20kHz
Test Equipment：2010SA AC soft magnetic tester
Iron Loss：pFe≤25W/kg
OFN-IT-080050020 Iron Loss：PFe≤8.5W
