ip20 36W led strip light triac dimmable driver power supply transformer 12v dc

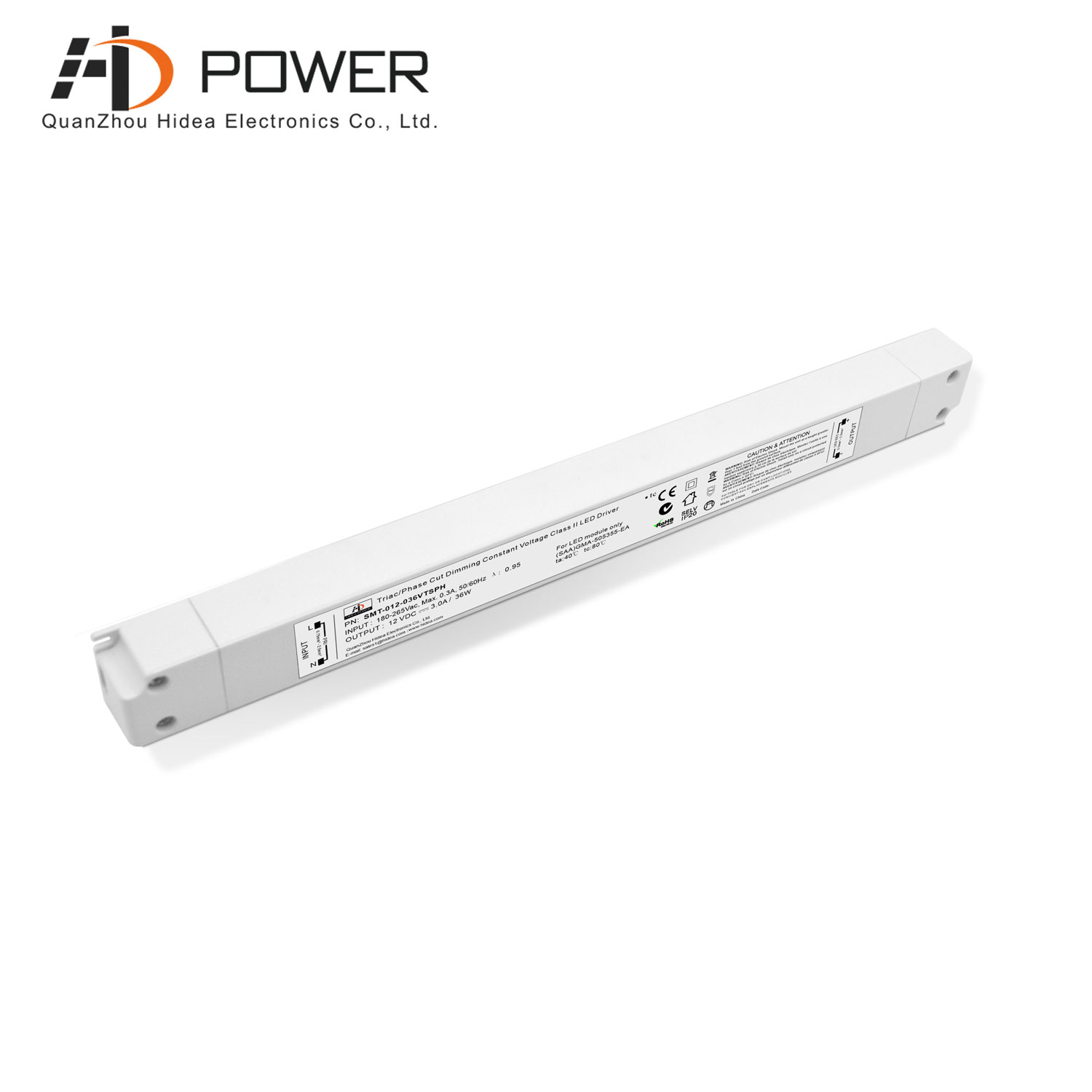

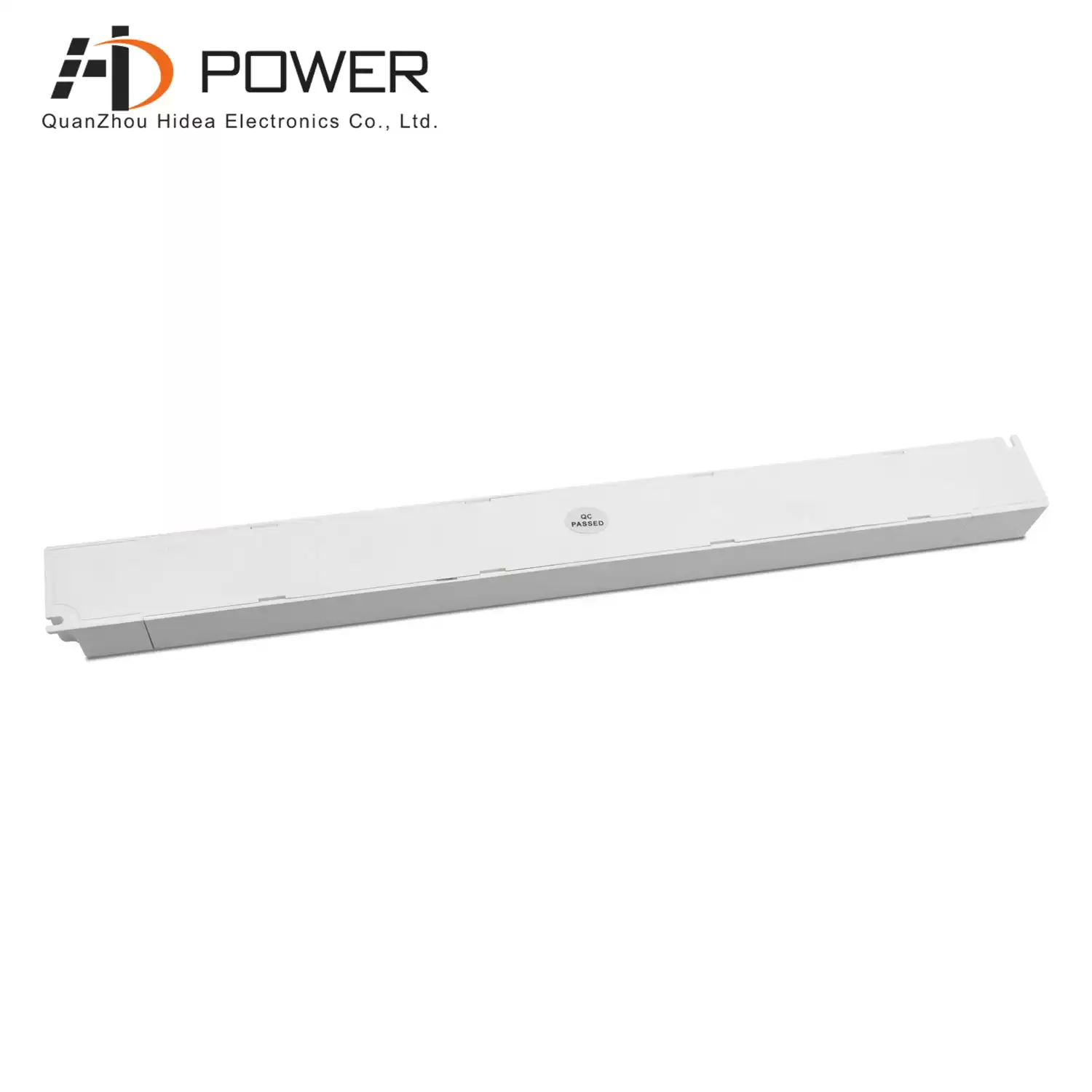

The triac dimmable led driver 36w with CE, SAA and C-TICK certification has a white plastic shell, which is removable at both ends, easy to install, no exposed wires, safe and reliable, in line with international safety lighting laws. hidea power provides a 7-year warranty for it

  • CertificationSAA,C-Tick, CE,RoHS
  • Weight0.3KG
  • Size260*30*18.5mm
  • Shape & SizeSlim Size
  • Output Voltage12/24Vdc
  • Output Power(Watt)36W
  • Input Voltage200-240Vac
  • Working ModeConstnat Voltage LED Driver
  • Dimming ModeTriac Dimming
  • Warranty7 years warranty
Facebook Twitter Pinterest LinkedIn 分享

240vac 30w 12v triac dimming led driver constant voltage power supply  transformer 24v

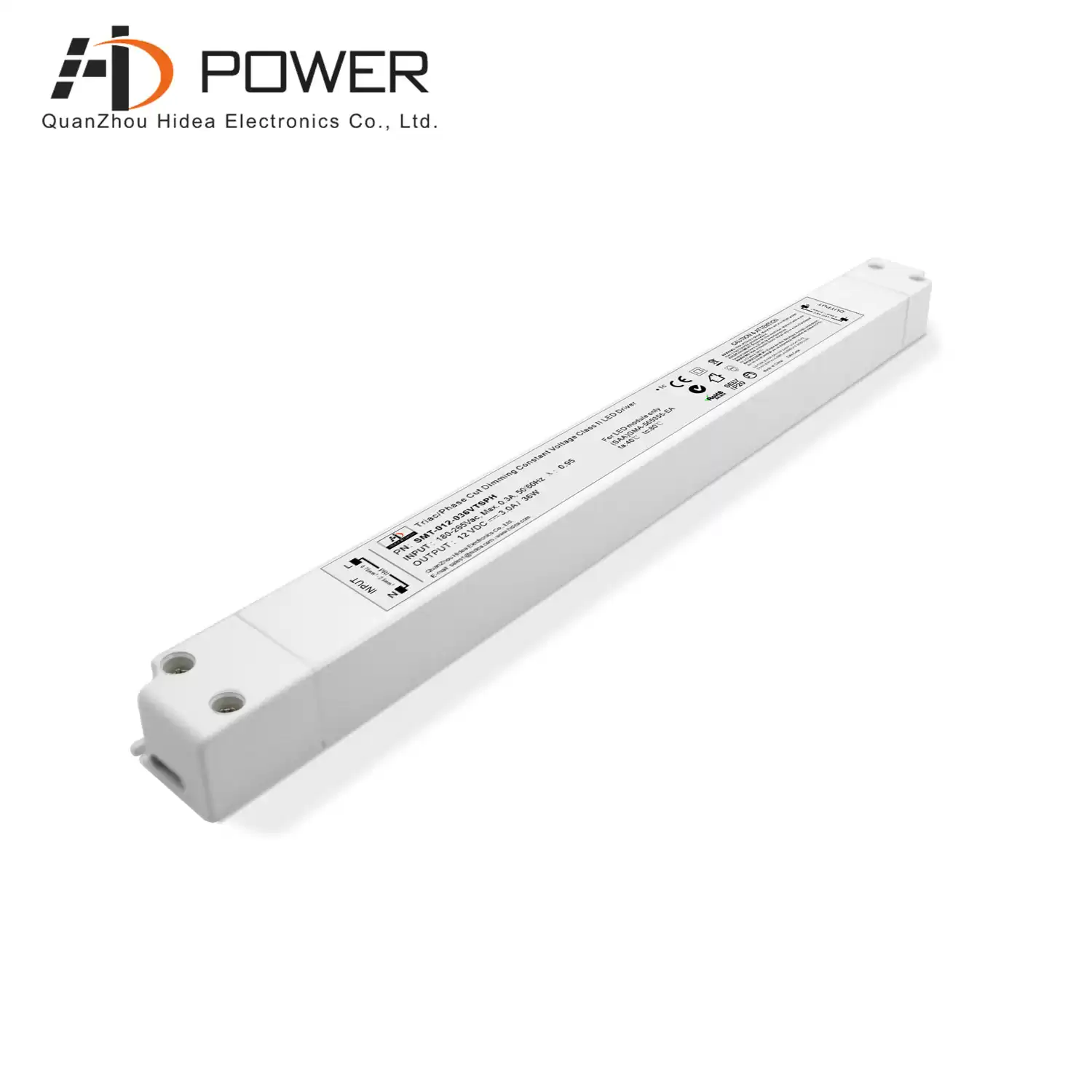

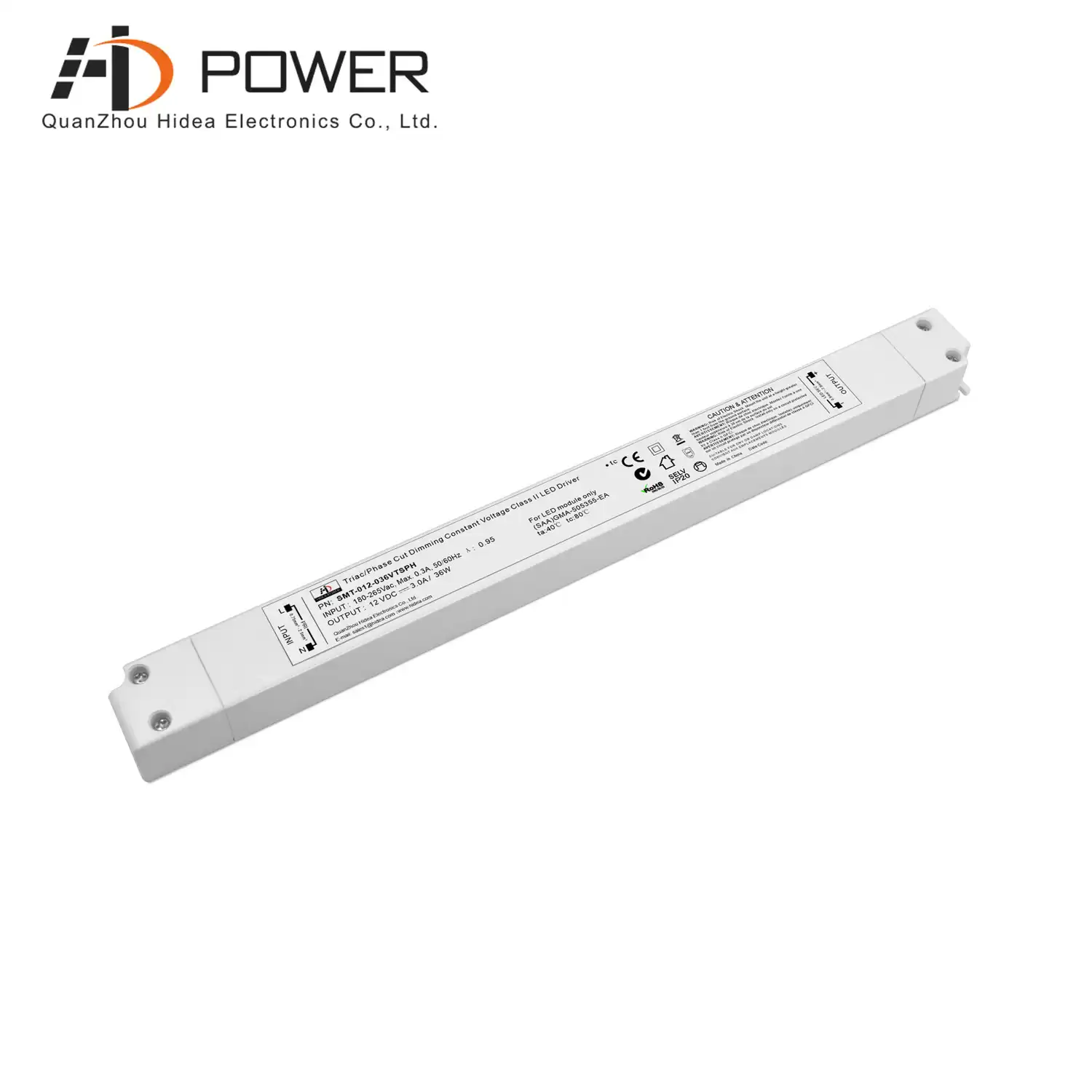

The hidea power Ultra Thin triac dimming 36W led power supply is suitable for indoor installation in narrow Spaces, easy to hide the body, free air convective cooling, with short circuit/over voltage/over heat protection, 7 year warranty

  Specification

model SMT-012-036VTSPH SMT-024-036VTSPH
Output DC Voltage 12VDC 24VDC
Voltage Accuracy ±5% ±5%
Rated current 3.0Amp 1.5Amp
Rated power 36W 36W
Voltage Regulation ±0.5%
Load Regulation ±0.5%
Input Voltage Range 220-240VAC
Frequency Range 47~63HZ
Power Factor ( Typ.) PF≥0.96/230VAC
THD(Typ. ) @ full load <20%
Full Load Efficiency(Typ.) >80% >80%
AC Current(Typ.) 0.23A/220VAC
Inrush Current(Typ.) 34A,50%,104us@230VAC
Leakage current <0.5mA
Protection Short Circuit Hiccup mode, recovers automatically after fault condition is removed.
Over Loading ≤120% shut down o/p voltage, re-power on to recover
Protection Class II
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment Working TEMP. -40~+60℃
Working Humidity 20~90%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z  axes
Safety&EMC Safety standards EN61347-1  EN61347-2-13  EN62493
Withstand voltage I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC
Isolation resistance I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25℃/70%RH
EMC EMISSION EN55015    EN61000-3-2    EN61000-3-3
EMC IMMUNITY EN61000-4-2,3,4,5,6,11      EN61547
Others Weight 0.2Kg
Size 260*30*18.5mm(L*W*H)
packing 50pcs /CTN SIZE: 330X275X130mm
Notes 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

led driver 12V
 dimmable led driver
 constant voltage led driver
SMARTS led power supply
