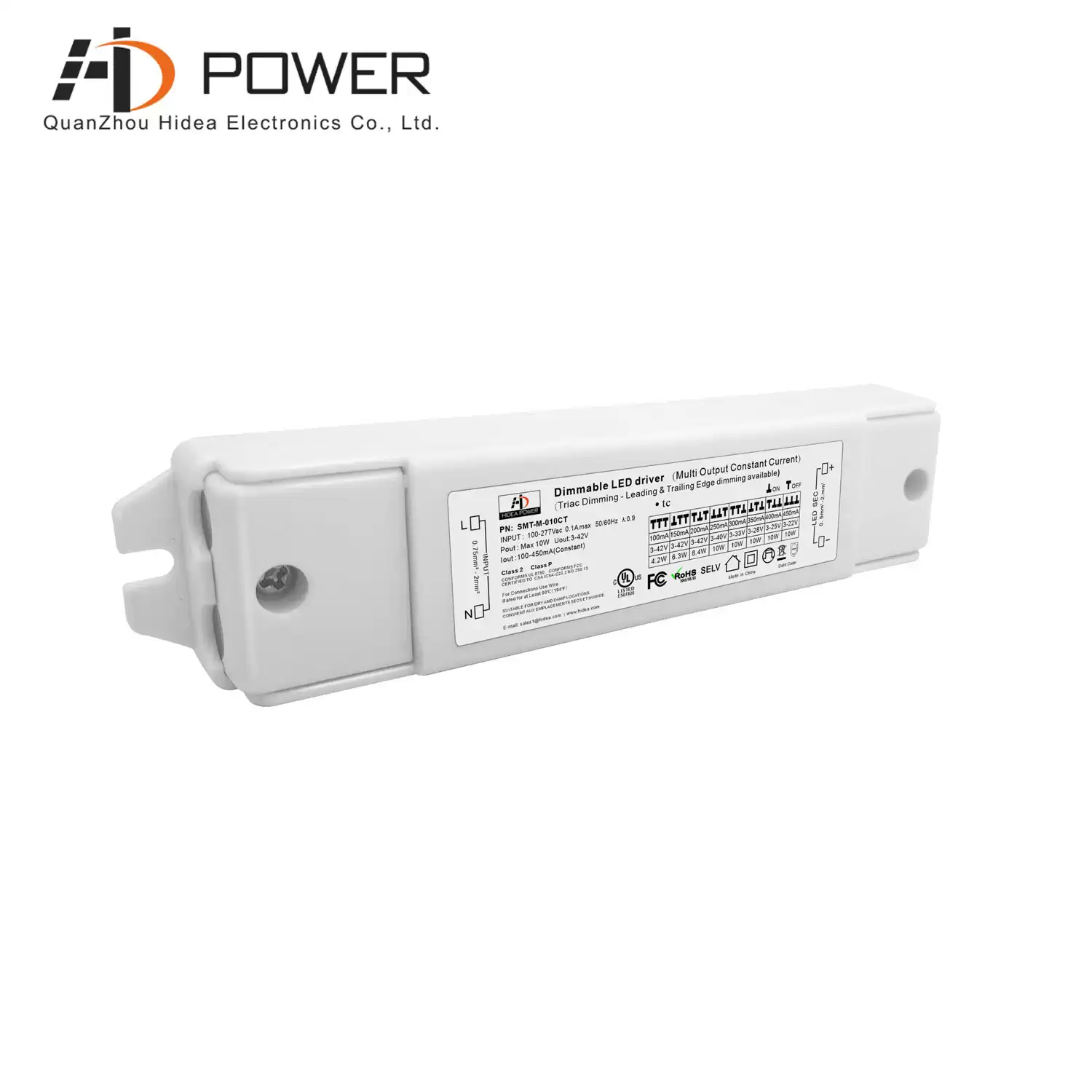

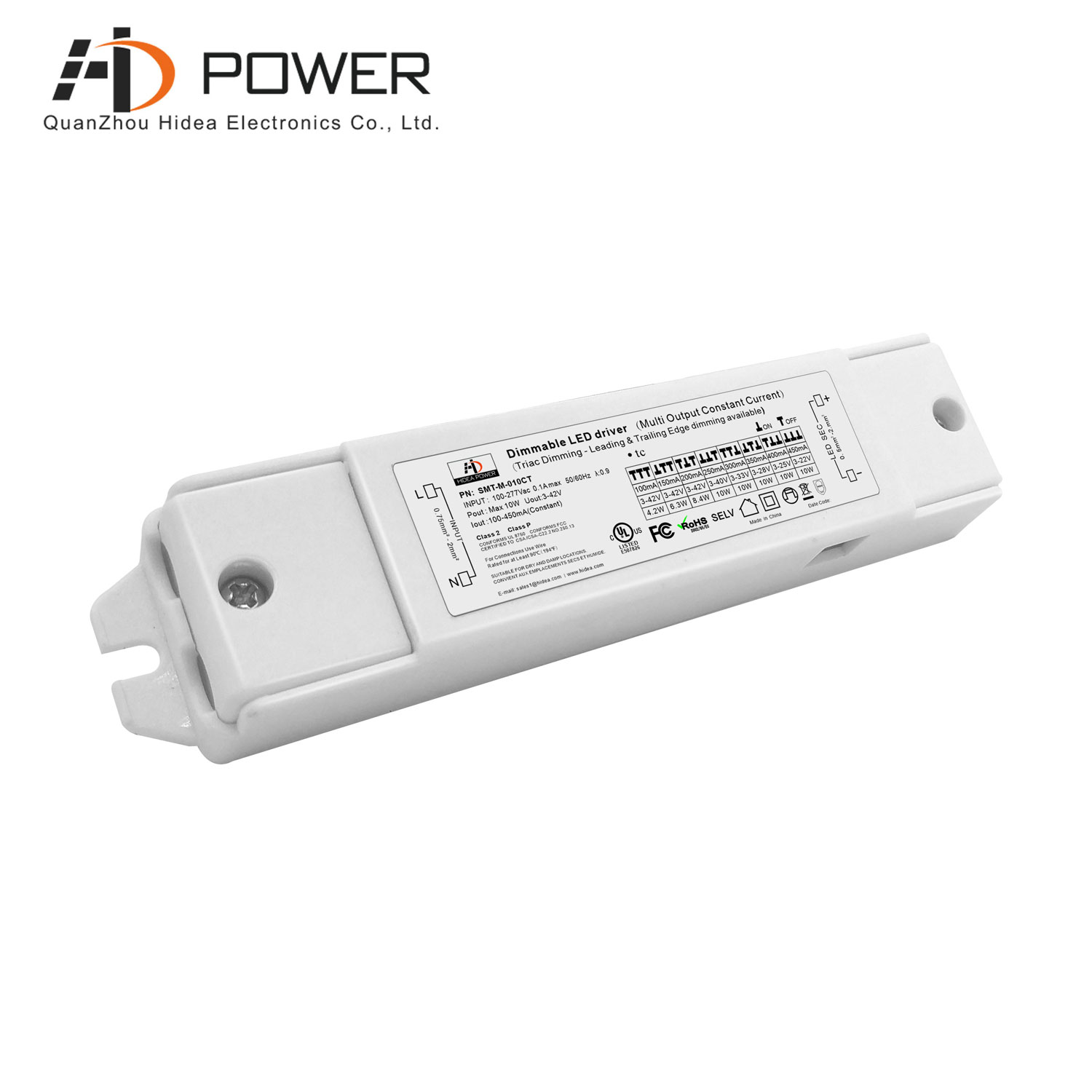

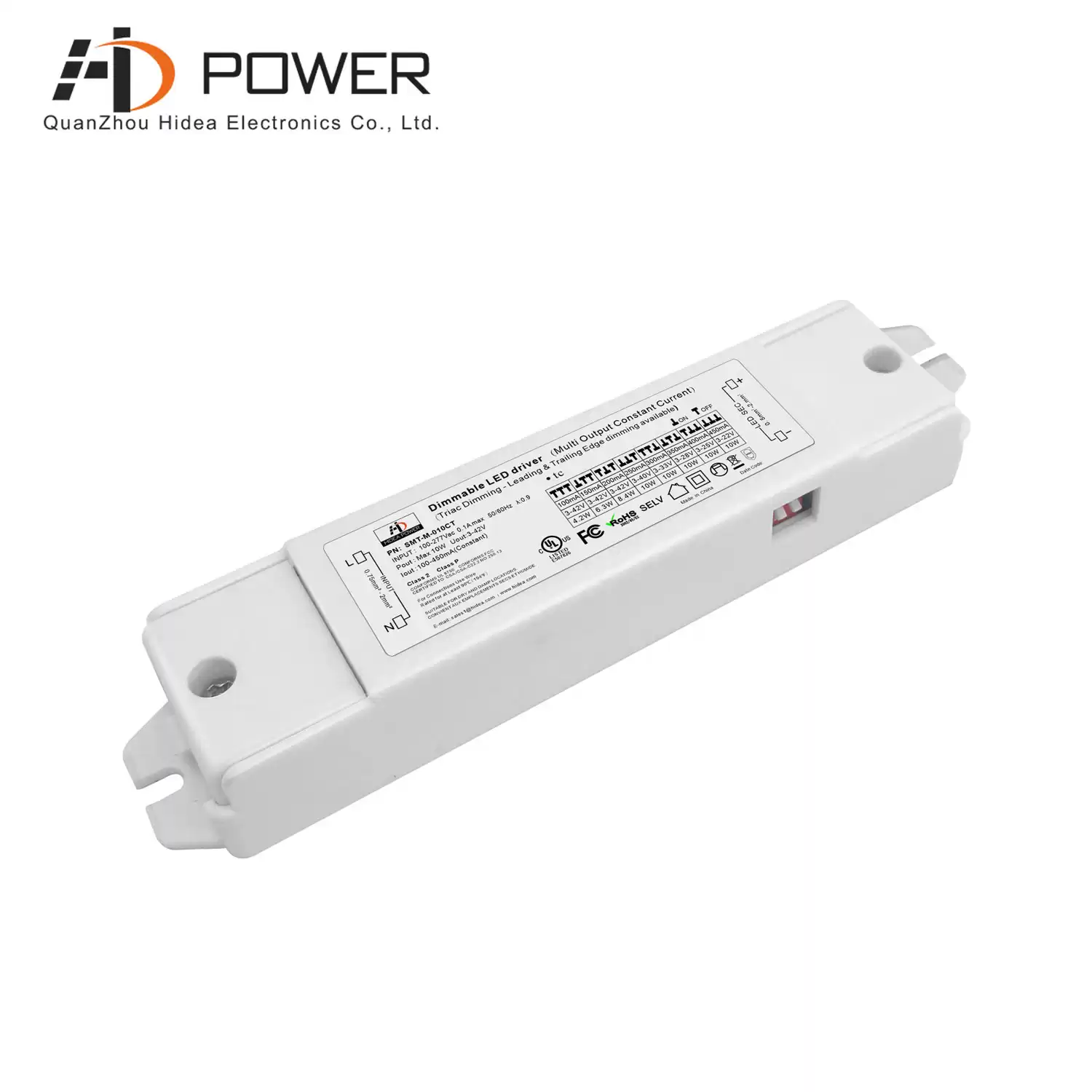

ip20 small triac dimmable 10w 100ma constant current led driver for indoor

The new product Triac dimmable constant current LED driver 10W output current is 100mA, built -in activity PFC function, plastic shell design waterproof level IP20, which can be well used with Creelighting's 10W LED floodlight


  • Dimming ModeTriac Dimming
  • Working ModeMulti-Output Current Driver
  • Input Voltage100-277Vac
  • Output Power(Watt)10W
  • Output Voltage
  • Shape & SizeStandard Size
  • Output Current100mA
  • Size135*30*20mm
  • Weight130g
  • CertificationUL
  • Warranty7 Years

ip20 small triac dimmable 10w 100ma constant current led driver for indoor

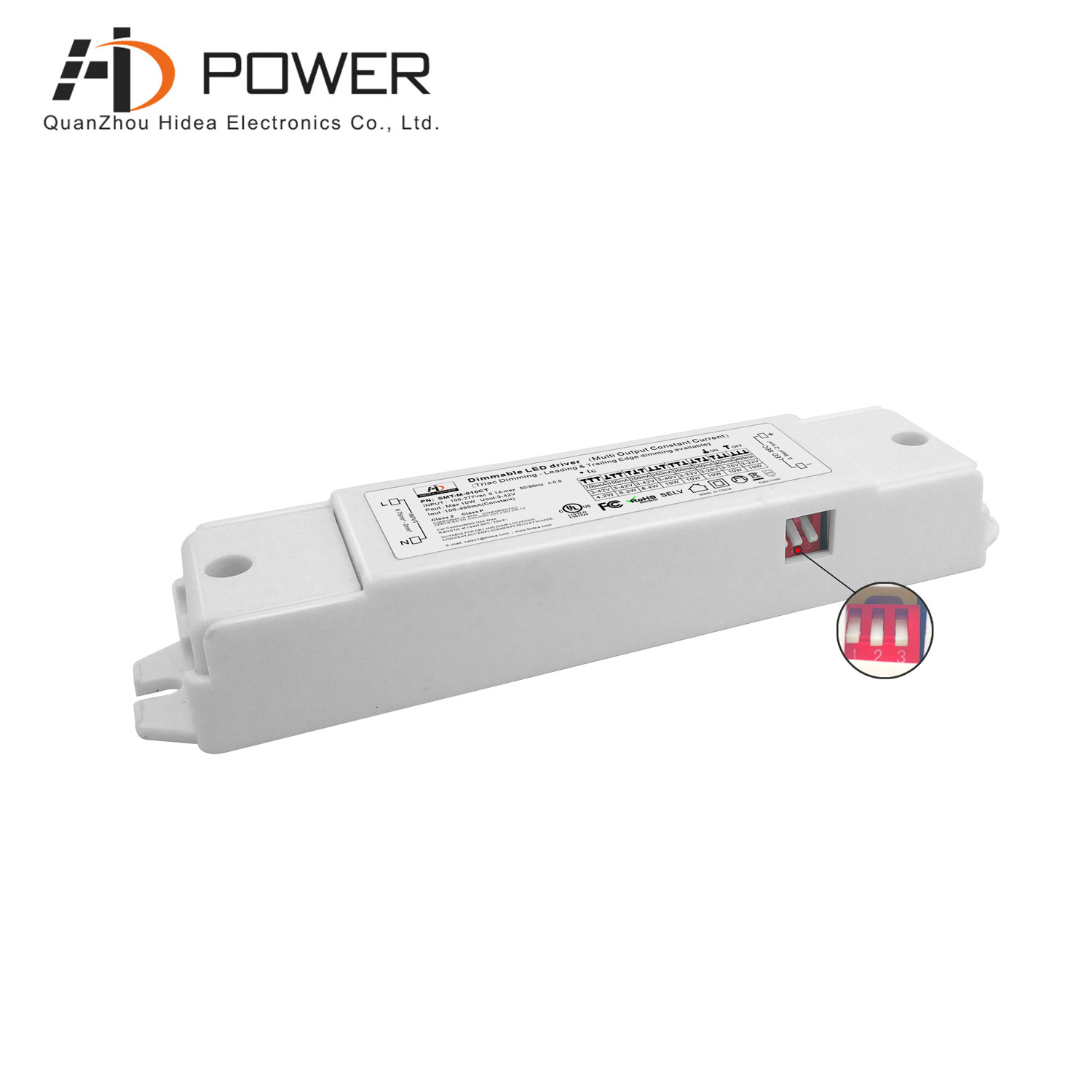

10W multi -current dial Triac dimming LED driver Hengliu's working mode. The work efficiency is as high as 75%, the body is small, and the installation is convenient and fast. Please make sure that it is installed in a sufficient ventilation position.with a 7-year warranty

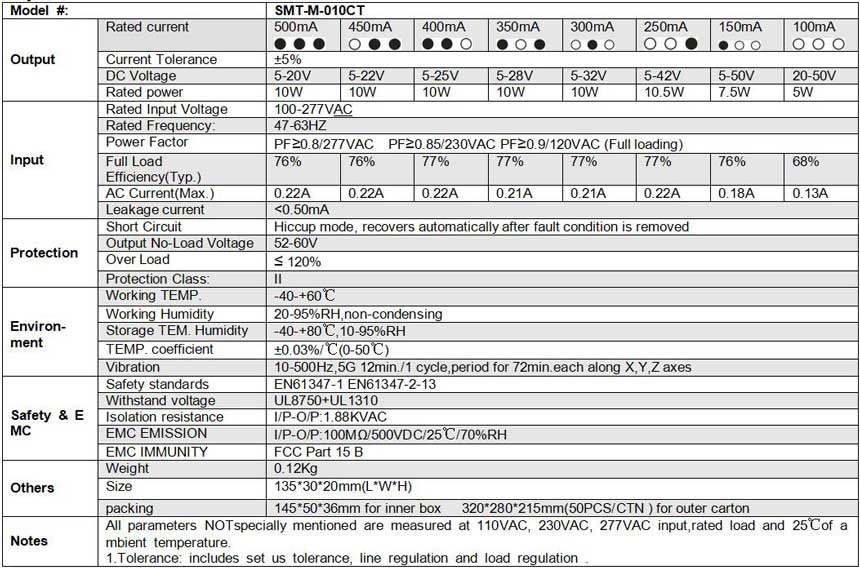

  Specification

led driver 12V
dimmable led driver
constant voltage led driver
SMARTS led power supply


  Related Products

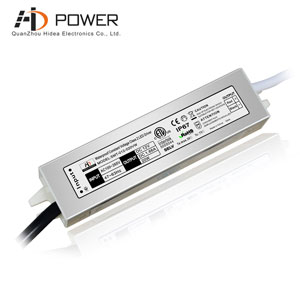

ultra thin led driverThe constant voltage 20W LED Driver CE certification, the input voltage 100-265VAC, can provide a stable output voltage for the power supply
