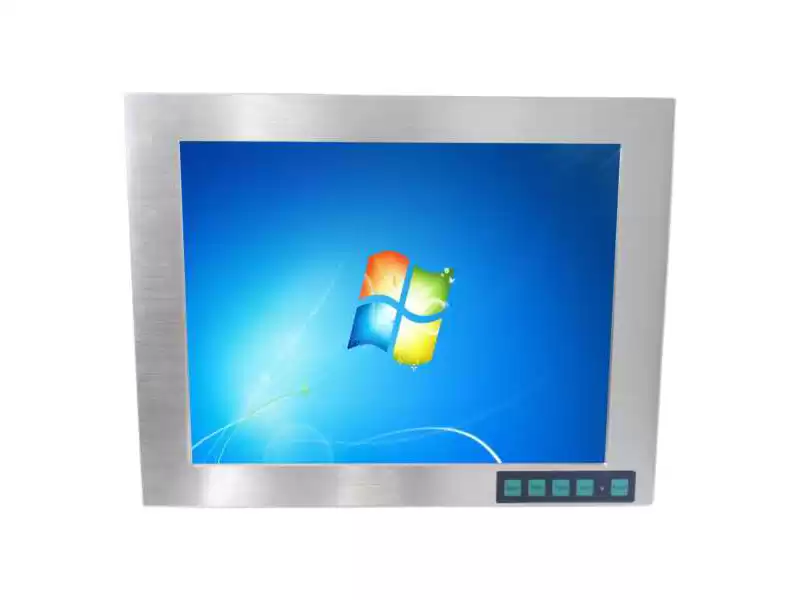

Ip65 panel lcd industrial touch screen display monitor
Product Introduction
Our industrial monitors integrate the latest LCD and touchscreen technology to facilitate data visualization and increased productivity.
| Specifications |
optional configurations |
| Front Panel |
Aluminum panel, brushed and oxidized natural color,Front OSD Menu |
Other colours can be customized |
| Back chassis |
1.2mm steel plate, Silver |
Other colours can be customized |
| LCD Screen |
15" TFT, LED backlight; Resolution 1024*768; Dot matrix: 0.297*0.297; Max. colour: 16.7M; Brightness: 300cd/㎡; Contrast ratio: 1500:1; Response time: 35ms; MTBF: 50,000h Viewing angle: (+85° ~ -85°) (+85° ~ -85°). |
| Touch Screen |
Resistive touch screen |
Customizable Capcitive screen |
| Interfaces |
DC12V(Phoenix Terminals)；VGA;HDMI;USB |
|
| Size |
383(length)* 297(width)* 46(thickness)mm |
Net/Gross Weight |
1.5/2KG |
| Power Supply |
12V@5A Adapter |
|
| Installation mode |
Recessed screw mount;Recessed hook mounting; VISA wall mount |
Product Features
■Brushed aluminium panel
■ IP65 waterproof panel
■ Front OSD menu
■ Phoenix terminal power input, support VGA,HDMI signal input
■ Resistive touch screen, OEM capacitive screen available
■ Various mounting options available
| Work and Environment |
| Working temperature |
（-20～60）℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity, no condensation |
| IP rating |
Panel IP65 |
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |

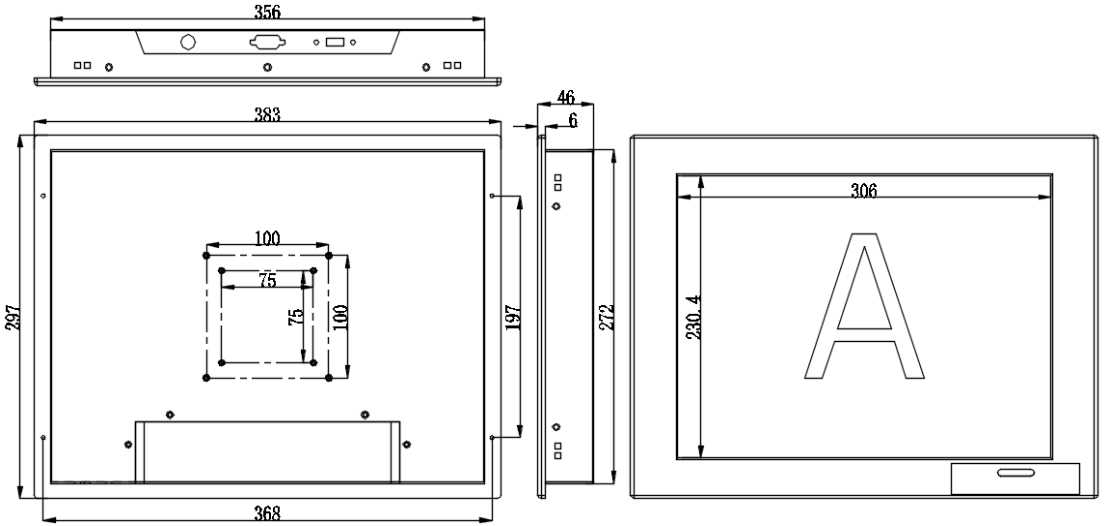

Product Installation Dimension Diagram
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
