About IP67 Garden Led Flood Lights Housings Aluminum:
|
Detailed data
|
|
Item No.
|
MSL-FL05
|
Glass material
|
Tempered clear glass
|
|
Type
|

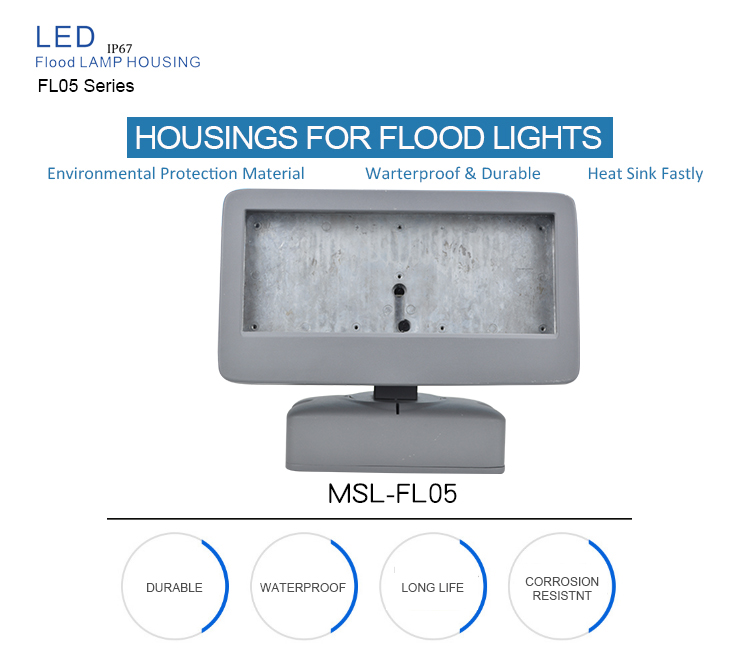

IP67 Garden Led Flood Lights Housings Aluminum
|
Luminousness(Glass)
|
95%
|
|
Brand
|
Mansolo
|
Lens material
|
PMMA
|
|
Lampshade material
|
Aluminum alloy
|
Luminousness(Lens)
|
92%
|
|
Surface treatment
|
Powder coating
|
Power scope
|
36W or Custom
|
|
Standard color
|
Black, dark grey, light grey
|
IP rate
|
IP67
|
|
Warranty(housing)
|
5 years
|
Salt spray
|
3000 hours
|
|

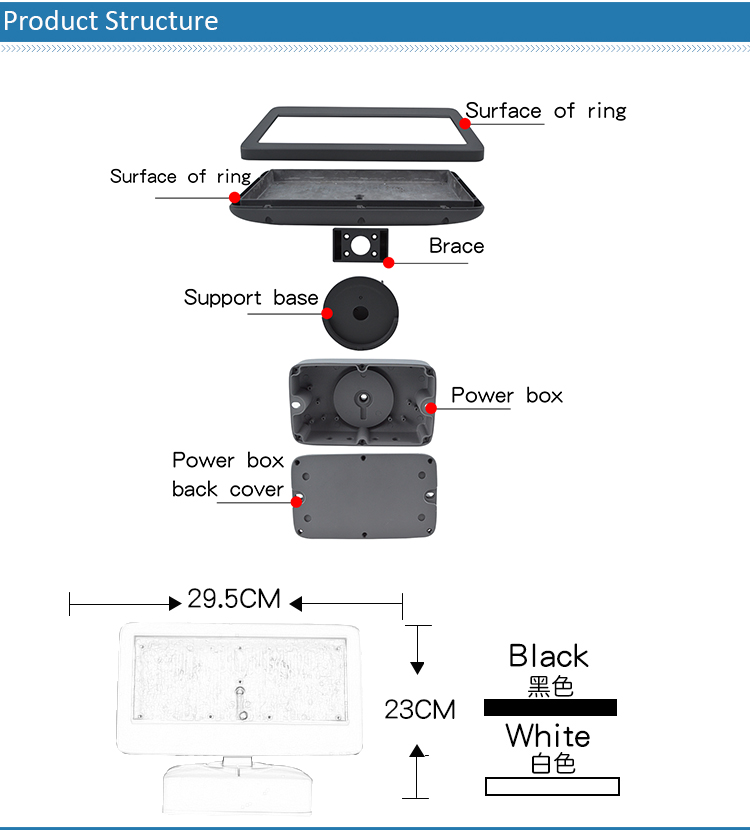

Fixture Parts
|
Surface cover/Lamp coeur/Fixed plate for lens/Heat sink body/Waterproof power box/Stents
|
Housing Net weight
|
3KG
|
Production process
(housing)
|
Die casting/Machining/CNC/
polishing/powder coating
|
Housing size
|
L30.5*W23.5*H13
|
Features for the products:
1. The shell adopts the high quality of lams and lanterns aviation aluminum die-casting, surface after polishing, nano electrostatic spraying, introduced large lamp plate heat dissipation design, greatly improve the effect of light and heat dissipation problems, effectively ensure the service life of light source and power supply in the bad environment.
2. The lamp body adopts toughened glass and silica gel seal to meet the IP67 standard, and the excellent waterproof, dust-proof and anti-corrosion design can be used in rainy or cold areas for a long time.
Application scope:
Those products are widely used in highway, railway, subway, tunnel and other underground places, underground parking garage workshop, large warehouse, sports venues and construction site, also can be used in the urban landscape, billboard, building facade illumination etc.
|
Name
|
IP67 Garden Led Flood Lights Housings Aluminum
|
|
Material
|
Aluminum
|
|
Color
|
gray, black, blown
|
|
custom color
|
|
Accessories
|
aluminum body (ADC12 pure aluminum alloy)
|
|
reflector
|
|
tempered glass or lens
|
|
PCB(for some designs)
|
|
Machines
|
CNC Turning, CNC Milling, CNC center,
|
|
automatic Turning, automatic Milling, Drilling,
|
|
threading, tapping, EDM,,aluminum die casting
|
|
Plastic injection etc.
|
|
MOQ
|
10pcs or Depend on the design
|
|
Payment
|
T/T, West union
|
|
Product Range
|
LED high bay light parts / LED flood light parts
|
|
LED street light parts / LED down light parts
|
|
LED bulb light parts / LED spot light parts
|
|
LED gas station light parts / LED fresh light parts
|
|
underground LED light / underwater LED light
|
|
Custom light parts / custom heat sink
|
|
Remark
|
LED light parts / empty housing / fixture / fitting / shell
(without LED and driver)
|
