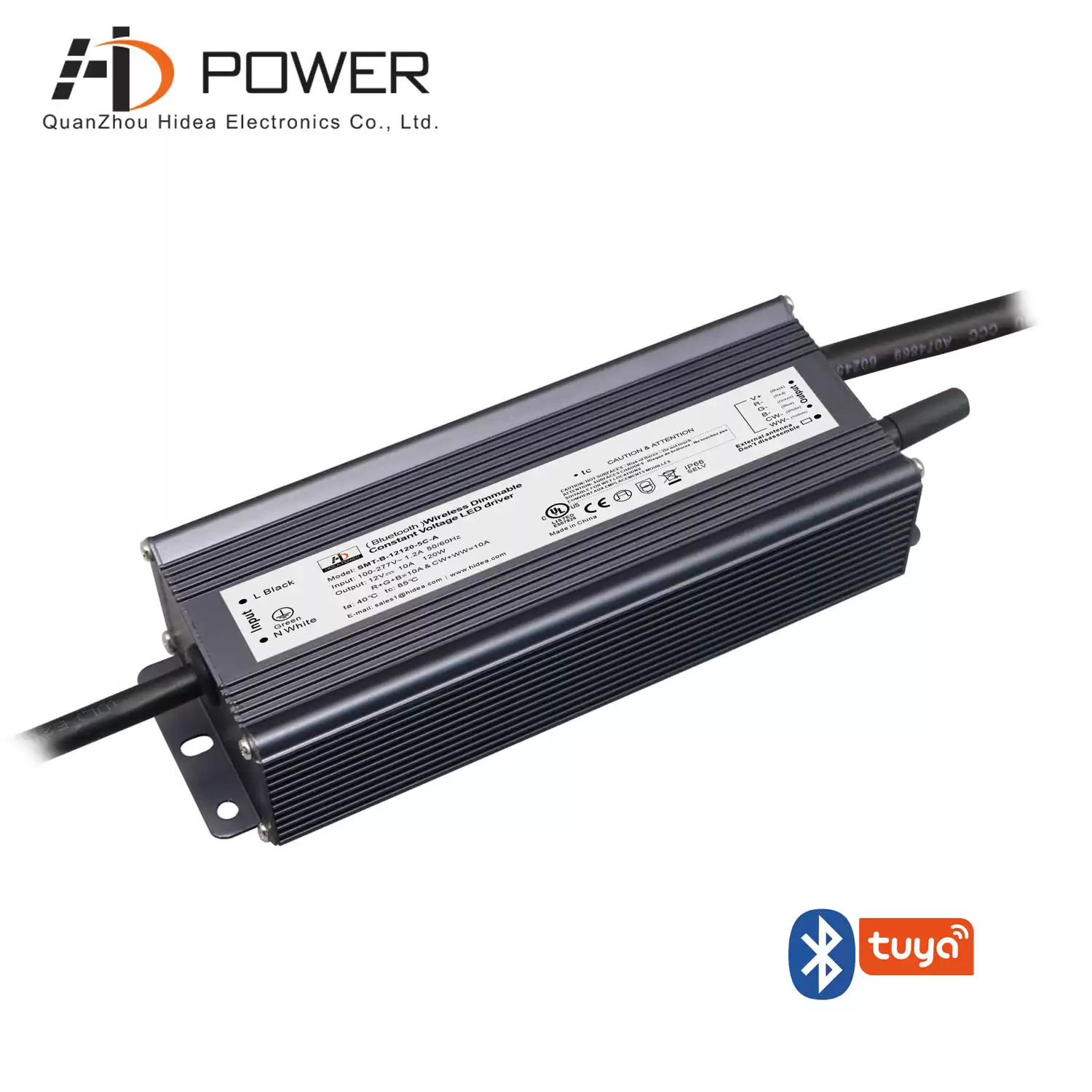

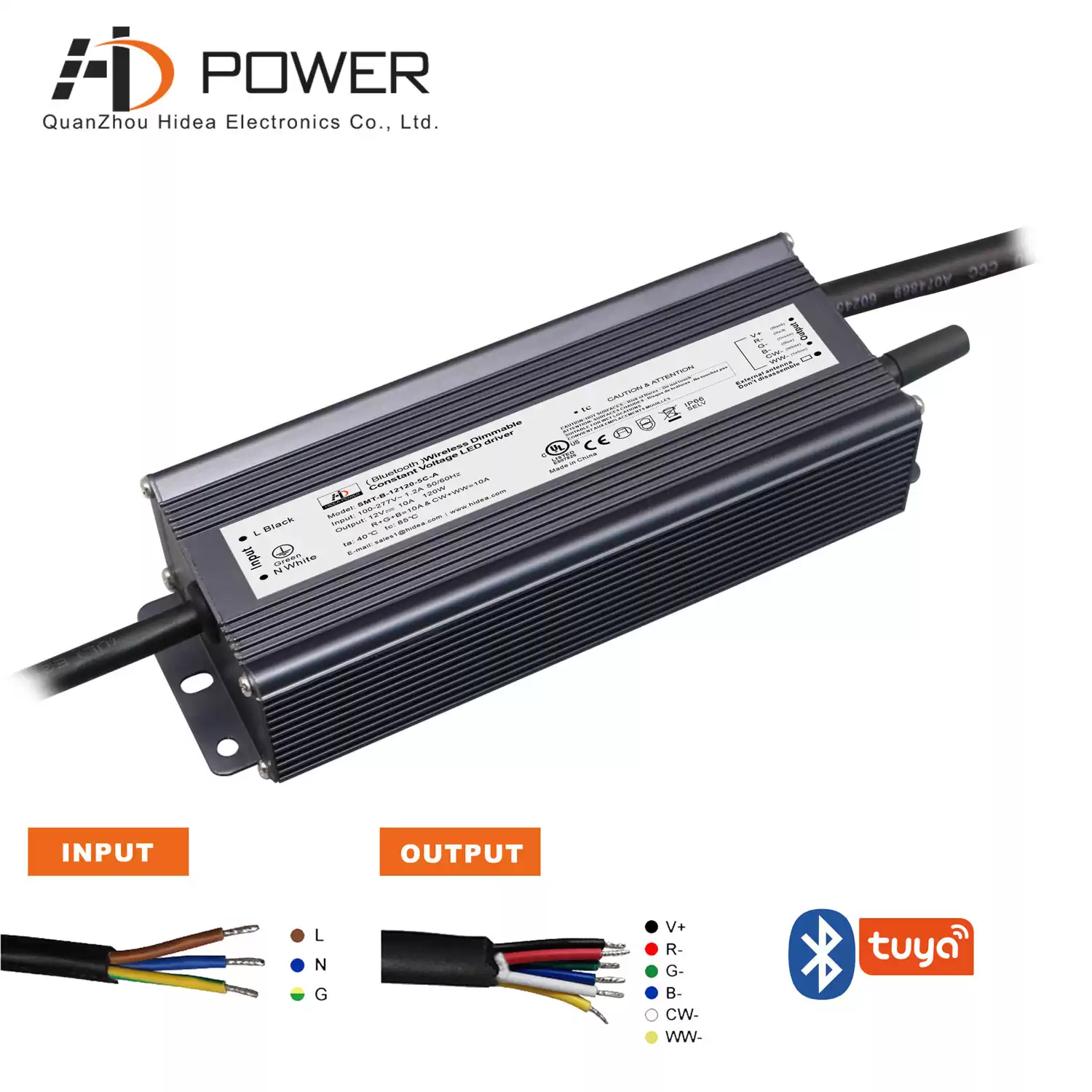

IP67 multi channels bluetooth dimmable led driver 120w for RGBCW lights

HIDEA produce SMT-B-12120-5C-A This is Bluetooth dimming & color tuning LED driver with maximum power output of 120w dimmable led driver. It can match well with LUMICREST LED tape.


  • Shape & SizeStandard Size
  • Output Voltage12/24/48Vdc
  • Output Power(Watt)120W
  • Input Voltage100-277Vac
  • Working ModeConstnat Voltage LED Driver
  • Dimming ModeBluetooth Dimming
  • Size200*70*43MM
  • Weight900g
  • CertificationUL/CUL
  • Warranty7 Years

HIDEA provide 7 years warranty on this bluetooth 120W LED drivers, Dimmable Color Changing Upgrade with 1-5 channels, IP67 Waterproof. It can match well this DAYVETTER led dtrips lights 12vdc/24vdc.

  Specification

Model SMT-B-12120-YC-A SMT-B-24120-YC-A
Y=1 , 2,  3,  4,  5 for DIM (DW);  CCT(TW);  RGB;  RGBW;  RGBW+CCT (RGBCW)
Output DC Voltage 12V 24V
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Rated current CH1+CH2+CH3+CH4+CH5=10A CH1+CH2+CH3+CH4+CH5=5A
Rated power 120W
Load Regulation ±2%
Input Voltage Range 100-277VAC
Frequency Range 47 - 63Hz
Power Factor(Typ.)@ full load PF≥0.98/ 230VAC  (Full loading)
THD(Typ.)@ full load <15%
Efficiency(Typ.)@ full load 89% @230VAC 89%@230VAC
AC Current(Max.) 1.25A 1.25A
InrushCurrent (Typ.) 53A  (Twidth 250us measured at 50% I peak, COLD START, 230VAC)
Leakage current <0.5mA
Protection Short Circuit Hiccup mode, recover automatically after fault condition is removed
Over Load ≤120% ,hiccup mode, recover automatically after fault condition is removed
Over temperature ≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop
Protection Class II
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20 - 95%RH ,non-condensing
StorageTEM.,Humidity -40 - +80℃,10 - 95%RH
TEMP.coefficient ±0.03%/℃(0 - 50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety & EMC Safety standards EN61347-1   EN61347-2-13 (EU)   &  UL8750  UL1310 (US)
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US)
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC Emission EN55015   EN61000-3-2  EN61000-3-3 (EU)  &  FCC Part 15 B (US)
EMC Immunity EN61000-4-2,3,4,5,6,11      EN61547
Others Net Weight 0.90KG
Dimension 200*70*43mm (L*W*H)
packing 340*275*170mm/10PCS/CTN    G.W.:11.3KG/CTN
Notes 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

  Compatible Light Type

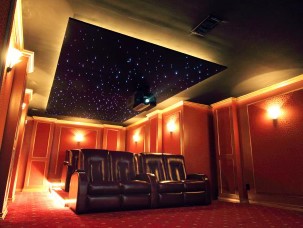

By using this bluetooth 120w wireless led drivers with  ECOLOCITYLED RGBCW led light. It provides 5 DIY Color Settings. You can customize colors by increasing or decreasing the ratio of red, green, blue, warm white, cold white to realize your novel ideas and make a dreamy ambiance.


  Related Products

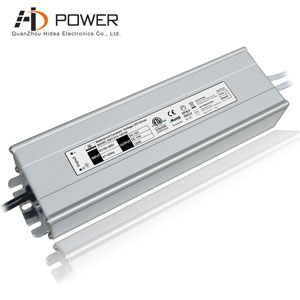

led driver 120wThis 12v constant voltage non dimmable waterproof IP67 120w led driver can match wll with led pack light.
