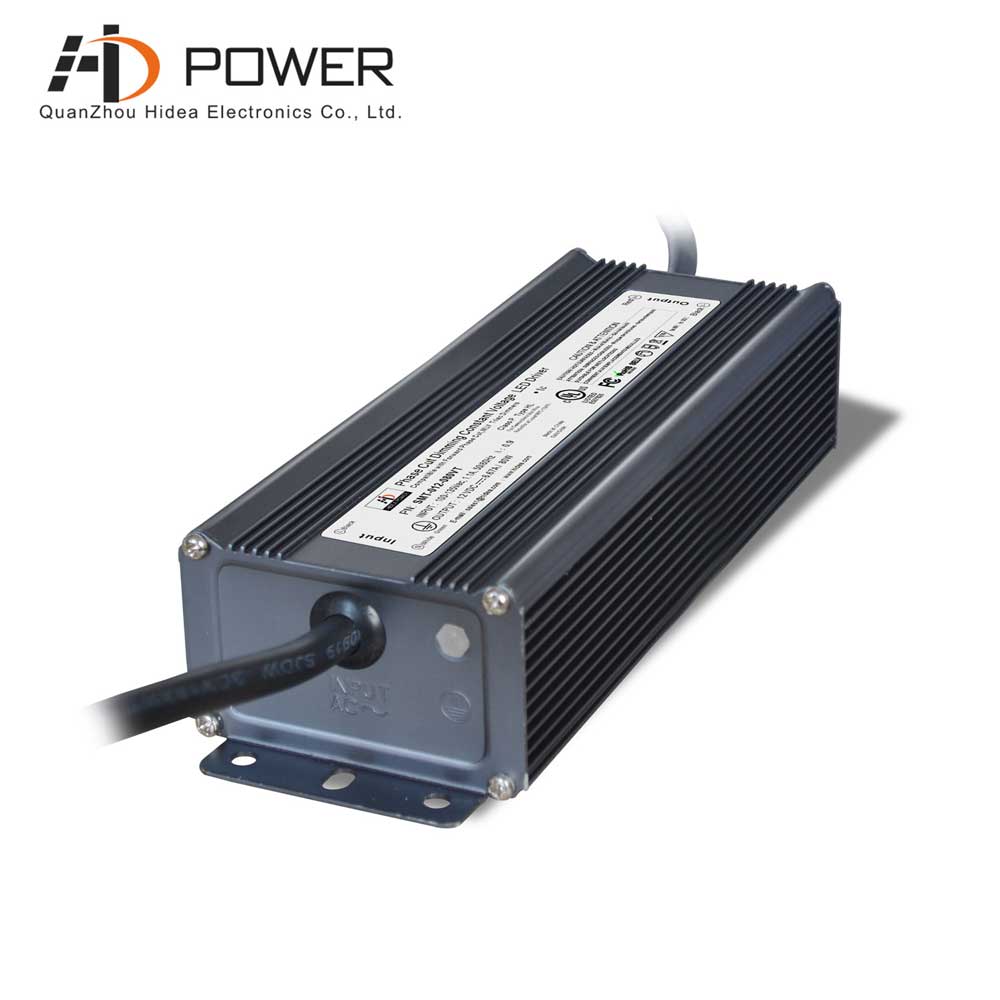

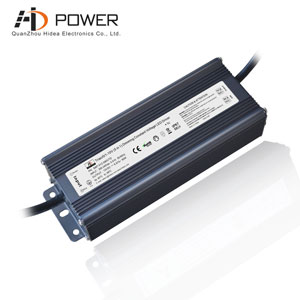

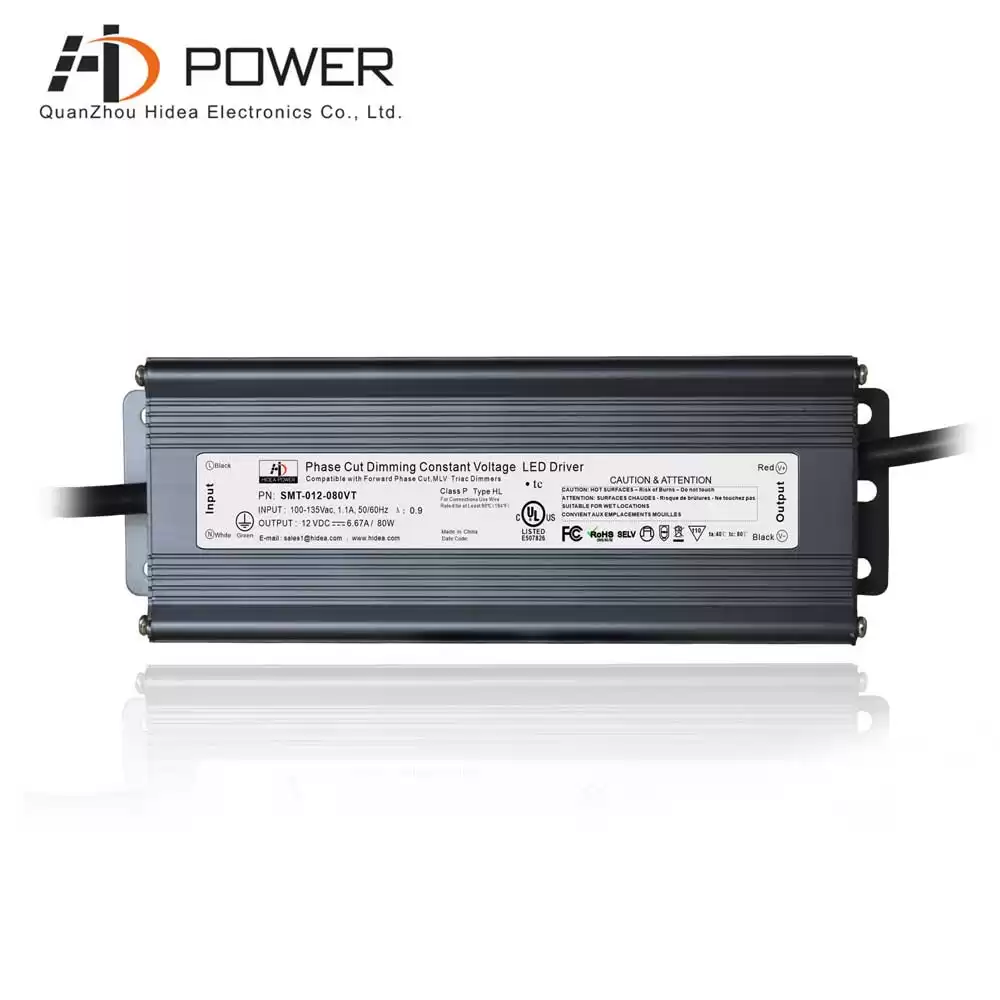

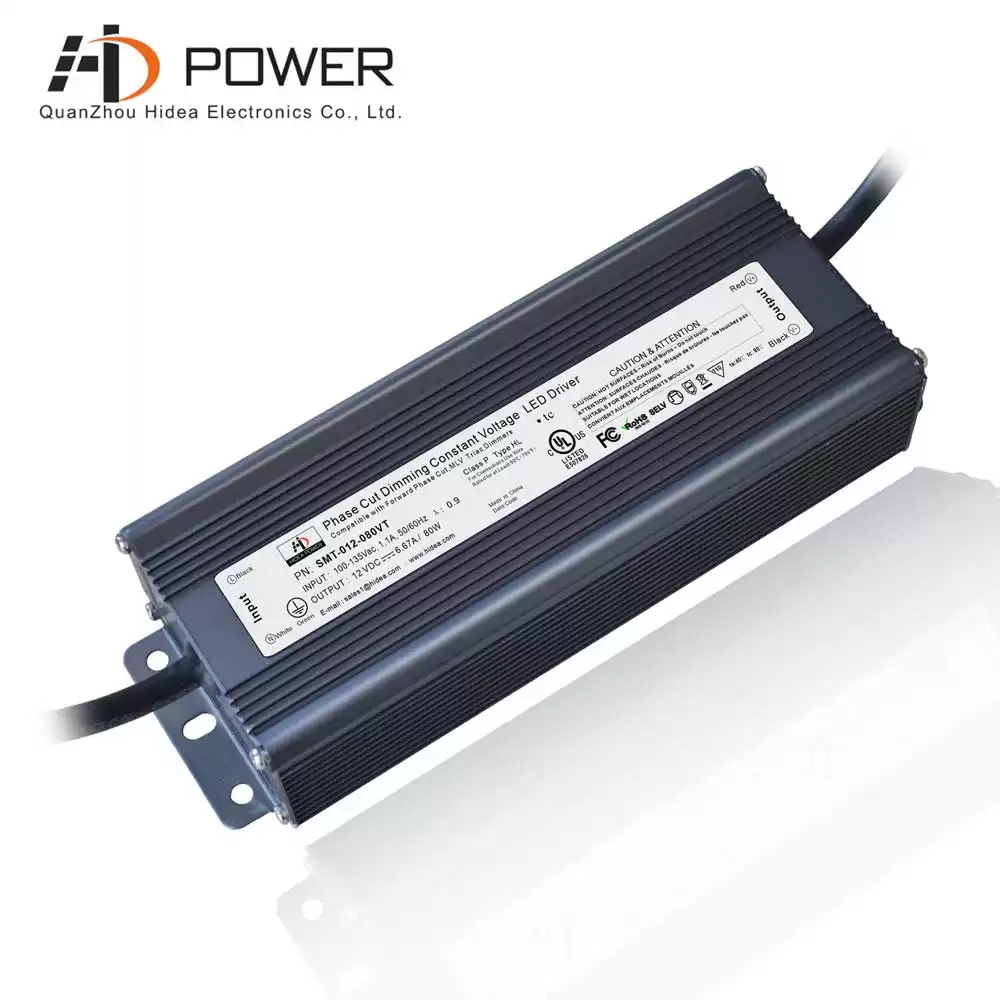

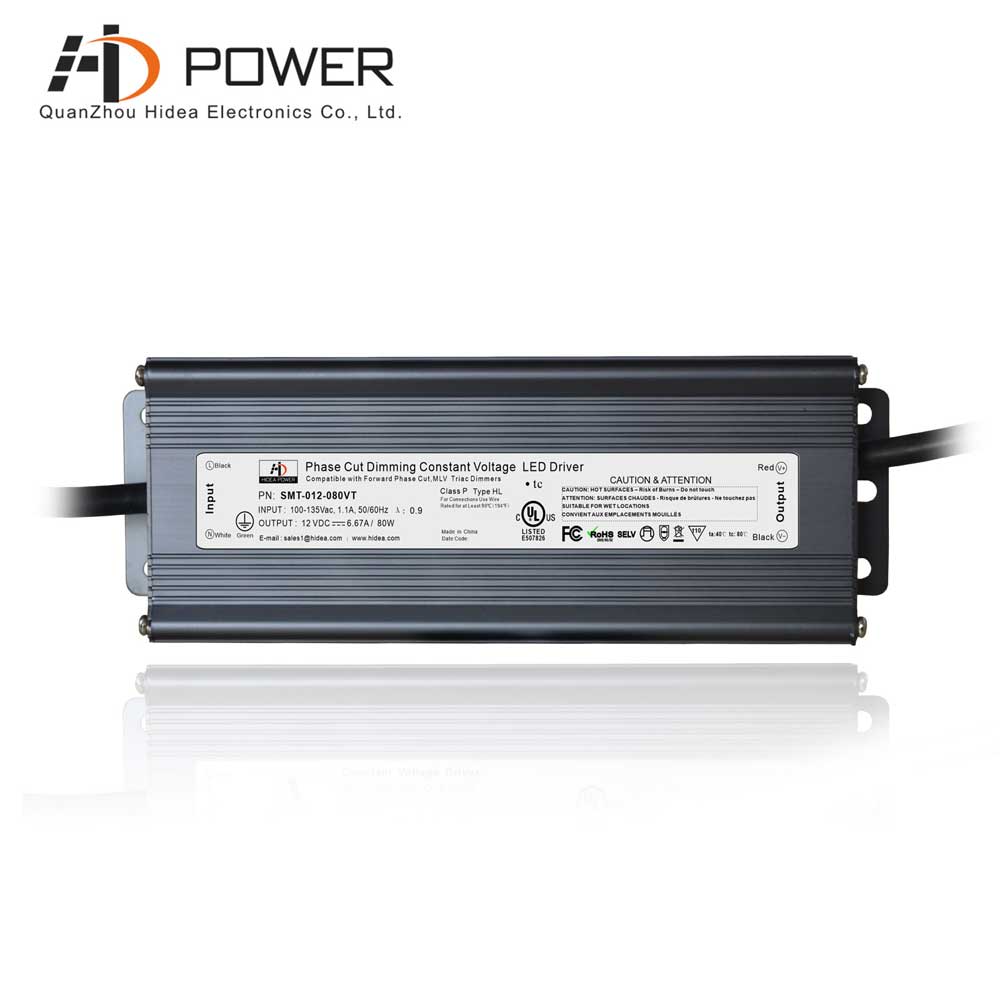

IP67 waterproof 24v 80W triac dimming constant voltage led driver for led lighting
80W TRIAC dimmable constant voltage led driver with built-in active PFC function, working efficiency up to 83%, aluminum shell design, convenient and fast heat dissipation, effective waterproof and dustproof, protecting power supply life
Specification
|
Model
|
SMT-012-080VT
|
SMT-024-080VT(Class 2)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
6.6A
|
3.3A
|
|
Rated power
|
80W
|
|
Input
|
Voltage Range
|
90-135VAC/170-250VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor
|
PF≥ 0.95 (Full loading)
|
|
Efficiency(Typ.)
|
82%
|
85%
|
|
AC Current(Max.)
|
1.02A
|
1A
|
|
Leakage current
|
﹤0.50mA/120VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over Loading
|
≤120%
|
|
Over temperature
|
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min. each along X,Y,Z axes
|
|
|
Safety standards
|
UL1012 (12VDC) / UL8750+UL1310 Class 2 unit (24VDC)
|
|
Safety& EMC
|
Withstand voltage
|
I/P-O/P:1500VAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net. Weight
|
0.95 Kg
|
1.55Kg (with junction box)
|
|
Size
|
200*70*46mm(L*W*H)
|
350*77*57mm(L*W*H) (with junction box)
|
|
packing
|
329*279*176mm 10PCS
|
350*85*65mm 10PCS
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC/220VAC input , rated load and 25℃ of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3.Loading should be 60-100%.
|
Compatible Light Type
Stretching to 16.4ft, the Gusodor LED strip light is flexible enough to be mounted in various locations. Enjoy brighter lighting in your favorite places, like your mirrors, cabinets, bedroom, living room, kitchen closets, strong compatability with dimmable led transformer.
Related Products
|
80W TRIAC & 0 10v dimmable led driver with aluminum body design, good heat dissipation and IP67 waterproof rating, suitable for installation in outdoor lighting projects
Mode：SMT-012-080VTD
Dimming Mode : Triac & 0 10v Dimming
Output Power : 80W
intput voltage：100~277V AC
Size：230*70*43mm （L*W*H）
|
