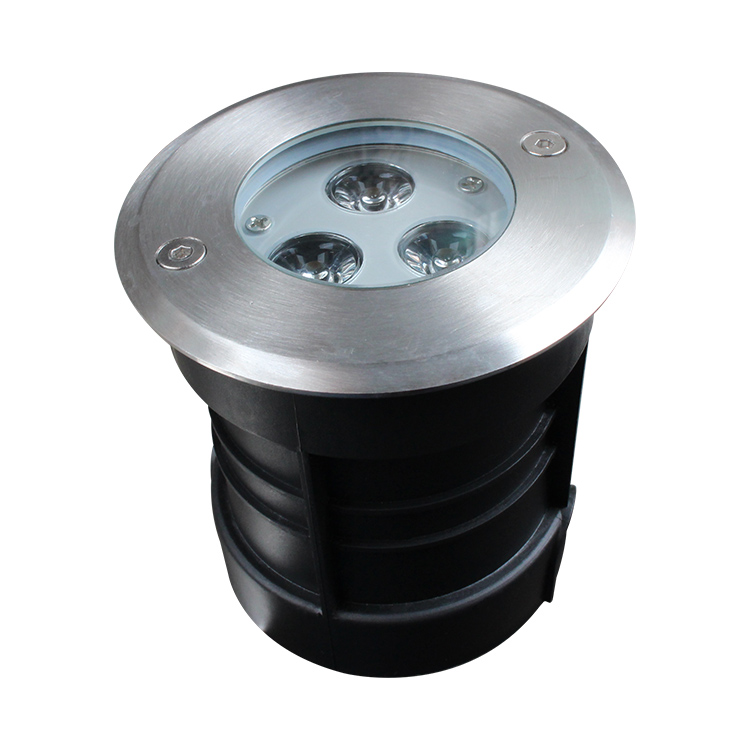

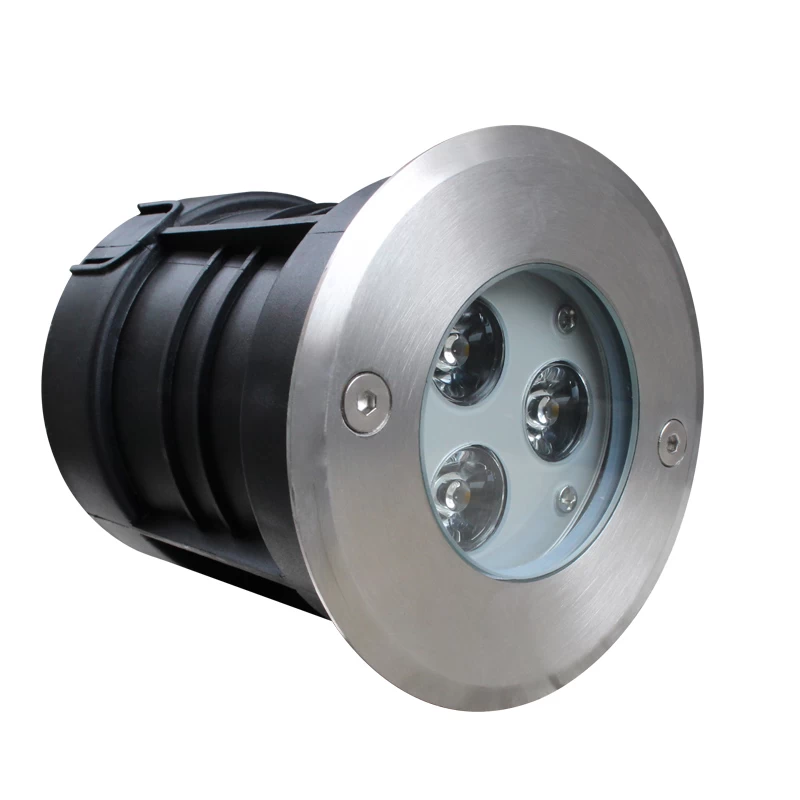

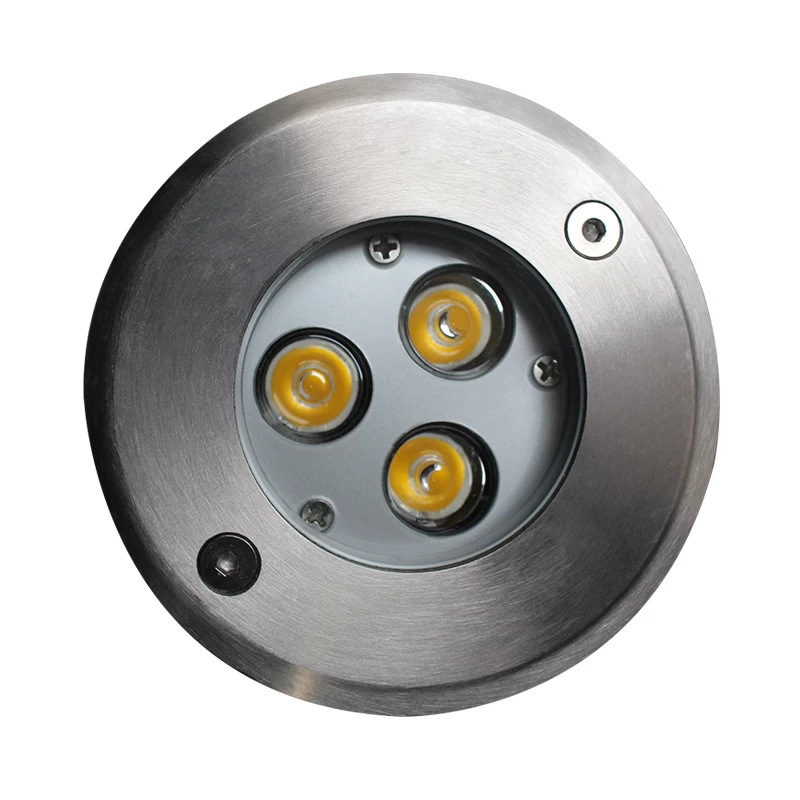

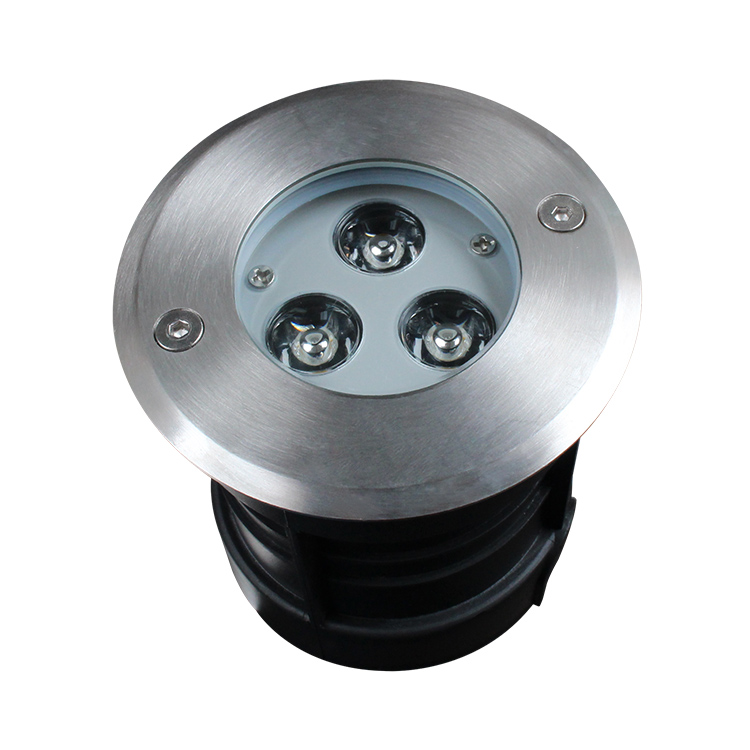

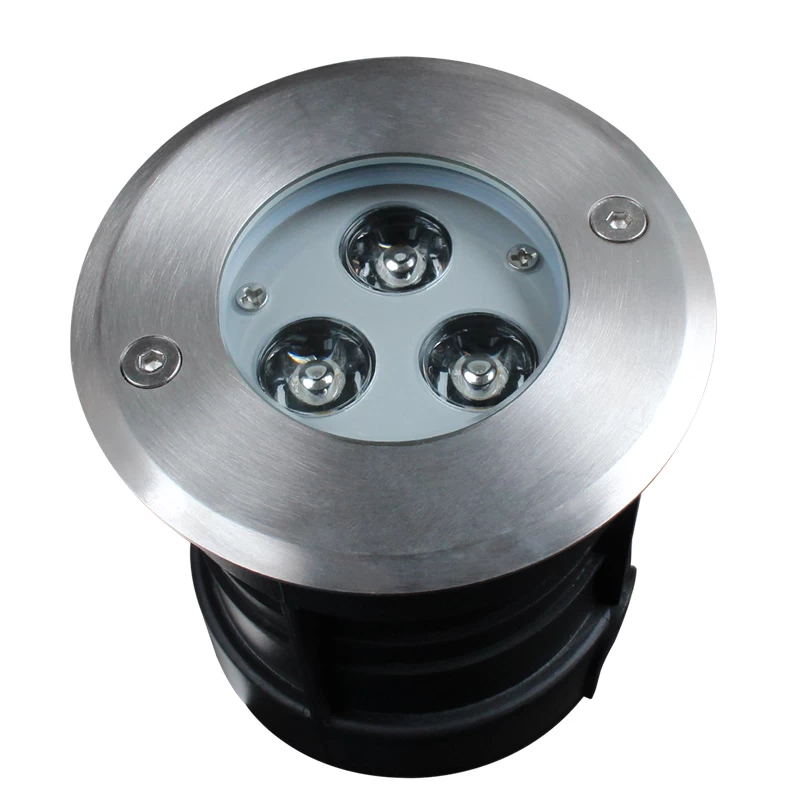

Features of 3W LED Underground Light
High efficiency light source, Epistar & Edison 1W high power led.
High quality 304SS+ Alumimum lamp fixture, Beautiful appearance
and reasonable waterproof structure.
Tempered glass as cover, heat-resisting and impact resistance

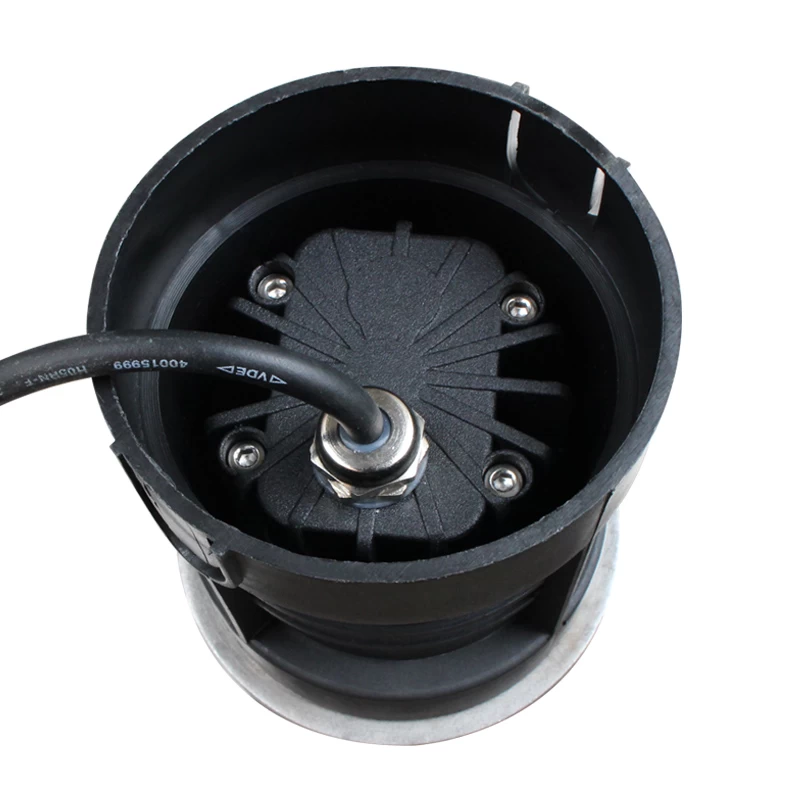

Supplied with plastic installation housing and 1m rubber cable
Cable gland M12, nickel-plated brass.
Long life, up to 45,000 hours.
Waterproof IP67, outdoor use.
Beam angle 10-90°
Option On Request of 3W LED Underground Light
Cable length can be supplied according to your requirements
Beam angle 10° 30° 45° 60° 90° for optional
Working voltage AC12V, DC12V, DC24V is available
Epistar or Edison chip s you demands
DMX512 (3 channel), Auto change color can be optional.
Specification of 3W LED Underground Light
|
Item NO.
|
RS-UG3W-T
|
|
Size
|
φ100×H105mm
|
|
Input Voltage
|
AC/DC12V-24V,AC90-230V
|
|
LED Color
|
Single color/RGB
|
|
Material
|
304stainless steel cover+aluminum body
|
|
IP Grade
|
IP65
|
|
Beam angle
|
10° 30° 45° 60° 90° for optional
|
|
Estimated Lifespan
|
50, 000HOURS
|
|
Warranty
|
2years
|
|
Lamp Brand
|
Epistar
|

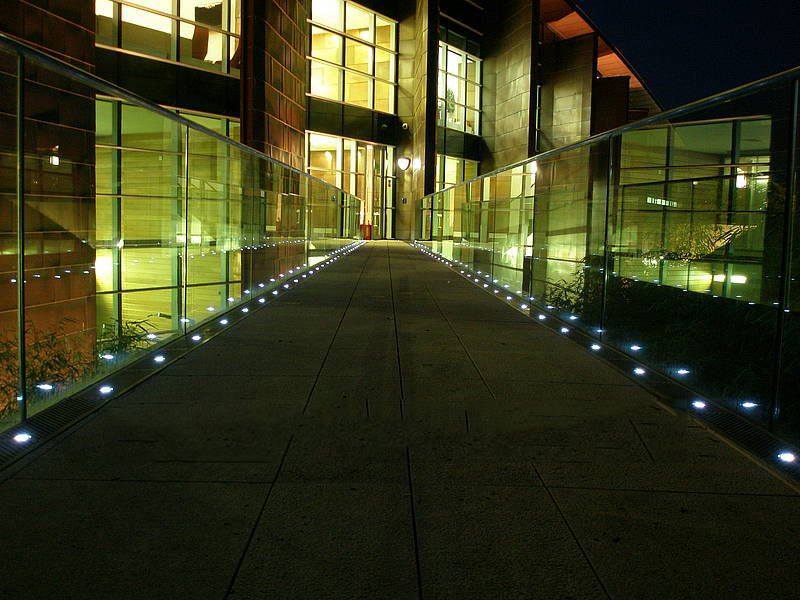

Application of 3W LED Underground Light
Apply for green belt,park landscape design,garden pedestrian street parking square night view,roading lighting.
