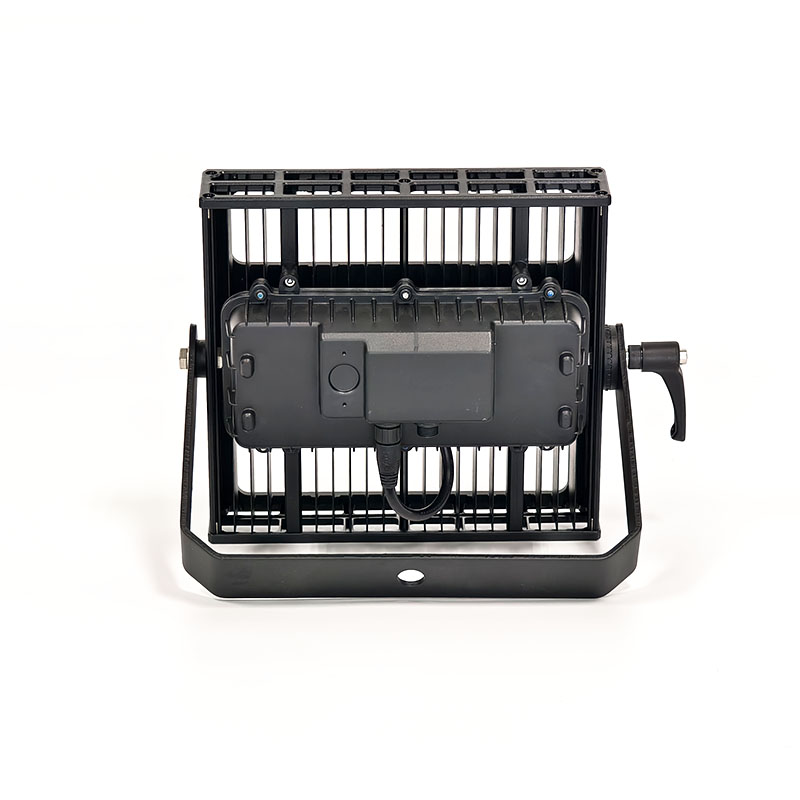

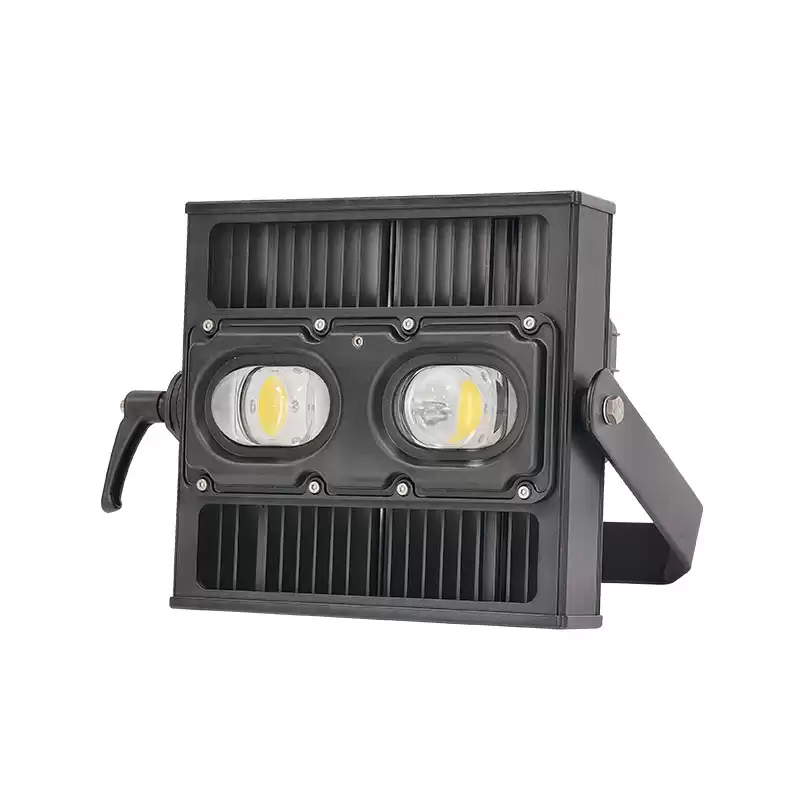

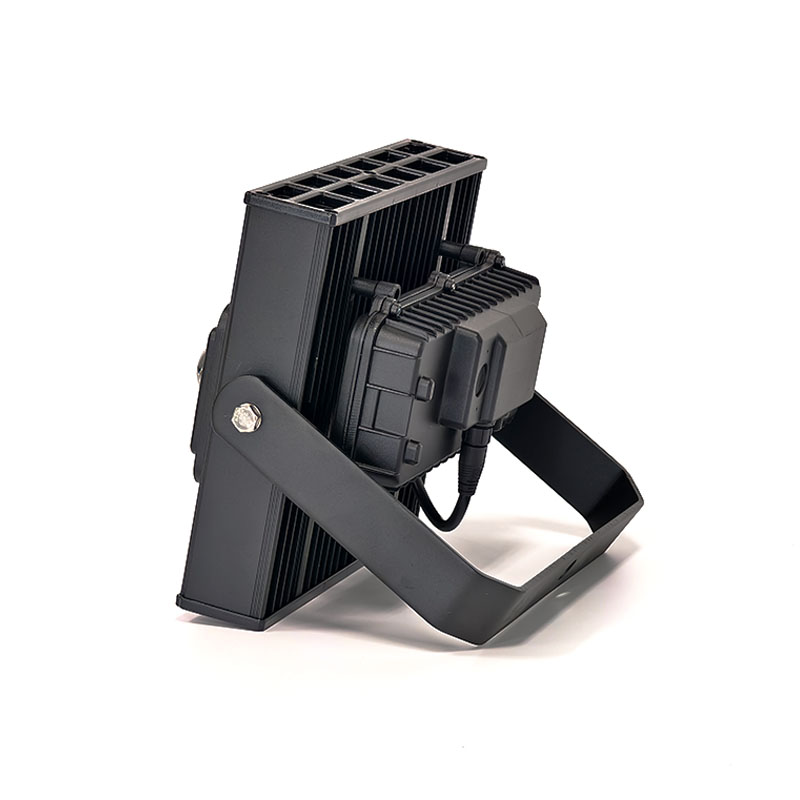

IP69 Mining Engineering Light KUH (COB)

Mining, Robust, COB Design



◆ Four models with increasing consumption of power for your selection, from 250W, 350W, 500W to 600W, a balance between performance and budget

◆ It delivers a life expectancy over 50000 hours, thanks to advanced COB design and MEANWELL driver

◆ High illuminating efficiency of 125LM/W

◆ Brightness won't decay easily from aging, it can maintain 95% of its full performance after 3 years(10 hours of use per day)

◆ UV resistant

Facebook Twitter Pinterest LinkedIn 分享

The KUH series floodlights are developed with the premise of being used in harsh environments such as mines, featuring top-tier dustproof, waterproof, impact-resistant, and vibration-resistant performance.

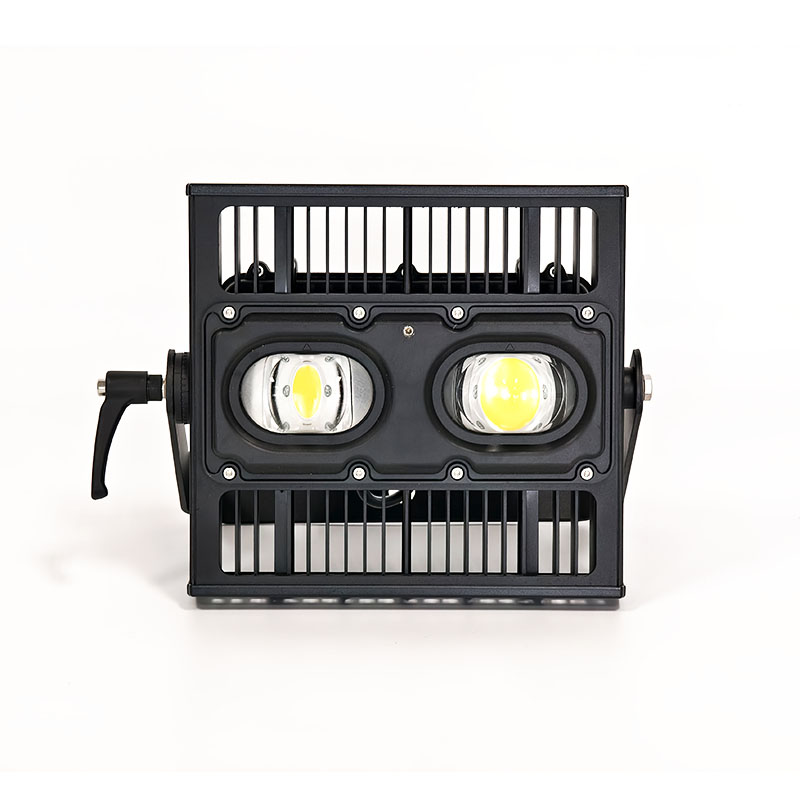

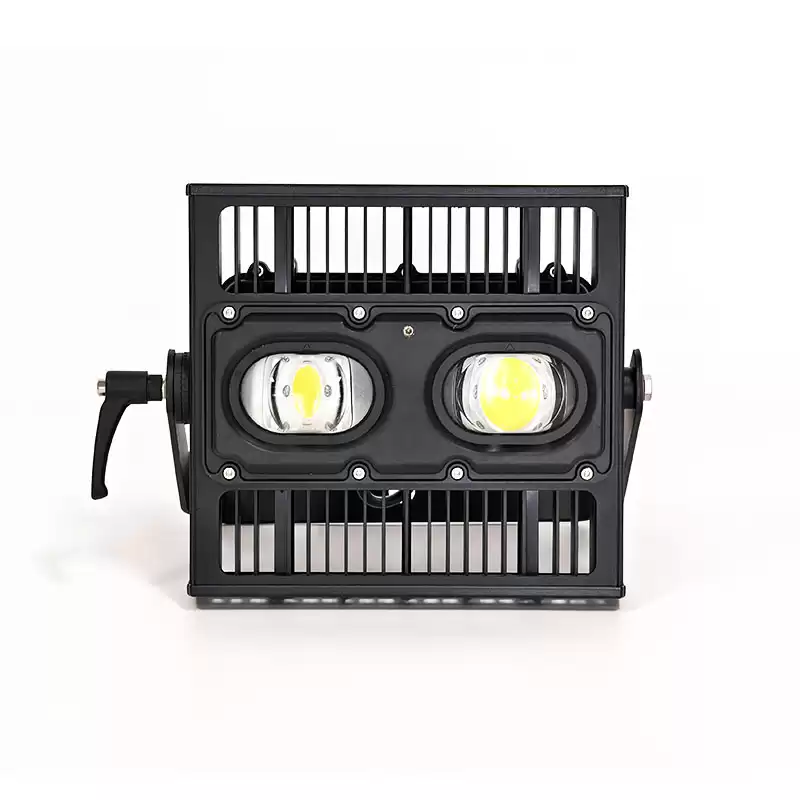

Unlike SMD layout, COB model uses two large LED chips lenses, leaving rest of the area as airducts, leading to a higher stability when facing strong wind due to its low EPA design.

Whatsmore, the floodlight is resistant to degradation and maintains over 95% of its performance even after three years of use (10 hours per day).



Specification

Model  KUH2-350
Power  350 W
Total Luminous Flux  52500 lm
Luminous Flux  42000 - 43750 lm
Voltage Range  AC 100~277 V
Frequency  50 / 60 Hz
Correlated Colour Temperature  5000 k
Colour Render Index  70 Ra
Protection  IP69K / IK10
Lens Type  Long Flood
Material  Aluminum Alloy
Dimensions  362×404×212 mm
Weight  8.2 kg

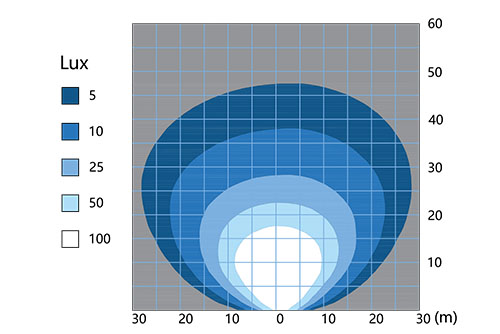

Brightness Distribution Diagram



Simulation Condition：

Floodlight：4pcs

Height：7M

Projecting Angle：70°

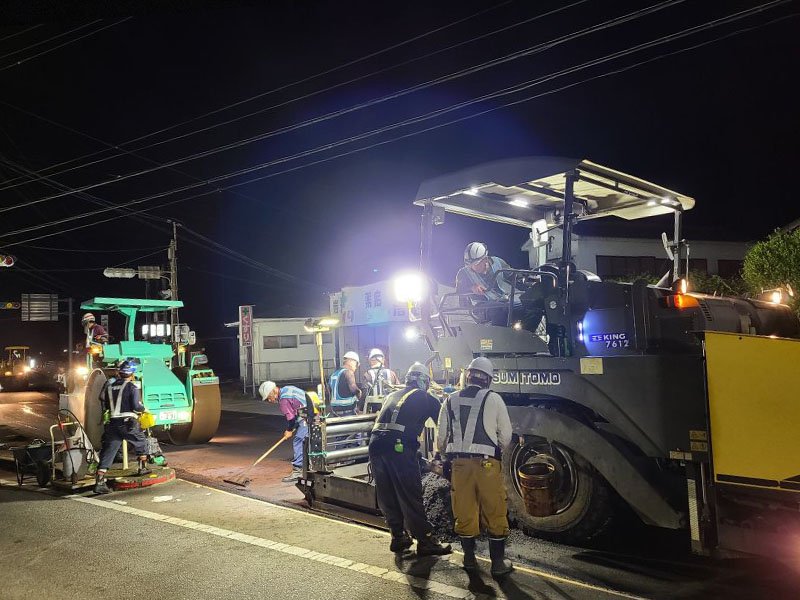

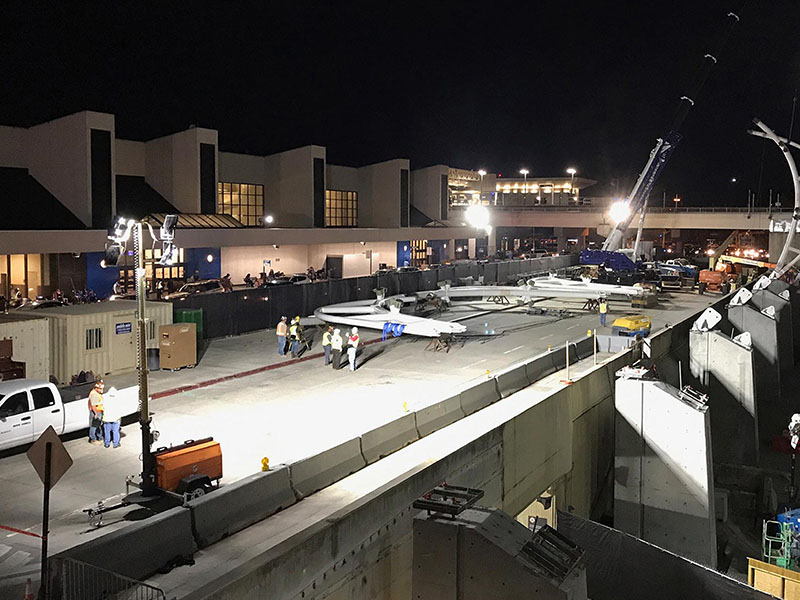

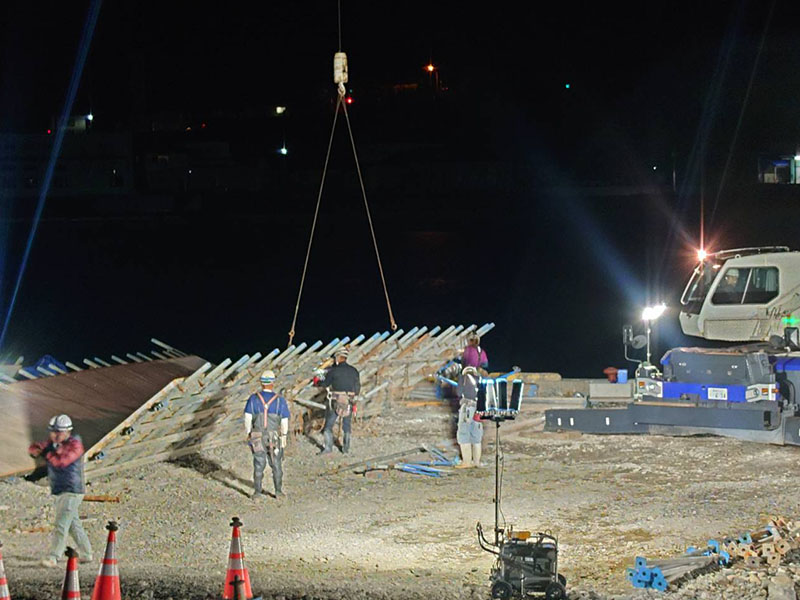

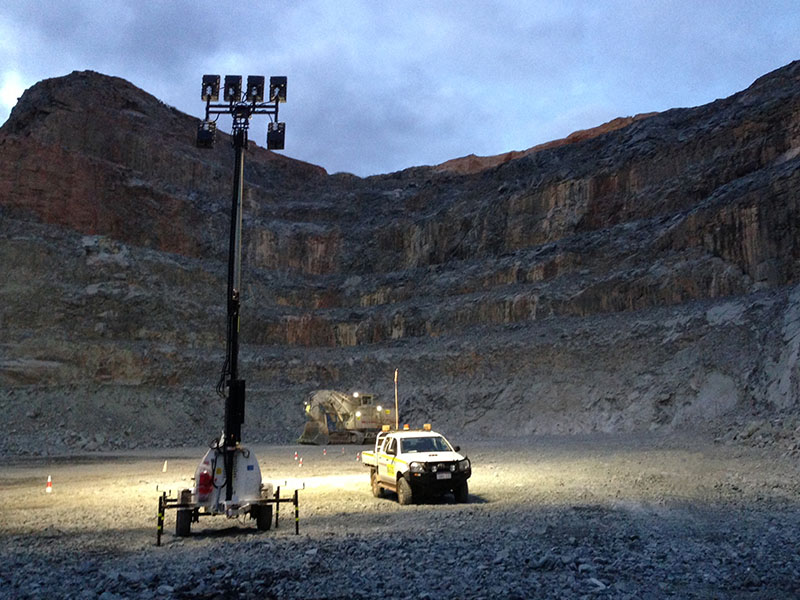

DESIGNED FOR USE IN :
