Performance Parameter

Light Source

Visible Laser diode ,650nm

Decode Capability

EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber, Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,etc.

Scanning Type

Single-line

Scan Rate

150 scans per second

Trigger Mode

Manual /continuous scan /auto-trigger (Optional )

Roll/Pitch/Yaw Angle

30° /65°/55°

Resolution

0.10mm(pcs 0.9)

Depth of scanning field

0-250mm（0.33mm.PCS 90%）

Print Contrast

30%,minimum reflective

Error Rate

1/5million

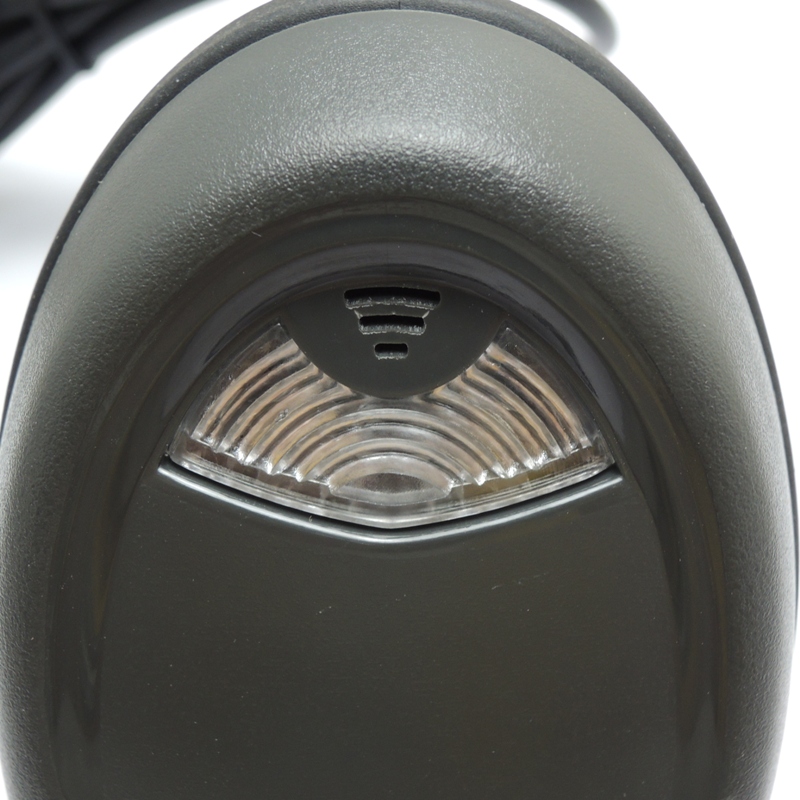

Indicator

LED,buzzer,loudspeaker

Interface Support

USB-HID,USB-COM,PS2,RS232

Physical Parameter

Dimension

L176mm*W100mm*H72mm

Weight

255g

Housing Materials

ABS+PC

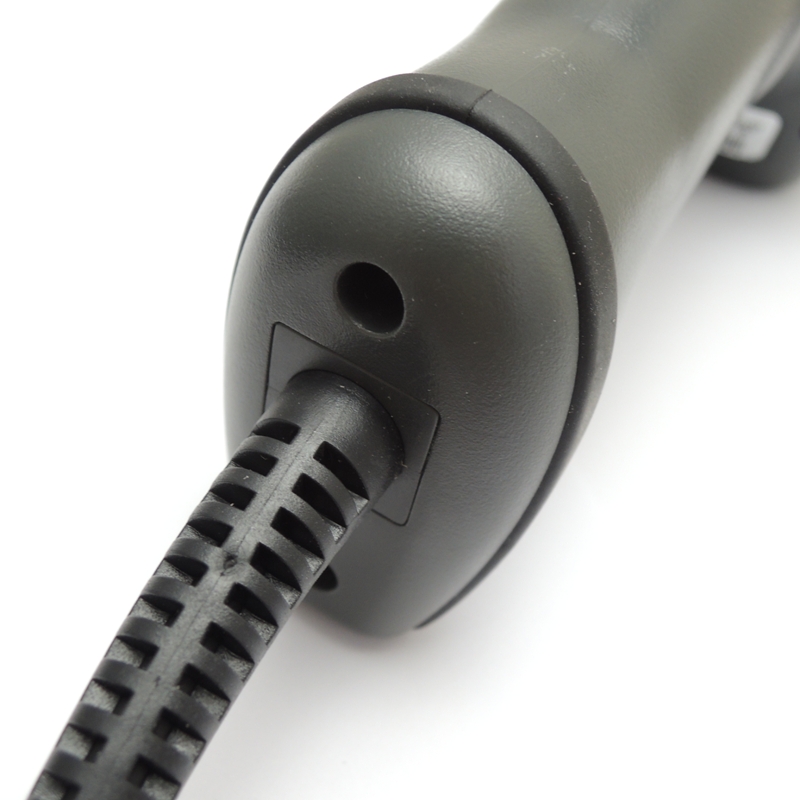

Cable Parameter

2M

Electrical Parameter

Voltage

DC 5V±1%

Current

85mA(Operating mode),36mA(Quiescent current)

Environmental Parameter

Operating Temperature

-20℃~50℃

Storage Temperature

-40℃~70℃

IP Level

IP54

Safety

Laser Safety

EN60825-1,Class 1 to National Laser Safety Standards

EMC Regulation

EN55022,EN55024

Certificate

ROHS ,CE , FCC

Impact Resistance

withstands multiple 3m drops to concrete
